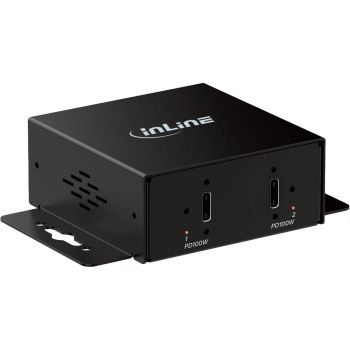

InLine® Industrial USB-C 2-Port Mini Charger, PD 200 W content_copy

2-port USB-C charger with 200 W for 12–24 V DC and Power DeliveryHigh charging power with a total output of 200 W: Supplies two USB-C devices simultaneously with up to 100 W per port via Power Delivery, enabling efficient fast charging for high-power applications.
Direct operation on 12–24 V DC: Utilises existing DC power sources without an additional power supply unit and is suitable for permanent integration into technical systems or mobile applications.
Dual USB-C with modern fast-charging technology: Supports Power Delivery 3.0 as well as PPS and other charging protocols for flexible and device-specific power supply.
Flexible connection options for easy integration: Features a 5.5 x 2.5 mm DC barrel connector and terminal block for various installation types in existing environments.
Robust design with protective functions: A metal housing, along with overcurrent protection, overvoltage protection and ESD protection, ensures reliable operation even under demanding conditions.
The InLine Industrial 2-Port Mini Charger offers a high-performance solution for charging USB-C devices via existing 12–24 V DC power sources. It is suitable for applications where a standard power socket is not available and direct integration into existing systems is required.
Technical Specifications
Interfaces
2x USB-C (charging ports)
1x DC input (5.5 x 2.5 mm)
1x 2-pin terminal block
Data transfer
No data transfer, charging function only
Power supply
Input voltage: 12–24 V DC (recommended)
Minimum: 10.5 V DC
Maximum: 28 V DC (do not exceed)
Maximum total power: 200 W
USB-C1: up to 100 W (PD 3.0, up to 20 V / 5 A)
USB-C2: up to 100 W (PD 3.0, up to 20 V / 5 A)
Note: The item is supplied without a power supply unit. A 24 V 10 A power supply unit is recommended. Alternatively, power supply units with a DC plug (5.5 x 2.5 mm) in the range of 12 V to 24 V can be used.
Note: The power source used must be capable of providing a higher power output than the sum of the connected loads to ensure stable operation.
Protection functions
Overcurrent protection
Overvoltage protection
ESD protection
Compatibility / Charging protocols and power profiles

USB-C1 (up to 100 W):
USB Power Delivery 3.0 (PD3.0):
5 V / 3 A
9 V / 3 A
12 V / 3 A
15 V / 3 A
20 V / 5 A
PPS (Programmable Power Supply): 3.3–21 V
Supported protocols: QC4+, SCP, AFC, FCP, Apple 2.4A, BC1.2
USB-C2 (up to 100 W):
USB Power Delivery 3.0 (PD3.0):
5 V / 3 A
9 V / 3 A
12 V / 3 A
15 V / 3 A
20 V / 5 A
PPS (Programmable Power Supply): 3.3–21 V
Supported protocols: QC4+, SCP, AFC, FCP, Apple 2.4A, BC1.2
Housing
Metal housing
Environmental conditions
Operating temperature: -20 °C to +70 °C
Storage temperature: 0 °C to +60 °C
Humidity: 10–85% (non-condensing)
Contents
1x InLine Industrial 2-Port Mini Charger, USB-C, PD 200 W
1x Mounting kit
1x Terminal block
1x User manual (German / English)

Other features
Dimensions (WxDxH)	75 x 90 x 23 mm
Packaging data
Package width	110 mm
Package depth	155 mm
Package height	40 mm
Package volume	700 cm³
Package weight	234 g
Performance
Wireless charging
Technical data
Packaging volume	0.0007m³
Net weight	0.166kg
Outputs	2x USB-C
Article width	7.50cm
Length packaging	0.155m
Article height	2.30cm
Type	USB charging set
Output voltage	5.0 V DC - 20.0 V DC
Max. power	200W
USB-C	2
Weight	0.234kg
Height packaging	0.040m
Width packaging	0.110m
Article length	9.00cm
Quick Charge
GaN
Wireless Charging
Display
Power Delivery
Weight & dimensions
Width	75 mm
Depth	90 mm
Height	23 mm
Weight	166 g

---
