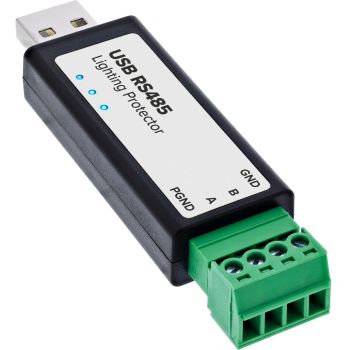

InLine® USB to serial RS485 Converter with lightning protection content_copy

USB to RS485 Converter with surge protection for reliable serial communicationReliable RS485 communication: The FTDI chipset enables a stable USB to RS485 connection via a virtual COM port. Ideal for Modbus RTU as well as control and automation applications.
High level of protection for connected devices: The integrated 6 kV lightning and surge protection in accordance with IEC 61000-4-5, as well as ESD protection, reduce the risk of damage caused by voltage spikes and electrostatic discharges.
Easy installation: The automatic hardware-based direction switching handles the transition between transmission and reception in half-duplex mode. No additional software configuration is required.
High flexibility: The 4-pin RS485 screw terminal, the integrated 120 Ω terminating resistor and cable lengths of up to approx. 1.2 km enable versatile use in serial RS485 networks.
Wide compatibility: Supports Windows 7, 8, 8.1, 10 and 11, as well as Linux, macOS and Android. Status LEDs for operation, transmission and reception simplify commissioning and diagnostics.
The InLine USB to RS485 Converter with integrated lightning protection reliably connects computers with a USB-A port to RS485 devices and bus systems. It is suitable for communication via a virtual COM port and supports, amongst other things, Modbus RTU as well as numerous other serial applications.
The high-quality FTDI chipset ensures stable data transmission at baud rates from 300 to 512,000 bps. Automatic direction switching in half-duplex mode is handled entirely by the hardware. This means that no additional software configuration is required.
The integrated protection circuit, featuring 6 kV surge and lightning protection in accordance with IEC 61000-4-5, a bidirectional TVS protection diode and ESD protection, safeguards the RS485 interface against voltage spikes and electrostatic discharges. The PGND connection, which is galvanically isolated from the signal ground, enables the safe connection of cable shields or protective earth connections.
An integrated 120 Ω terminating resistor reduces signal reflections on longer bus lines. With support for Windows, Linux, macOS and Android, the Converter is suitable for a wide range of applications in automation, measurement and control technology, and energy monitoring.
Product type: USB to RS485 serial Converter with lightning protection
Chipset: FTDI FT232RNL
Host connection: USB-A
Device connection: RS485 screw terminal
Pin configuration: GND, A, B, PGND (ground, RS485+, RS485−, protective earth)
Baud rate: 300 to 512,000 b/s
Transmission mode: Half-duplex with automatic direction switching
Maximum RS485 cable length: up to approx. 1.2 km
Maximum USB cable length: up to approx. 5 m
Bus participants: up to 32 devices per bus segment (an RS485 repeater is recommended for larger networks)
Terminating resistor: integrated 120 Ω terminating resistor
Lightning protection: 6 kV surge and lightning protection in accordance with IEC 61000-4-5
TVS protection: bidirectional TVS protection diode for RS485 A/B
ESD protection: ±15 kV air discharge / ±8 kV contact discharge
PGND connection: Protective earth connection (Protective Ground), galvanically isolated from the signal ground
USB protection: 200 mA PTC fuse, ESD protection
RS485 protection: Protective diodes, overvoltage protection, resettable fuse
Status indicators: PWR, TXD, RXD (Power, Transmit, Receive)
Supported operating systems: Windows 7 / 8 / 8.1 / 10 / 11, Linux, macOS, Android
Operating temperature: -40 °C to +85 °C
Humidity: 5 % to 95 % RH, non-condensing

Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	-15 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
Package type	Polybag
Software
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows 11, Windows 10, Windows XP
Mac operating systems supported	MacOS
Mac compatibility
Technical data
Height packaging	0.022m
Weight	0.033kg
Side A	RS485 female with Lightning Protector
Packaging volume	0.0004m³
Side B	USB-A male
Article width	2.20cm
Variant	Supports serial port
Article height	1.10cm
Width packaging	0.100m
Net weight	0.014kg
Article length	7.80cm
Length packaging	0.165m
Supported OS	Windows, Mac OS, Linux, Android
Technical details
Host interface	USB 2.0
Output interface	RS-232
Connector 1	USB Type-A
Connector 2	Terminal block
Connector gender	Male/Female
RS-232 signals	GND, Tx, Rx
Isolation	2.5 kV
Electrostatic Discharge (ESD) protection	15 kV
RS-485 signals	GND
Baud rate	512 Kbit/s
Product colour	Black
Chipset	FTDI FT232RNL
Package volume	400 cm³
Weight & dimensions
Width	22 mm
Depth	78 mm
Height	11 mm
Weight	14 g
Package width	100 mm
Package depth	165 mm
Package height	22 mm
Package weight	33 g
Dimensions (WxDxH)	22 x 78 x 11 mm

---
