InLine® USB to serial RS232 Converter, USB-A to 4-pin terminal content_copy

USB-to-RS232 converters for configuration, diagnostics and serial data transmissionReliable RS232 communication: The USB-to-serial RS232 Converter connects computers with a USB-A port to devices via a 4-pin screw terminal. The FTDI chipset enables stable data transmission via a virtual COM port and supports baud rates from 300 to 921,600 bps.
Simple wiring: The GND, TX, RX and an additional GND pin facilitate connection to RS232 devices. The two GND pins are internally connected and can also be used for ground connections or cable shielding.
High compatibility: Supports Windows 7, 8, 8.1, 10 and 11, as well as Linux, macOS and Android. This allows the Converter to be used flexibly with numerous systems and existing software.
Safe operation: USB protection with a 200 mA PTC fuse and ESD protection, as well as RS232 protection via a TVS diode and protective diodes, contribute to reliable operation and the protection of connected devices.
Versatile: Suitable for configuration, diagnostics, maintenance and data transfer for devices with an RS232 interface. Ideal for measuring instruments, laboratory equipment, network components, machine controls and other serial applications.

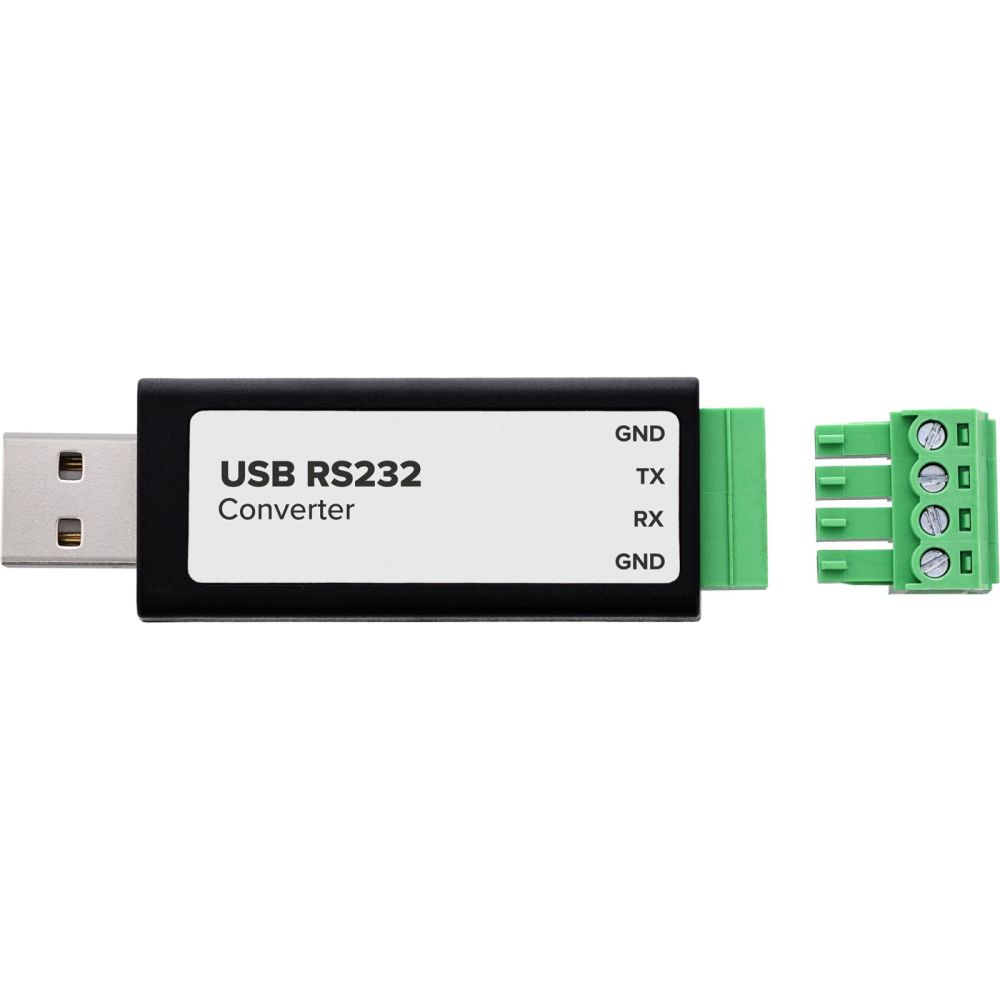

The InLine USB to Serial RS232 Converter connects modern computers with a USB-A port to devices that still use a serial RS232 interface. The signal lines GND, TX and RX are connected via the 4-pin screw terminal. An additional GND terminal is available for further ground connections or cable shielding.
The integrated FTDI FT232RNL chipset provides a virtual COM port and supports baud rates from 300 to 921,600 b/s. This often allows existing software to continue to be used without modification.
Integrated protection circuits on both the USB and RS232 sides ensure reliable operation. Status indicators for operation as well as transmission and reception activity make it easier to monitor communication.
The Converter is suitable for the configuration, diagnostics, maintenance and data transfer of RS232 devices such as measuring and laboratory equipment, network components or machine controls.
Product type: USB to RS232 converter
Chipset: FTDI FT232RNL
Host connection: USB-A
Device connection: RS232 screw terminal
Pin configuration: GND, TX, RX, GND (ground, transmit, receive, additional ground)
Baud rate: 300 to 921,600 bps
Transmission mode: Point-to-point
Maximum RS232 cable length: up to approx. 15 m
Maximum USB cable length: up to approx. 5 m
USB protection: 200 mA PTC fuse, ESD protection
RS232 protection: TVS diode, protective diodes

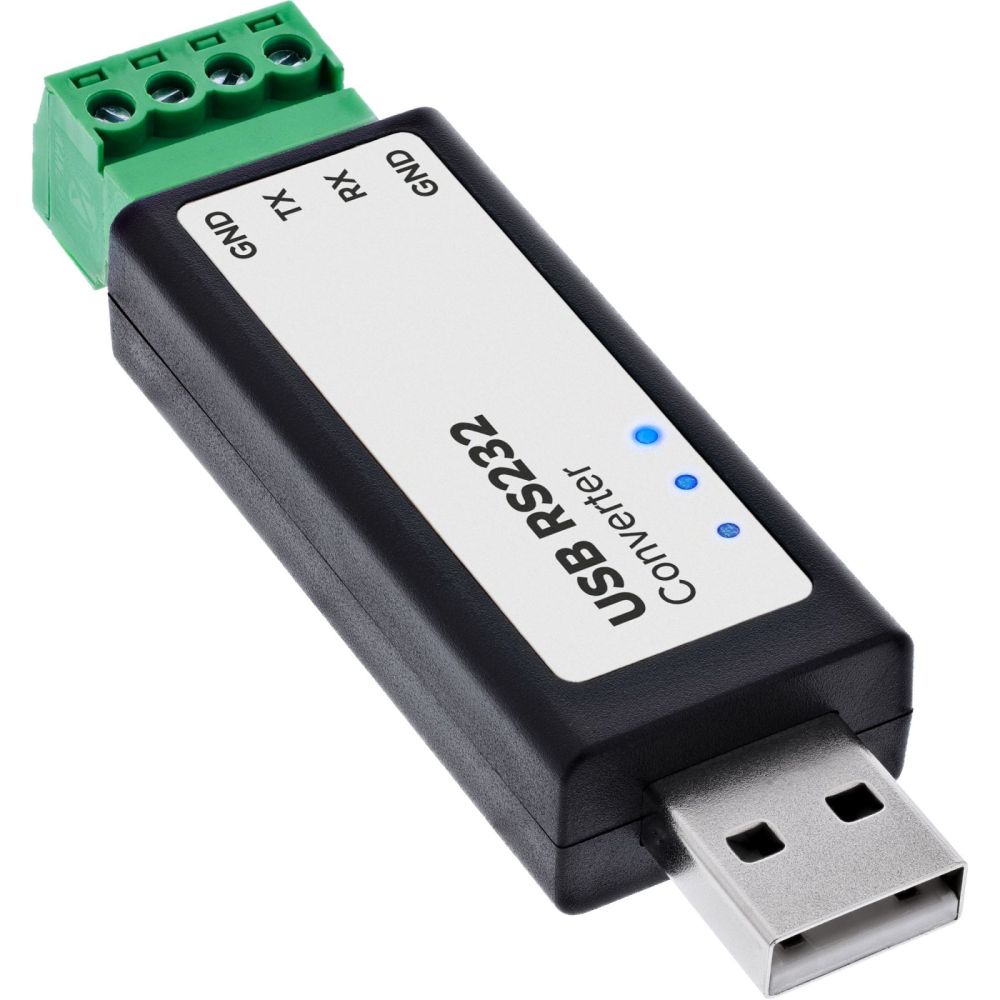

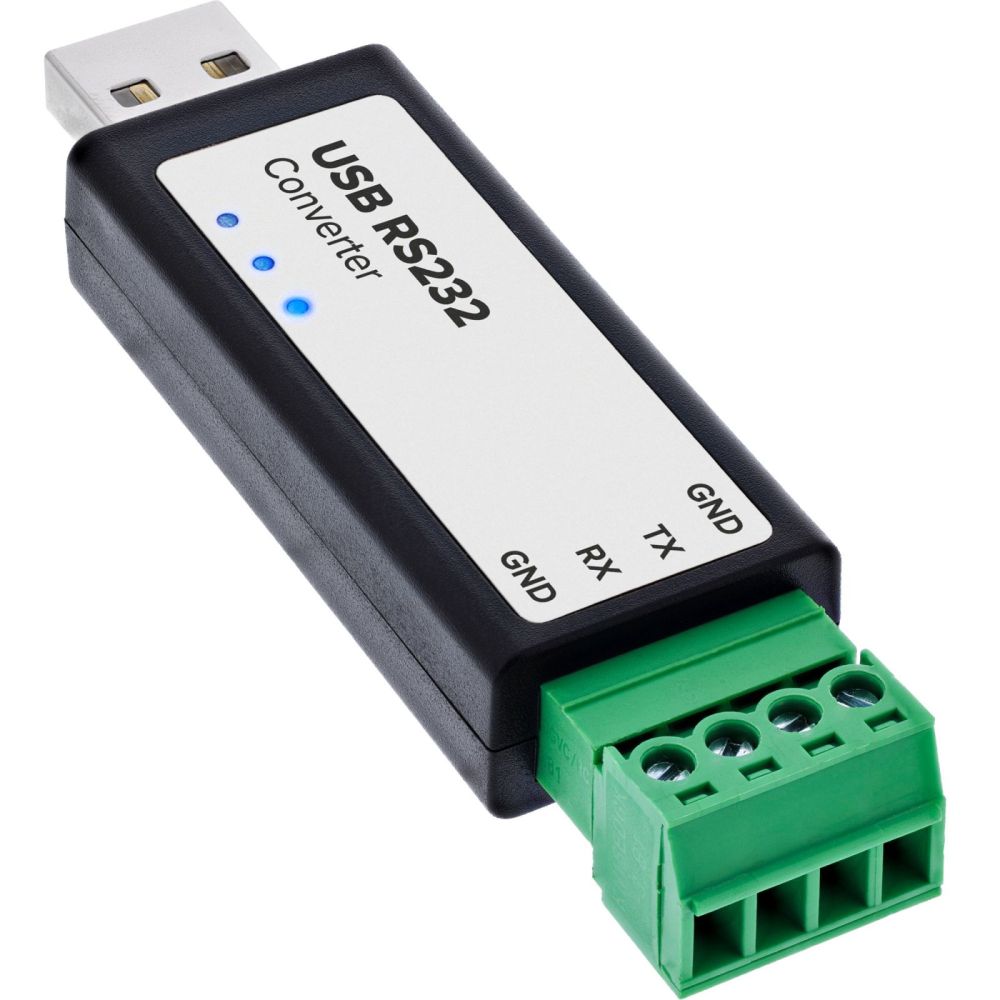

Status indicators: PWR, TXD, RXD (Power, Transmit, Receive)
Supported operating systems: Windows 7 / 8 / 8.1 / 10 / 11, Linux, macOS, Android
Operating temperature: -15 °C to +70 °C
Humidity: 5 % to 95 % RH, non-condensing

Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	-15 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content

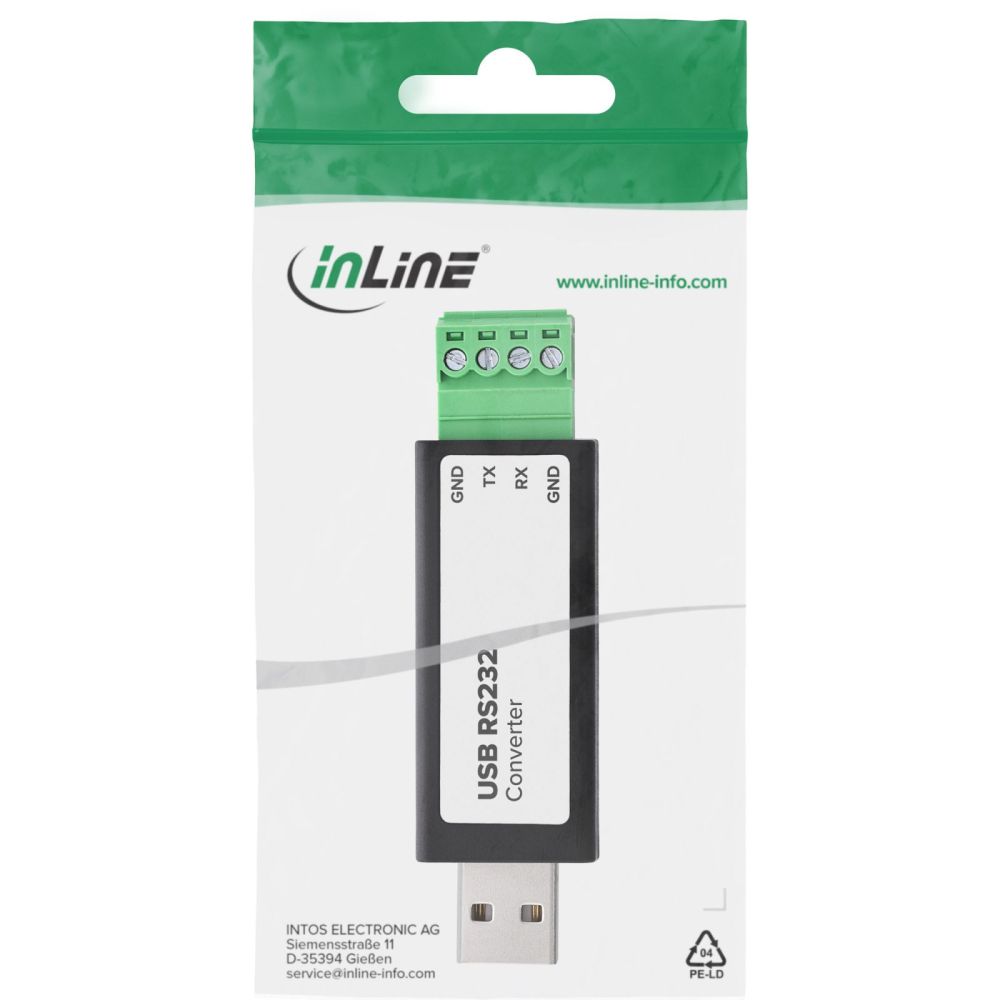

Package type	Polybag
Software
Windows operating systems supported	Windows 7, Windows 8, Windows 8.1, Windows 11, Windows 10
Mac operating systems supported	MacOS
Mac compatibility
Technical data
Supported OS	Windows, Mac OS, Linux, Android
Height packaging	0.022m
Weight	0.033kg
Width packaging	0.100m
Side A	RS232 female
Article length	7.80cm
Net weight	0.014kg
Length packaging	0.165m
Packaging volume	0.0004m³
Side B	USB-A male
Article width	2.20cm
Variant	Supports serial port
Article height	1.10cm
Technical details
Host interface	USB 2.0
Output interface	RS-232
Connector 1	USB Type-A
Connector 2	Terminal block
Connector gender	Male/Female
RS-232 signals	GND, Tx, Rx
Baud rate	921.6 Kbit/s
Product colour	Black
Chipset	FTDI FT232RNL
Package volume	400 cm³
Weight & dimensions
Width	22 mm
Depth	78 mm
Height	11 mm
Weight	14 g
Package width	100 mm
Package depth	165 mm
Package height	22 mm
Package weight	33 g
Dimensions (WxDxH)	22 x 78 x 11 mm

---
