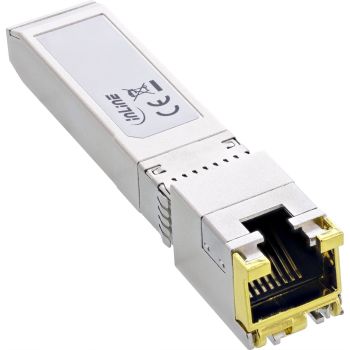

InLine® SFP module 1000Base-T with RJ-45 socket, 100m, 1Gb/s content_copy

RJ-45 for Gigabit copper connections: Direct connection via Cat.5/6/6a – no fibre optic cable required.
1 Gb/s data rate: Ideal for PCs, NAS, switches or routers – easy to retrofit.
Up to 100 m range: For structured networks, patch panels or server cabinets.
Low power consumption: Only 0.5 W – perfect for energy-optimised network environments.
MSA compatible & hot-plug capable: Works in many switches and SFP-enabled devices.
The InLine SFP Module 32335V offers you a practical and easy way to implement classic network connections with up to 1 Gb/s directly via RJ-45. Ideal for workstations, switches, NAS systems or technical rooms – without fibre optics or additional converters.
With a range of up to 100 m via Cat.5/6/6a cables, the module is suitable for structured IT environments in companies, schools or private home networks.
Thanks to its hot-plug function and MSA compatibility, it can be used in many switches and routers during operation – without any special software or drivers. Its low power consumption makes it particularly efficient.
Compatible with auto-negotiation and crossover detection, it adapts flexibly to your network devices. Just plug it in – done!
Experience the power of the perfect connection – with InLine.
Form factor: SFP module
Network standard: 1000BASE-T (also 100BASE-TX, 10BASE-T)
Connector type: RJ-45
Bandwidth: up to 1 Gb/s
Cable length: up to 100 m (Cat.5/6/6a)
Auto-negotiation & crossover detection: Yes
Hot-plug capable: Yes
Power consumption: approx. 0.5 W
MSA compatible: Yes
Temperature range: 0 °C to +70 °C
DDM monitoring: Not available

Certificates
Compliance certificates	CE, TÜV mark
Features
Housing material	Metal
Hot-Plug support
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Other features
Dimensions (WxDxH)	68 x 0.23 x 13 mm
Packaging data
Package width	60 mm
Package depth	120 mm
Package height	10 mm
Package volume	0 cm³
Package weight	22 g
Performance
SFP transceiver type	Copper
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Fiber optic connector	RJ-45
Maximum transfer distance	100 m
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.3ab
Copper ethernet cabling technology	10BASE, 100BASE, 1000BASE
Power
Input voltage	3.3 V
Power consumption (typical)	0.5 W
Technical data
Width packaging	0.060m
Coding	CISCO
Number of ports	1
Length packaging	0.120m
Article width	1.30cm
Transmission speed	10/100/1000Mb/s
Net weight	0.022kg
Type	SFP module
Height packaging	0.010m
Variant	Ethernet
Max. distance	100m
Article length	6.80cm
Article height	1.30cm
Weight	0.023kg
Weight & dimensions
Width	68 mm
Depth	0.23 mm
Height	13 mm
Weight	1.3 kg

---
