InLine® PoE+ Gigabit Network Switch 5 Port (4x PoE+), 1xSFP, 1Gb/s, desktop content_copy

Easily expand Gigabit networks and power PoE devicesPower and data over one cable: 4x PoE+ ports deliver up to 30 W per port, total power 65 W.
Flexible uplink option: 1000Base-X SFP port for 1.25 Gb/s modules.
More range when needed: mode up to 250 m over patch cable at 10 Mb/s (ports 3 and 4).
Ready to use immediately: 5x RJ45 with 10/100/1000 Mb/s, auto-negotiation and auto-MDI/MDI-X.
Quick status check: LEDs for Power, Mode and Ports.

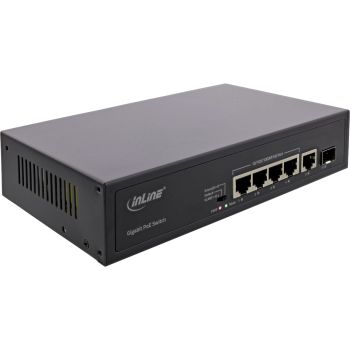

This compact desktop switch upgrades existing networks to Gigabit and powers PoE-capable devices directly over the existing patch cable. Four PoE+ ports provide power for IP cameras, IP phones and access points, while the SFP uplink with 1000Base-X modules enables connectivity over longer distances.
In professional IT environments and on-site installations, the selectable operating mode supports clean segmentation through VLAN port isolation or an increase in range, for example at distributed camera locations. The plug-and-play design facilitates deployment in service and in existing infrastructures of companies and public institutions.
Ports: 4x 10/100/1000Base-T RJ45 PoE+, 1x 10/100/1000Base-T RJ45, 1x 1000Base-X SFP
Data rate RJ45: 10/100/1000 Mb/s
Data rate SFP: 1.25 Gb/s
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x flow control, IEEE 802.3af PoE, IEEE 802.3at PoE+
Modes: normal mode; VLAN port isolation (ports 1-4); extended range up to 250 m at 10 Mb/s (ports 3 and 4)
PoE power supply: endspan
PoE output voltage: 52 V DC per port
PoE output power: 30 W per port
Total power: 65 W
LED indicators: Power, Mode, Port (1-6)
Dimensions: 20.2 x 12 x 4.5 cm
Weight: approx. 616 g
Input voltage: 100-240 V AC, 50/60 Hz
Environment: operation 0-40 °C; storage -20-70 °C; humidity 20-95 % non-condensing
Form factor: desktop
Scope of delivery: switch, manual (German/English), power cord, 4 rubber feet

Certificates
Compliance certificates	cTUVus
Design
Product colour	Black
LED indicators
Management features
Switch type	Unmanaged
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Port-based VLAN
10G support
Auto MDI/MDI-X
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 95%
Other features
Dimensions (WxDxH)	200 x 9.52 x 120 mm
Packaging content
Cables included	AC
Manual
Packaging data
Package width	195 mm
Package depth	250 mm
Package height	62 mm
Package volume	3100 cm³
Package weight	635 g
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	1
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) voltage	52 V
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	65 W
Power over Ethernet (PoE)
Sustainability
Sustainability compliance
Technical data
Net weight	0.635kg
Design	Desktop
Weight	0.952kg
Article length	20.00cm
Fibre optics	1x SFP
Article height	4.50cm
Article width	12.00cm
Width packaging	0.195m
PoE	PoE+
Packaging volume	0.0031m³
Number of ports	5
Length packaging	0.250m
Transmission speed	10/100/1000Mb/s
Type	Desktop switch
Height packaging	0.062m
Fans
Managed
Weight & dimensions
Width	200 mm
Depth	9.52 mm
Height	120 mm
Weight	4.5 kg

---
