INLINE PoE+ gigabit network switch 24 port 1GBit/s 2x SFP 19inch brackets included metal fan conrrol with display 420W
|
294,13 EUR |
|
|
( 350,01 EUR incl. VAT ) ≈ £247.07 | ≈ $330.01 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1281689 |
| Mfg Part No: | 32324P |
| UPC/EAN: | 4043718277810 |
| Weight: | 3.958 kg |

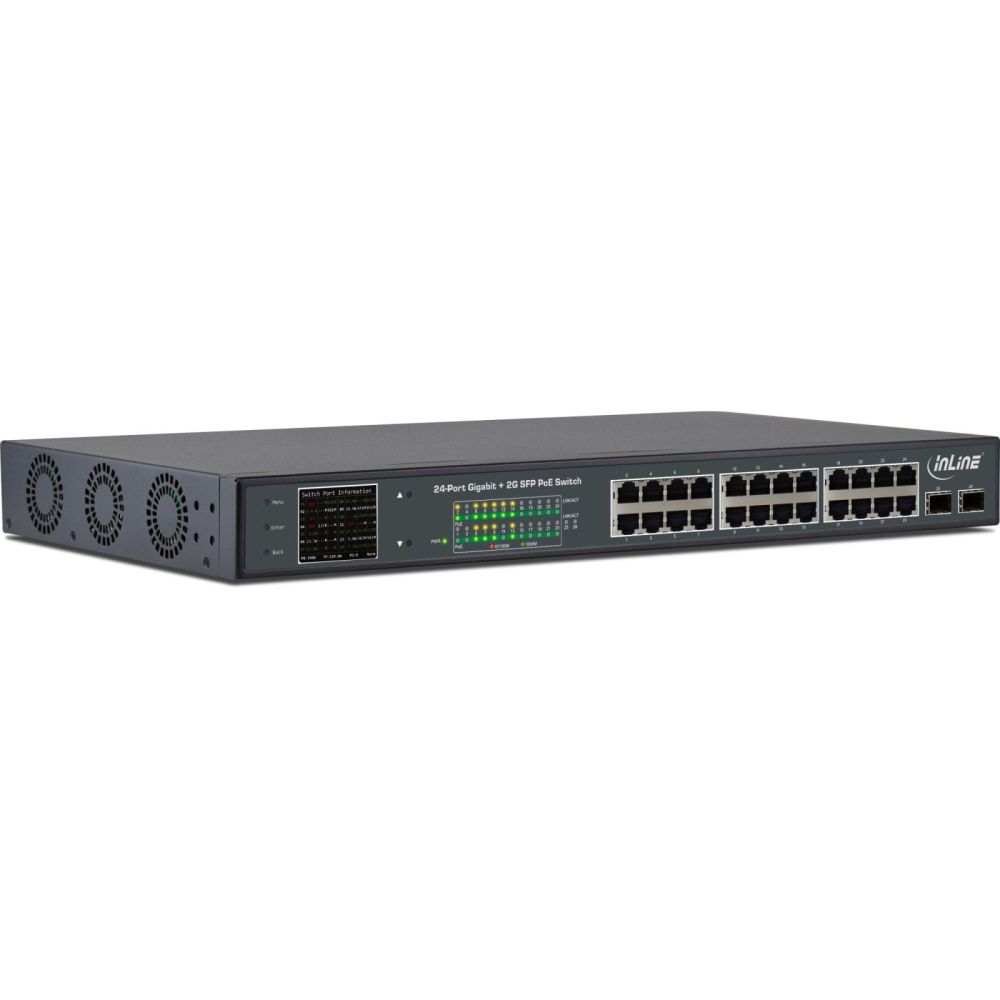

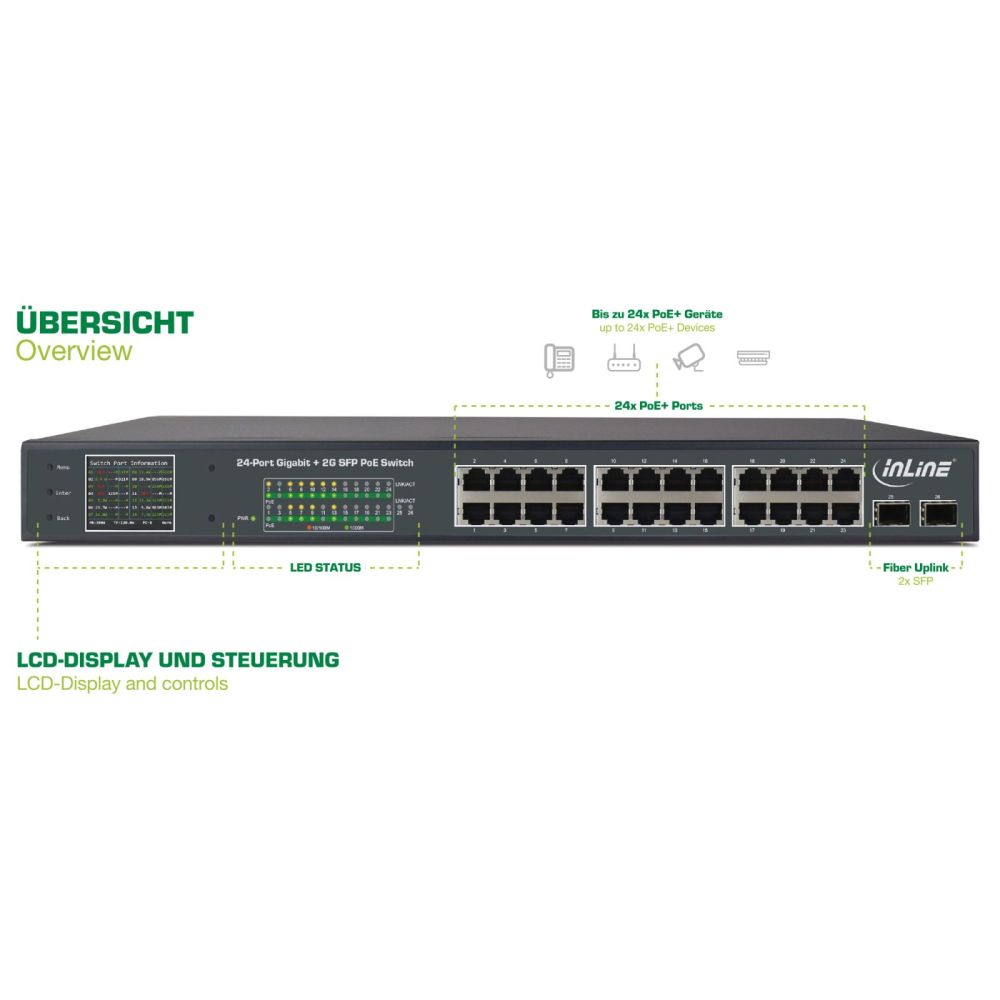

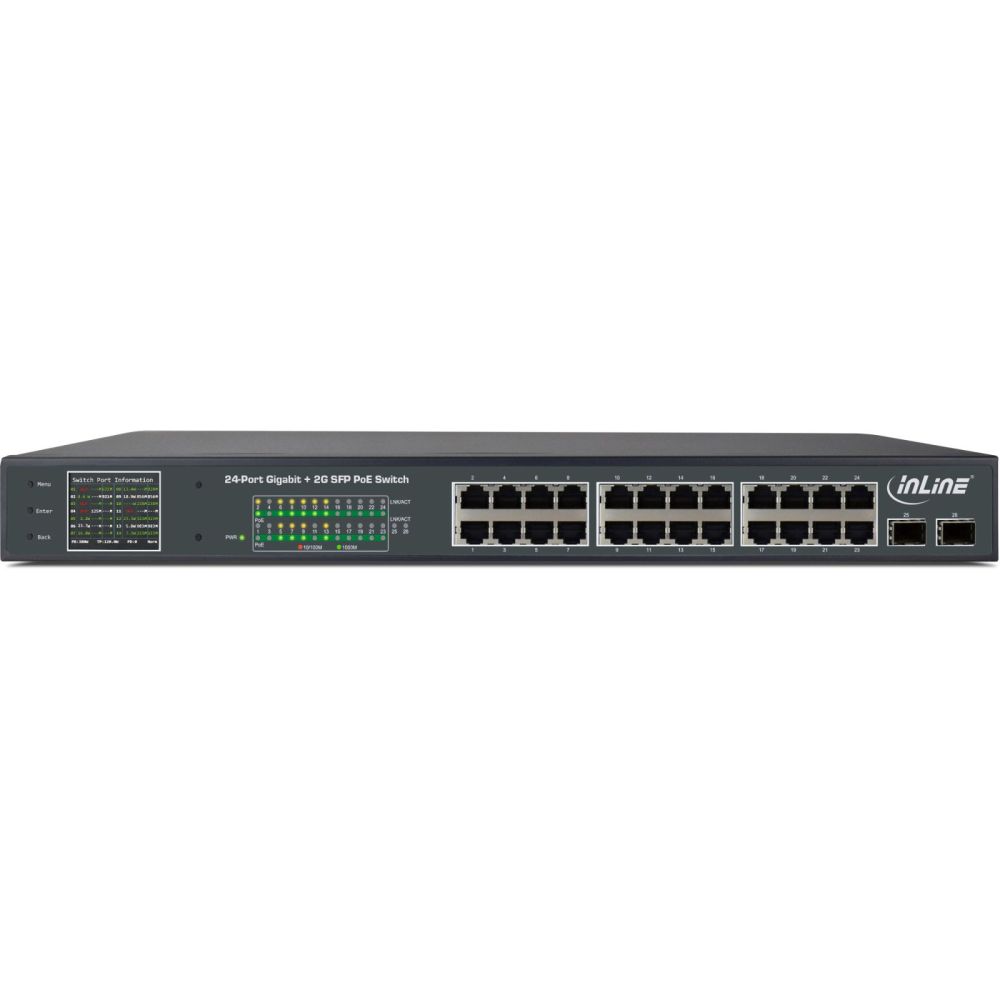

Product information for Inline 32324P:
PoE+ switch with 24 ports and LC display for efficient network power supplyComprehensive PoE power supply: Up to 32 W per port according to IEEE 802.3af/at, PoE budget 380 W for up to 24 end devices.
Direct control on the LC display: Per-port status in real time and settings for mode, prioritization and port power.
Gigabit uplinks via fiber: 2x SFP reliably connect remote segments.
High packet performance under load: 52 G switching capacity, 38.69 Mpps and jumbo frames 9216 bytes.
More safety in operation: Protection against overload, overvoltage and overheating per port, surge protection ± 6 kV.
With this PoE+ Gigabit switch you expand your network with reliable power over Ethernet while creating flexible uplink options. You operate IP cameras, wireless access points and other PDs directly via the network cable and reduce additional cabling and outlet requirements. A PoE budget of 380 W and up to 32 W per port provides reliable power, while two SFP slots enable Gigabit connections over longer distances.
In professional IT environments and on-site installations, the LC display accelerates setup and monitoring. Mounting in a 19 inch rack (1 U, mounting brackets included) fits ideally into existing infrastructures of companies and public institutions as well as in service deployments; selectable modes such as Normal, VLAN and CCTV support port isolation, prioritized power and distances up to 250 m at 10 Mb/s.
Ports: 24x 10/100/1000Base-T RJ45 (Auto-MDI/MDI-X), 2x SFP 1000 Mb/s
PoE: IEEE 802.3af/at, ports 1-24, up to 32 W per port, budget 380 W
Total power: 420 W
Display: LC display (PoE operating status), LEDs: PWR, LNK/ACT PoE
Switching capacity: 52 G
Forwarding rate: 38.69 Mpps
Jumbo frame: 9216 bytes
Packet buffer: 4.1 Mbit
MAC table: 8 K, automatic learning, automatic updates
Forwarding method: store-and-forward
Operating modes: Normal, VLAN (port isolation with uplink communication), CCTV (up to 250 m at 10 Mb/s)
PD features: type selection (Advanced/Standard/Legacy), reboot per port
PSE features: power allocation, port prioritization (high/medium/low), port power 8-32 W in 2 W steps, port on/off
Fan control: always on, 20 % PB, 40 % PB
Standards: IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Network cables: 10BASE-T UTP category 3/4/5 (Number of fans: 3
Dimensions: 440 x 232 x 45 mm
Weight: approx. 3.7 kg

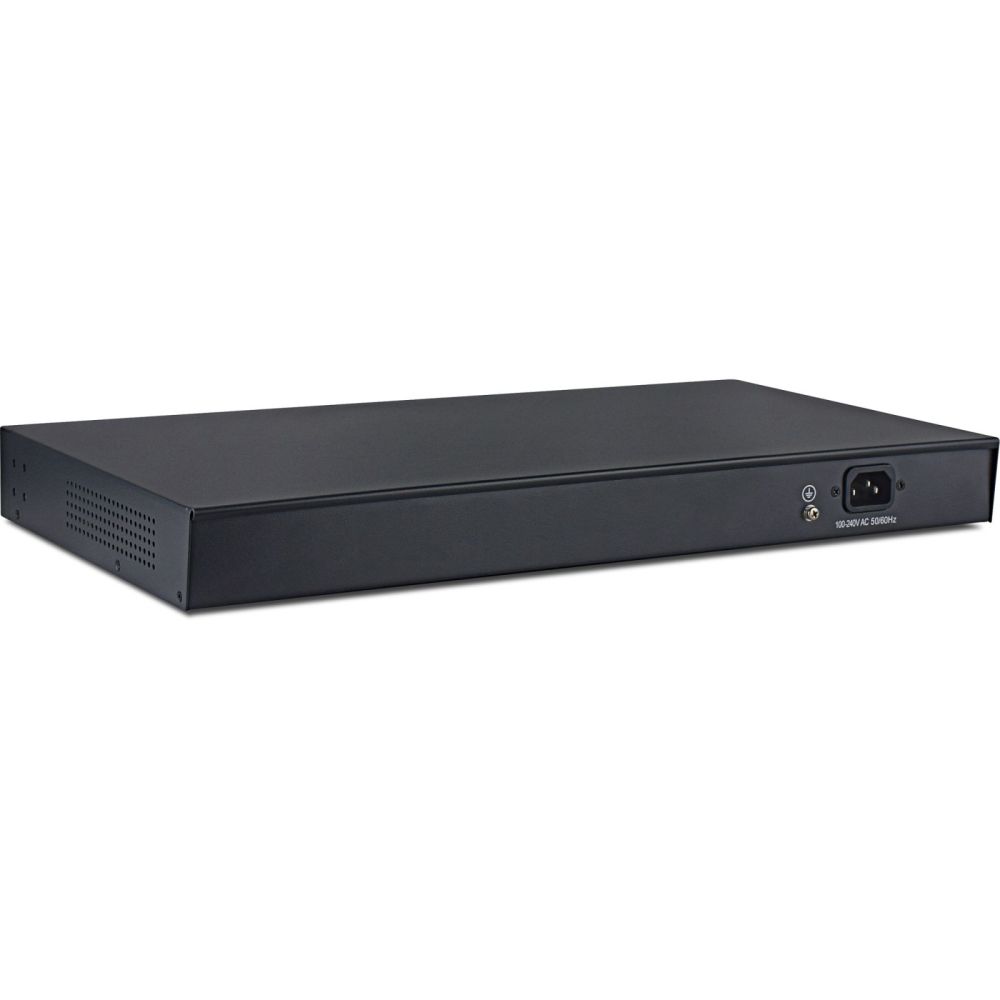

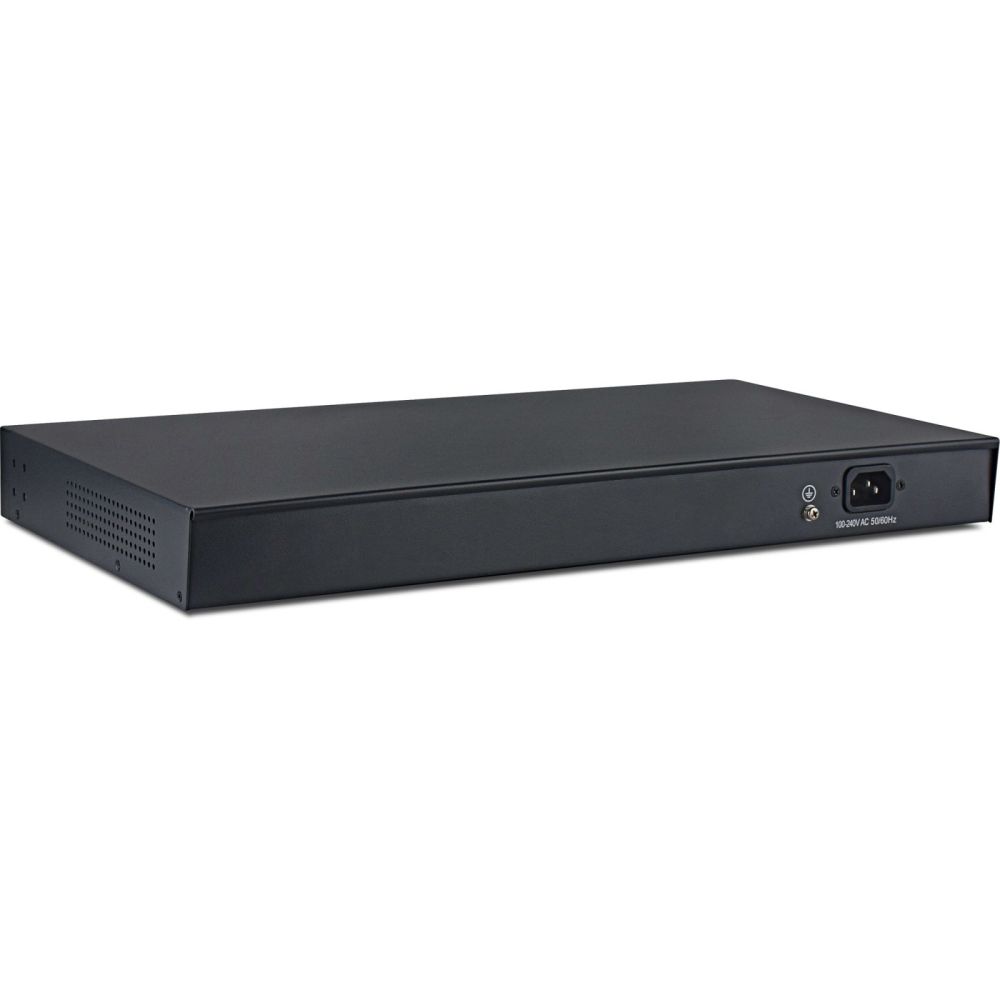

Power supply: 100-240 V AC, 50/60 Hz
Environment: operation -10-60 °C; storage -40-70 °C; humidity operation 10-90 % non-condensing; storage 5-90 % non-condensing
Surge protection: ± 6 kV
Direct control on the LC display: Per-port status in real time and settings for mode, prioritization and port power.
Gigabit uplinks via fiber: 2x SFP reliably connect remote segments.
High packet performance under load: 52 G switching capacity, 38.69 Mpps and jumbo frames 9216 bytes.
More safety in operation: Protection against overload, overvoltage and overheating per port, surge protection ± 6 kV.
With this PoE+ Gigabit switch you expand your network with reliable power over Ethernet while creating flexible uplink options. You operate IP cameras, wireless access points and other PDs directly via the network cable and reduce additional cabling and outlet requirements. A PoE budget of 380 W and up to 32 W per port provides reliable power, while two SFP slots enable Gigabit connections over longer distances.
In professional IT environments and on-site installations, the LC display accelerates setup and monitoring. Mounting in a 19 inch rack (1 U, mounting brackets included) fits ideally into existing infrastructures of companies and public institutions as well as in service deployments; selectable modes such as Normal, VLAN and CCTV support port isolation, prioritized power and distances up to 250 m at 10 Mb/s.
Ports: 24x 10/100/1000Base-T RJ45 (Auto-MDI/MDI-X), 2x SFP 1000 Mb/s
PoE: IEEE 802.3af/at, ports 1-24, up to 32 W per port, budget 380 W
Total power: 420 W
Display: LC display (PoE operating status), LEDs: PWR, LNK/ACT PoE
Switching capacity: 52 G
Forwarding rate: 38.69 Mpps
Jumbo frame: 9216 bytes
Packet buffer: 4.1 Mbit
MAC table: 8 K, automatic learning, automatic updates
Forwarding method: store-and-forward
Operating modes: Normal, VLAN (port isolation with uplink communication), CCTV (up to 250 m at 10 Mb/s)
PD features: type selection (Advanced/Standard/Legacy), reboot per port
PSE features: power allocation, port prioritization (high/medium/low), port power 8-32 W in 2 W steps, port on/off
Fan control: always on, 20 % PB, 40 % PB
Standards: IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Network cables: 10BASE-T UTP category 3/4/5 (Number of fans: 3
Dimensions: 440 x 232 x 45 mm
Weight: approx. 3.7 kg
Power supply: 100-240 V AC, 50/60 Hz
Environment: operation -10-60 °C; storage -40-70 °C; humidity operation 10-90 % non-condensing; storage 5-90 % non-condensing
Surge protection: ± 6 kV
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.69 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |

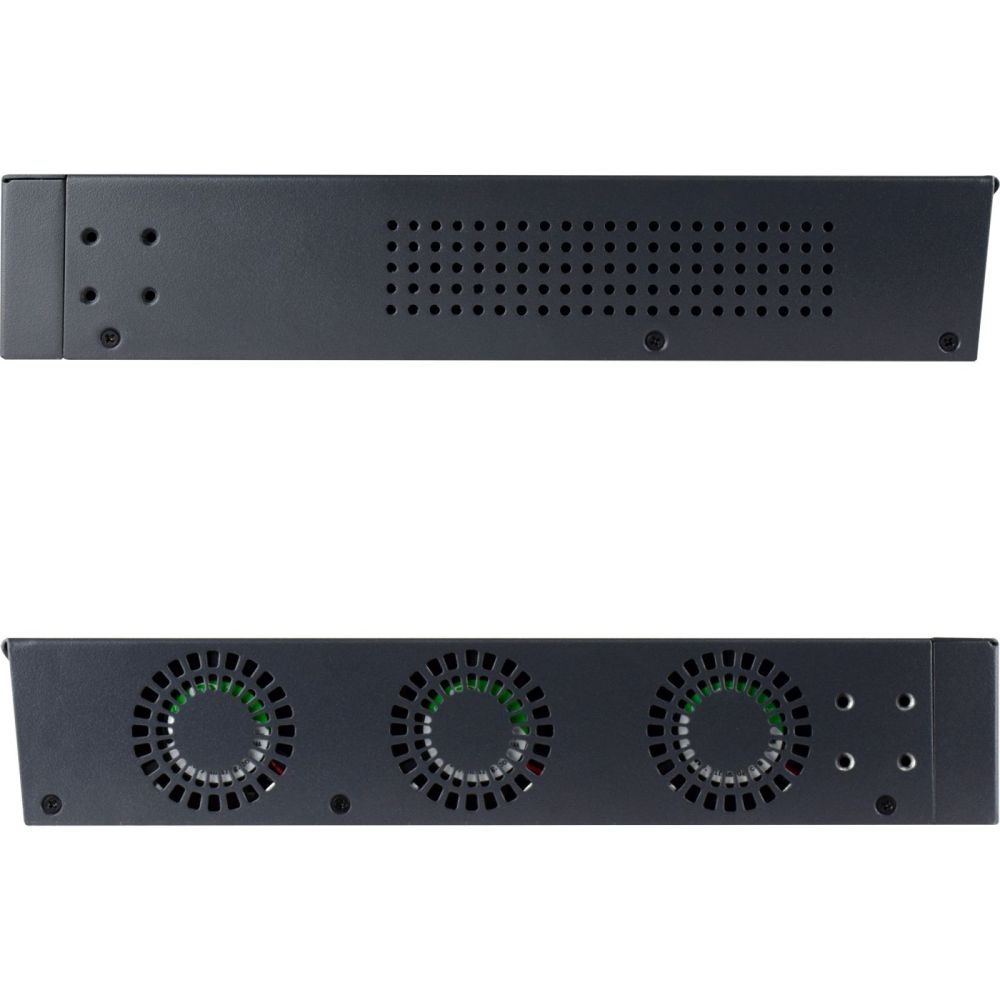

| Number of fans | 3 fan(s) |
| Rack mounting | |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | |
| Full duplex | |
| Flow control support | |
| MAC address auto-learning supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-SX |
| Other features | |
| Dimensions (WxDxH) | 440 x 39.58 x 230 mm |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 24 |
| Packaging content | |
| Cables included | AC |
| Manual | |
| Packaging data | |
| Package width | 320 mm |
| Package depth | 495 mm |
| Package height | 74 mm |
| Package volume | 11800 cm³ |
| Package weight | 3.7 kg |
| Performance | |
| Maximum data transfer rate | 1000 Mbit/s |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Fiber optic connector | SFP |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 32 W |
| Total Power over Ethernet (PoE) budget | 380 W |
| Power over Ethernet (PoE) | |
| Technical data | |
| Transmission speed | 10/100/1000Mb/s |
| Number of ports | 24 |
| Width packaging | 0.320m |
| Article width | 23.00cm |
| Type | 19" switch |
| PoE | PoE+ |
| Height packaging | 0.074m |
| Article height | 4.70cm |
| Weight | 3.958kg |
| Packaging volume | 0.0118m³ |
| Net weight | 3.700kg |
| Article length | 44.00cm |
| Fibre optics | 2x SFP |
| Length packaging | 0.495m |
| Fans | |
| Managed | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 39.6 mm |
| Height | 230 mm |
| Weight | 4.7 kg |
