InLine® Qi Powerstation multiport power supply, 4x USB-C, 2x USB-A, GaN, 100W content_copy

Centralised charging of multiple devices: Charge up to six USB devices simultaneously via USB Type-C and USB Type-A, as well as one additional device wirelessly. This reduces the number of power adapters and keeps your desk tidy.
High charging power with modern technology: The maximum total power of 100 W enables fast and efficient charging of even powerful devices. Power Delivery and Quick Charge ensure customised charging profiles.
Convenient wireless charging integrated: Use the integrated Qi charging surface to wirelessly charge compatible devices. Simply place your device on the surface and charge without having to use additional cables or charging adapters.
Efficient GaN technology: Modern GaN technology enables high performance in a compact design. Lower heat generation ensures stable operation even when charging multiple devices in parallel.
Safe everyday operation: Integrated overvoltage, short-circuit and temperature protection reliably protects connected devices. The status LED clearly indicates the operating status and wireless charging.

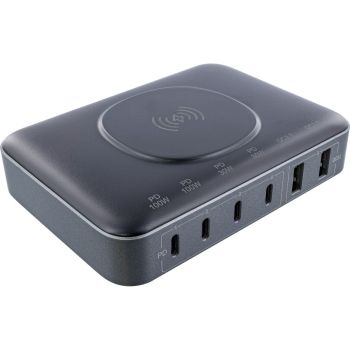

The InLine Qi Powerstation Multiport is a powerful desktop charging solution for the simultaneous operation of multiple USB devices. With four USB Type-C ports, two USB Type-A ports and integrated wireless charging function, up to seven devices can be charged in parallel. The maximum total power of 100 W ensures that even power-intensive devices are reliably supplied with energy.
Thanks to Power Delivery and Quick Charge support, efficient and adapted charging power is provided. The integrated Qi charging surface also enables convenient wireless charging of compatible devices. Simply place the device on the surface to start charging.
The GaN technology used ensures high efficiency and reduced heat generation. This keeps the charger stable in operation even when multiple ports are used simultaneously. Extensive protection functions such as overvoltage, short-circuit and temperature protection increase safety in daily use. The desktop design with power cord is ideal for fixed charging stations at home or at work.
USB Type-C PD output 1 and 2: 5.0VDC/3.0A - 9.0VDC/3.0A - 12.0VDC/3.0A - 15.0VDC/3.0A - 20.0VDC/5.0A (max. 100.0W)
USB Type-C PD output 3 and 4: 5.0VDC/3.0A - 9.0VDC/3.0A - 12.0VDC/2.5A - 15.0VDC/2.0A - 20.0VDC/1.5A (max. 30.0W)
USB Type-A QC output 1 and 2: 5.0VDC/3.0A - 9.0VDC/3.0A - 12.0VDC/2.5A - 20.0VDC/1.5A (max. 30.0W)
Power Delivery 2.0, 3.0 and Quick Charge 2.0, 3.0 compatible
Wireless charging output power: 5.0W / 7.5W / 15.0W
Max. total output power: 100.0W
Overvoltage and short-circuit protection
Temperature protection: If the power supply becomes too hot, it automatically switches off and resumes charging automatically after cooling down
Input voltage: 100-240V AC
Input AC frequency: ~50/60 Hz, 2.5 A
Output voltage: 5.0-20.0 V DC
Output current: max. 5.0 A
Output power: 100.0 W
Average operating efficiency: 83.30% (USB-C 5.0V/3.0A), 84.54% (USB-C 12.0V/1.5A), 82.05% (USB-A 5.0V/3.0A), 83.02% (USB-A 12.0V/1.5A)
Power consumption at zero load: 0.07 W
Dimensions (LxWxH): approx. 120x85x29mm
Weight: approx. 310g
Includes power cable, 1.8m

Design
Product colour	Black
Cable length	1.8 m
LED indicators
Gallium nitride (GaN) transistors
Other features
Dimensions (WxDxH)	85 x 120 x 30 mm
Maximum input power	100 W
Packaging content
Quantity per pack	1 pc(s)
Cables included	AC
Packaging data
Package width	135 mm
Package depth	200 mm
Package height	34 mm
Package volume	1000 cm³
Package weight	468 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB 2.0 ports quantity	2
USB Type-C ports quantity	4
Fast charging technology	Quick Charge 2.0, Quick Charge 3.0
Charger type	Indoor
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Power protection features	Over voltage, Overheating, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	2.5 A
Maximum power	100 W
Maximum output voltage	20 V
Minimum output voltage	5 V
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Port 1 output current	3 A
Port 2 output current	3 A
Port 3 output current	3 A
Output current	5000 mA
Power consumption (no load)	0.07 W
Technical data
Outputs	2x USB-A, 4x USB-C
Output voltage	4.5 V DC - 20.0 V DC
Cable included	EU-Power cable
USB-A	2
Length packaging	0.200m
Article height	3.00cm
Weight	0.468kg
Type	Multi power supply unit (USB / Qi)
Max. power	100.0W
Article width	8.50cm
Packaging volume	0.0010m³
Net weight	0.312kg
Height packaging	0.034m
USB-C	4
Width packaging	0.135m
Article length	12.00cm
Quick Charge
Power Delivery
Display
GaN
Weight & dimensions
Width	85 mm
Depth	120 mm
Height	30 mm
Weight	312 g

---
