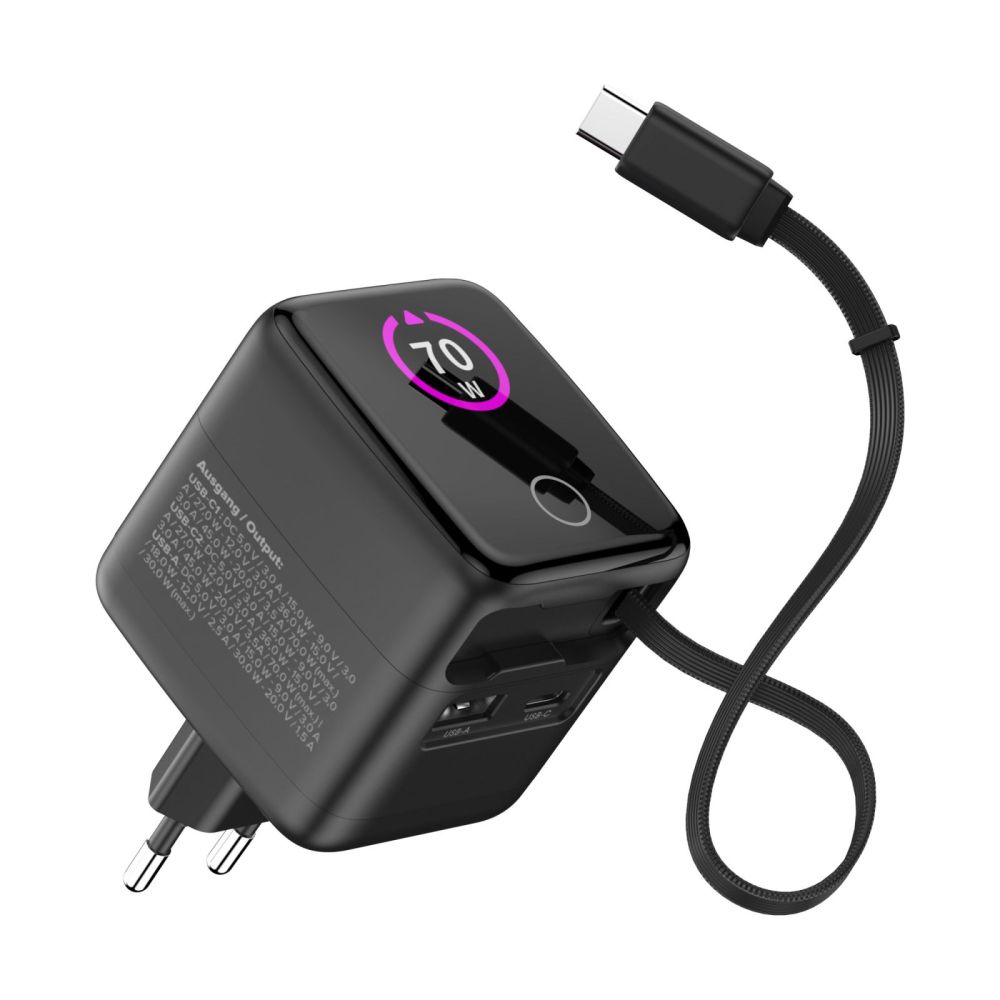

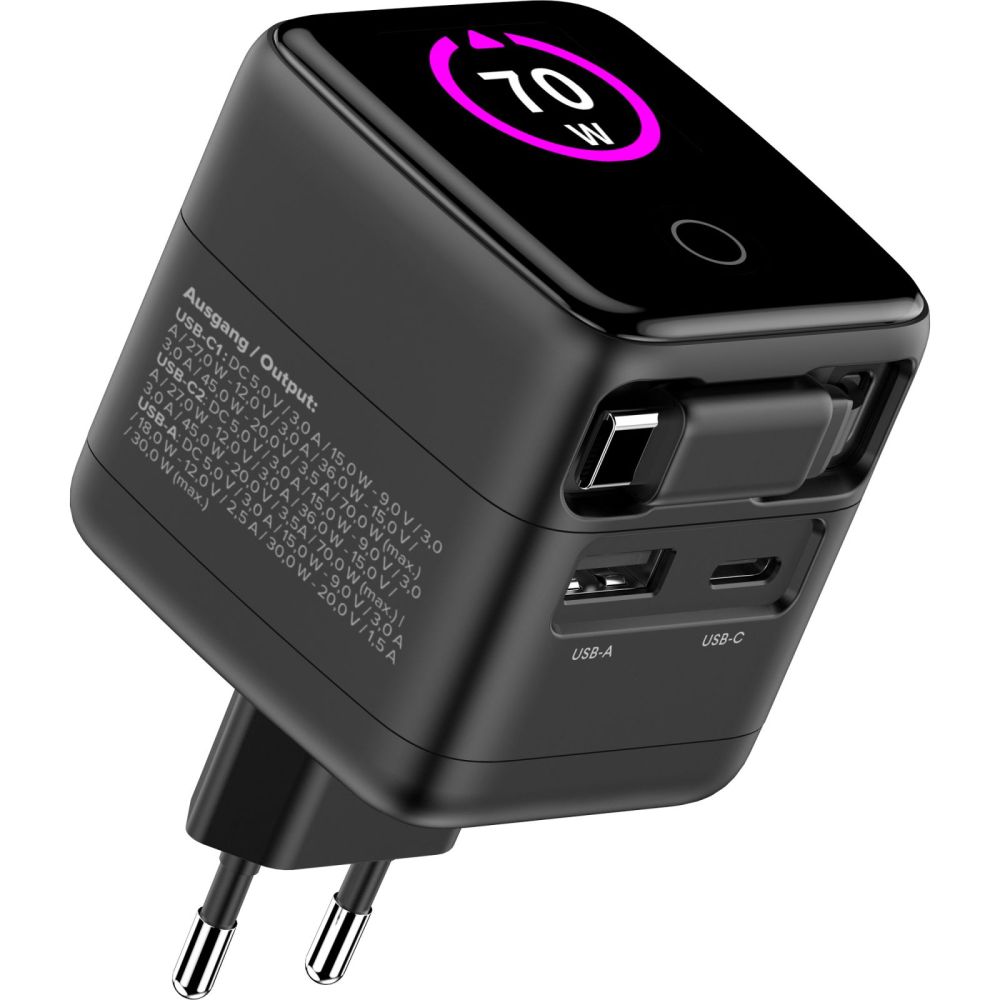

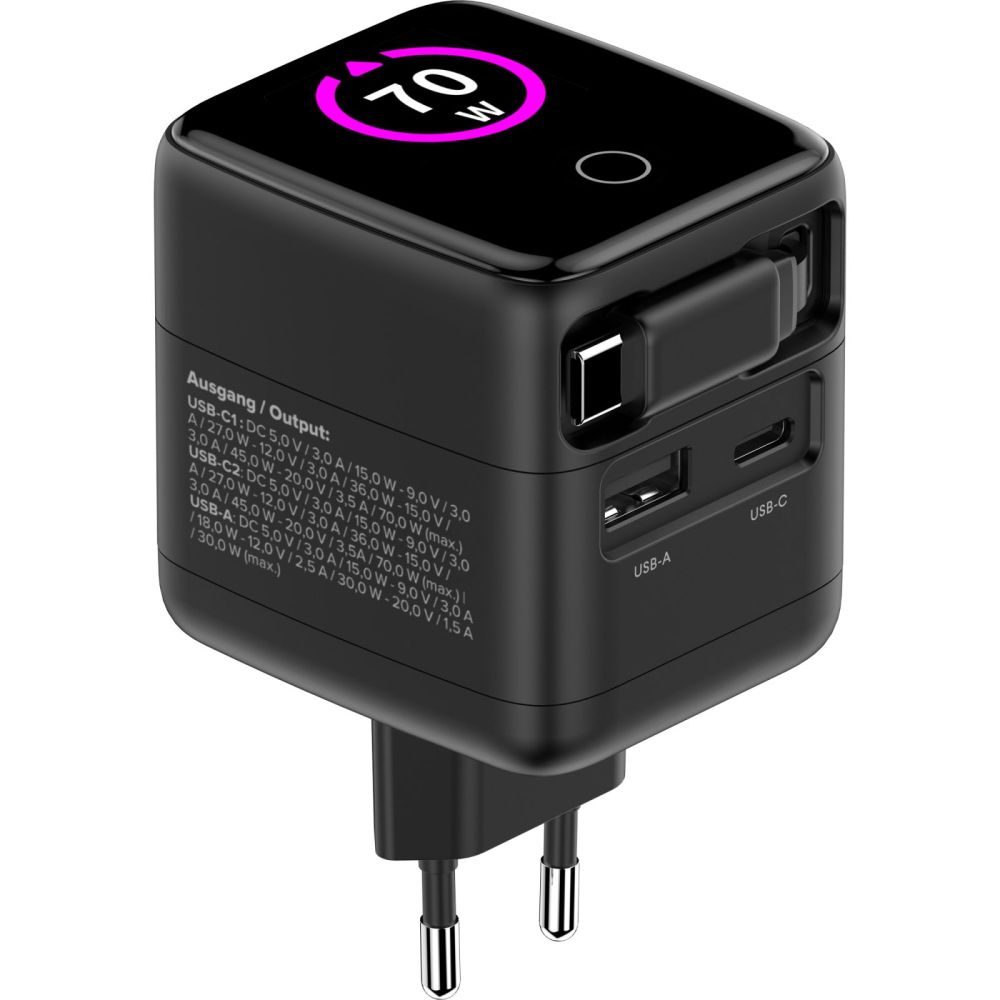

INLINE USB power supply USB-A + USB-C GaN PD QC extendable cable USB-C 60cm display 70W black content_copy

70W fast charging with GaN: Maximum charging power for your devices – fast, efficient, and compact.
Power Delivery & Quick Charge: Universal support for smartphones, tablets, and notebooks.

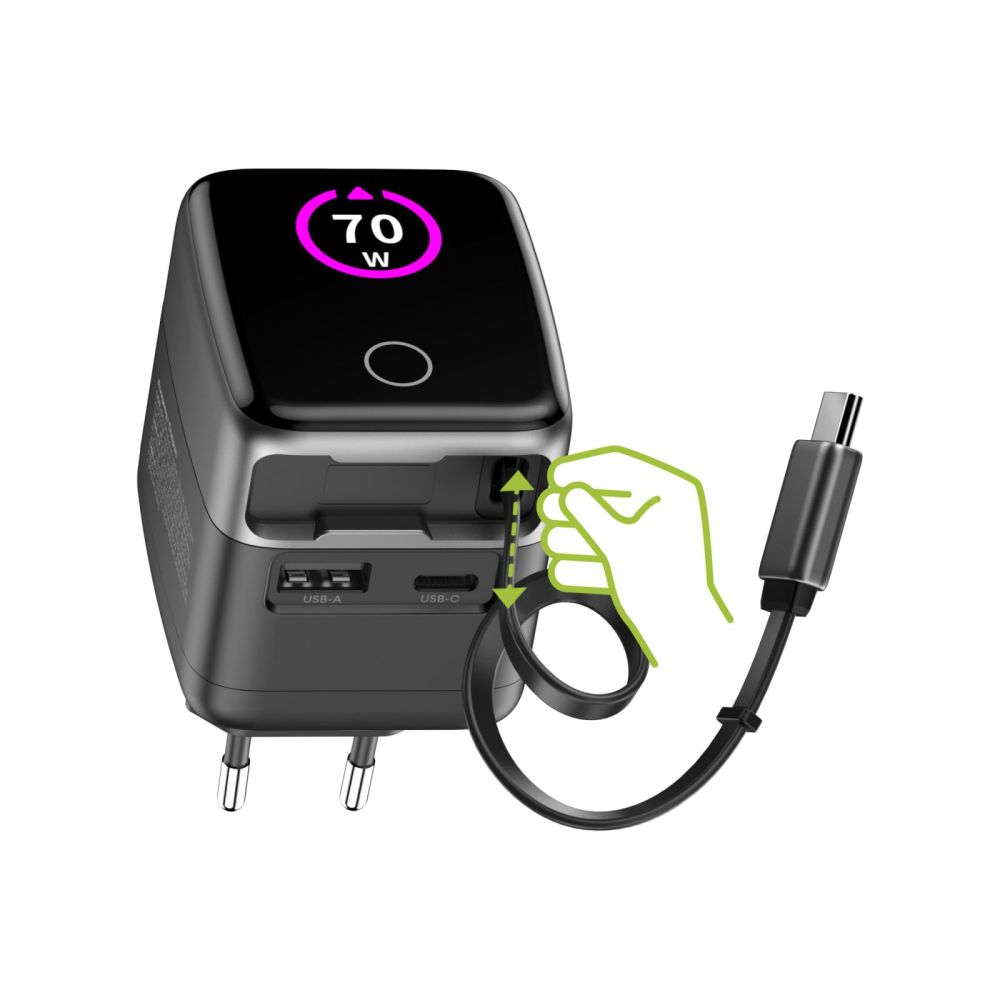

Integrated USB-C cable: Conveniently rollable, always at hand – ideal for on the go.

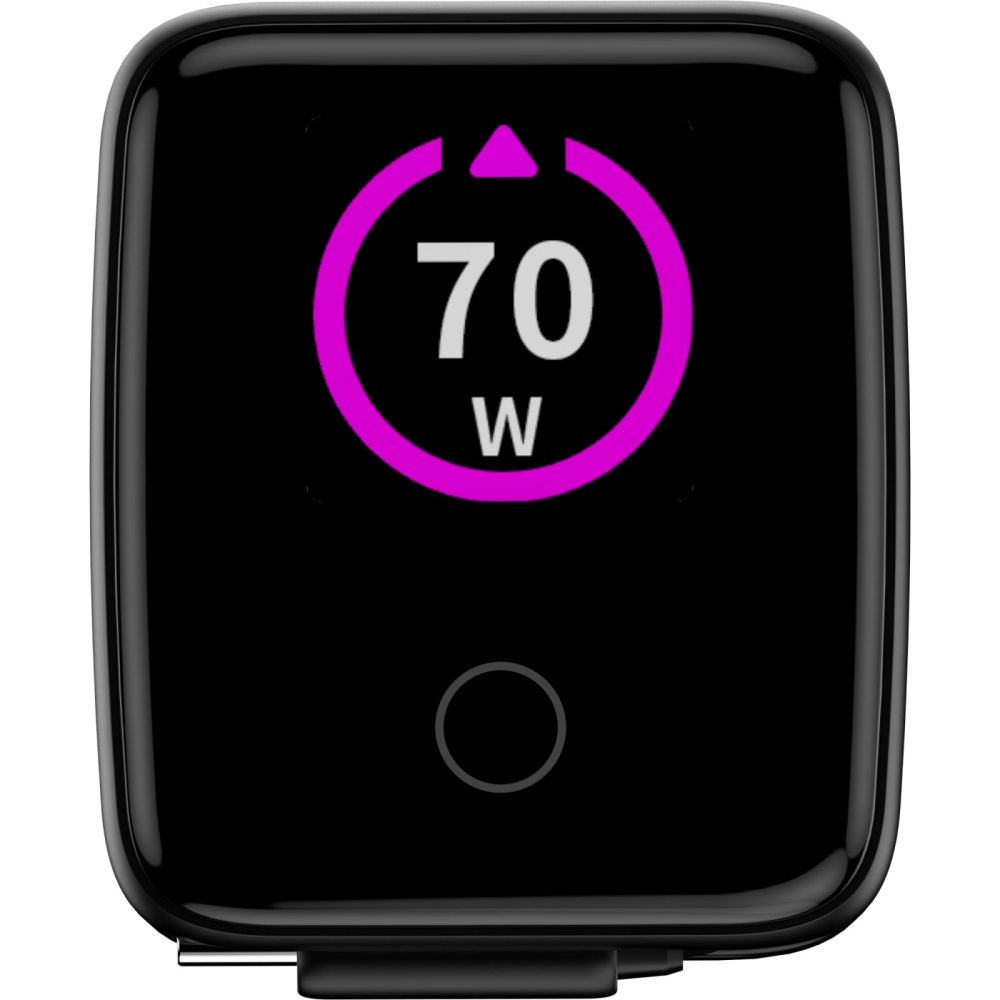

Display with touch control: Shows real-time data on current, voltage, and power.
Safe and reliable: With overvoltage, short-circuit, and temperature protection for safe charging.
Experience the power of the perfect connection: The InLine USB power supply with 70W GaN technology charges your devices quickly, compactly, and safely. Two USB-C ports with Power Delivery and one USB-A port with Quick Charge reliably supply your smartphone, tablet, or notebook with power. The integrated USB-C cable can be conveniently pulled out and rolled up again as needed. The capacitive display allows you to keep an eye on voltage, current, and power at all times. Whether traveling, at the office, or at home – this charger impresses with its performance, safety, and functionality.
Maximum output power: 70 W
Supported standards: USB Power Delivery (PD), Quick Charge (QC)
Display: Display of voltage, current, power

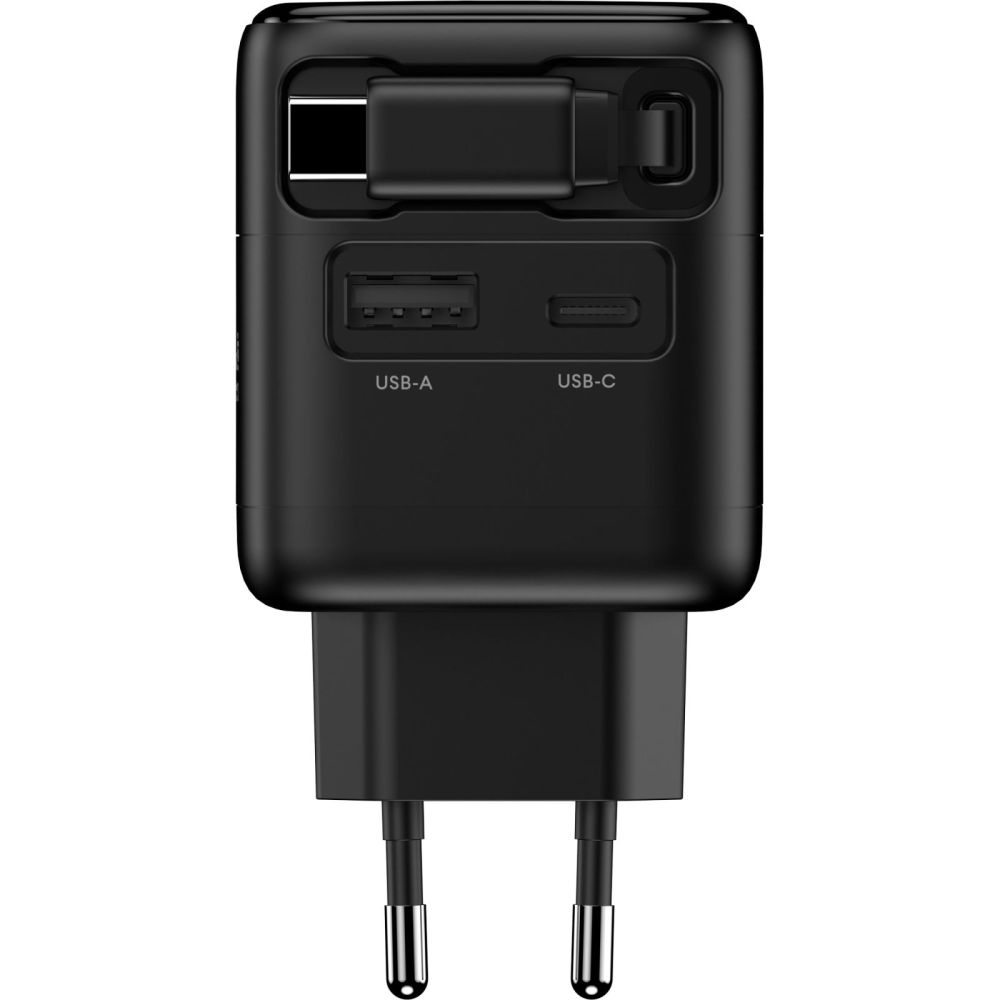

USB outputs: 2x USB-C, 1x USB-A
Protective functions: Overvoltage, short circuit, overheating
Weight: approx. 190 g
Dimensions: approx. 95 × 58 × 50 mm
Average operating efficiency: 81.84% (230V, 50Hz, USB-C1+USB-C2+USB-A 5.0V/3.0A+5.0V/1.5A+5.0V/1.5A)
Efficiency at low load (10%): 70.42% (230V, 50Hz, USB-C1+USB-C2+USB-A 5.0V/3.0A+5.0V/1.5A+5.0V/1.5A)

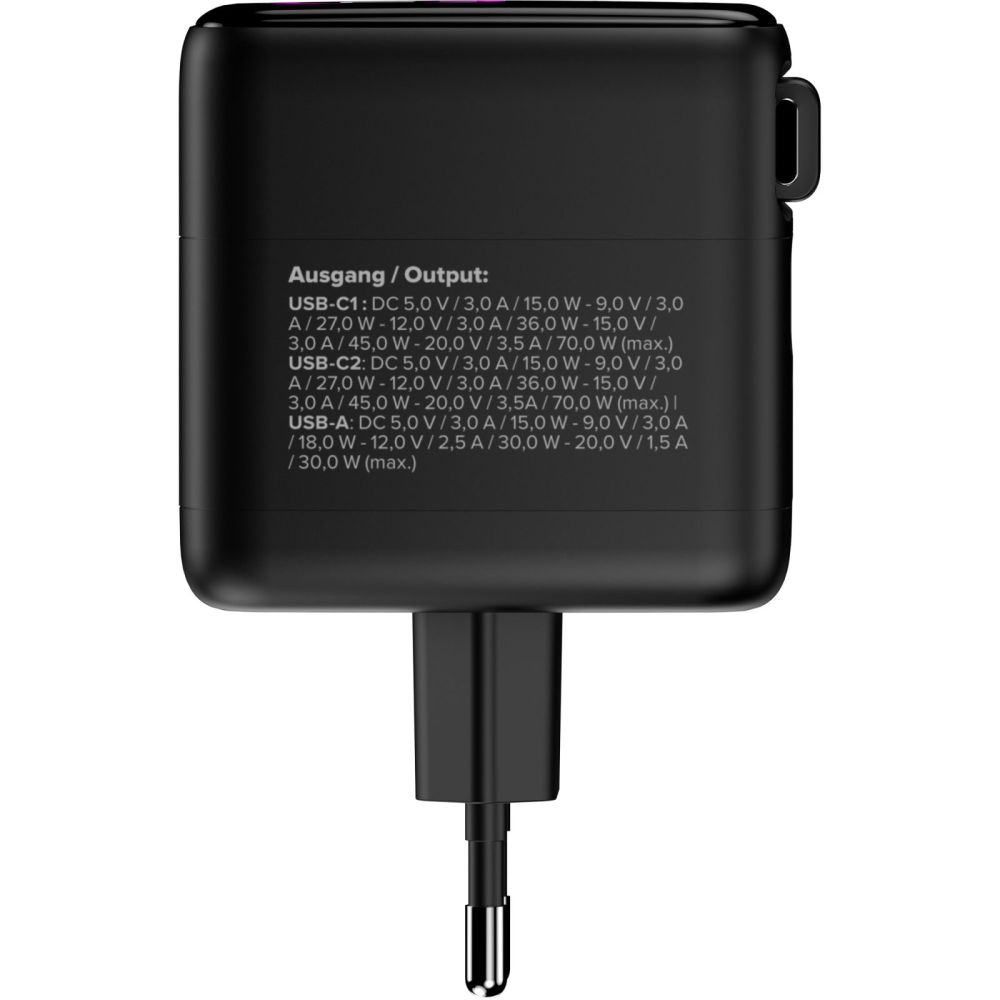

Output voltage/output current/output power:
USB-C1 output: DC 5.0 V / 3.0 A / 15.0 W - 9.0 V / 3.0 A / 27.0 W - 12.0 V / 3.0 A / 36.0 W - 15.0 V / 3.0 A / 45.0 W - 20.0 V / 3.5 A / 70.0 W (max.)
USB-C2 output: DC 5.0 V / 3.0 A / 15.0 W - 9.0 V / 3.0 A / 27.0 W - 12.0 V / 3.0 A / 36.0 W - 15.0 V / 3.0 A / 45.0 W - 20.0 V / 3.5 A / 70.0 W (max.)
USB-A output: DC 5.0 V / 3.0 A / 15.0 W - 9.0 V / 3.0 A / 18.0 W - 12.0 V / 2.5 A / 30.0 W - 20.0 V / 1.5 A / 30.0 W (max.)
USB-C1 + USB-C2 output: DC 20.0 V / 2.25 A / 45.0 W - DC 15.0 V / 3.0 A / 45.0 W - DC 12.0 V / 3.0 A / 36.0 W - DC 9.0 V / 3.0 A / 27.0 W - DC 5.0 V / 3.0 A / 15.0 W + DC 12.0 V / 1.67 A / 20.04 W - DC 9.0 V / 2.22 A / 19.98 W - DC 5.0 V / 3.0 A / 15.0 W
USB-C1 + USB-A output: DC 20.0 V / 2.25 A / 45.0 W - DC 15.0 V / 3.0 A / 45.0 W + DC 12.0 V / 3.0 A / 36.0 W - DC 9.0 V / 3.0 A / 27.0 W - DC 5.0 V / 3.0 A / 15.0 W + DC 12.0 V / 1.5 A / 18.0 W - DC 9.0 V / 3.0 A / 18.0 W - DC 5.0 V / 3.0 A / 15.0 W
USB-C2 + USB-A output:
DC 20.0 V / 2.25 A / 45.0 W - DC 15.0 V / 3.0 A / 45.0 W + DC 12.0 V / 3.0 A / 36.0 W - DC 9.0 V / 3.0 A / 27.0 W - DC 5.0 V / 3.0 A / 15.0 W + DC 12.0 V / 1.5 A /18.0 W - DC 9.0 V /3.0 A / 18.0 W - DC 5.0 V / 3.0 A / 15.0 W
USB-C1 + USB-C2 + USB-A output:
DC 20.0 V / 2.25 A / 45.0 W - DC 15.0 V / 3.0 A / 45.0 W - DC 12.0 V / 3.0 A / 36.0 W - DC 9.0 V / 3.0 A / 27.0 W - DC 5.0 V / 3.0 A / 15.0 W + DC 5.0 V / 3.0 A / 15.0 W

Certificates
Compliance certificates	TÜV mark
Design
Product colour	Black
Cable length	0.6 m
Gallium nitride (GaN) transistors
Logistics data
Country of origin	Taiwan
Other features
Dimensions (WxDxH)	50 x 95 x 60 mm
Packaging data
Package width	100 mm
Package depth	150 mm
Package height	55 mm
Package volume	800 cm³
Package weight	273 g
Package type	Hanging box
Performance
Charger compatibility	Universal
Power source type	AC
USB 2.0 ports quantity	1
USB Type-C ports quantity	2
Charger type	Indoor
Number of simultaneously connected devices (max)	3
Power protection features	Over voltage, Overheating, Short circuit
Wireless charging
Fast charging
USB Power Delivery (USB PD)
Power
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Input current	1.6 A
Maximum output voltage	20 V
Minimum output voltage	5 V
Port 1 output power	70 W
Port 2 output power	70 W
Port 3 output power	30 W
Output current (20V)	3.5 A
Port 1 output current	3.5 A
Port 2 output current	3.5 A
Port 3 output current	1.5 A
Average active efficiency	81.84% (230V, 50Hz, USB-C1+USB-C2+USB-A 5.0V/3.0A+5.0V/1.5A+5.0V/1.5A)
Power plug type	Type C
Efficiency (@10 %)	70.42%
Efficiency at low load (10%)
Technical data
Width packaging	0.100m
Max. power	70,0W
Type	USB power adapter
Length packaging	0.150m
USB-C	2
Height packaging	0.055m
Article height	6.00cm
Outputs	1x USB-A, 2x USB-C
Packaging volume	0.0008m³
Net weight	0.189kg
Colour	Black
USB-A	1
Product note	<strong>Note on using USB-PD multiple power adapters</strong> Our USB-PD power adapters dynamically distribute the total available power to the connected devices. When a device is connected or disconnected, the power supply automatically performs a brief redistribution (‘power negotiation’). This may cause a brief interruption in the power supply to all ports. This is normal behaviour for USB-PD multiple power supplies and does not constitute a defect.
Article width	5.00cm
Output voltage	5.0 V DC - 20.0 V DC
Article length	9.50cm
Cable included	Integrated
Weight	0.273kg
Quick Charge
Display
Wireless Charging
GaN
Power Delivery
Weight & dimensions
Width	50 mm
Depth	95 mm
Height	60 mm
Weight	189 g

---
