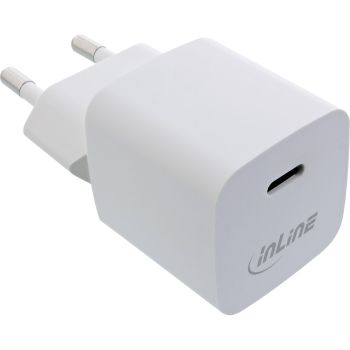

InLine® USB-C GaN charger, Power Delivery 3.0, PPS, 33 W, white content_copy

Efficient 33 W power with GaN technology: Compact and powerful – ideal for modern USB-C devices with fast charging capability.
Supports Power Delivery 3.0 and PPS: Optimal charging power for smartphones, tablets, notebooks and more.
Reliable protection during operation: Integrated safety features against overheating, overvoltage and short circuits.
Global compatibility thanks to 100–240 V input: Ideal for travel and international use.
Compact format weighing only 51 g: Space-saving in your luggage – perfect for on the go or in the office.
The InLine USB power supply with 33 W power impresses with the latest GaN technology, which enables maximum efficiency in the smallest of spaces. Weighing only approx. 51 g, the charger is extremely light – perfect for mobile applications.
The charger delivers Power Delivery 3.0 and PPS via the USB-C port, allowing smartphones, tablets and other devices to be charged quickly and safely. The charger automatically detects the optimal voltage and current for the connected device.
Intelligent protection functions offer maximum safety: the charger switches off in case of overheating and resumes charging after cooling down. It is also protected against overvoltage and short circuits.
Whether travelling, at the office or at home, this compact charger is the perfect companion for anyone who values speed, safety and modern technology.
Input voltage: 100-240 VAC, 50/60 Hz
USB-C output voltage (PD 3.0): DC 5.0 V / 3.0 A; 9.0 V / 3.0 A; 12.0 V / 2.5 A; 15.0 V / 2.0 A; 20.0 V / 1.5 A
Output voltage (PPS): DC 3.3-11.0 V / 3.0 A; 3.3-16.0 V / 2.0 A
Average operating efficiency: up to 90.95%
Efficiency at low load (10%): up to 84.31%
Power consumption at zero load: up to 0.06 W
Dimensions: 70 x 31 x 31 mm
Weight: approx. 51 g

Design
Product colour	White
Other features
Dimensions (WxDxH)	35 x 68 x 30 mm
Packaging data
Package width	73 mm
Package depth	130 mm
Package height	33 mm
Package volume	400 cm³
Package weight	70 g
Performance
Charger compatibility	Universal
Power source type	AC
USB Type-C ports quantity	1
Charger type	Indoor
Number of simultaneously connected devices (max)	1
Power protection features	Short circuit, Surge protection
Wireless charging
Power
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Maximum power	33 W
Maximum output voltage	11 V
Minimum output voltage	3.3 V
Output current (5V)	3 A
Output current (9V)	3 A
Technical data
Length packaging	0.130m
Type	USB power adapter
Output voltage	3.3 V DC - 16.0 V DC
Article width	3.50cm
Colour	White
Width packaging	0.073m
Max. power	33.0W
Net weight	0.047kg
USB-C	1
Article height	3.00cm
Article length	6.80cm
Packaging volume	0.0004m³
Weight	0.070kg
Height packaging	0.033m
Outputs	1x USB-C
Quick Charge
Power Delivery
Wireless Charging
Cable included
GaN
Display
Weight & dimensions
Width	35 mm
Depth	68 mm
Height	30 mm
Weight	47 g

---
