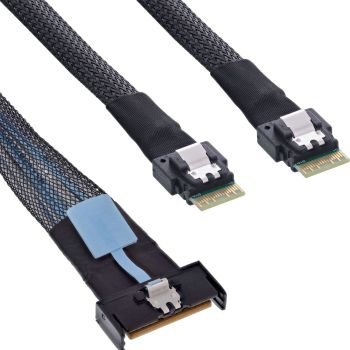

InLine® MCIO cable, MCIO x8 connector to 2x 4i SFF-8654 connector, 0,5m content_copy

High transfer speed: Supports PCIe Gen4/Gen5 with up to 32 Gb/s per lane—ideal for high-performance server and storage applications.
Reliable connection: MCIO x8 connector to 2x SFF-8654 4i ports – ensures stable and secure data transmission in professional systems.
High-quality shielding: Multi-shielded twinax cable reduces electromagnetic interference and enables low-loss signal transmission.
Universally applicable: Compatible with PCIe Gen4/Gen5, NVMe, SAS, and SATA – ideal for servers, workstations, and backplane connections.
Compact and flexible: Available in three lengths (0.5 m / 0.75 m / 1 m) – for clean cable management even in tight server enclosures.
The InLine MCIO cable was specially developed for demanding server and storage applications. It reliably connects host adapters or motherboards with MCIO x8 connectors to devices that have SFF-8654 4i interfaces – for example, backplanes, NVMe or SAS modules.
With support for PCIe Gen4 and Gen5 as well as compatibility with NVMe, SAS, and SATA, the cable enables extremely high data rates of up to 32 Gb/s per lane. The multi-shielded twinax cable ensures low-loss signal transmission and provides reliable protection against electromagnetic interference. This keeps the connection stable and secure even under high system loads.
The robust yet flexible design facilitates installation in compact server or workstation enclosures. Precisely manufactured connectors and high-quality materials ensure a long service life and a permanently stable connection. With a choice of 0.5 m, 0.75 m, and 1 m lengths, the cable can be perfectly adapted to different system configurations.
Whether in data centers, development environments, or private high-performance workstations, the InLine MCIO cable offers a reliable solution for fast, interference-free data transfers in professional environments.
Connector: 1x MCIO x8 (host) to 2x SFF-8654 4i (target)
Cable type: Twinax with multiple shielding
Transfer rate: up to 32 Gb/s per lane
Compatibility: PCIe Gen4 / Gen5, NVMe, SAS, SATA
Lengths: 0.5 m / 0.75 m / 1 m
Temperature range: -20 °C to +80 °C
Humidity: 0 - 90%, non-condensing

Certificates
Compliance certificates	CE, TÜV mark
Features
Cable length	0.5 m
Connector 1	MCIO x8
Connector 2	2x 4i SFF-8654
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector gender	Male
Data transfer rate (max)	32 Gbit/s
Weight	31 g
Compatible products	PCIe Gen4 / Gen5, NVMe, SAS, SATA
Logistics data
Package volume	900 cm³
Packaging data
Package width	150 mm
Package depth	185 mm
Package height	20 mm
Package weight	37 g
Package type	Polybag
Technical data
Height packaging	0.020m
Net weight	0.031kg
Signal	Data
Packaging volume	0.0009m³
Type	MCIO
Article height	1.00cm
Side A	MCIO x8 connector
Weight	0.037kg
Side B	SFF-8654 4i (2x)
Width packaging	0.150m
Article width	2.90cm
Article length	50.00cm
Length packaging	0.185m
Weight & dimensions
Dimensions (WxDxH)	29 x 500 x 10 mm

---
