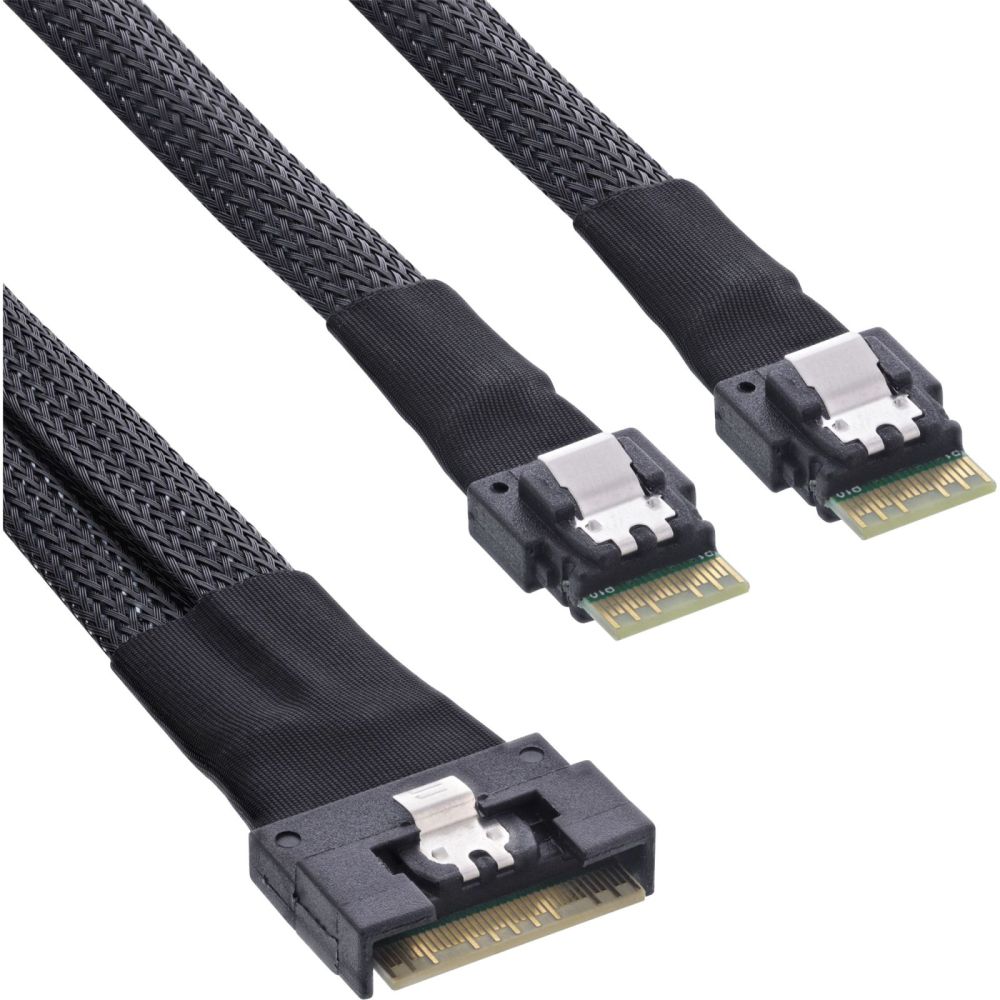

InLine® Slim SAS cable, SFF-8654 8i to 2x SFF-8654 4i, 1m content_copy

Optimal connection for SAS storage solutions – compatible with RAID controllers, JBOD and DAS
High data transfer rate with up to 24Gb/s per channel for fast storage access
Stable and secure connection thanks to locking clip
Ideal for high-performance NAS and home server systems
SAS 4.0 compatible – the latest technology for your hardware
Fast and reliable storage solutions need the right connection - and this is exactly what the InLine® Slim SAS cable was developed for. It connects SAS hard disks, SSDs and storage devices to RAID controllers, JBOD or DAS systems for maximum performance. With up to 24Gb/s per channel, it is the ideal choice for high-performance workstations, NAS systems or home servers. Thanks to the integrated locking mechanism, the connectors are firmly seated and ensure secure data transfer - even under high load. Whether you want to process large amounts of data, edit videos or optimize your storage solution - with this SAS 4.0-compliant cable, you are equipped for the future.
Additional technical specifications:
Slim SAS 8i connector (SFF-8654) to 2x Slim SAS 4i connector (SFF-8654)
Supports SAS 4.0 standard
Data transfer rate: up to 24Gb/s per channel

Features
Cable length	1 m
Connector 1	SFF-8654 8i
Connector 2	2x SFF-8654 4i
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Data transfer rate (max)	24 Gbit/s
Product colour	Black
Weight	58 g
Logistics data
Country of origin	Germany
Packaging data
Package width	160 mm
Package depth	185 mm
Package height	30 mm
Package weight	63 g
Package type	Polybag
Technical data
Width packaging	0.160m
Signal	Data
Packaging volume	0.0009m³
Colour	Black
Article width	2.80cm
Weight	0.063kg
Side A	SFF-8654 8i
Article length	100.00cm
Height packaging	0.030m
Type	Slim SAS
Side B	SFF-8654 4i (2x)
Length packaging	0.185m
Net weight	0.058kg
Article height	0.80cm
UL
Weight & dimensions
Dimensions (WxDxH)	28 x 1000 x 8 mm

---
