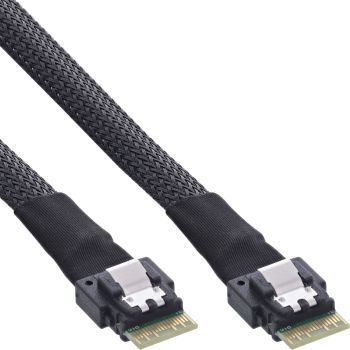

InLine® Slim SAS cable, SFF-8654 4i to SFF-8654 4i, 24Gb/s, 1m content_copy

Professional data connection: Ideal for SAS devices such as RAID controllers or JBOD systems in internal server use.
Slim SAS connector SFF-8654: Equipped on both sides for standardized SAS 4.0 connections with secure hold thanks to locking clip.
High transfer speed: Supports up to 24 Gb/s over 4 channels at 6 Gb/s each – ideal for fast data access.
Stable signal quality: For maximum performance and reliable connections in professional storage solutions.
Versatile: Compatible with HBA cards, SAS hard drives, and internal storage systems – easy integration into existing setups.
The InLine Slim SAS cable was specially developed for professional use in servers and storage systems. It reliably and efficiently connects internal SAS devices such as RAID controllers, HBA cards, or JBOD systems. Thanks to the Slim SAS 4i connector (SFF-8654) on both ends, the cable is fully compliant with SAS 4.0 specifications and supports high data rates of up to 24 Gb/s, distributed across four channels with 6 Gb/s each.
The integrated locking clips at both ends ensure a stable connection and prevent accidental disconnection during operation. This makes the cable the ideal solution for applications with high data security and transmission speed requirements.
Whether for workstations, servers, or complex storage solutions, the Slim SAS cable is easy to integrate and impresses with its high-quality workmanship and reliable performance. It is particularly suitable for IT professionals who depend on fast and stable connections within storage systems.
Interface: Slim SAS 4i connector (SFF-8654)
Standard: SAS 4.0
Data channels: 4 x 6 Gb/s
Max. data rate: 24 Gb/s
Length: 0.5 m (27642A) or 1 m (27642B)
Use: Internal connection cable
Special feature: With locking mechanism

Features
Cable length	1 m
Connector 1	SFF-8654
Connector 2	SFF-8654
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Data transfer rate (max)	24 Gbit/s
Product colour	Black
Weight	38 g
Packaging data
Package width	160 mm
Package depth	185 mm
Package height	15 mm
Package weight	43 g
Technical data
Packaging volume	0.0005m³
Weight	0.043kg
Diameter	AWG 32
Length packaging	0.185m
Article height	0.80cm
Type	Slim SAS
Design	Round cable
Side B	SFF-8654 4i
Variant	Straight
Signal	Data
Outer diameter	8.0mm
Net weight	0.038kg
Colour	Black
Height packaging	0.015m
Width packaging	0.160m
Data transmission rate	24Gb/s
Article width	1.50cm
Side A	SFF-8654 4i
Article length	100.00cm
UL
Weight & dimensions
Dimensions (WxDxH)	15 x 1000 x 8 mm

---
