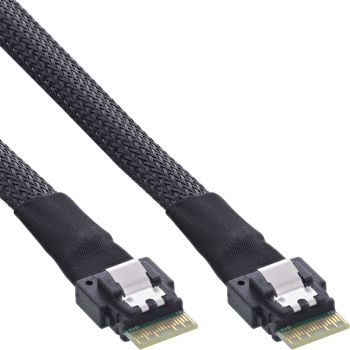

InLine® Slim SAS cable, SFF-8654 4i to SFF-8654 4i, 24Gb/s, 0.5m content_copy

Professional data connection: Ideal for SAS devices such as RAID controllers or JBOD systems in internal server use.
Slim SAS connector SFF-8654: Equipped on both sides for standardized SAS 4.0 connections with secure hold thanks to locking clip.
High transfer speed: Supports up to 24 Gb/s over 4 channels at 6 Gb/s each – ideal for fast data access.
Stable signal quality: For maximum performance and reliable connections in professional storage solutions.
Versatile: Compatible with HBA cards, SAS hard drives, and internal storage systems – easy integration into existing setups.
The InLine Slim SAS cable was specially developed for professional use in servers and storage systems. It reliably and efficiently connects internal SAS devices such as RAID controllers, HBA cards, or JBOD systems. Thanks to the Slim SAS 4i connector (SFF-8654) on both ends, the cable is fully compliant with SAS 4.0 specifications and supports high data rates of up to 24 Gb/s, distributed across four channels with 6 Gb/s each.
The integrated locking clips at both ends ensure a stable connection and prevent accidental disconnection during operation. This makes the cable the ideal solution for applications with high data security and transmission speed requirements.
Whether for workstations, servers, or complex storage solutions, the Slim SAS cable is easy to integrate and impresses with its high-quality workmanship and reliable performance. It is particularly suitable for IT professionals who depend on fast and stable connections within storage systems.
Interface: Slim SAS 4i connector (SFF-8654)
Standard: SAS 4.0
Data channels: 4 x 6 Gb/s
Max. data rate: 24 Gb/s
Length: 0.5 m (27642A) or 1 m (27642B)
Use: Internal connection cable
Special feature: With locking mechanism

Features
Cable length	0.5 m
Connector 1	SFF-8654
Connector 2	SFF-8654
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Data transfer rate (max)	24 Gbit/s
Product colour	Black
Weight	20 g
Packaging data
Package width	170 mm
Package depth	220 mm
Package height	15 mm
Package weight	27 g
Technical data
Variant	Straight
Design	Round cable
Type	Slim SAS
Width packaging	0.170m
Diameter	AWG 32
Data transmission rate	24Gb/s
Article height	1.00cm
Packaging volume	0.0006m³
Colour	Black
Length packaging	0.220m
Article length	50.00cm
Side A	SFF-8654 4i
Net weight	0.020kg
Signal	Data
Weight	0.022kg
Outer diameter	8.0mm
Article width	1.50cm
Height packaging	0.015m
Side B	SFF-8654 4i
UL
Weight & dimensions
Dimensions (WxDxH)	15 x 500 x 10 mm

---
