InLine® Premium Aluminium Wall Mount, for Flat TV (37-203,2 cm ( 80 inch )), white content_copy

Flexibly align and mount neatly - wall mount for large displaysPrecise fine adjustment: Swivel range +60° to -60° and screen level +2° to -2° make exact alignment easier.
Variable distance to the wall: 69-660 mm for a slim look or extended positioning.
Smooth movement: Built-in copper bushing supports smooth adjustment.
Tidy appearance: Cable clips and magnetic covers route cables and conceal mounting screws.
Reduce glare: Tilt +5° to -10° optimizes visibility.

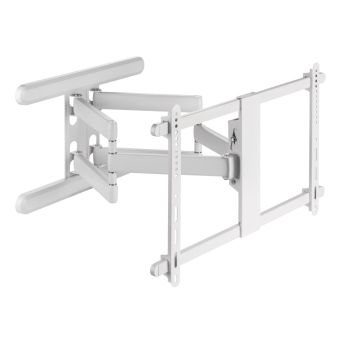

This full-motion TV wall mount made of aluminum carries large displays securely on the wall and enables ergonomic alignment. You tilt, swivel, and extend the screen when needed, align it precisely to level, and route the cables neatly along the arms. The integrated copper bushing enables smooth movements, and magnetic covers complete the tidy appearance.
In meeting rooms, reception areas, and training zones as well as in on-site installations and service deployments, the mount supports flexible, neat screen installation. It fits into existing infrastructures of companies and public institutions and simplifies mounting thanks to compatible VESA patterns.
Type: Wall mount for displays
Screen diagonal: 94-203 cm (37-203,2 cm ( 80 inch ))
Material: Aluminum
Color: White
Load capacity: max. 70 kg
VESA compatibility: 200x200 mm, 200x300 mm, 300x200 mm, 200x400 mm, 300x400 mm, 300x300 mm, 400x200 mm, 400x300 mm, 400x400 mm, 600x400 mm
Distance from wall: 69-660 mm
Tilt: +5° to -10°
Swivel range: +60° to -60°
Screen level: +2° to -2°
Sliding bushing: Copper
Covers: Magnetic
Cable management: Cable clips
Design: Full-motion

Design
Product colour	White
Housing material	Aluminium
Certification
Ergonomics
Tilt angle range	-10 - 5°
Swivel angle range	-90 - 90°
Pivot angle	-2 - 2°
Distance to the wall (max)	66 cm
Distance to the wall (min)	6.9 cm
Tilt adjustment
Cable management
Mounting
Maximum weight capacity	70 kg
Minimum screen size	94 cm (37")
Number of displays supported	1
Maximum screen size	94 cm (37")
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,600 x 400
Mounting type	Wall
Packaging data
Package width	465 mm
Package depth	785 mm
Package height	80 mm
Package volume	29000 cm³
Package weight	12.1 kg
Technical data
Packaging volume	0.0290m³
Tiltable	+5 / -10°
VESA	200x200 / 300x300 / 400x200 / 400x400 / 600x400mm
Wall distance	6.9 - 66cm
Weight	12.100kg
Load (max.)	70kg
Suitable for	Displays from 94cm (37") to 203cm (80")
Colour	White
Length packaging	0.785m
Height packaging	0.080m
Type	Wall Bracket for displays
Width packaging	0.465m
Monitor arm	Yes (flat to the wall foldable)
Rotatable	+/-90°
Cable management
Safety lock system
GS tested
Technical details
Quantity per pack	1 pc(s)
Weight & dimensions
Width	730 mm
Height	445 mm

---
