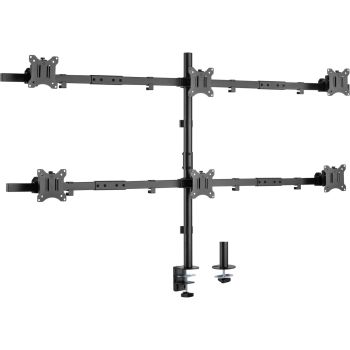

InLine® Desk Bracket for 6x TV / LED / TFT Display up to 81cm 32" max. 7kg black content_copy

Space-saving 6-monitor mount for ergonomic workSix displays arranged in one place: 3+3 arrangement on two levels for better overview.
Individual alignment per screen: Tilt +/-45° and rotate 360° for optimal view.
Quick mounting on the desk: Screw clamp or through-desk mounting up to 85 mm and 40 mm respectively.
Set ergonomic working height: Height adjustable up to approx. 86 cm for two display rows.
Wide device compatibility: VESA 75x75 and 100x100 mm for displays from 43-81 cm.
This desk mount consolidates up to six flat-panel displays in a space-saving way at a workstation. Each holder can be tilted and rotated, so you can align each screen precisely, at the same time the height adjustment enables a clean 3+3 arrangement on two levels. Mounting is possible either with a screw clamp or through the tabletop with stable fixation.
In professional IT environments and in existing infrastructures of companies and public institutions, the mount brings order to multi-screen workstations. For on-site installations, the flexible mounting supports quick setup, and the VESA pattern makes service work easier when replacing compatible displays.
Number of displays: 6
Supported display size: 43-81 cm (17-81,3 cm ( 32 inch ))
VESA standard: 75x75, 100x100 mm
Tilt: +/-45°
Rotation: 360°
Height adjustment: up to approx. 86 cm
Mounting: screw clamp or through-desk
Desktop thickness: up to 85 mm (clamp), up to 40 mm (through-desk)
Max. load capacity: 7 kg
Scope of delivery: desk mount with screw clamp, M4/M5 screw set, 2x hex keys, assembly instructions

Design
Product colour	Black
Orientation	Landscape/Portrait
Ergonomics
Height adjustment range	0 - 860 mm
Tilt angle range	-45 - 45°
Angle of rotation	360°
Height adjustment
Tilt adjustment
Rotating
Logistics data
Country of origin	Taiwan
Mounting
Minimum screen size	43.2 cm (17")
Number of displays supported	6
Maximum weight capacity (per display)	7 kg
Maximum screen size	81.3 cm (32")
Mounting	Clamp/Grommet
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Clamp mount desk thickness (max)	8.5 cm
Grommet mount desk thickness (max)	4 cm
Other features
Dimensions (WxDxH)	1000 x 900 x 100 mm
Compliance certificates	TÜV mark
Packaging content
Clamp included
VESA mount included
Mounting kit
Manual
Packaging data
Package width	360 mm
Package depth	450 mm
Package height	160 mm
Package volume	4200 cm³
Package weight	11.4 kg
Technical data
Height packaging	0.160m
Packaging volume	0.0042m³
Load (max.)	7kg
Net weight	10.950kg
Article width	100.00cm
Number of monitors	6
Article length	90.00cm
Suitable for	Displays from 43cm (17") to 81cm (32")
Colour	Black
Tiltable	+/-45°
VESA	75x75 / 100x100mm
Weight	11.400kg
Length packaging	0.450m
Width packaging	0.360m
Article height	10.00cm
Rotatable
Hinged/swivel arm
Gas spring
Adjustable in height
Weight & dimensions
Width	1000 mm
Depth	900 mm
Height	100 mm
Weight	10.9 kg

---
