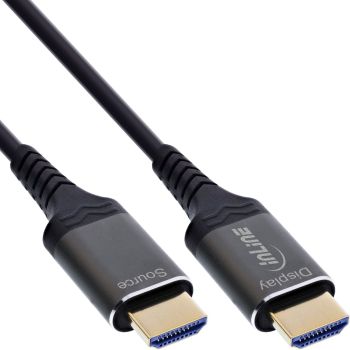

InLine® HDMI AOC cable, Ultra High Speed HDMI cable, 8K, aluminium, 20m content_copy

Loss-free transmission over long distances: Hybrid structure made of glass fibre and copper enables stable signal quality up to 50 m cable length.
Maximum picture quality for 8K and 4K content: Supports 8K at 60 Hz and 4K at up to 240 Hz - ideal for home cinema and gaming.
Modern HDMI 2.1 features included: Supports Dynamic HDR, eARC, CEC, HDCP, 3D, DDC and more in accordance with the HDMI specification.
Rugged construction with aluminium connectors: Gold-plated contacts and robust design for long-lasting use in demanding environments.
Flexible and directional use: PVC-coated with a diameter of only 4.8 mm - clear labelling of the signal direction ensures easy installation.
Experience brilliant picture quality even over long distances - with the InLine® HDMI AOC cable. This hybrid cable combines the advantages of modern fibre optic technology with high-quality copper strands to ensure loss-free signal transmission even over cable lengths of up to 50 m. It supports the entire bandwidth of current HDMI 2.1 standards and delivers content in impressive 8K resolution at 60 Hz or 4K at up to 240 Hz - ideal for gaming, streaming or home cinema.
Thanks to Dynamic HDR, eARC, CEC, HDCP and other features, you are ideally equipped for any AV application. The sturdy aluminium plugs with gold-plated contacts ensure permanently reliable connections - even with frequent use. With a diameter of just 4.8 mm, the PVC-coated cable is particularly flexible and easy to lay. Clear directional labelling makes installation easier: simply connect Source" to the player and "Display to the playback device.
Rely on quality and durability - for razor-sharp images and impressive sound, even over long distances.
Hybrid cable consisting of 4 glass fibre and 7 solid copper strands
Directional signal cable: HDMI plug (source) to HDMI plug (display)
Cable: Ø 4.8 mm, PVC-sheathed
Max. Data transfer rate: 48 Gb/s (12 Gb/s per channel)
Supports 3D, HDCP, EDID, CEC, DDC, Dynamic HDR, eARC, ARC and other specifications according to HDMI

Certificates
Compliance certificates	CE, TÜV mark
Features
Cable length	20 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI cable type	Ultra High Speed HDMI cable
Product colour	Black
HDMI version	2.1
Supported graphics resolutions	3840 x 2160, 7680 x 4320
Data transfer rate	48 Gbit/s
High Dynamic Range (HDR) technology	Dynamic HDR
Maximum refresh rate	240 Hz
AWG wire size	30
Connector contacts plating	Gold
Connector housing material	Aluminium
Cable material	Fibre optic/Copper
Cable type	Round cable
Cable jacket material	Polyvinyl chloride (PVC)
3D
Audio Return Channel (ARC)
HDCP
High Dynamic Range (HDR) supported
Enhanced Audio Return Channel (eARC)
Extended display identification data (EDID)
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Other features
Depth	20000 mm
Height	10 mm
Width	20 mm
Dimensions (WxDxH)	20 x 20000 x 10 mm
Packaging data
Package width	200 mm
Package depth	205 mm
Package height	6 mm
Package weight	632 g
Package type	Box
Quantity per pack	1 pc(s)
Technical data
Design	Round cable slim
Signal	Audio/Video
Width packaging	0.200m
Length packaging	0.205m
Article height	1.00cm
Side B	HDMI A plug
Weight	0.632kg
Article length	2000.00cm
Length	20m
Height packaging	0.006m
Net weight	0.514kg
Variant	AOC cable
Outer diameter	4.8mm
Article width	2.00cm
Diameter	AWG 30
Storage temperature	-20 to +70°C
Colour	Black
Side A	HDMI A plug
Gold plated contacts
Active cable
UL
Weight & dimensions
Cable diameter	4.8 mm
Weight	514 g

---
