Inline 17720S ® S-VGA cable Premium, 15-pin HD connector / connector, black, 20 m

Your rating:
Average rating
product review for Inline 17720S ® S-VGA cable Premium, 15-pin HD connector / connector, black, 20 m
( 0 / 5 ) 0 ratings
Inline 17720S
This image may differ from the desired article.
Inline 17720SInline 17720S
29,55 EUR
( 35,16 EUR incl. VAT )
≈ £24.62  |  ≈ $32.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Inline 17720S ® S-VGA cable Premium, 15-pin HD connector / connector, black, 20 m
Datasheet:file_download Download
Lieske Part No.:997806
Mfg Part No: 17720S
UPC/EAN: 4043718076574
Weight:1.74 kg

Product information for Inline 17720S:

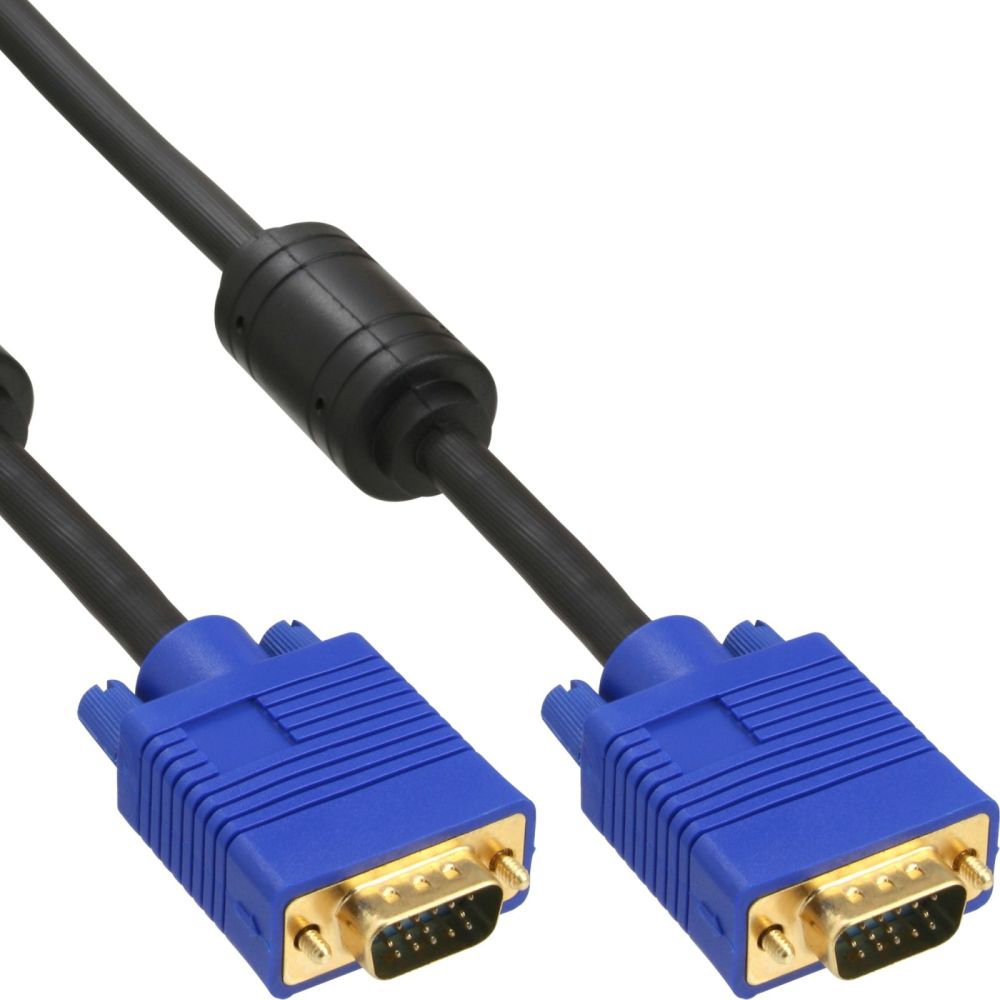

The InLine S-VGA cable Premium, manufacturer number 17720S, is a 20 m long video transmission cable for use in IT and office applications. It connects two VGA-compatible devices, such as computers and monitors, via a 15-pin HD connector at both ends. The cable is black and is used for transmitting analog video signals. The connectors are moulded and comply with the PC-99 standard, with the connector colour being blue, which is typical for VGA connections. The contacts are gold-plated, ensuring improved conductivity and corrosion resistance.

VGA connection

The cable features a 15-pin HD connector at both ends, designed for connection to VGA ports on computers, graphics cards or monitors. The pinout is fully wired, with pin 9 unconnected, which is standard for most VGA applications. The signal lines include three coaxial lines for the colour channels (Red, Green, Blue) and seven control lines for synchronisation and other functions.

Shielding and signal quality

The conductors are double-shielded, combining foil shielding and a copper braid to minimise electromagnetic interference. This shielding ensures high signal integrity and prevents image disturbances, especially over longer connections. The use of gold-plated contacts supports signal transmission by reducing contact resistance and improving long-term stability.

Ferrite beads and mechanical stability

Ferrite cores are integrated at both ends of the cable, acting as EMI filters to reduce high-frequency interference. This is particularly important for transmitting video signals over long distances to avoid image degradation or noise. The connectors are moulded, ensuring mechanical stability and extended service life.

Compatibility and applications

The cable is suitable for use in office environments, presentation systems and IT infrastructures where a stable analog video connection over 20 m is required. It is compatible with devices supporting a 15-pin VGA connector (D-Sub). The UL certification (UL E-number: E258105) confirms the product's safety compliance.

Operating conditions

The cable can be used at operating temperatures from -10 °C to 60 °C. Storage temperature ranges from -20 °C to 70 °C. The outer diameter of the cable is 5.8 mm, making it flexible and easy to install. The packaging is designed for retail (retail packaging) and has dimensions of 300 mm (width) × 320 mm (depth) × 90 mm (height).

Certification

The product carries UL certification, confirming compliance with safety standards for electrical equipment in the USA and other regions. This certification is relevant for use in professional environments.

Use in IT infrastructure

The cable is suitable for use in networks where analog video connections over long distances are required, e.g. connecting computers to projectors or monitors in conference rooms. The combination of double shielding, ferrite cores and gold-plated contacts ensures reliable signal transmission even under critical conditions.

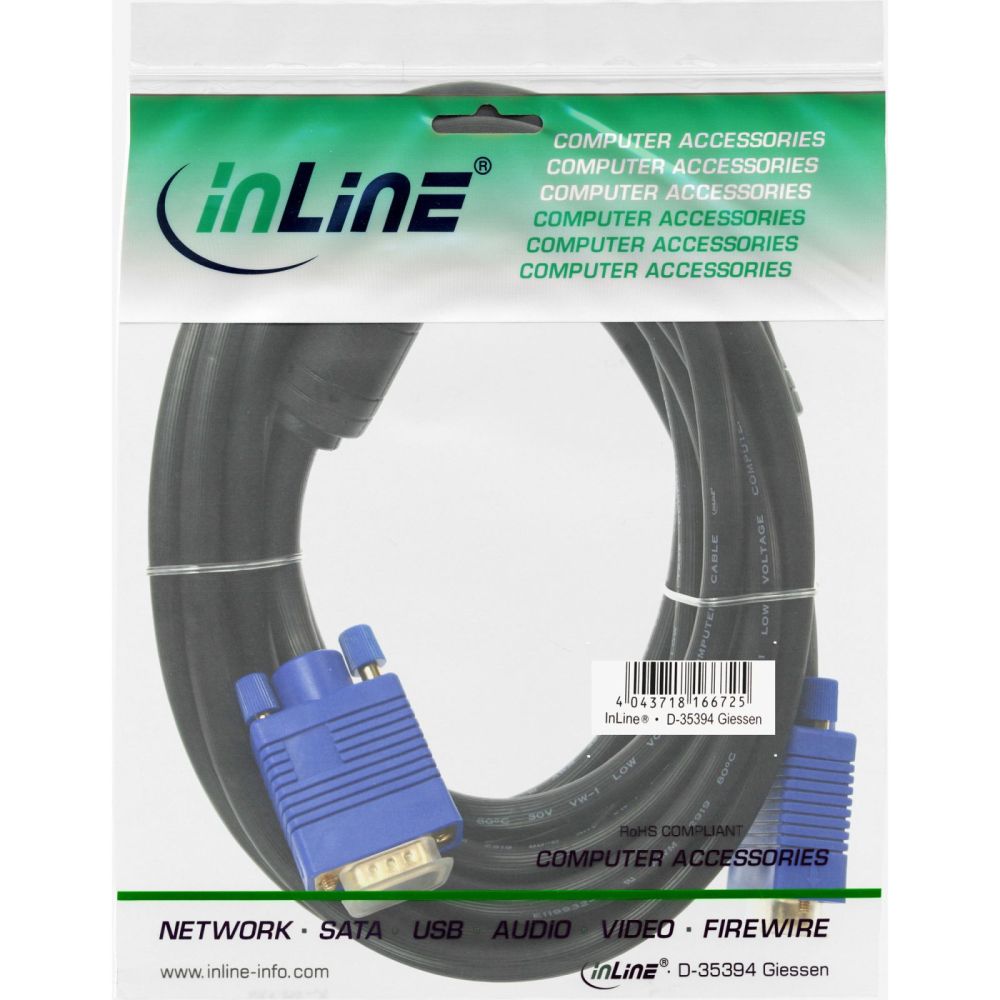

Packaging and delivery contents

The cable is delivered in retail packaging with dimensions 300 mm × 320 mm × 90 mm. The delivery contents include the 20 m long VGA cable with connector-to-connector connection.

Operating temperature and storage

The operating temperature of the cable ranges from -10 °C to 60 °C, while storage is possible at temperatures from -20 °C to 70 °C. This makes the cable suitable for indoor use and environments with moderate temperature fluctuations.

Cable construction

The cable has an outer diameter of 5.8 mm and is equipped with a copper braid and foil shielding. The connectors are moulded and blue, facilitating identification with VGA ports. The gold-plated contacts ensure a stable electrical connection.

Certificates
CertificationUL
Features
Cable length20 m
Connector 1VGA (D-Sub)
Connector 2VGA (D-Sub)
Product colourBlack
Connector contacts platingGold
Connector genderMale/Male
Ferrite beadYes
Other features
Height15 mm
Width35 mm
Packaging data
Package width300 mm
Package depth320 mm
Package height90 mm
Package weight1.74 kg
Technical data
PlugGold-plated contacts
Storage temperature-20 - 70°C
Article length2000.0cm
ExtrasFerrite
Width packaging0.300m
VariantPremium cable
Packaging volume0.0086m³
UL E-numberE258105
Side A15pin HD male
Length packaging0.320m
Length20m
Article height1.5cm
SignalVideo
Height packaging0.093m
Operation temperature-10 - 60°C
Article width3.5cm
Outer diameter5.8mm
Side B15pin HD male
Net weight1.717kg
TypeBNC & VGA
ShieldingDouble shielding
ColourBlack
PackingRetail
Weight1.740kg
ULYes
Gold plated contactsYes
Weight & dimensions
Weight1.72 kg
Package volume8600 cm³


Product data sheet
Datasheet for Inline 17720S, EAN: 4043718076574
