Inline 17719S ® S-VGA cable Premium, 15-pin HD connector / connector, black, 2 m

Your rating:
Average rating
product review for Inline 17719S ® S-VGA cable Premium, 15-pin HD connector / connector, black, 2 m
( 0 / 5 ) 0 ratings
Inline 17719S
This image may differ from the desired article.
Inline 17719SInline 17719S
7,99 EUR
( 9,51 EUR incl. VAT )
≈ £6.66  |  ≈ $8.77
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >500 pieces
1x Inline 17719S ® S-VGA cable Premium, 15-pin HD connector / connector, black, 2 m
Datasheet:file_download Download
Lieske Part No.:499912
Mfg Part No: 17719S
UPC/EAN: 4043718055067
Weight:0.244 kg

Product information for Inline 17719S:

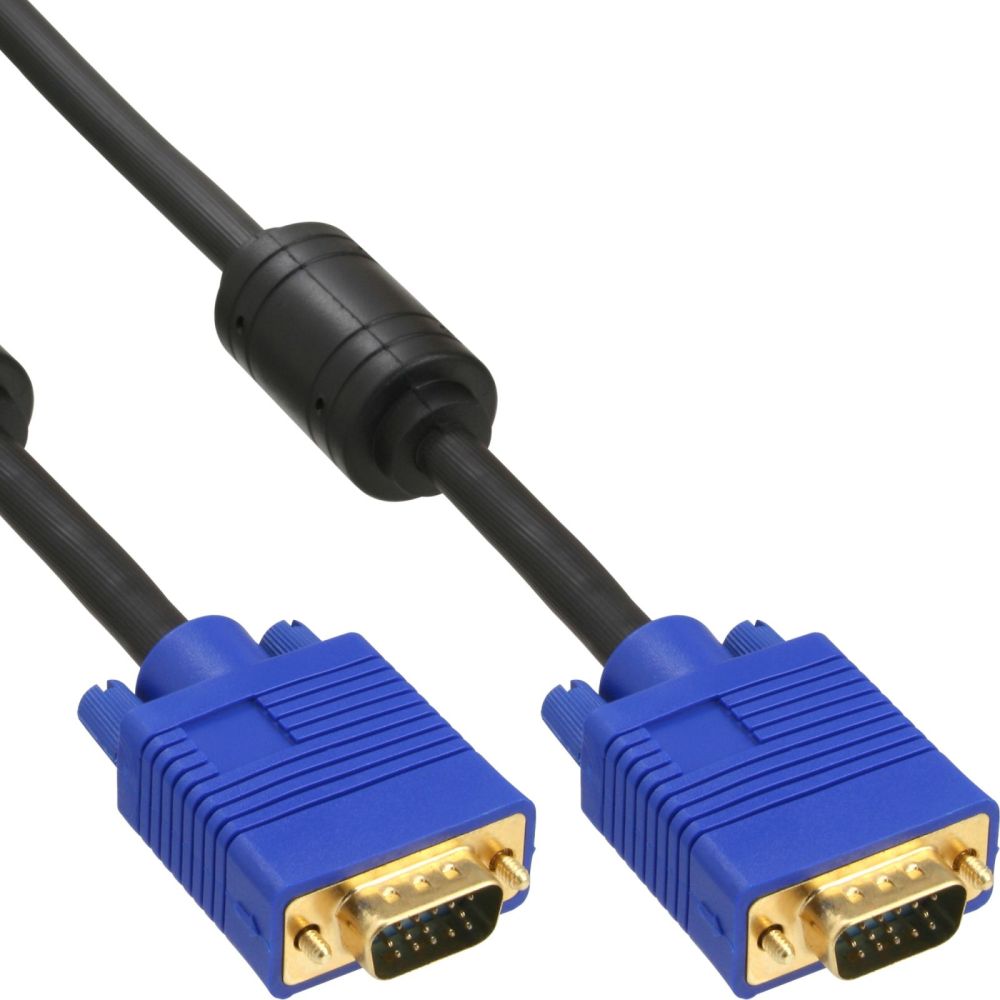

The InLine S-VGA cable Premium (manufacturer number 17719S) is a 2 m long video transmission cable for connecting graphics cards, computers, and monitors via the VGA standard. It features two 15-pin HD connectors (D-Sub) at both ends, equipped with gold-plated contacts to ensure a reliable and corrosion-resistant connection. The connectors are blue, potting-encapsulated, and comply with the PC-99 standard, ensuring uniform color coding and mechanical stability. The cable is designed for use in professional and private IT environments where clear and stable image transmission is required.

Applications
This cable is suitable for connecting computers, notebooks, graphics cards, and CRT or LCD monitors that feature a VGA connection. It is used in office environments, schools, presentation rooms, and technical workstations where analog video transmission over short to medium distances is required. The cable length of 2 m allows for flexible device placement without compromising signal quality.

Functions and Features in Detail
The cable is fully wired, with pin 9 unconnected, which is typical for S-VGA connections. Signal transmission occurs via three coaxial conductors for the color channels (Red, Green, Blue) and seven control lines for synchronization and additional signals. The contacts are gold-plated, ensuring high conductivity and long-term stability. The connectors are shielded with a copper braid and double foil shielding to minimize electromagnetic interference and maintain image quality. Additionally, the cable is equipped with two ferrite cores that reduce high-frequency interference and enhance signal integrity.

Technology Explained Simply
The double shielding — consisting of foil and copper braid shielding — protects the internal conductors from external electromagnetic influences that could cause image distortion or signal loss. The gold-plated contacts ensure low contact resistance and prevent oxidation, which is particularly important for frequent plugging and unplugging. The ferrite cores filter high-frequency interference generated by the cable itself or nearby devices. The cable length of 2 m is sufficient for typical office or home use without noticeable degradation in signal quality.

Compatibility and Accessories
The cable is compatible with all devices featuring a 15-pin HD-VGA connector. It can be used directly between a graphics card and a monitor or between two VGA connectors. The use of adapters or converters is not required, as this is a standard VGA plug-to-plug cable. It is intended for indoor use, with an operating temperature range of -10 °C to 60 °C. Storage is permitted at temperatures from -20 °C to 70 °C.

Installation and Mounting
Installation is performed by simply plugging the connectors into the corresponding VGA ports on the devices. The potting-encapsulated connectors ensure mechanical stability and prevent accidental disconnection. No tools or additional mounting are required. The cable length of 2 m allows for flexible device placement without the need for additional extensions or adapters.

Operational Advantages
The cable provides stable and clear image transmission thanks to double shielding and gold-plated contacts. The ferrite cores reduce interference, which is particularly beneficial in environments with many electronic devices. The UL approval (UL E-number E258105) confirms the product’s safety compliance. The cable is black, making it visually unobtrusive and suitable for integration into typical IT environments. The operating temperature range of -10 °C to 60 °C allows for use in various indoor conditions.

Certificates
CertificationUL
Features
Cable length2 m
Connector 1VGA (D-Sub)
Connector 2VGA (D-Sub)
Product colourBlack
Connector contacts platingGold
Connector genderMale/Male
Ferrite beadYes
Other features
Height15 mm
Width33 mm
Packaging data
Package width175 mm
Package depth225 mm
Package height38 mm
Package weight244 g
Technical data
PackingRetail
Length2m
Weight0.244kg
Article height1.5cm
Length packaging0.225m
Operation temperature-10 - 60°C
Packaging volume0.0015m³
Storage temperature-20 - 70°C
Side A15pin HD male
Height packaging0.038m
Width packaging0.175m
SignalVideo
ColourBlack
TypeBNC & VGA
ShieldingDouble shielding
Outer diameter5.8mm
UL E-numberE258105
Side B15pin HD male
ExtrasFerrite
Article width3.3cm
VariantPremium cable
PlugGold-plated contacts
Net weight0.282kg
Article length200.0cm
ULYes
Gold plated contactsYes
Weight & dimensions
Weight282 g
Package volume1500 cm³


Product data sheet
Datasheet for Inline 17719S, EAN: 4043718055067
