InLine® S-VGA Cable 15 HD grey male / male 3m
|
8,15 EUR |
|
|
( 9,70 EUR incl. VAT ) ≈ £6.82 | ≈ $9.12 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2125746 |
| Mfg Part No: | 17710 |
| UPC/EAN: | 4043718001569 |
| Weight: | 0.373 kg |
Product information for Inline 17710:

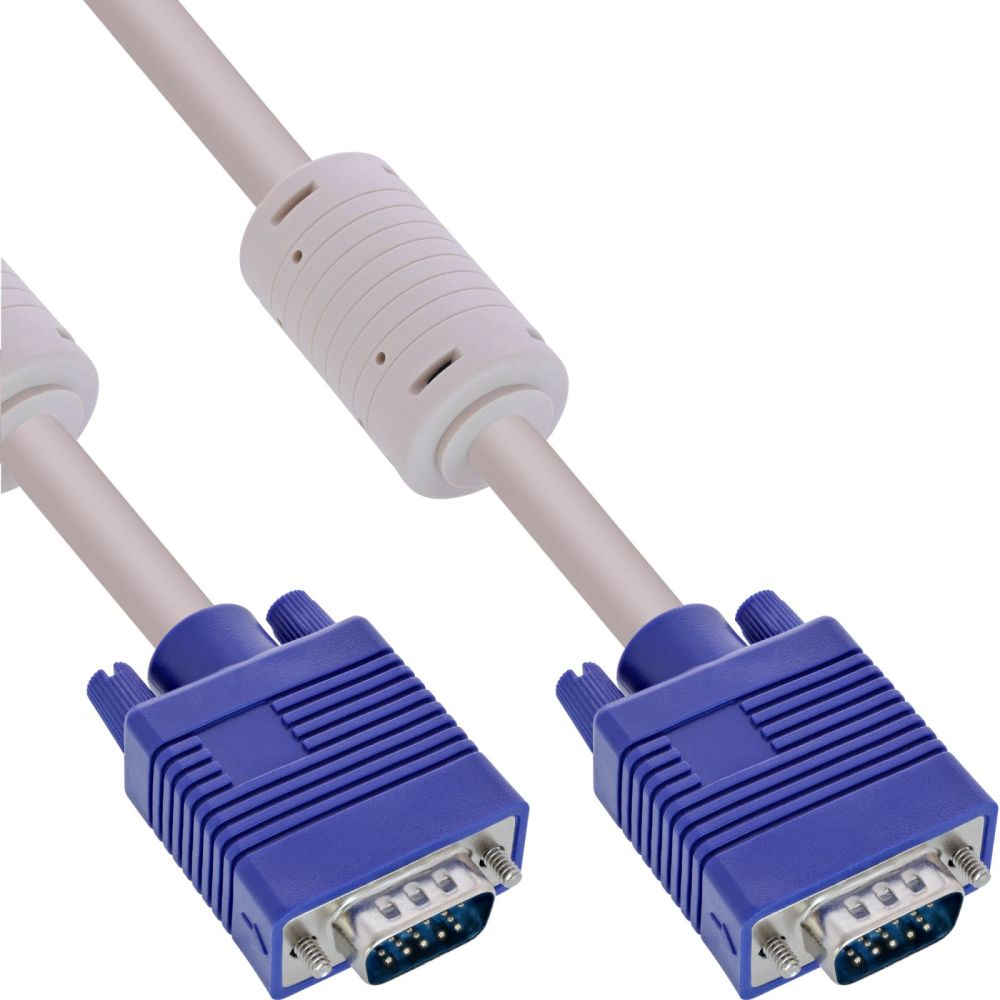

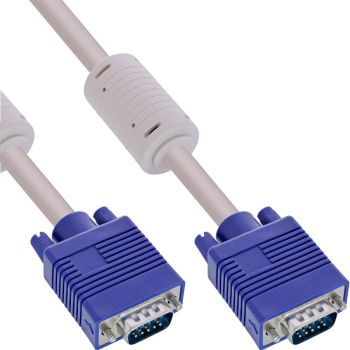

InLine® S-VGA monitor cable with double shielding for video signal transmission. Constructed with 3 single-shielded coaxial lines (RGB) and 7 data lines this cable is fitted with 15-pin SVGA connectors with 1:1 connections (without PIN 9) while the blue colouring of the connectors, as per PC99 standard, ensures easy identification of the correct port to which the SVGA monitor cable should be connected.Sub-D 15-pin HD male to Sub-D 15-pin HD male
Cable 3 Coax wires (RGB) + 7 data
Pin configuration: Straight 1:1 (No pin 9)
Total and single conductor foil shielding
Ferrite interference suppression
Sheath colour grey
Cable 3 Coax wires (RGB) + 7 data
Pin configuration: Straight 1:1 (No pin 9)
Total and single conductor foil shielding
Ferrite interference suppression
Sheath colour grey
| Features | |
| Cable length | 3 m |
| Product colour | Beige |
| Connector contacts plating | Gold |
| Ferrite bead | |
| Other features | |
| Height | 15 mm |
| Width | 33 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 245 mm |
| Package height | 39 mm |
| Package weight | 373 g |
| Technical data | |
| UL E-number | E258105 |
| Packaging volume | 0.0019m³ |
| Storage temperature | -20 - 70°C |
| Side A | 15pin HD male |
| Length packaging | 0.245m |
| Article height | 1.50cm |
| Operation temperature | -10 - 60°C |
| Shielding | Double shielding |
| Article length | 300.00cm |
| Height packaging | 0.039m |
| Colour | Grey |
| Weight | 0.373kg |
| Type | BNC & VGA |
| Width packaging | 0.200m |
| Signal | Video |
| Outer diameter | 8.2mm |
| Article width | 3.30cm |
| Side B | 15pin HD male |
| Extras | Ferrite |
| Net weight | 0.361kg |
| Variant | Standard cable |
| UL | |
| Weight & dimensions | |
| Weight | 361 g |
| Package volume | 1900 cm³ |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of InLine® S-VGA Cable 15 HD grey male / male 3m?
The article InLine® S-VGA Cable 15 HD grey male / male 3m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 17710 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® S-VGA Cable 15 HD grey male / male 3m always at the best possible price. We can give you a discount of 2% on InLine® S-VGA Cable 15 HD grey male / male 3m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
