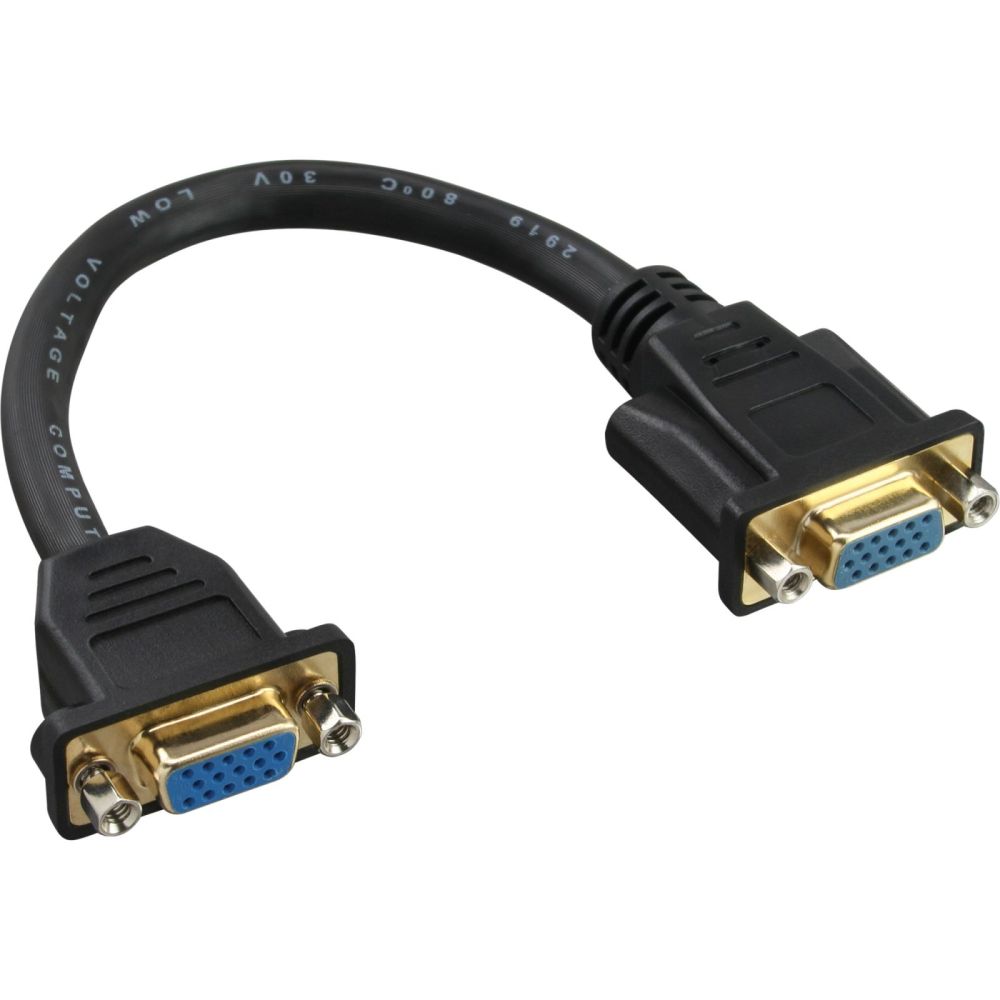

InLine® VGA Adapter Cable 15 Pin VGA female / female 0.2m content_copy

Route a VGA connector cleanly to front panelsQuick panel mounting: You integrate the connector precisely thanks to 9x17 mm cutout and 25 mm hole spacing.
Stable signal transmission: 1:1 pinout and gold-plated contacts reliably deliver a clean connection.
Neat cable routing inside the device: The 0.2 m cable gives you flexibility for internal routing.
Secure fastening: Included #4-40 screws (6 mm) secure to sheet metal up to 2 mm thick.
With this VGA panel-mount adapter cable, you route an HD-15 connector from internal components cleanly to a front or rear panel and create an easily accessible connection point. The short cable simplifies positioning inside the enclosure, while gold-plated contacts provide a consistently reliable connection.
It proves itself in professional IT environments, for on-site setups and service use, when existing AV infrastructures in racks, lecterns, or panels need to be routed neatly to the outside, in companies and public institutions as well as in existing installations.
Connection: VGA 15-pin socket to VGA 15-pin panel-mount socket (HD-15)
Length: 0.2 m
Pinout: 1:1
Contacts: gold-plated
Cutout: 9x17 mm
Hole spacing: 25 mm
Screws: #4-40, thread length 6 mm
Max. sheet thickness: 2 mm
Color: Black

Features
Cable length	0.2 m
Connector 1	VGA (D-Sub)
Connector 2	VGA (D-Sub)
Connector 1 gender	Female
Connector 2 gender	Female
Product colour	Black
Connector contacts plating	Gold

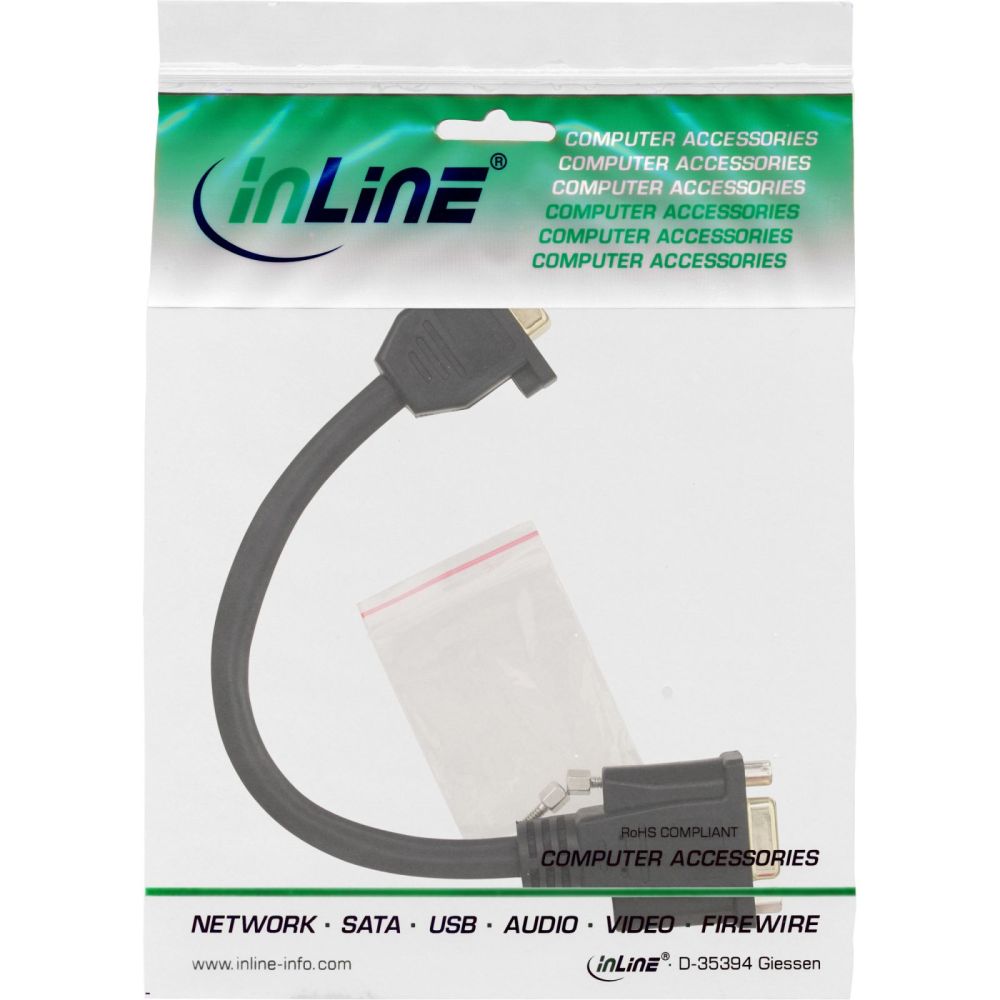

Packaging data
Package width	50 mm
Package depth	230 mm
Package height	20 mm
Package weight	50 g
Technical data
Shielding	Single shielding
Type	BNC & VGA
Weight	0.050kg
Height packaging	0.020m
Side A	15pin HD female
Plug	gold-plated contacts
Colour	Black
Side B	15pin HD female
Outer diameter	8.0mm
Signal	Video
Net weight	0.047kg
Length	0.20m
Width packaging	0.050m
Article length	20.00cm
Length packaging	0.230m
Variant	Standard cable
Packaging volume	0.0002m³
UL
Weight & dimensions
Weight	47 g
Package volume	200 cm³

---
