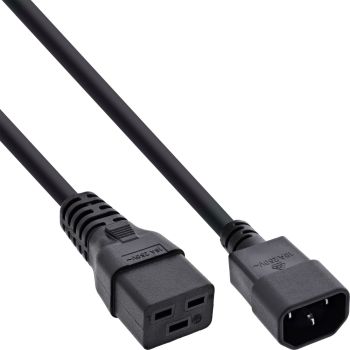

INLINE power adapter cable IEC-60320 C14 to C19 3x1,5mm2 max. 10A black 1m content_copy

IEC 60320 C14 to C19 power adapter cable for reliable power connections up to 10 AFlexible connection solution: Enables devices with a C19 connector to be connected to existing C14 power sources, efficiently and safely expanding existing power systems
Reliable power supply: Supports devices with a current requirement of up to 10 A and ensures stable and constant power transmission in daily use
Optimised cabling: Reduces the need for additional adapters and simplifies integration into existing mains connections for a neat and structured installation
Various lengths available: Offers suitable cable lengths from 0.5 m to 3 m for flexible use in both short and longer connections
Standard-compliant compatibility: Complies with IEC 60320 standards and enables a safe connection between compatible devices and power sources
This power adapter cable with IEC 60320 C14 to C19 enables a simple and reliable connection between different power sockets. It is ideal for connecting devices with a C19 connector to existing C14 power sources and for flexibly extending existing cabling.
The cable supports a power supply of up to 10 A, making it suitable for higher-power applications. It ensures stable power transmission and enables safe integration into existing power systems.
Thanks to the various lengths available, ranging from 0.5 m to 3 m, the cable can be optimally adapted to different requirements. Short connections can be realised, as can longer distances between the power source and the device.
The standard-compliant IEC 60320 connectors ensure high compatibility and enable reliable use in various applications. The cable supports structured cabling and contributes to efficient power distribution.
Connector 1: IEC 60320 C14
Connector 2: IEC 60320 C19
Max. current: 10 A
Lengths: 0.5 m, 1 m, 2 m, 3 m
Colour: black

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	1 m
Connector 1	C14 coupler
Connector 2	C19 coupler
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Conductor cross section	1.5 mm²
Other features
Dimensions (WxDxH)	32 x 1000 x 24 mm
Packaging data
Package type	Polybag
Package width	180 mm
Package depth	210 mm
Package height	25 mm
Package weight	185 g
Package volume	1000 cm³
Power
Maximum current	10 A
Technical data
Width packaging	0.180m
Outer diameter	6.8mm
Article width	3.20cm
Weight	0.185kg
Packing	Retail
Signal	Power
Side B	IEC-C19 (cold appliances)
Operation temperature	-10 bis 60°C
Diameter	3G1.5mm²
Variant	Straight
Harmonization	H05VV-F
Height packaging	0.025m
Net weight	0.178kg
Length packaging	0.210m
Article height	2.40cm
Side A	IEC-C14 (cold appliances)
Article length	100.00cm
Packaging volume	0.0010m³
Storage temperature	-20 bis 70°C
Colour	Black
UL
Weight & dimensions
Width	32 mm
Depth	1000 mm
Height	24 mm
Weight	178 g

---
