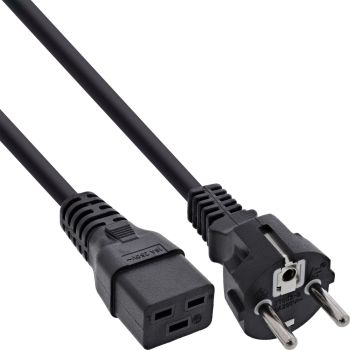

InLine® Power cable 16A CEE 7/7 straight / IEC320/C19 5m content_copy

Power cable with earth pin to IEC C19 16 A for high-power devicesReliable power supply up to 16 A: Power cable with IEC C19 connector enables the operation of devices with high power consumption and ensures stable power transmission
Perfectly fitting plug connection: CEE 7/7 safety plug to IEC C19 provides a standard-compliant connection for compatible devices and reduces contact resistance
Ideal for power-intensive applications: Suitable for use with servers, UPS systems and other devices with high energy requirements in continuous operation
Tested safety: VDE-certified power cable meets relevant safety requirements and supports reliable indoor operation
Robust and durable construction: H05VV-F cable with moulded plugs ensures increased stability and reduces mechanical wear during frequent use
This power cable with a safety plug and IEC C19 connector is designed for powering devices with high power consumption. It is suitable for applications where stable and safe power transmission is required.
The earth-connected plug allows connection to the mains supply, whilst the IEC 60320 C19 plug is designed for compatible devices with higher power requirements. This enables the cable to be used in various areas where high-power devices are operated.
The cable complies with type H05VV-F and is suitable for indoor use. The robust construction with moulded plugs ensures a reliable connection and supports a long service life even with regular use.
Thanks to VDE certification, the power cable meets important safety requirements. The various lengths available offer additional flexibility during installation and allow for a customised power supply depending on requirements.
Plug: CEE 7/7 safety plug
Appliance plug: IEC 60320 C19
Cable type: H05VV-F
Rated voltage: 250 V
Maximum current: 16 A
Certification: VDE

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	5 m
Connector 1	CEE7/7
Connector 2	IEC C19
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Conductor cross section	1.5 mm²
Connector 1 lockable
Connector 2 lockable
Packaging data
Quantity per pack	1 pc(s)
Package width	170 mm
Package depth	215 mm
Package height	45 mm
Package weight	640 g
Package volume	1600 cm³
Power
Input voltage	250 V
Input current	16 A
Technical data
Signal	Power
Outer diameter	6.8mm
Article length	500.00cm
Side B	IEC-C19 (cold appliances)
Operation temperature	-10 bis 60°C
Colour	Black
Net weight	0.637kg
Diameter	3G1.5mm²
Packaging volume	0.0016m³
Storage temperature	-20 bis 70°C
Weight	0.640kg
Length packaging	0.215m
Variant	Straight
Side A	CEE7/7 plug
Width packaging	0.170m
Height packaging	0.045m
Length	5m
Special feature	Retail
Harmonization	H05VV-F
UL
Weight & dimensions
Depth	5000 mm
Weight	637 g

---
