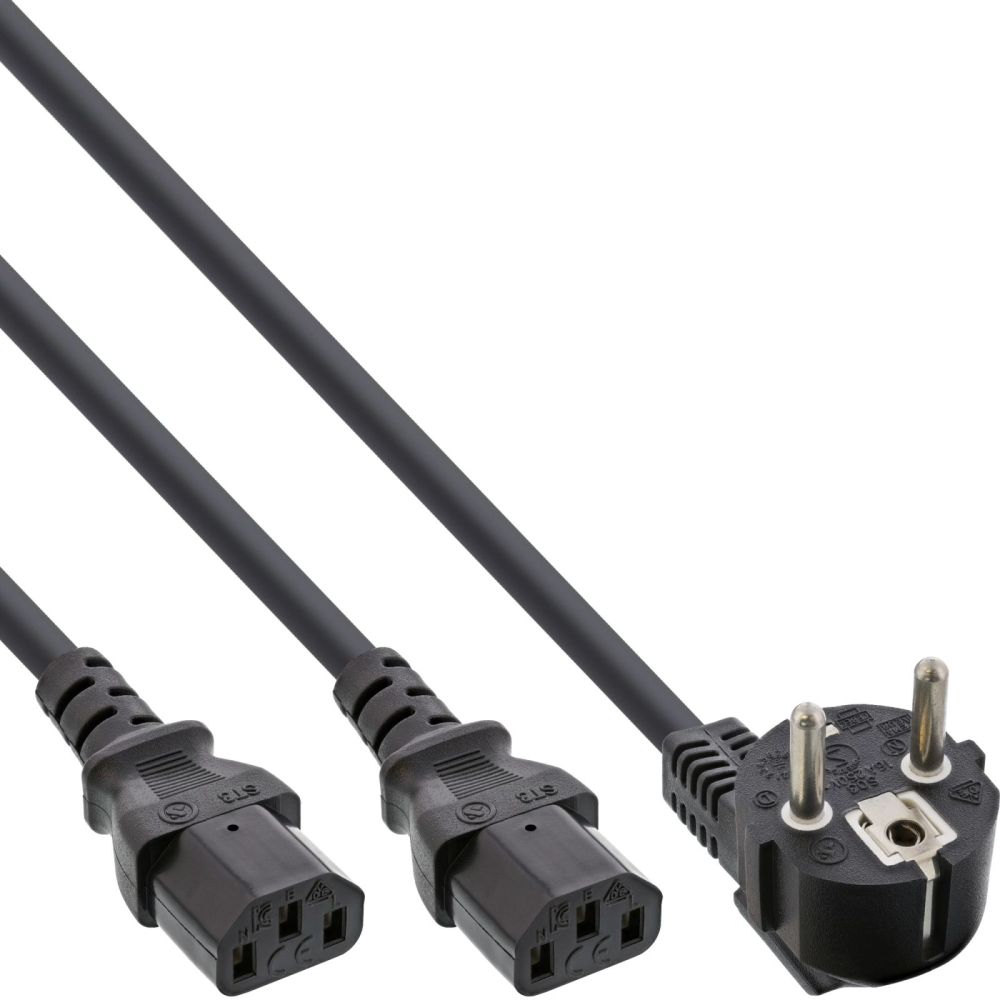

InLine® Y-power cable 1x CEE 7/7 angled / 2x 3pin IEC C13 male, 3m content_copy

Mains Y-cable for power distribution from a safety socket to two IT socketsPowering two devices from a single socket: The mains Y-cable allows two devices to be connected simultaneously via a safety socket and ensures efficient power distribution
Choose the right length for your application: Available in 1 m, 1.80 m, 3 m and 5 m, so you can use the optimal cable length depending on the application
Space-saving solution without a power strip: Reduces the need for additional hardware and creates a tidy installation where space is limited
Neat and organised cable management: The Y-splitter ensures less cable clutter and a clear power supply
Versatile power distribution cable: Suitable for devices with IEC power connectors and ideal for simultaneous power supply via a single socket
The mains Y-cable enables simple and efficient power distribution via a single socket. It allows two devices with IEC connectors to be operated simultaneously, thereby reducing the need for additional power strips.
Several lengths are available to suit different requirements. The 1 m version is suitable for short distances and compact installations. The 1.80 m version offers greater flexibility for typical applications. The 3 m and 5 m versions allow even greater distances to be bridged with ease.
The practical Y-shape supports structured and clear cable routing. This ensures greater tidiness and facilitates installation in various environments. The cable offers a space-saving alternative, particularly where connection options are limited.
Connection: Earth-connected plug to 2x IEC connectors
Variants:
16657C: 1 m (0.5 m + 2x 0.5 m), cross-section: 3G0.75 mm²
16653: 1.80 m (0.9 m + 2x 0.9 m), cross-section: 1x 3G1.0 mm² + 2x 3G0.75 mm²

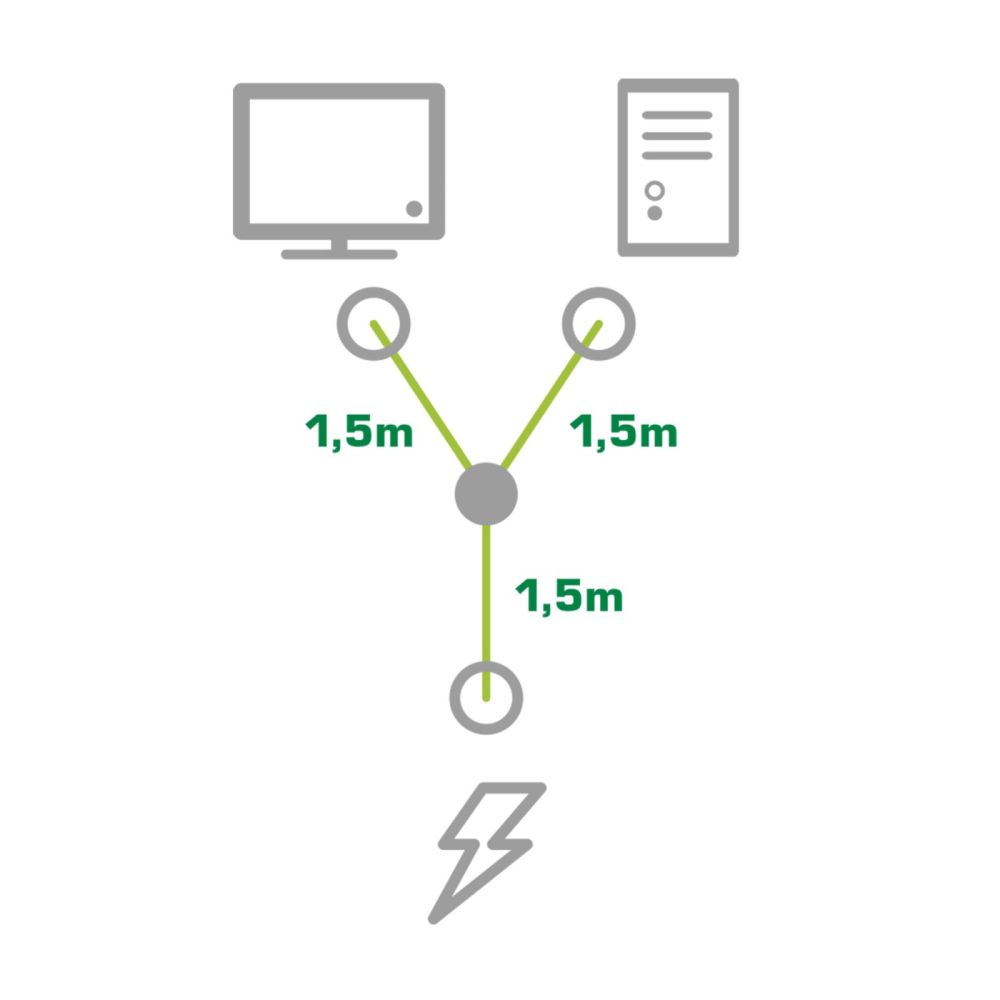

16657E: 3 m (1.5 m + 2 x 1.5 m), cross-section: 3 x 1.0 mm²
16657F: 5 m (3 m + 2 x 2 m), cross-section: 3 x 1.0 mm²

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	3 m
Connector 1	CEE7/7
Connector 2	2 x C13 coupler
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Connector angle	90°
Conductor cross section	1 mm²
Other features
Dimensions (WxDxH)	75 x 3000 x 55 mm
Packaging data
Package width	210 mm
Package depth	230 mm
Package height	30 mm
Package weight	514 g
Package volume	1500 cm³
Technical data
Length	3 ('1.5 + 2x '1.5)m
Packaging volume	0.0015m³
Storage temperature	-20 bis 70°C
Side B	IEC-C13 (cold appliances)
Operation temperature	-10 bis 60°C
Harmonization	H05VV-F
Outer diameter	6.4mm
Article width	7.50cm
Colour	Black
Variant	2-way Y-cable
Length packaging	0.230m
Article height	5.50cm

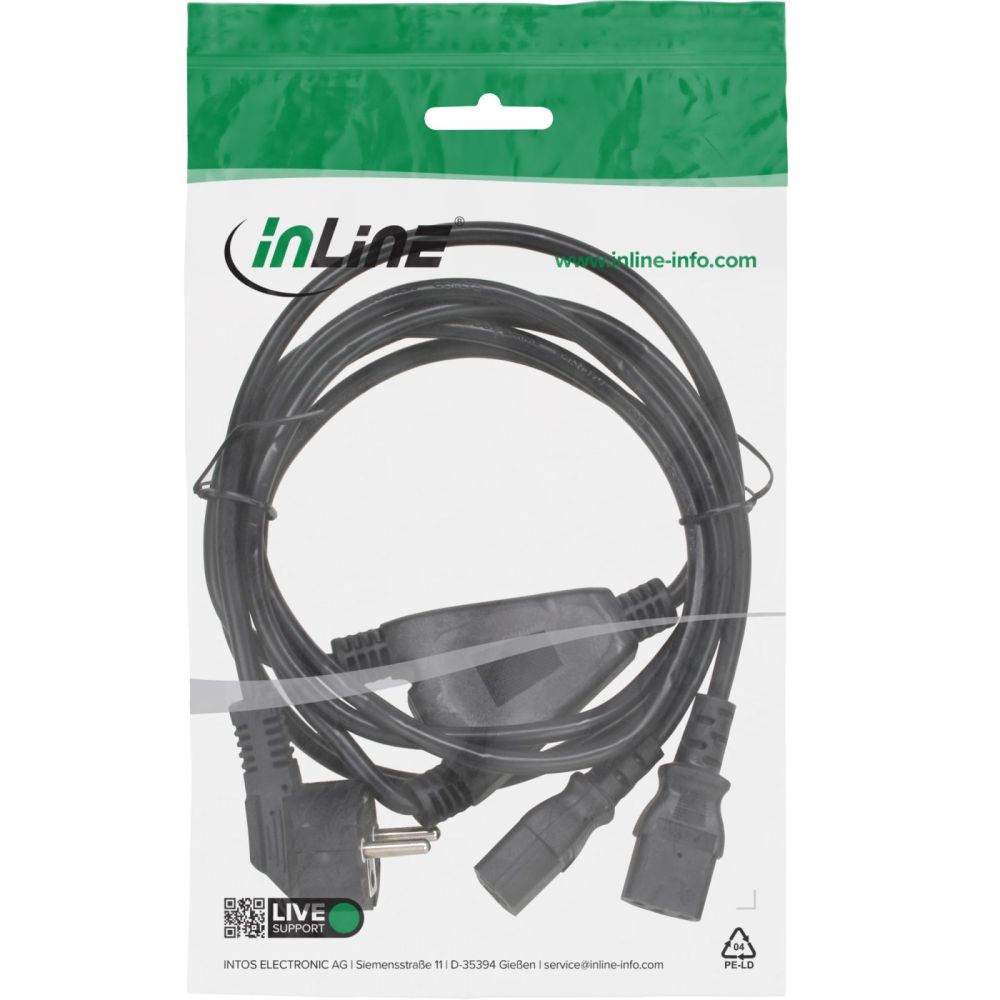

Packing	Retail
Width packaging	0.210m
Side A	CEE7/7 plug
Weight	0.514kg
Article length	300.00cm
Height packaging	0.030m
Net weight	0.495kg
Signal	Power
Diameter	2x 3G1.0 / 1x 3G1.5mm²
UL
Weight & dimensions
Width	75 mm
Depth	3000 mm
Height	55 mm
Weight	495 g

---
