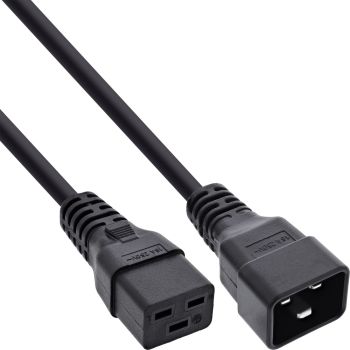

InLine® power cable C19 / C20 3-pin IEC male / female black 2m content_copy

C19 to C20 power extension cable with 16 A for flexible power connectionsReliable power extension: Extends existing C19 to C20 connections safely and in accordance with IEC 60320, ensuring a stable power supply for demanding applications.
High current capacity of 16 A: Supports reliable power transmission even with higher power requirements and enables the safe operation of compatible devices.
Flexible applications: Ideal for extending existing power connections when cable routes need to be adjusted or distances bridged.
Precise length selection: Available in several lengths from 0.30 m to 10 m for structured and needs-based cabling.
Standardised connectors: Featuring IEC 60320 C19 and C20 for high compatibility within existing power infrastructures and easy integration.
This power extension cable enables the reliable extension of existing power connections with C19 to C20 connectors. It is ideal when existing cables are insufficient or need to be flexibly adapted.
With a current-carrying capacity of up to 16 A, the cable supports a stable power supply for devices with the appropriate connection. The standard-compliant design in accordance with IEC 60320 ensures high compatibility and facilitates integration into existing power environments.
By selecting different lengths from 0.30 m to 10 m, the cabling can be optimally adapted to the specific installation. This facilitates structured cable routing and reduces unnecessary cable lengths.
The robust and standardised design enables reliable use in various applications where a safe power extension is required.
Plug type: IEC 60320 Type C19 to IEC 60320 Type C20
Current rating: max. 16 A
Colour: black
Standard: IEC 60320
Available lengths: 0.30 m, 0.5 m, 0.75 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 7.5 m, 10 m

Features
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable length	2 m
Connector 1	C19 coupler
Connector 2	C20 coupler
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable type	H05VV-F3G
Conductor cross section	1.5 mm²
Other features
Dimensions (WxDxH)	34 x 2000 x 25 mm
Packaging data
Package width	190 mm
Package depth	230 mm
Package height	40 mm
Package weight	315 g
Package volume	1800 cm³
Technical data
Article length	200.00cm
Special feature	Retail
Outer diameter	6.8mm
Article width	3.40cm
Weight	0.315kg
Height packaging	0.040m
Width packaging	0.190m
Signal	Power
Side A	IEC-C19 (cold appliances)
Net weight	0.304kg
Harmonization	H05VV-F
Side B	IEC-C20 (cold appliances)
Operation temperature	-10 bis 60°C
Diameter	3G1.5mm²
Packaging volume	0.0018m³
Storage temperature	-20 bis 70°C
Colour	Black
Length packaging	0.230m
Article height	2.50cm
UL
Weight & dimensions
Width	34 mm
Depth	2000 mm
Height	25 mm
Weight	304 g

---
