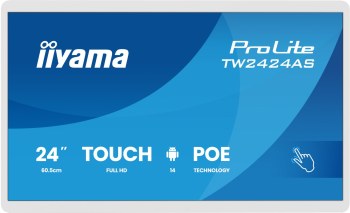

Iiyama TW2424AS-W3P 60,5 cm (23,8") 16:9 M-Touch USBC Android
|
468,51 EUR |
|
|
( 557,53 EUR incl. VAT ) ≈ £392.14 | ≈ $522.39 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 207425 |
| Mfg Part No: | TW2424AS-W3P |
| UPC/EAN: | 4948570128273 |
| Weight: | 6.28 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TW2424AS-W3P:
• Sichtbare Bildschirmdiagonale: 43,2 cm ( 17 inch )/43,0cm • Auflösung: 1280x1024 @ 75Hz • Helligkeit: 230cd/m² • Kontrast: 1000:1 • Touch: Projectiv Resistiv • Touch-Oberfläche: USB • Reaktionszeit: 5ms • Blickwinkel: 170°/160° • Panel: TN • Anschlüsse: 1x VGA, 1x HDMI • USB-Hub: 1x USB-B • Ergonomie: +70°/-10° Neigen • VESA: 100x100 • Audio: 2x2W • Maße: 392,5x364x198mm • Farbe: Schwarz
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | |
| Computer system | |
| Computer system type | System on Chip (SoC) |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3576 |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Processor cores | 8 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Product colour | White |
| Panel mounting interface | 100 x 100 mm |
| Bezel colour | White |
| VESA mounting | |
| Display | |
| Panel type | IPS |
| Display diagonal | 60.5 cm (23.8") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 450 cd/m² |
| HD type | Full HD |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Active display area (W x H) | 527 x 296.5 mm |
| Display diagonal (metric) | 60.5 cm |
| Colour depth | 8 bit |
| Surface hardness | 6H |
| Touchscreen | |
| Multi-touch | |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Bluetooth version | 5.3 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Brightness | 450 cd/m² |
| Power supply type | External |
| Quick start guide | |
| AC adapter included | |
| Bluetooth | |
| Built-in microphone | |
| Cable management | |
| Packaging content | |
| Cables included | AC |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 121 mm |
| Package height | 410 mm |
| Package weight | 6.2 kg |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| USB ports quantity | 2 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | |
| USB port | |
| Power | |
| Power consumption (typical) | 17.5 W |
| Power consumption (standby) | 0.5 W |
| Input voltage | 12 V |
| Power consumption (off) | 0.3 W |
| Technical details | |
| User controls | Power switch, volume/ button +, volume/ button - |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Weight & dimensions | |
| Display width | 550 mm |
| Display depth | 28 mm |
| Display height | 336 mm |
| Display weight | 4.24 kg |
| Width | 550 mm |
| Depth | 28 mm |
| Height | 336 mm |
| Weight | 4.24 kg |
| Width (with stand) | 550 mm |
| Depth (with stand) | 28 mm |
| Height (with stand) | 336 mm |
| Weight (with stand) | 4.24 kg |
Questions & answers
What is the delivery time of Iiyama TW2424AS-W3P 60,5 cm (23,8") 16:9 M-Touch USBC Android?
The article Iiyama TW2424AS-W3P 60,5 cm (23,8") 16:9 M-Touch USBC Android is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TW2424AS-W3P to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Iiyama TW2424AS-W3P 60,5 cm (23,8") 16:9 M-Touch USBC Android always at the best possible price. We can give you a discount of 2% on Iiyama TW2424AS-W3P 60,5 cm (23,8") 16:9 M-Touch USBC Android if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
