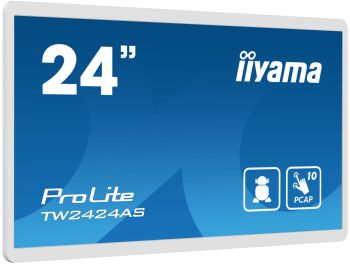

IIYAMA 60.5cm (23.8") TW2424AS-W1 16:9 M-Touch HDMI Android retail
|
-14% 444,87 EUR 515,99 EUR |
|
|
( 529,40 EUR incl. VAT ) ≈ £372.36 | ≈ $496.03 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| End-Of-Life: | 21. Oct 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2104521 |
| Mfg Part No: | TW2424AS-W1 |
| UPC/EAN: | 4948570122950 |
| Weight: | 6.137 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TW2424AS-W1:
? 60,5 cm ( 23,8 inch ), 60,5cm - 1920x1080 - 16:9 - VA panel - 1x HDMI, 1x USB-C, 1x Mini Jack, 2x Lautsprecher, HDCP, 1x RJ45, 3x USB Hub x3 - 250cd/m² (with touch) - 1000:1, 14ms - Vesa: 100x100 - Abmessung: 549,5x336x28
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Computer system | |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3399 |
| Processor frequency | 1.8 GHz |
| Processor cores | 2 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-T860 MP4 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 12 |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Bezel colour | White |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 350 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Active display area (W x H) | 527 x 296.5 mm |
| Display diagonal (metric) | 60.5 cm |
| Panel life | 50000 h |
| Horizontal scan range | 31 - 83 kHz |
| Surface hardness | 3H |
| Touchscreen | |
| Features | |
| Base colour | Black |
| Base material | Metal |
| Suitable for indoor use | |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Audio input | Y |
| Bluetooth version | 5.2 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Brightness | 350 cd/m² |
| Power supply type | External |
| Quick start guide | |
| AC adapter included | |
| Bluetooth | |
| Built-in microphone | |
| Bluetooth Low Energy (BLE) | |
| Plug and Play | |
| Packaging content | |
| Number of stylus pens | 4 |
| Cables included | AC |
| Remote control included | |
| Batteries included | |
| Stylus pen | |
| Packaging data | |
| Package width | 580 mm |
| Package depth | 126 mm |
| Package height | 375 mm |
| Package weight | 6.15 kg |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| HDMI input ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| USB ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | |
| Power | |
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| OPS slot | 1 |
| User controls | Volume +, volume -, power switch |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 549.5 mm |
| Display depth | 28 mm |
| Display height | 336 mm |
| Display weight | 4.23 kg |
| Width | 549.5 mm |
| Depth | 28 mm |
| Height | 336 mm |
| Weight | 4.23 kg |
| Width (with stand) | 549.5 mm |
| Depth (with stand) | 28 mm |
| Height (with stand) | 336 mm |
| Weight (with stand) | 4.23 kg |
