IIYAMA 24inch Panel-PC with Android 14+GMS SOC Octa-core RK3576 4GB Storage 32GB PCAP Bezel Free 10-Points Touch 1920x1080
|
463,47 EUR 467,58 EUR |
|
|
( 551,53 EUR incl. VAT ) ≈ £387.92 | ≈ $516.77 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 561031 |
| Mfg Part No: | TW2424AS-B3P |
| UPC/EAN: | 4948570127153 |
| Weight: | 6.36 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama

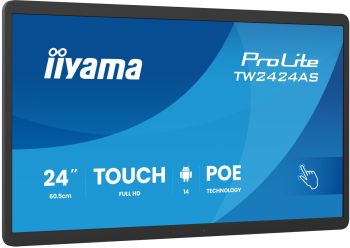

Product information for Iiyama TW2424AS-B3P:
• Desaign: Thin bezel • Touchscreen Technologie: Projectiv kapazitiv • Display: 60,5 cm ( 23,8 inch )/, 1920 x 1080 (2 Megapixel), 16:9 • Panel-Technologie: IPS • Kontrast: 1000:1 mit Touch Panel • Reaktion: 14ms • Helligkeit: 450 cd/m² mit Touch Panel • Blickwinkel: 178°/178° • Digitaler Video Ausgang: USB-C x1 (1x v. 3.2 (Gen 1, nur Videoausgang und Touchscreen-Funktion – Bildschirmspiegelung)) • Audio Eingang: Mini Jack x1 • Audio Ausgang: Lautsprecher 2 x 5W, USB Ports: x2 (1x v. 3.2 (Gen 1, 5Gbit DC5V, 900mA), 1x 2.0 (DC5V, 500mA)), RJ45 (LAN): x1 (PoE - IEEE802.3at/72 W (1000M)), Mikrofon: x1 • VESA: 100x100mm • Integrierte Software: Android 14 mit GMS • SOC: Octa-core RK3576 (4x A53 + 4x A72) • GPU: ARM G52 MC3 • Storage: 32GB eMMC • Memory: 4GB LPDDR4 • Maße: 550 x 336 x 28mm • Gehäusefarbe/art: schwarz, matt
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | Rockchip RK3576 |
| Processor frequency | 1.8 GHz |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| Panel mounting interface | 100 x 100 mm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 450 cd/m² |
| HD type | Full HD |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Active display area (W x H) | 527 x 296.5 mm |
| Display diagonal (metric) | 60.5 cm |
| Colour depth | 8 bit |
| Surface hardness | 6H |
| Touchscreen | |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Audio input | Y |
| Bluetooth version | 5.3 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Brightness | 450 cd/m² |
| Power supply type | External |
| Quick start guide | |
| AC adapter included | |
| Bluetooth | |
| Built-in microphone | |
| Cable management | |
| Packaging content | |
| Cables included | AC |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 121 mm |
| Package height | 410 mm |
| Package weight | 6.2 kg |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| USB ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | |
| USB port | |
| Power | |
| Power consumption (typical) | 17.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Technical details | |
| User controls | Power switch, volume/ button +, volume/ button - |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 550 mm |
| Display depth | 28 mm |
| Display height | 336 mm |
| Display weight | 4.24 kg |
| Width | 550 mm |
| Depth | 28 mm |
| Height | 336 mm |
| Weight | 4.24 kg |
| Width (with stand) | 550 mm |
| Depth (with stand) | 28 mm |
| Height (with stand) | 336 mm |
| Weight (with stand) | 4.24 kg |
