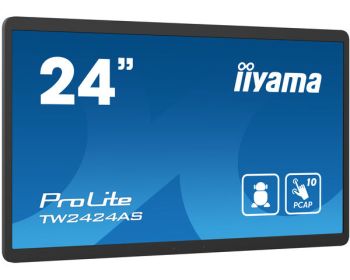

IIYAMA TW2424AS-B1 24inch Panel-PC with Android 12 CPU RK3399 4GB Storage 32GB In-Cell PCAP
|
-15% 440,04 EUR 515,99 EUR |
|
|
( 523,65 EUR incl. VAT ) ≈ £368.31 | ≈ $490.64 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2109885 |
| Mfg Part No: | TW2424AS-B1 |
| UPC/EAN: | 4948570122943 |
| Weight: | 6.2 kg |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TW2424AS-B1:
• 60,5 cm ( 23,8 inch ), 60,5cm • 1920x1080 • 16:9 • VA panel • 1x HDMI, 1x USB-C, 1x Mini Jack, 2x Lautsprecher, HDCP, 1x RJ45, 3x USB Hub x3 • 250cd/m² (with touch) • 1000:1, 14ms • Vesa: 100x100 • Abmessung: 549,5x336x28
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Computer system | |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3399 |
| Processor frequency | 1.8 GHz |
| Processor cores | 2 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-T860 MP4 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 12 |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Active display area (W x H) | 527 x 296.5 mm |
| Display diagonal (metric) | 60.5 cm |
| Panel life | 50000 h |
| Horizontal scan range | 31 - 83 kHz |
| Surface hardness | 6H |
| Touchscreen | |
| Features | |
| Base colour | Black |
| Base material | Metal |
| Suitable for indoor use | |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Audio input | Y |
| Bluetooth version | 5.2 |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Brightness | 250 cd/m² |
| Power supply type | External |
| Quick start guide | |
| AC adapter included | |
| Bluetooth | |
| Built-in microphone | |
| Bluetooth Low Energy (BLE) | |
| Plug and Play | |
| Packaging content | |
| Number of stylus pens | 4 |
| Cables included | AC |
| Remote control included | |
| Batteries included | |
| Stylus pen | |
| Packaging data | |
| Package width | 580 mm |
| Package depth | 126 mm |
| Package height | 375 mm |
| Package weight | 6.15 kg |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| HDMI input ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| USB ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | |
| Power | |
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| OPS slot | 1 |
| User controls | Volume +, volume -, power switch |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 549.5 mm |
| Display depth | 28 mm |
| Display height | 336 mm |
| Display weight | 4.23 kg |
| Width | 549.5 mm |
| Depth | 28 mm |
| Height | 336 mm |
| Weight | 4.23 kg |
| Width (with stand) | 549.5 mm |
| Depth (with stand) | 28 mm |
| Height (with stand) | 336 mm |
| Weight (with stand) | 4.23 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of IIYAMA TW2424AS-B1 24inch Panel-PC with Android 12 CPU RK3399 4GB Storage 32GB In-Cell PCAP?
The article IIYAMA TW2424AS-B1 24inch Panel-PC with Android 12 CPU RK3399 4GB Storage 32GB In-Cell PCAP is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TW2424AS-B1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you IIYAMA TW2424AS-B1 24inch Panel-PC with Android 12 CPU RK3399 4GB Storage 32GB In-Cell PCAP always at the best possible price. We can give you a discount of 2% on IIYAMA TW2424AS-B1 24inch Panel-PC with Android 12 CPU RK3399 4GB Storage 32GB In-Cell PCAP if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
