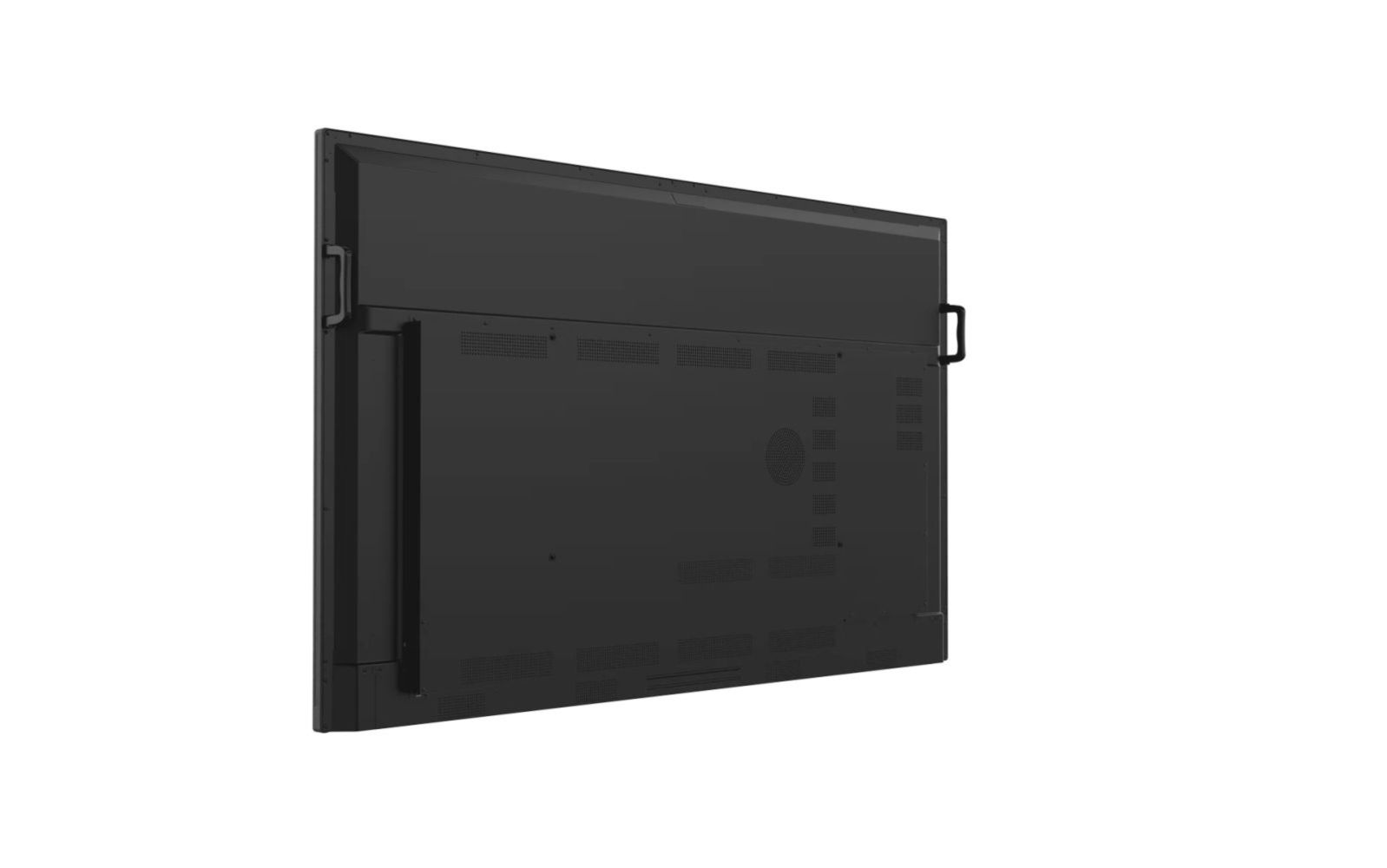

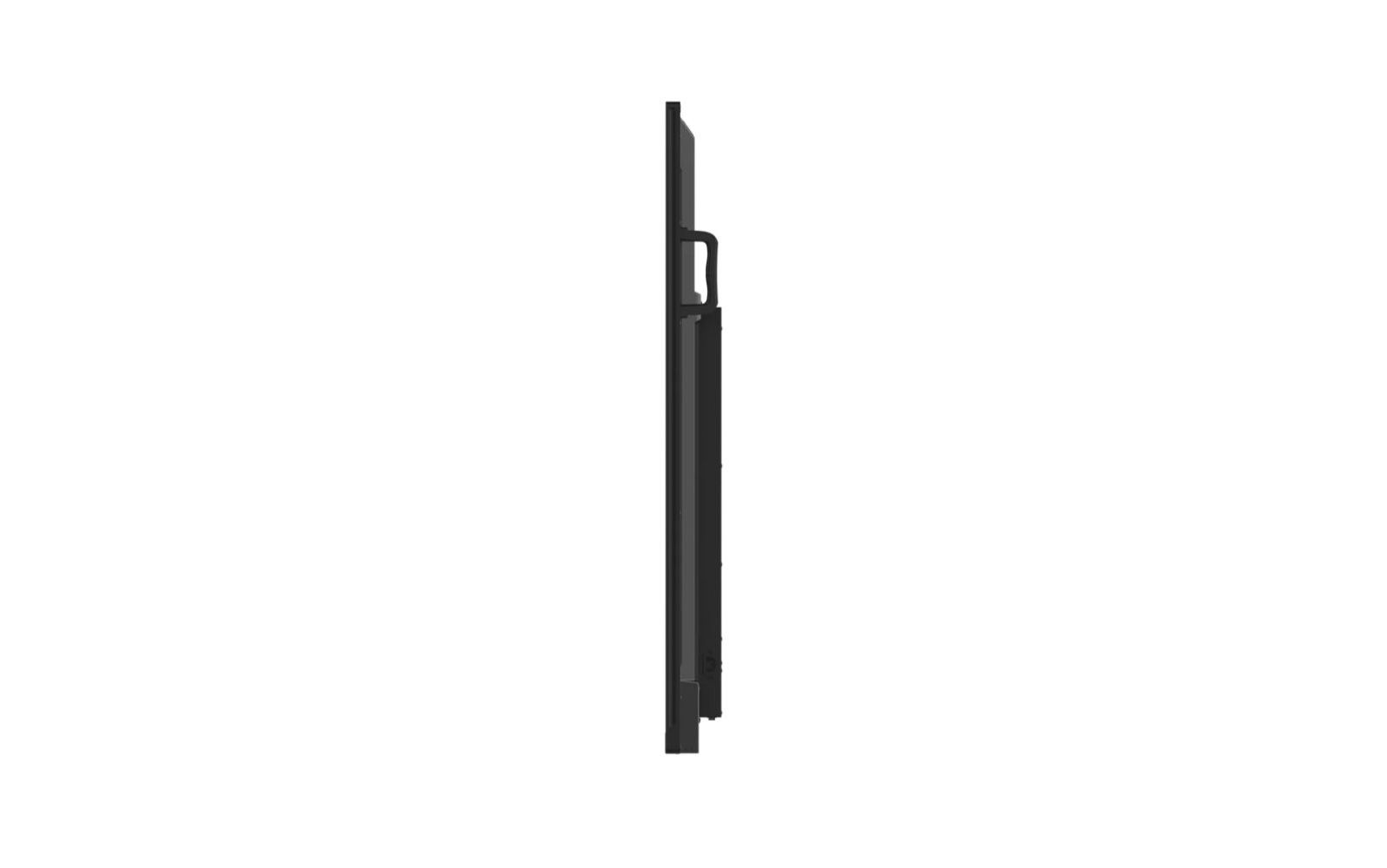

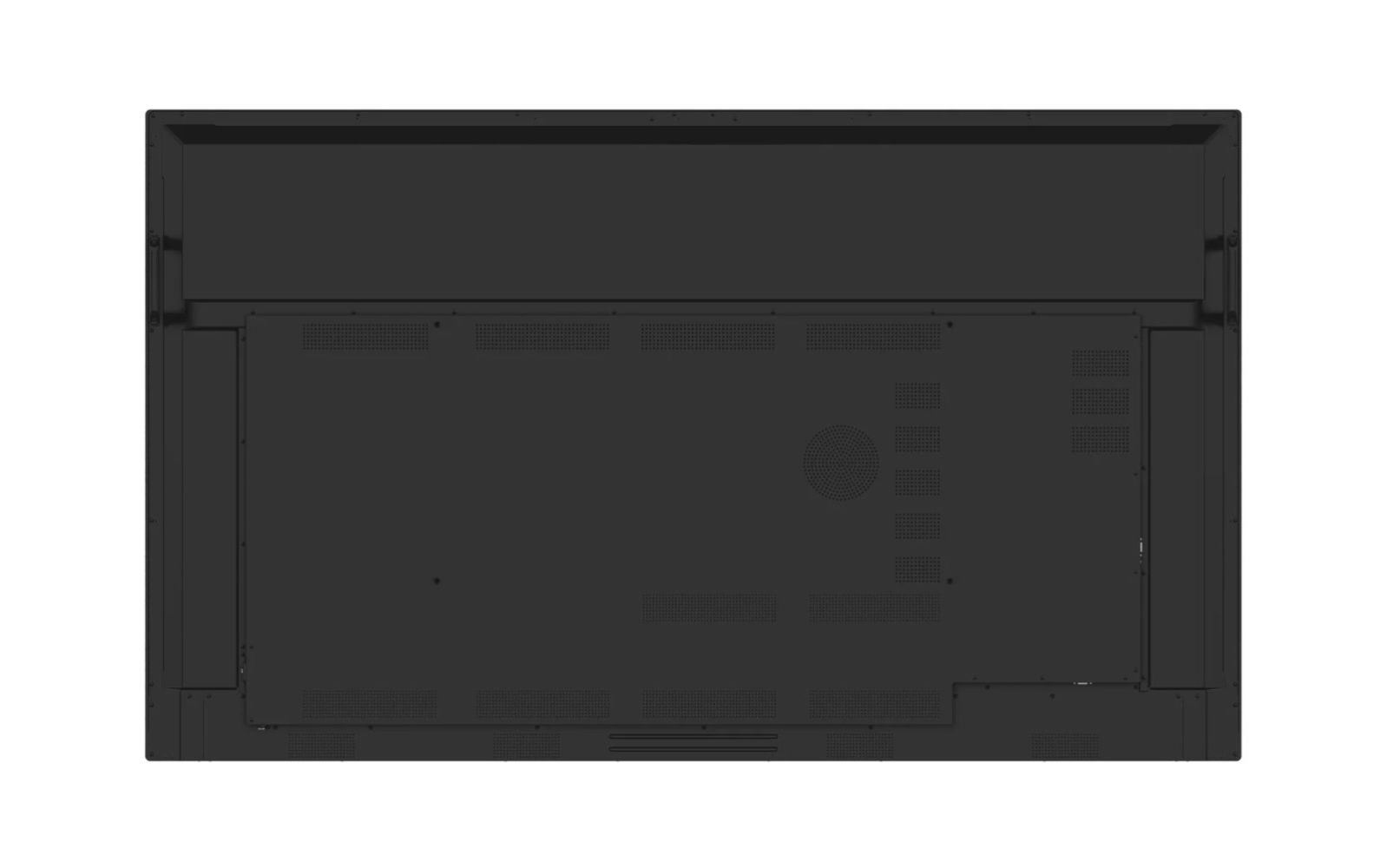

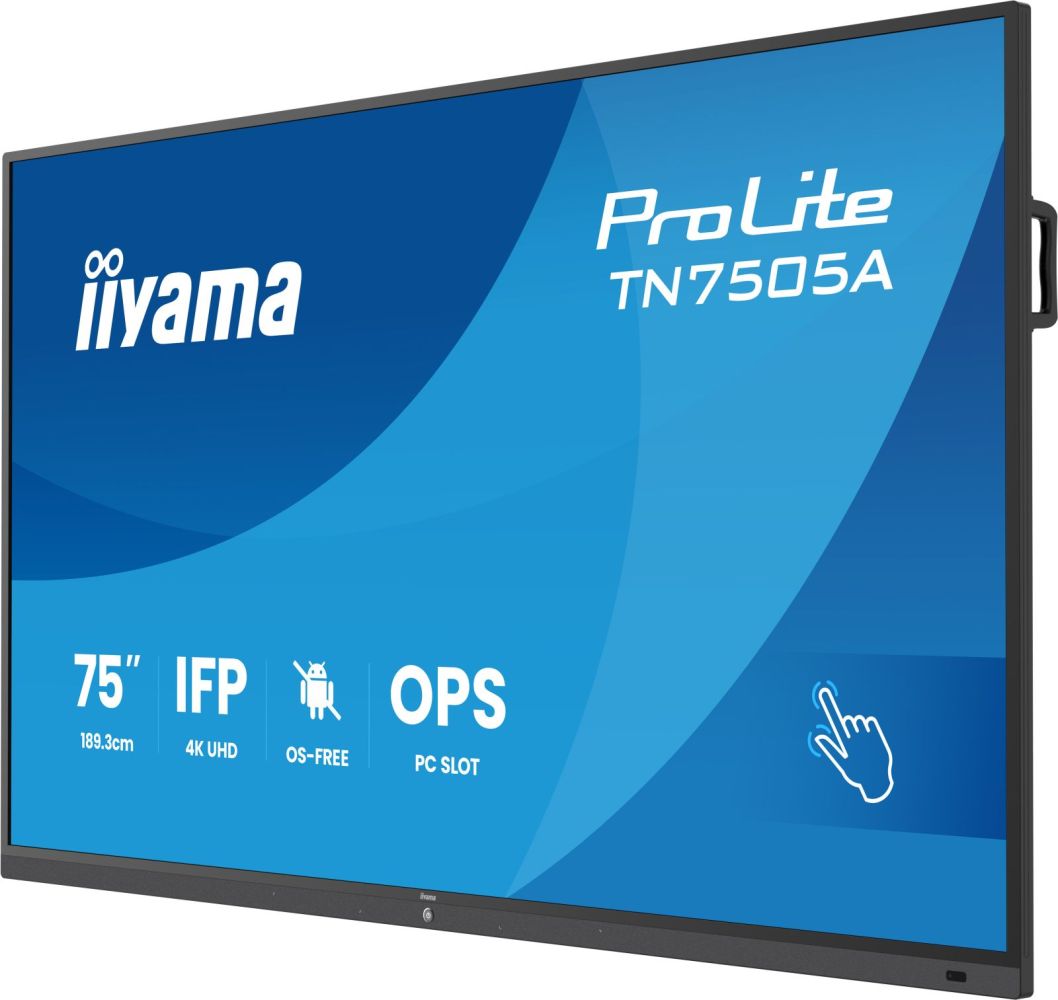

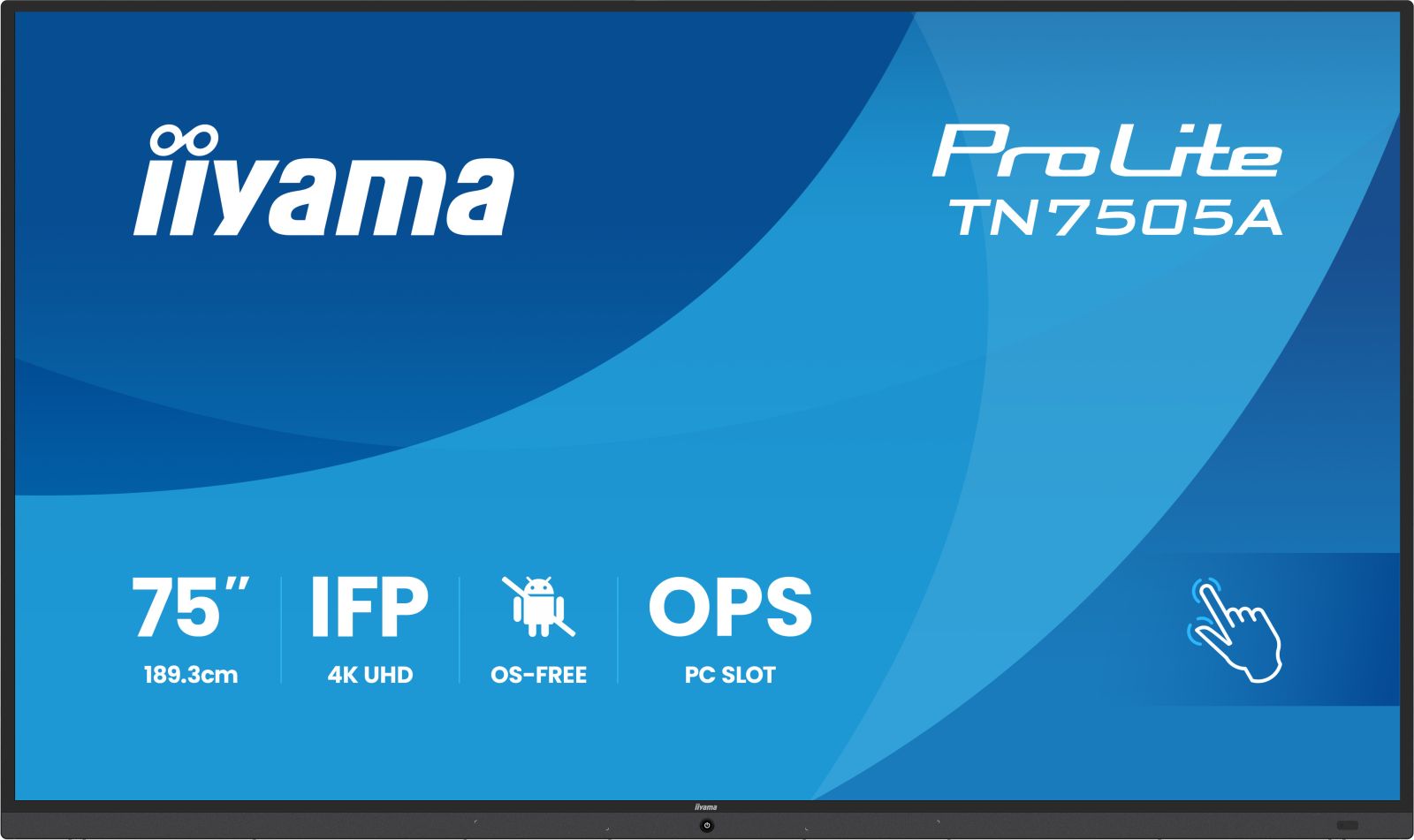

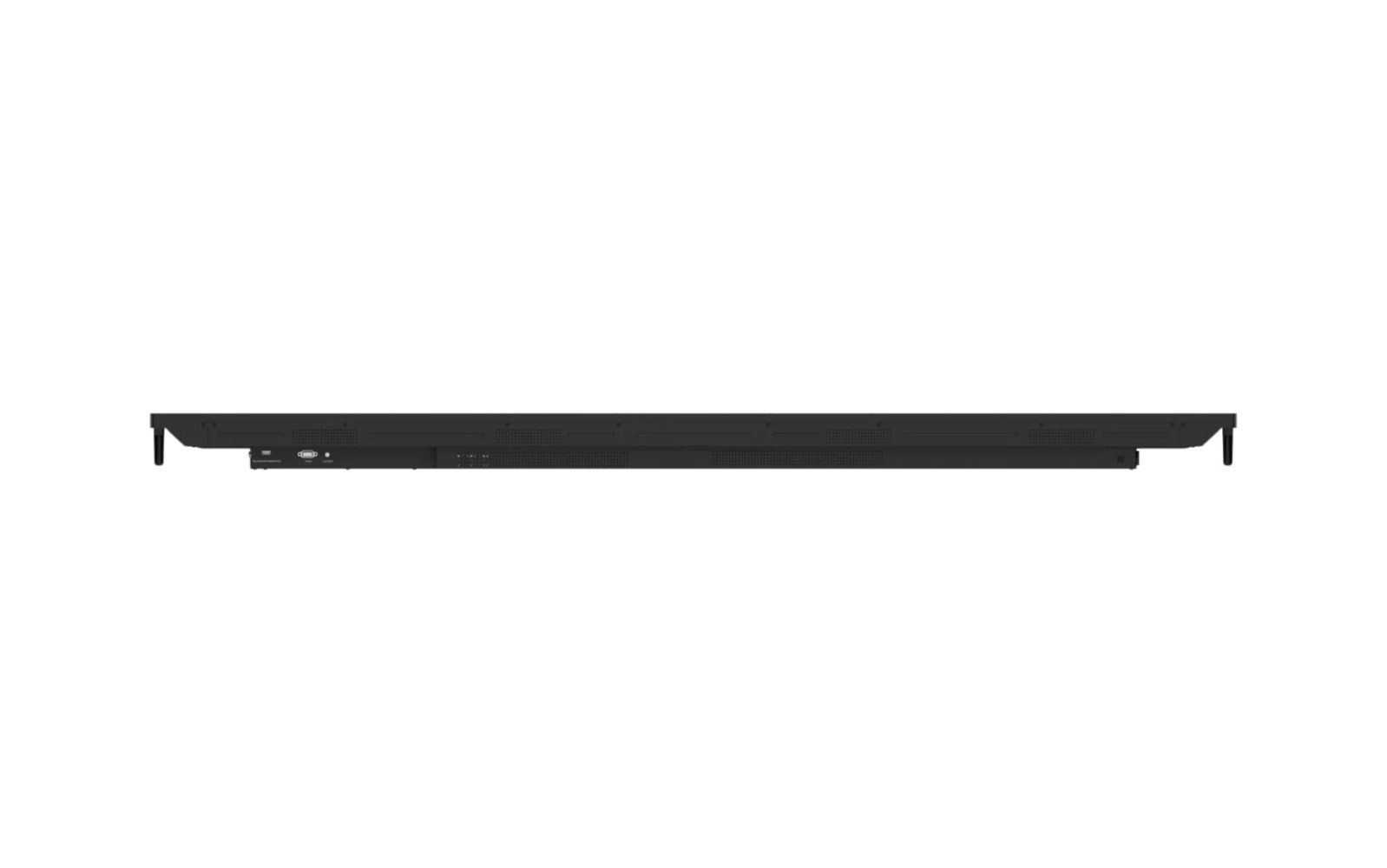

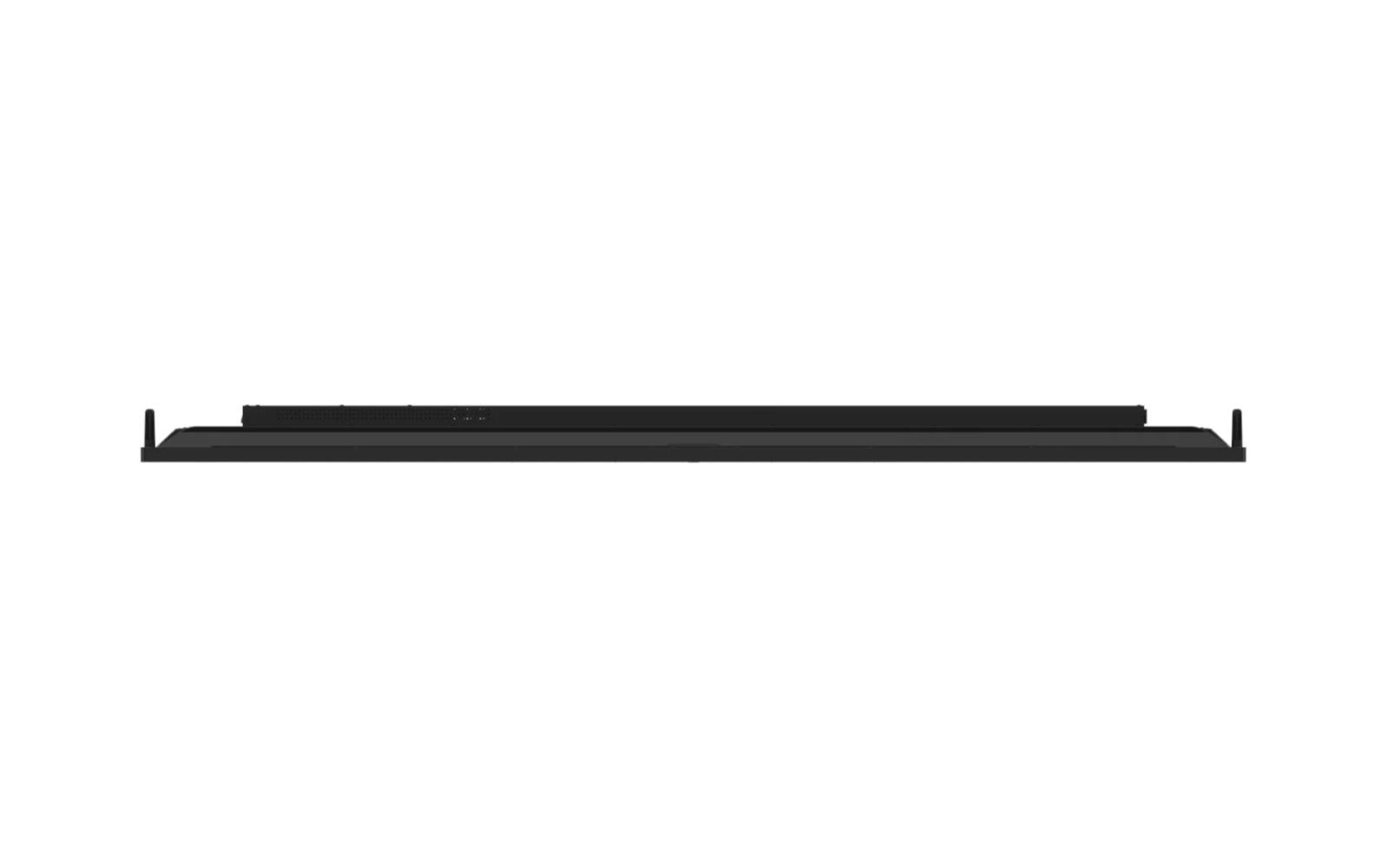

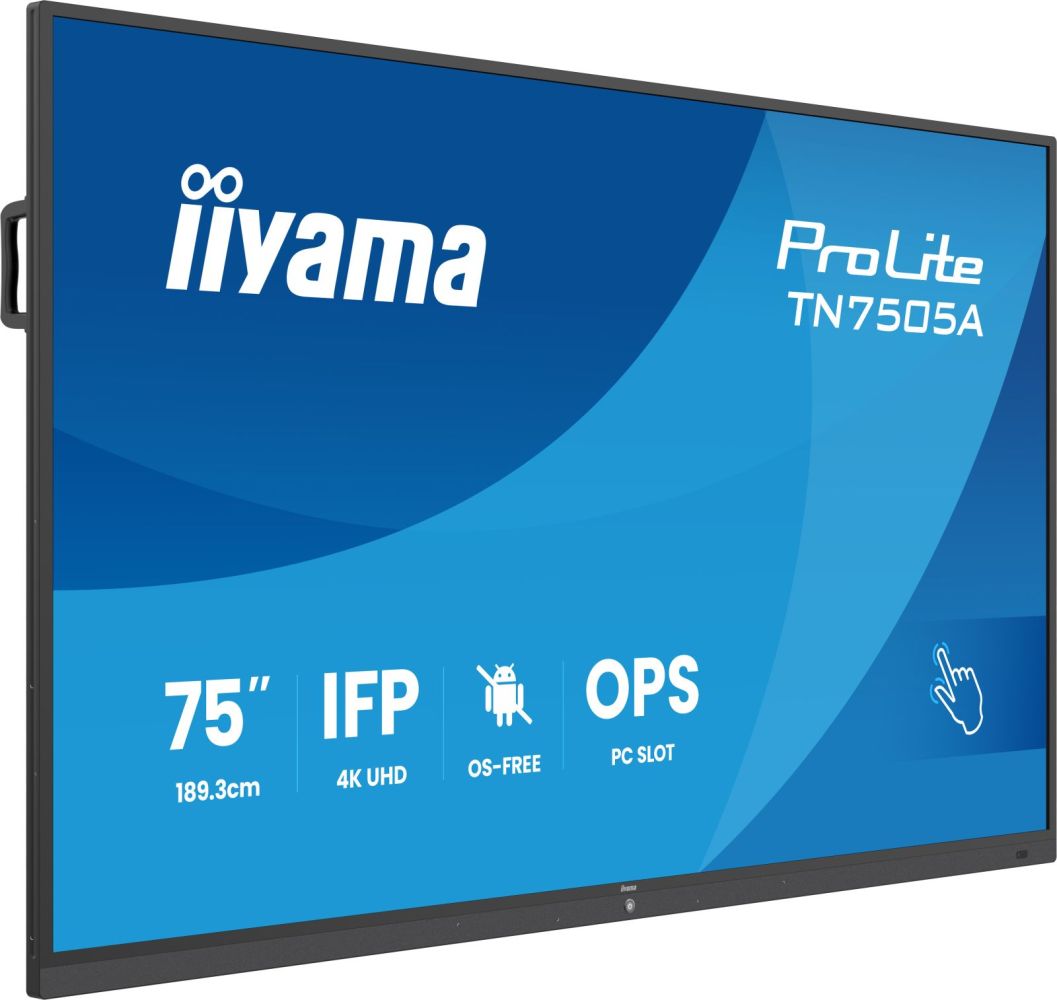

IIYAMA TN7505A-B1AG 75inch IFP OS-free 40-Points DeepContrast IR+ with Zero Gap - Air bonding Anti-glare and Bacteria coating
|
1.037,34 EUR |
|
|
( 1.234,43 EUR incl. VAT ) ≈ £871.37 | ≈ $1,163.90 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 12. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 858973 |
| Mfg Part No: | TN7505A-B1AG |
| UPC/EAN: | 4948570127078 |
| Weight: | 65.5 kg |
| Type: | LFD |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TN7505A-B1AG:
touch monitor (16:9), screen size: 189.2 cm (74.5''), infrared, multi touch, resolution: 3840x2160 pixels, VESA mount (800x400 mm), speaker, response time: 5ms, brightness 450cd, viewing angle 178°/178°°(H/V), contrast: 1200:1, antiglare, connection: USB (3x), USB-C, RS232, Ethernet, audio, VGA, display-port, HDMI, touch interface: USB, incl.: cable (USB, RS232, HDMI), power supply unit, power cable, Remote Control, stylus-pen, wall mount kit
| Audio | |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Screen shape | Flat |
| Panel mounting interface | 800 x 400 mm |
| Positioning accuracy | 1 mm |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 189.3 cm (74.5") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | Infrared |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal (metric) | 189.273 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Touchscreen | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Brightness | 450 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Packaging content | |
| Cables included | RS-232 |
| Remote control included | |
| Performance | |
| Purpose | Education |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Russian |
| Picture-in-Picture | |
| On Screen Display (OSD) | |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB ports quantity | 1 |
| USB connector type | USB Type-C, USB Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB Power Delivery up to | 65 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Remote (IR) output | 1 |
| USB port | |
| USB Power Delivery (USB PD) | |
| USB Type-C DisplayPort Alternate Mode | |
| PC Audio in | |
| RS-232C | |
| PC Audio out | |
| OPS module slot | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 175 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 175 kWh |
| Energy efficiency scale | A to G |
| Technical details | |
| OPS slot | 1 |
| User controls | Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast. |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 1710.2 mm |
| Display depth | 120.4 mm |
| Display height | 1036.3 mm |
| Display weight | 54.5 kg |
| Width | 1710.2 mm |
| Depth | 120.4 mm |
| Height | 1036.3 mm |
| Weight | 54.5 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
