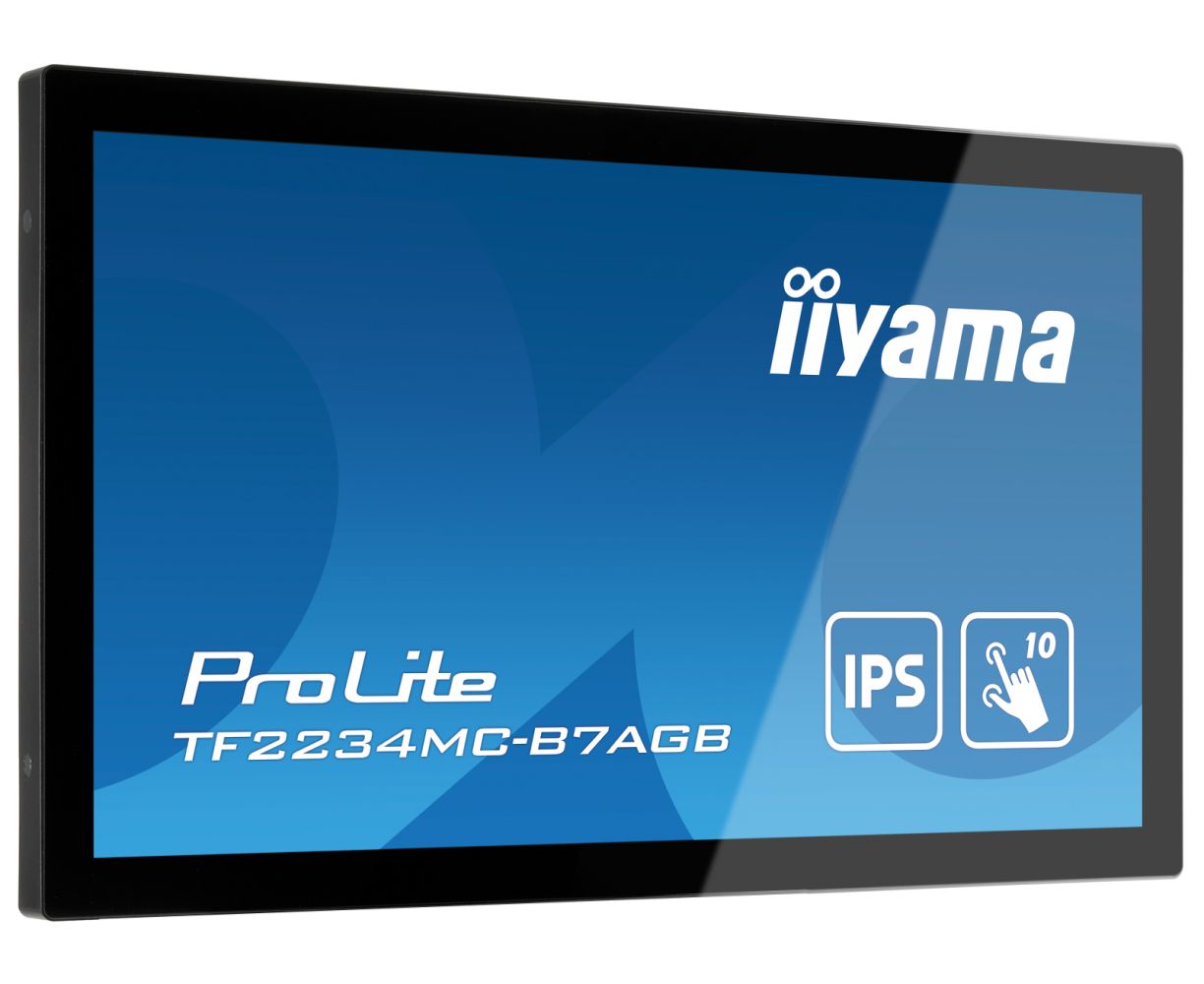

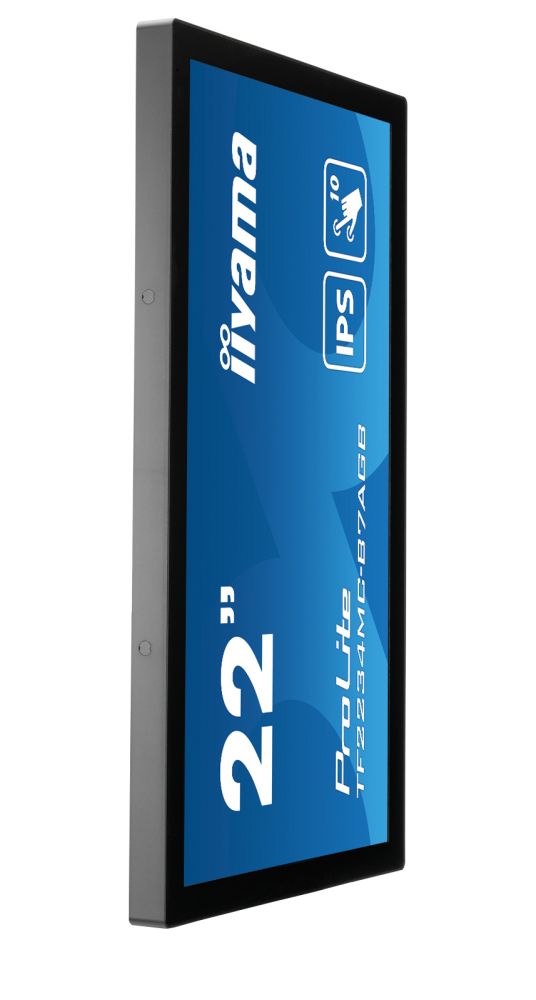

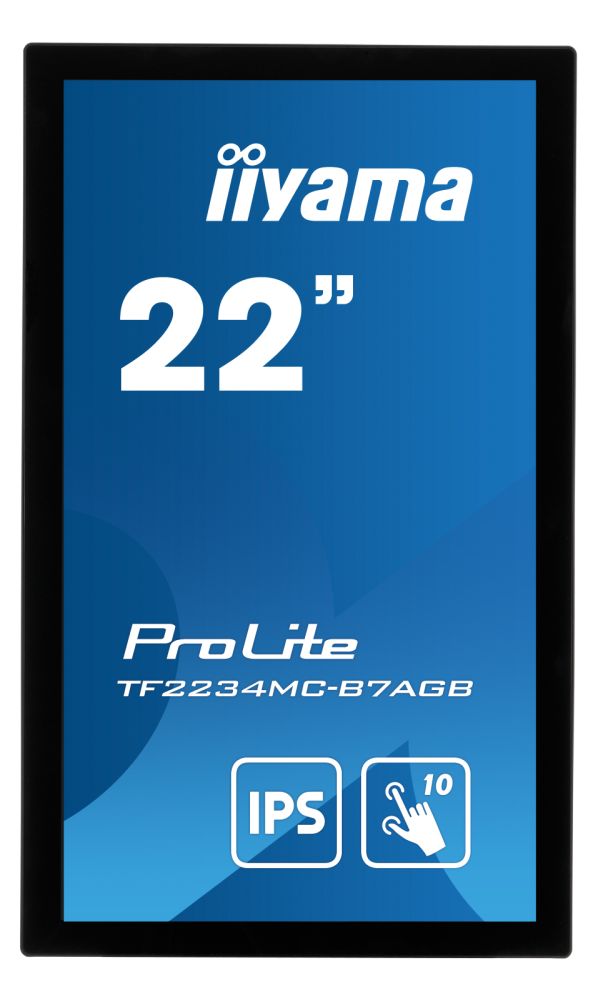

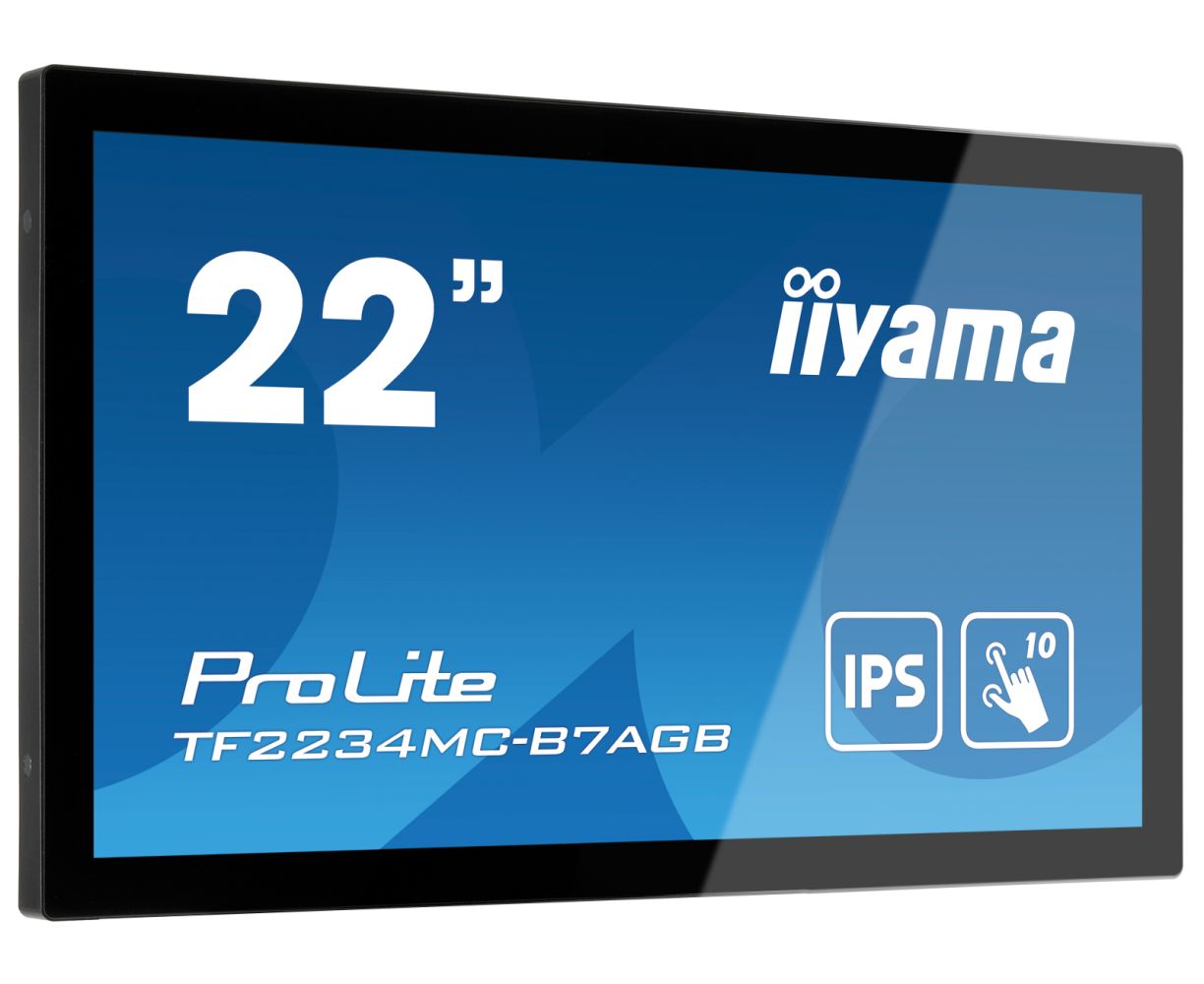

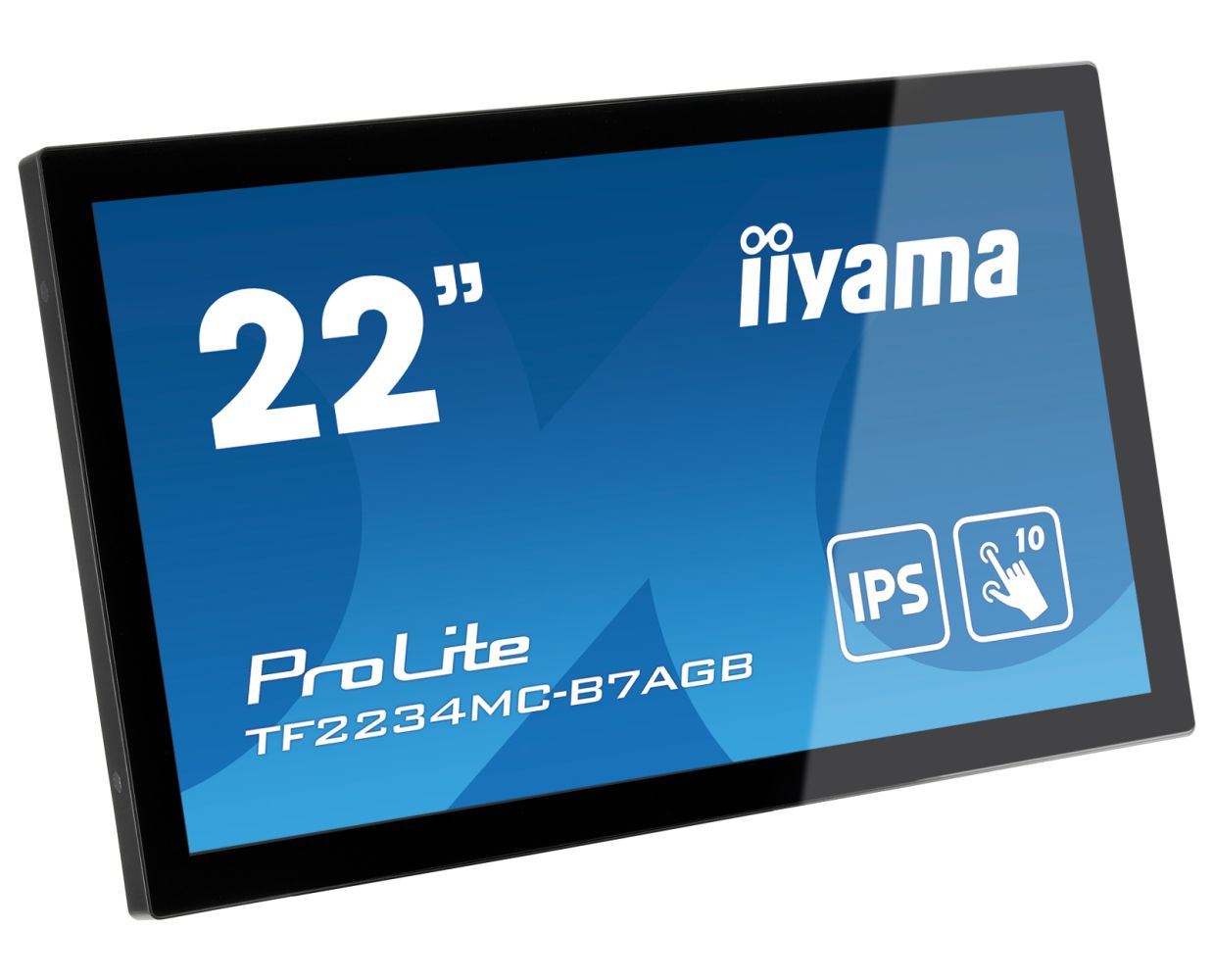

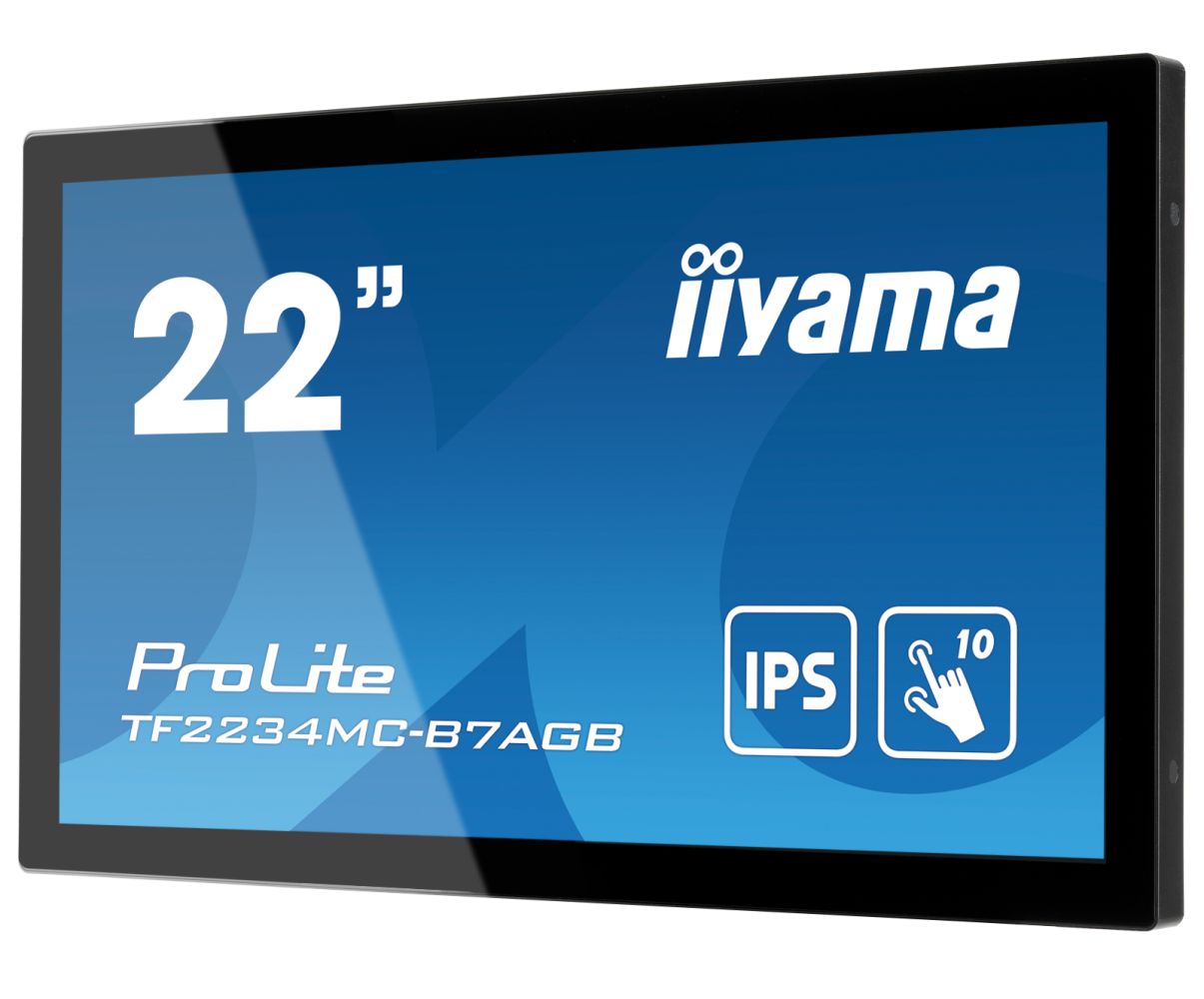

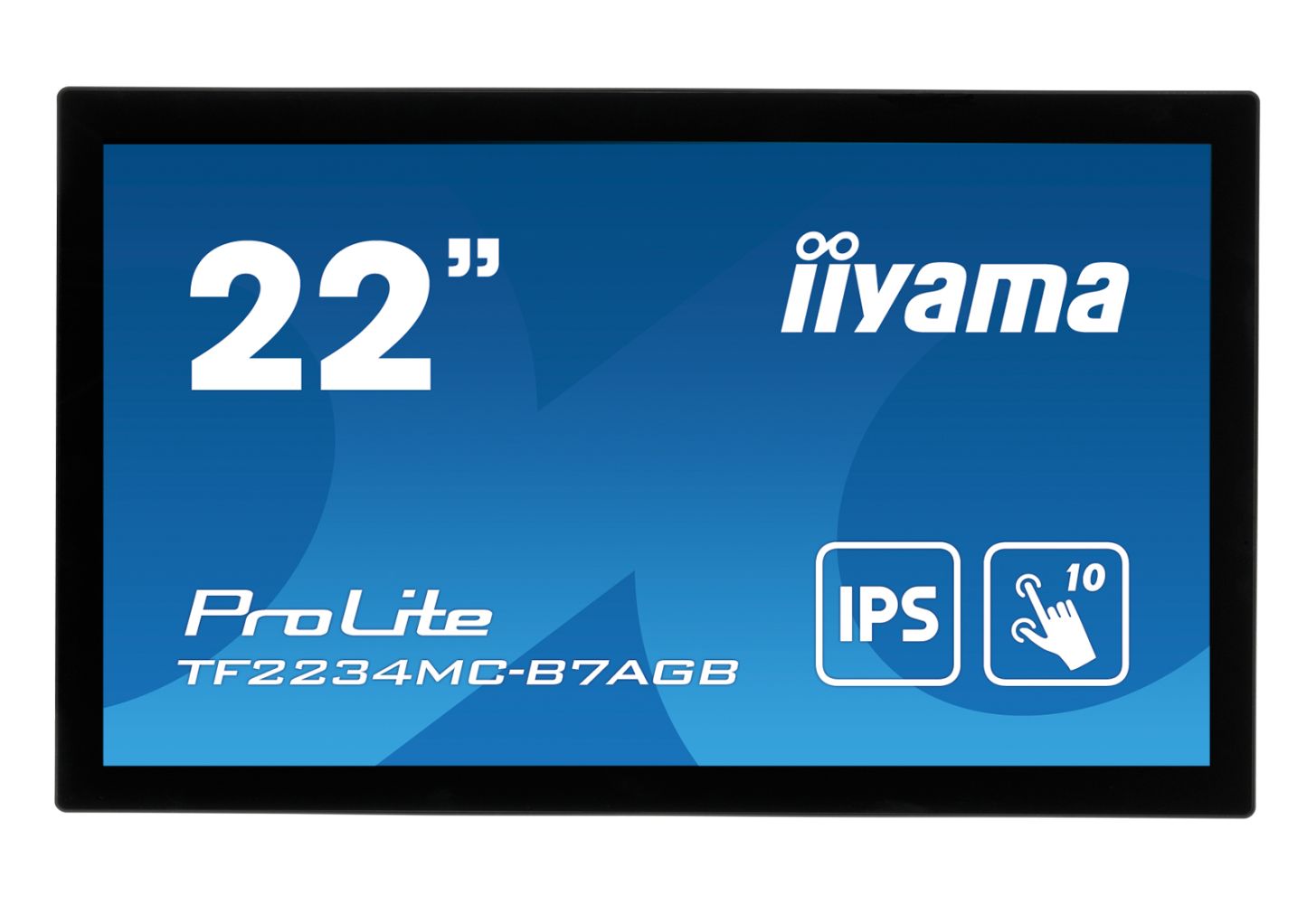

iiyama ProLite TF2234MC-B7AGB, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black
|
499,78 EUR 520,60 EUR |
|
|
( 594,74 EUR incl. VAT ) ≈ £419.82 | ≈ $560.75 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1495421 |
| Mfg Part No: | TF2234MC-B7AGB |
| Weight: | 6.076 kg |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF2234MC-B7AGB:
touch monitor (zero-bezel, open-frame, 16:9), 54.6cm (21.5''), touch technology: Projected Capacitive, multi touch (10 points), 1920x1080 pixels, 8ms, brightness: 300cd, contrast: 1000:1, antiglare, VGA, display-port, HDMI, touch interface: USB, incl.: cable (USB, VGA), power supply unit, power cable (EU), colour: black
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.5 mm |
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 300 cd/m² |
| Response time | 8 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Display diagonal (metric) | 54.6 cm |
| Surface hardness | 6H |
| Touchscreen | |
| Anti-glare screen | |
| Ergonomics | |

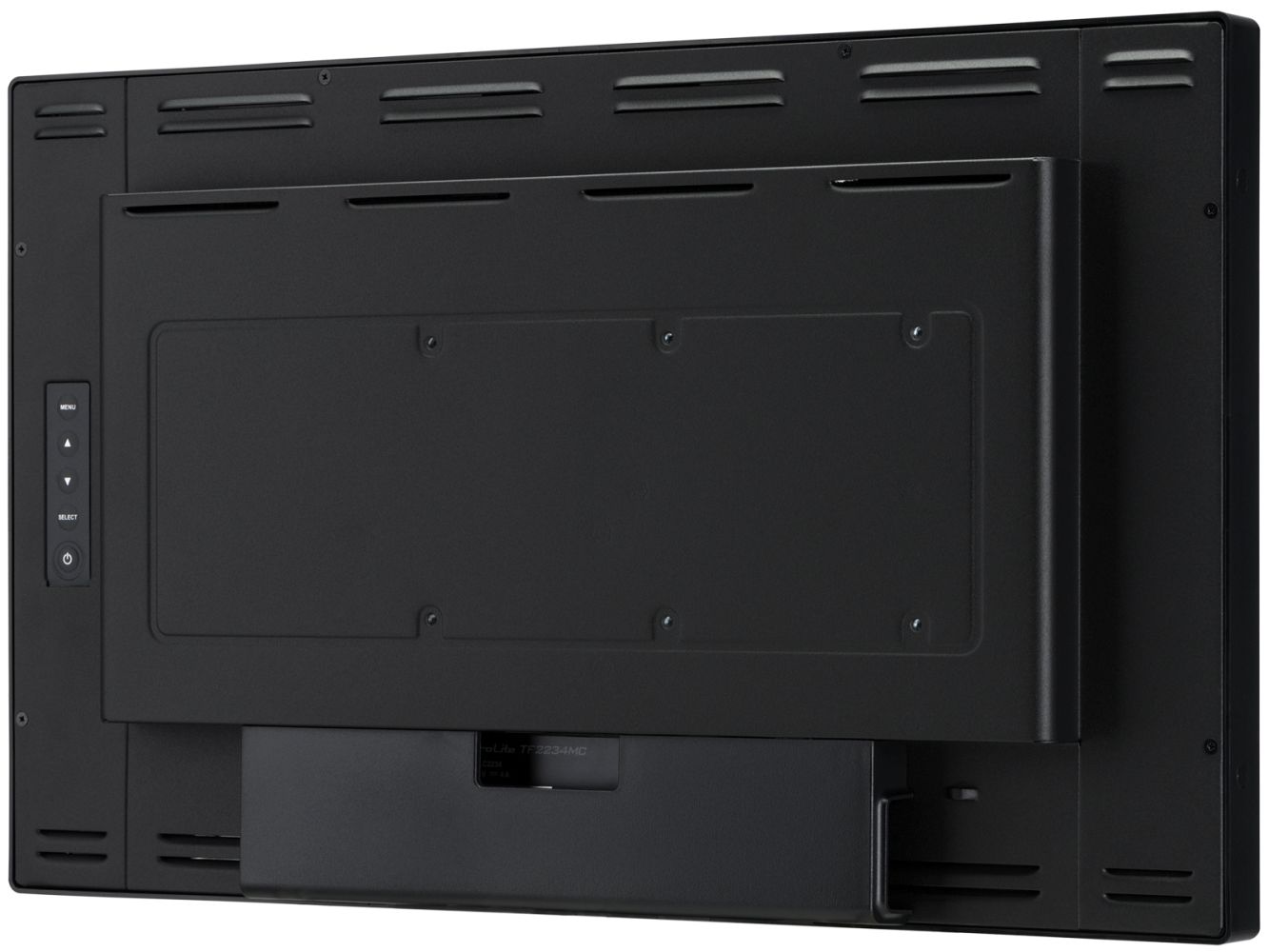

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian |
| Number of OSD languages | 9 |
| VESA mounting | |
| Wall mountable | |
| On Screen Display (OSD) | |
| Logistics data | |
| Products per pallet | 48 pc(s) |
| Pallet net width | 109 cm |
| Pallet net length | 192.7 cm |
| Pallet net height | 109 cm |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in microphone | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Display viewable area (HxV) | 476 x 267.7 mm |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Placement supported | Horizontal/Vertical |
| Brightness | 300 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 476 x 267.7 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 4.4 kg |
| Height | 313.5 mm |
| Width | 517.5 mm |
| Depth | 46 mm |

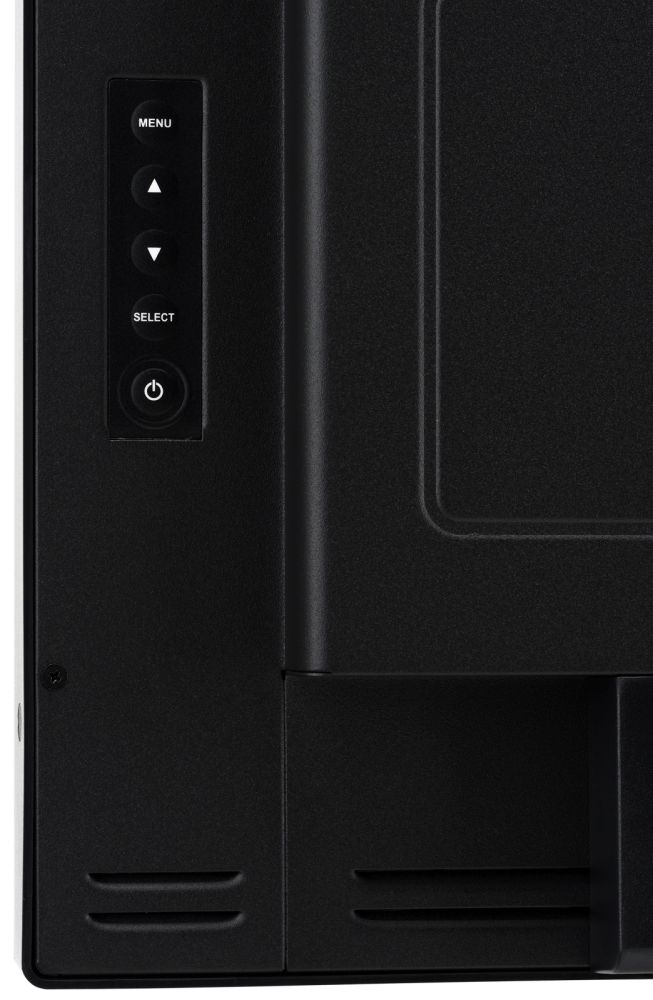

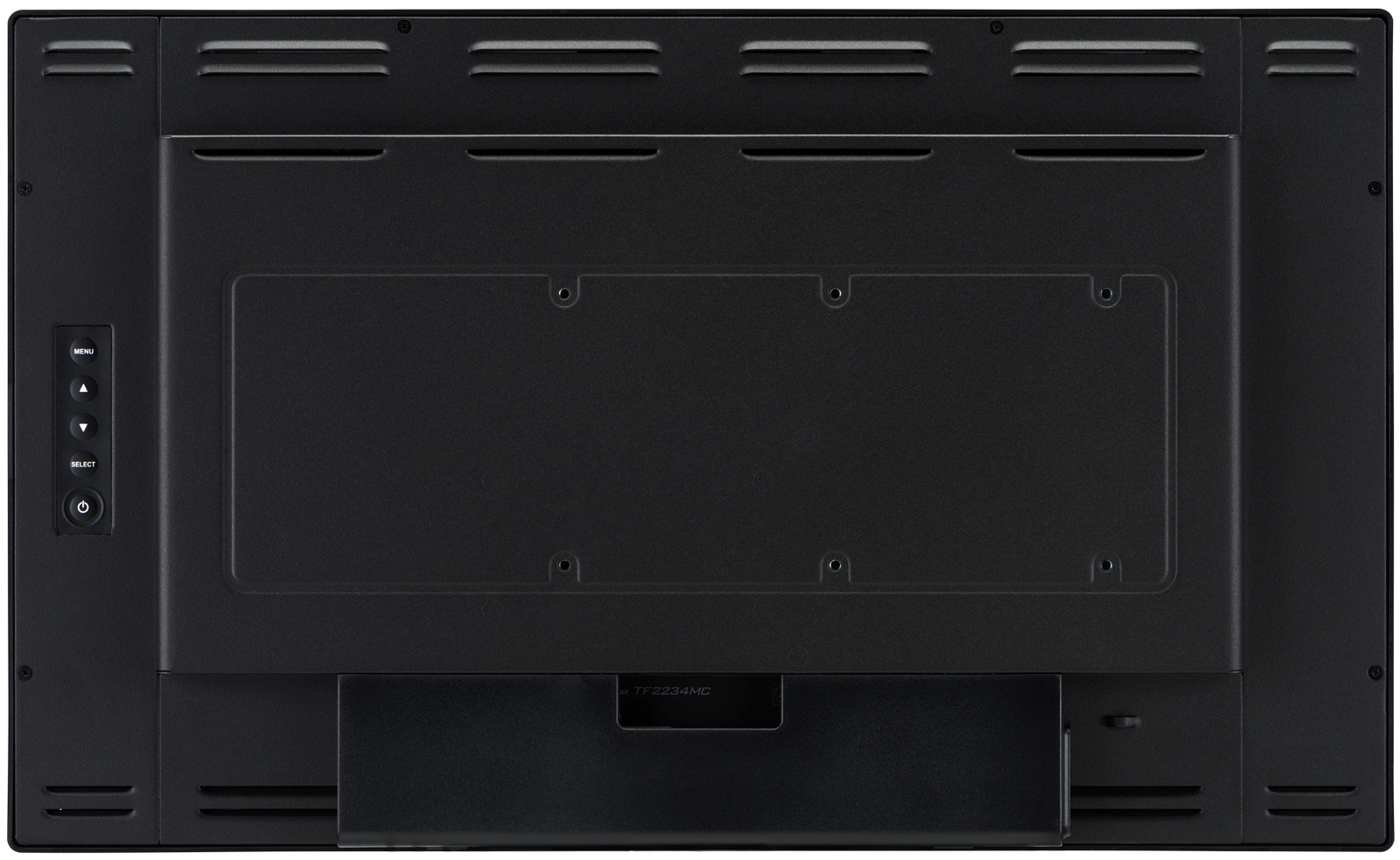

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| AC adapter included | |
| Packaging content | |

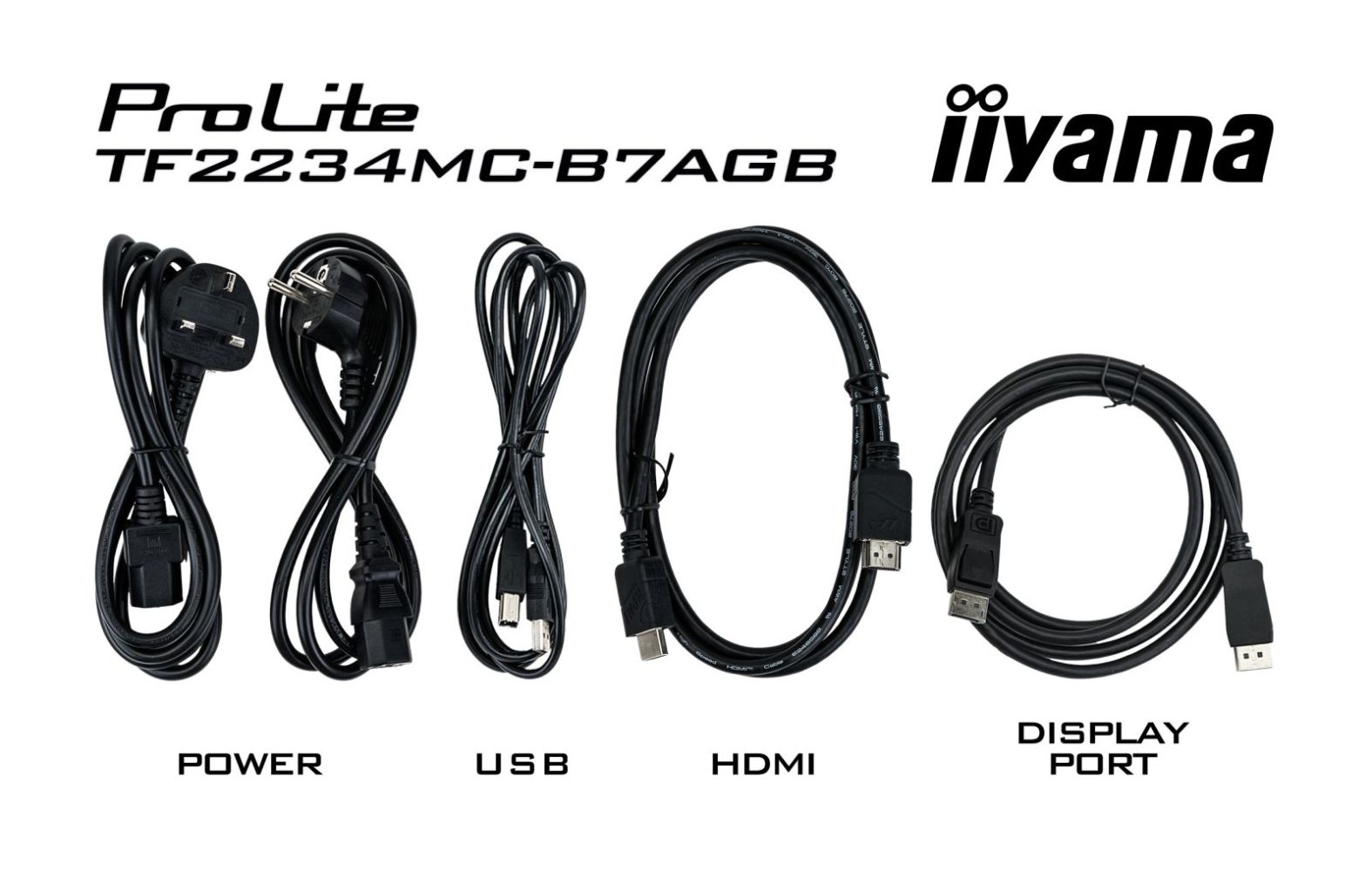

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | |
| Packaging data | |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 517.5 mm |
| Depth (with stand) | 46 mm |
| Height (with stand) | 313.5 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 517.5 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 313.5 mm |
| Weight (without stand) | 4.4 kg |
Questions & answers
What is the delivery time of iiyama ProLite TF2234MC-B7AGB, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black?
The article iiyama ProLite TF2234MC-B7AGB, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF2234MC-B7AGB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you iiyama ProLite TF2234MC-B7AGB, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black always at the best possible price. We can give you a discount of 2% on iiyama ProLite TF2234MC-B7AGB, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
