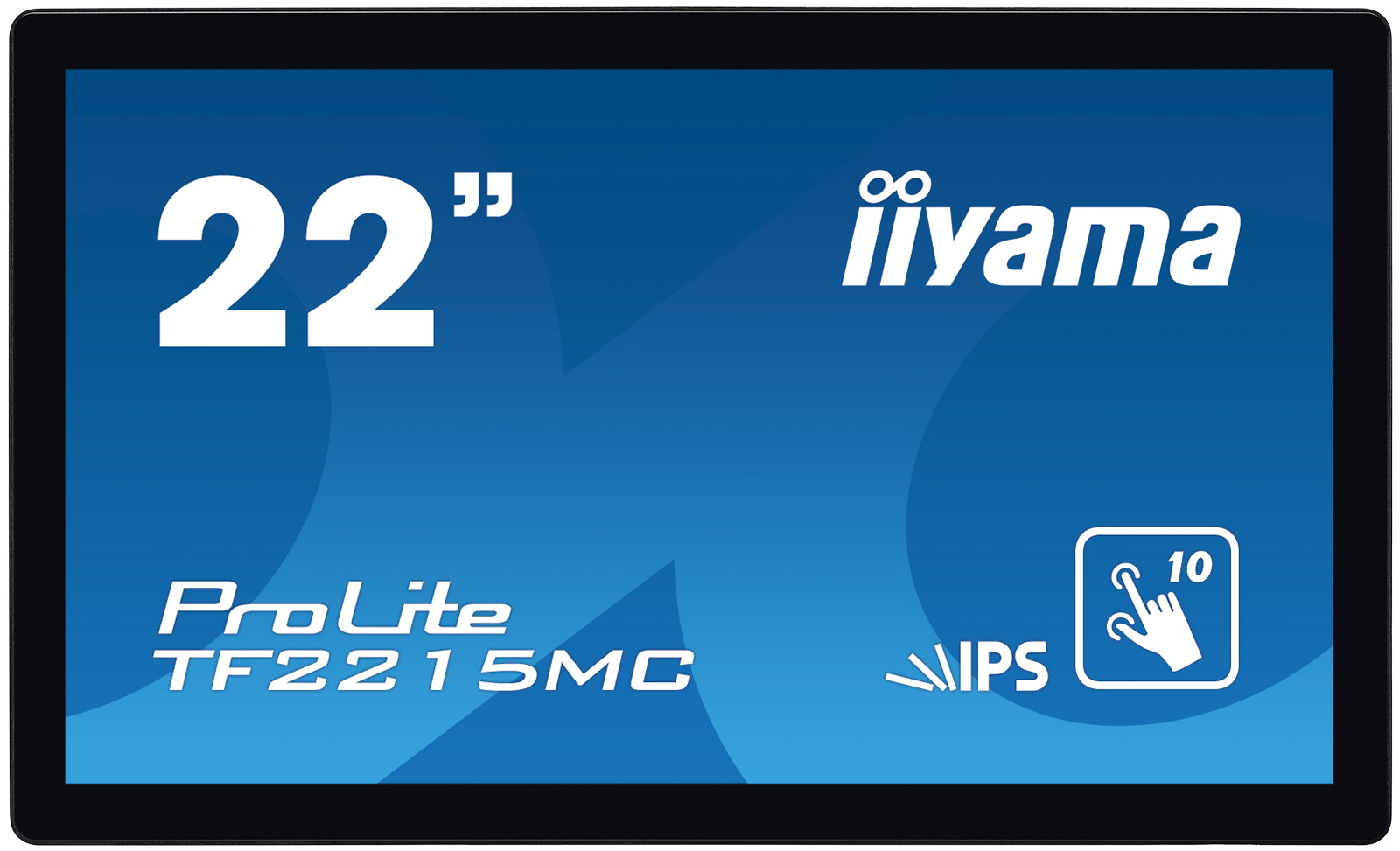

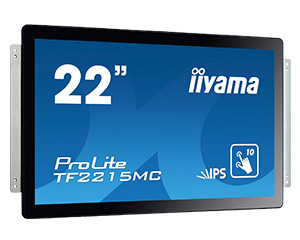

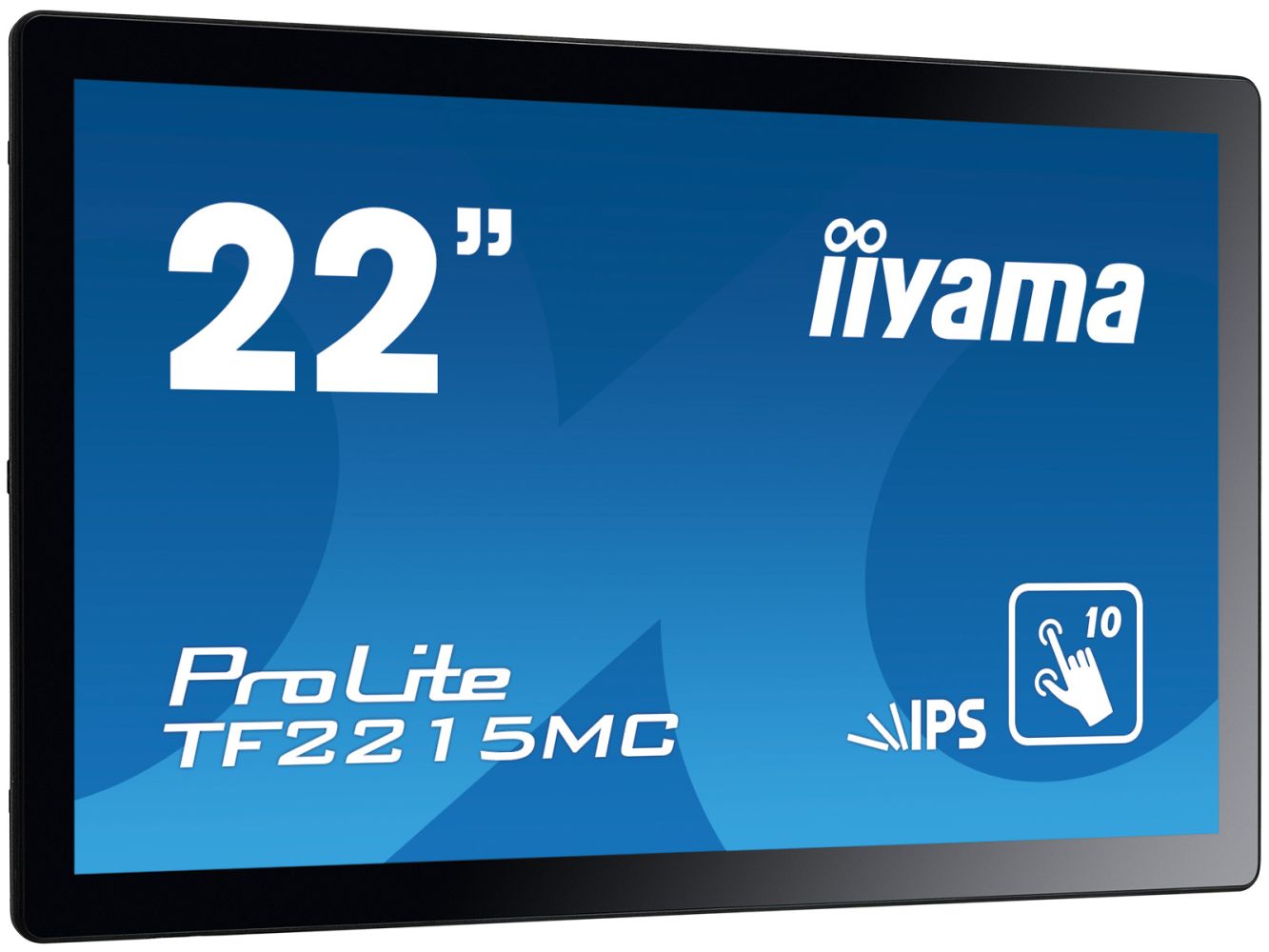

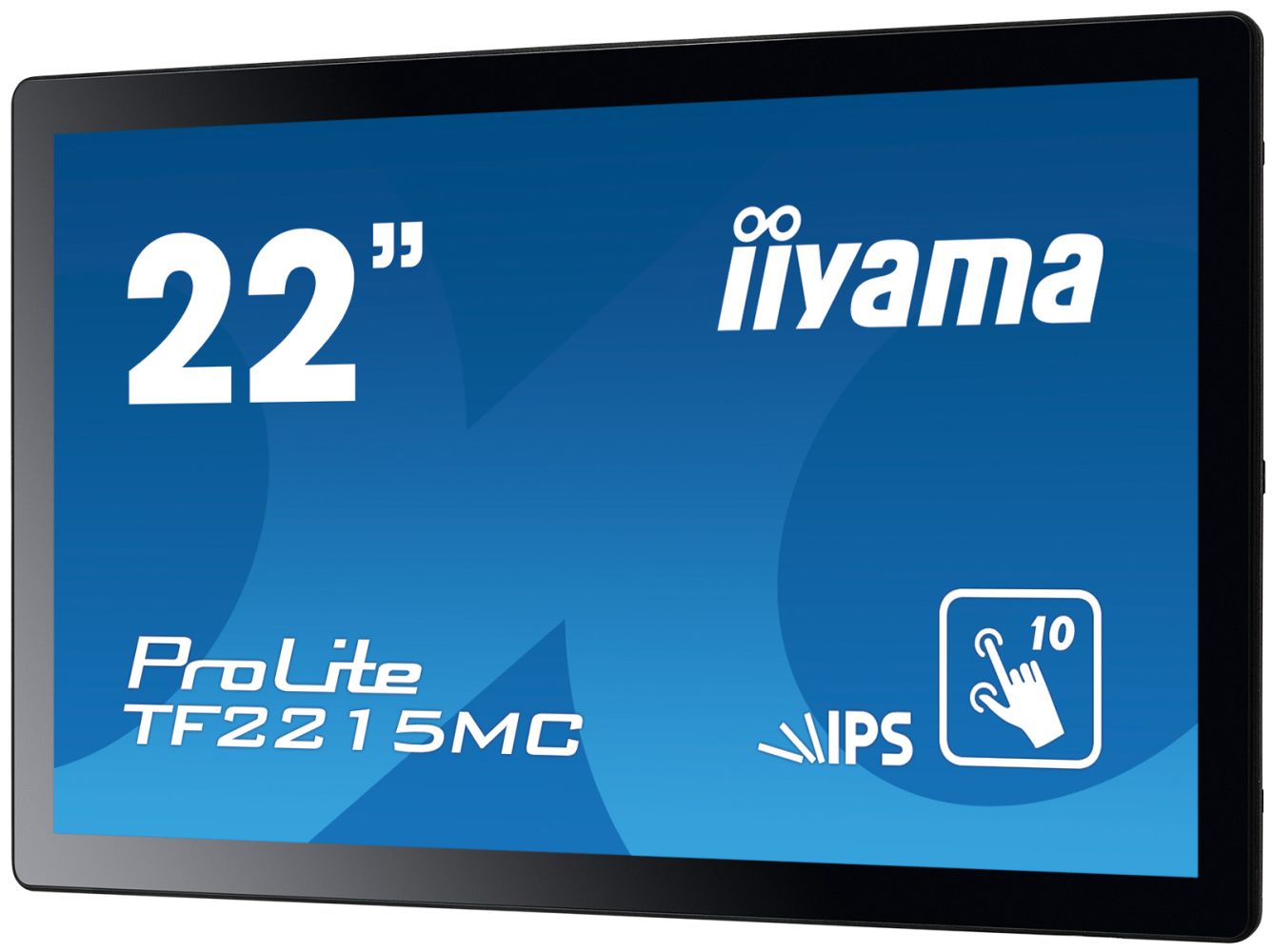

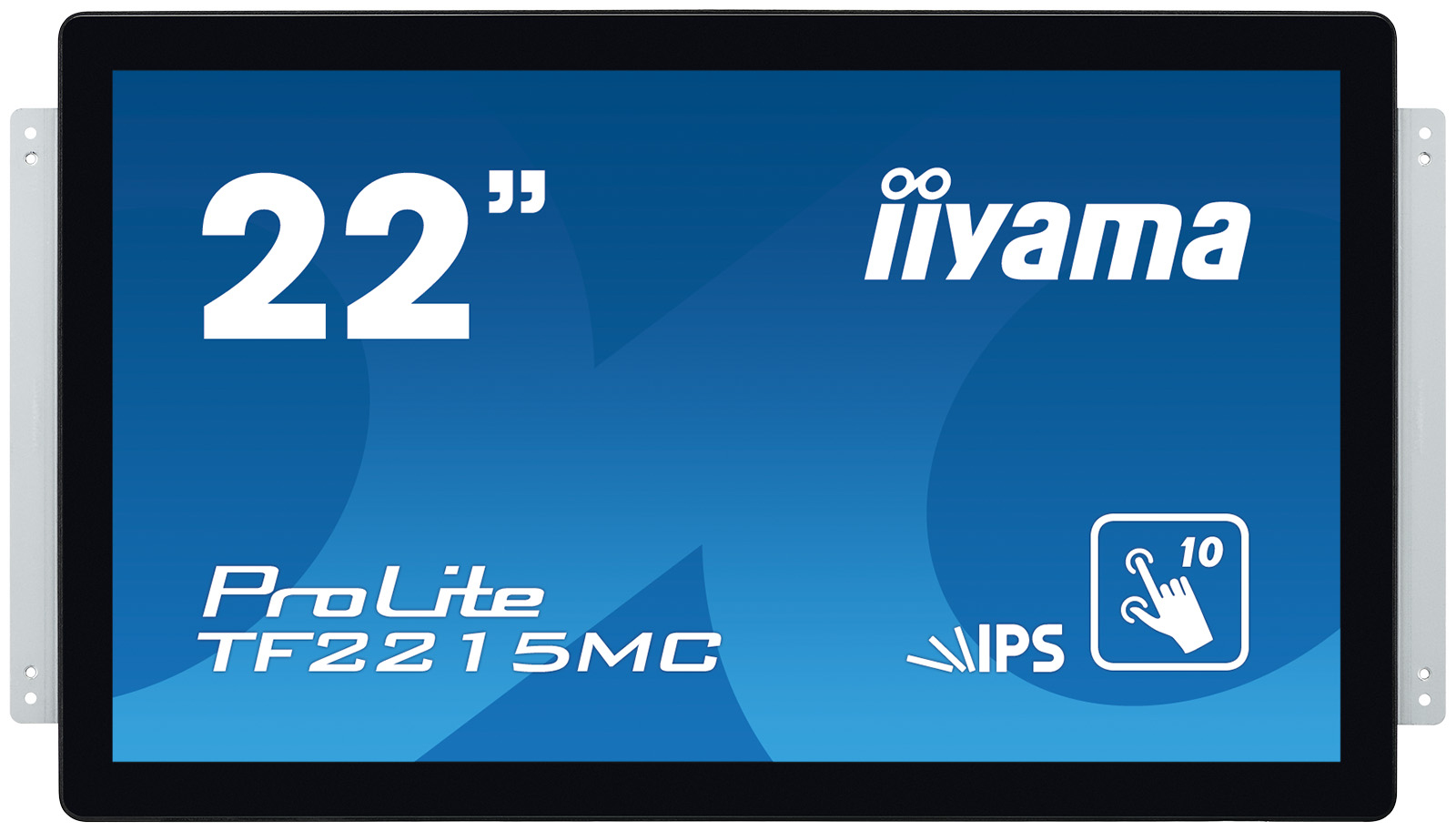

iiyama ProLite TF2215MC-B2, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black
|
490,66 EUR 511,10 EUR |
|
|
( 583,89 EUR incl. VAT ) ≈ £412.15 | ≈ $550.52 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1686408 |
| Mfg Part No: | TF2215MC-B2 |
| Weight: | 7.032 kg |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF2215MC-B2:
touch monitor (open-frame, 16:9), 54.6cm (21.5''), Touchscreen, Projected Capacitive, multi touch (10 points), 1920x1080 pixels, VESA mount (100x100 mm), 14ms, brightness: 315cd, viewing angle: 178/178°(H/V), contrast: 1000:1, audio, VGA, display-port, HDMI, touch interface: USB, IP65, incl.: cable (USB, HDMI, Display Port), power supply unit, power cable, QSG, colour: black
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 315 cd/m² |
| Response time | 14 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.24795 x 0.24795 mm |
| Horizontal scan range | 31.4 - 82 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Display diagonal (metric) | 54.6 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Separate H/V sync | |
| Ergonomics | |

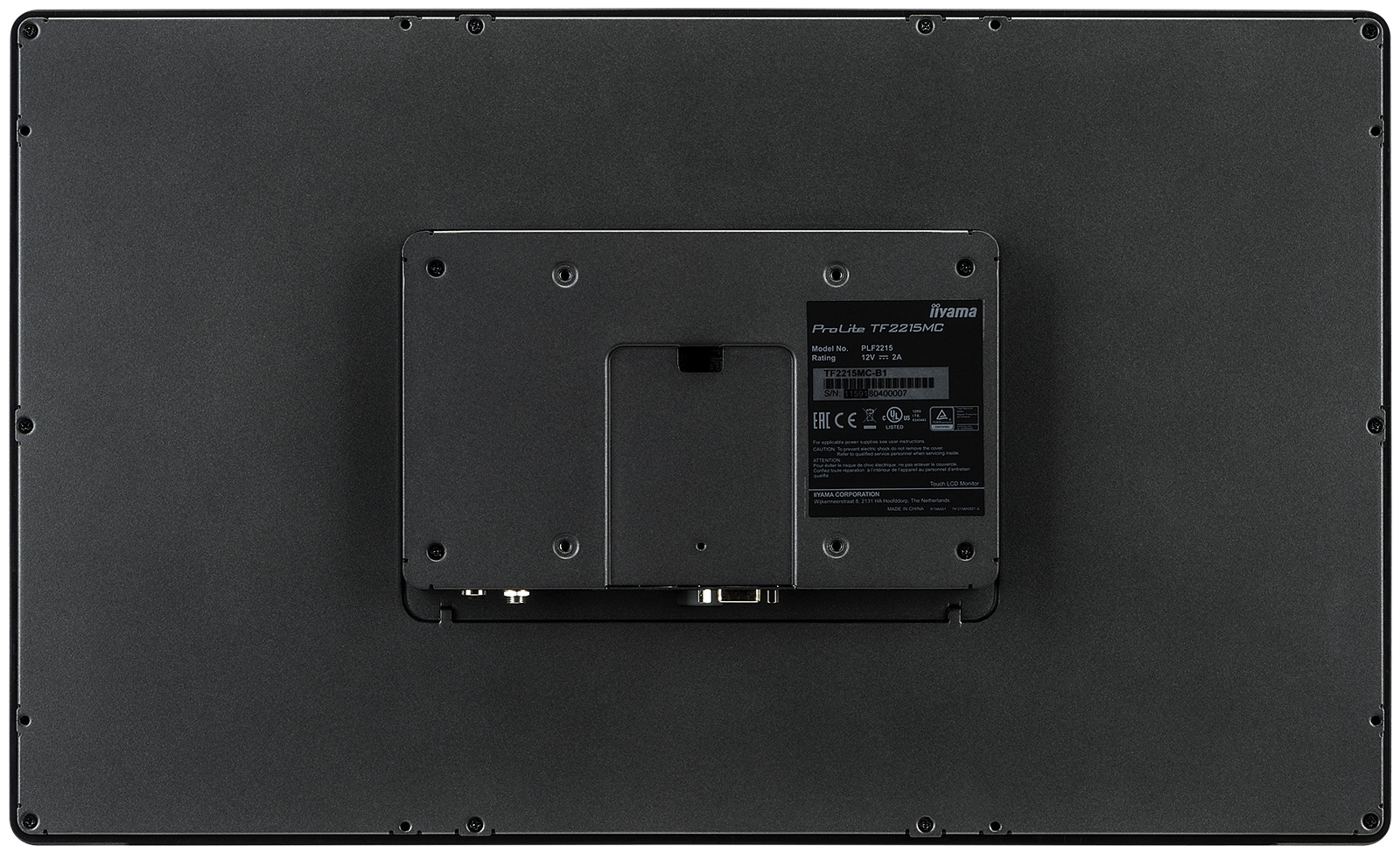

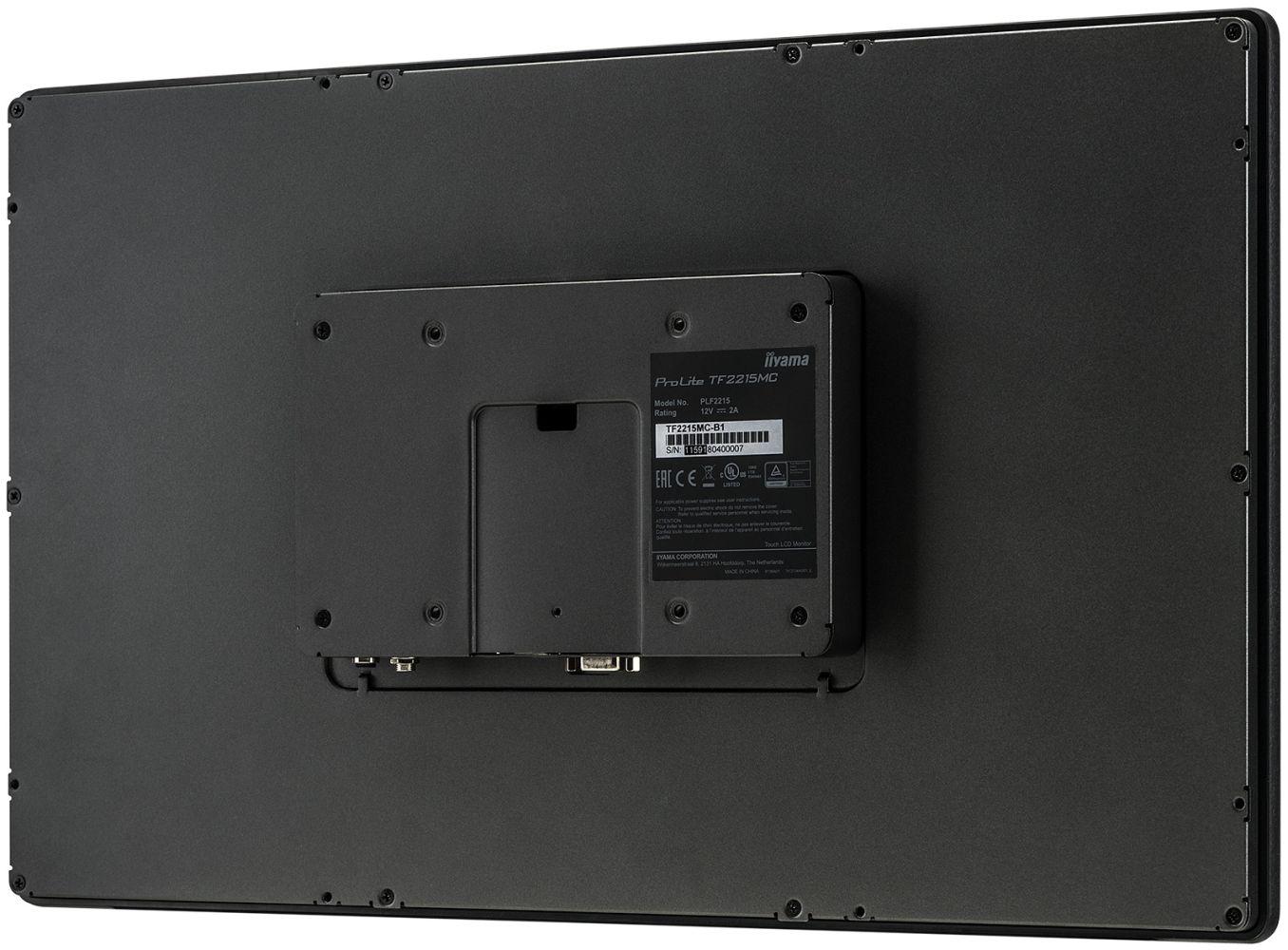

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 6 |
| VESA mounting | |
| Wall mountable | |
| On Screen Display (OSD) | |
| Plug and Play | |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in microphone | |
| Built-in camera | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Display viewable area (HxV) | 476.064 x 267.786 mm |
| Placement supported | Horizontal/Vertical |
| Brightness | 315 cd/m² |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Active display area (W x H) | 476.064 x 267.786 mm |
| Weight | 4.4 kg |
| Height | 315 mm |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Width | 520 mm |
| Depth | 42.5 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CB, CE, cULus, REACH, RoHS, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| Supplied AC adapter type | AC |
| Certification | CB, CE, TÜV-Bauart, CU, cULus, REACH |
| AC adapter included | |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| OmniTapps Multitouch compatibility | |

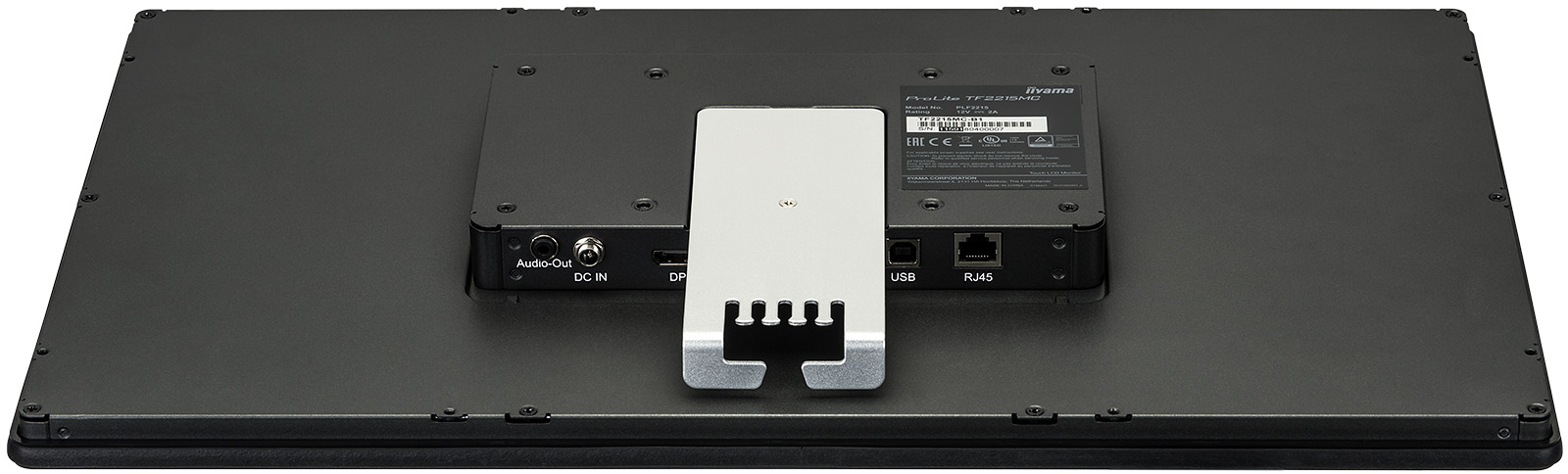

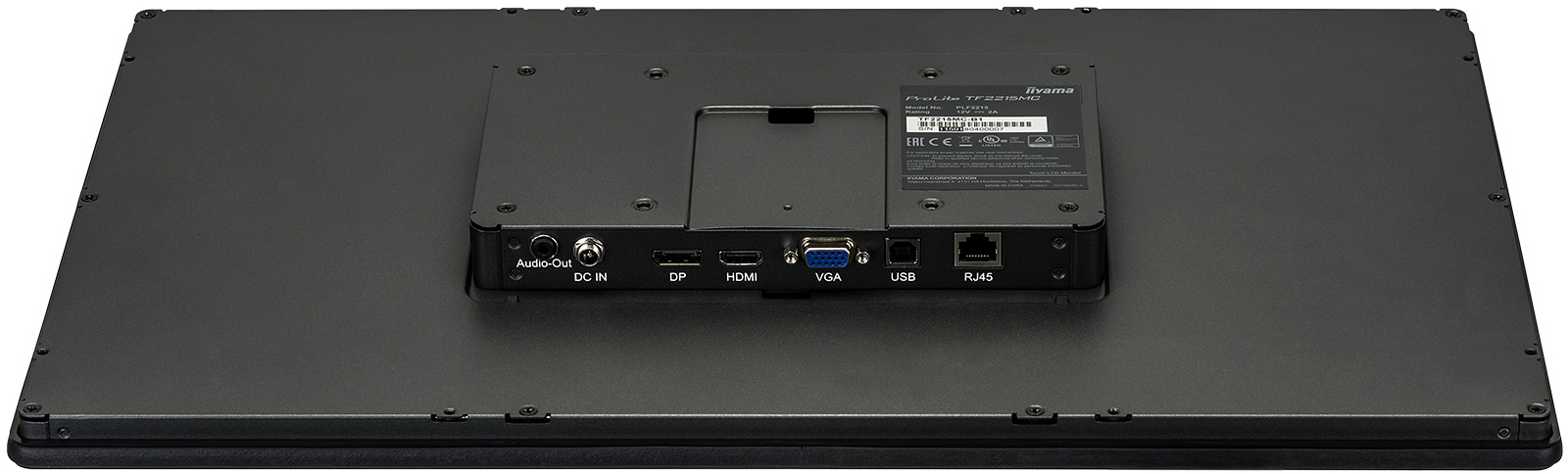

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 20.8 W |
| Power consumption (standby) | 1.05 W |
| Power consumption (off) | 0.32 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 520 mm |
| Depth (with stand) | 42.5 mm |
| Height (with stand) | 315 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 520 mm |
| Depth (without stand) | 42.5 mm |
| Height (without stand) | 315 mm |
| Weight (without stand) | 4.4 kg |
Questions & answers
What is the delivery time of iiyama ProLite TF2215MC-B2, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black?
The article iiyama ProLite TF2215MC-B2, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF2215MC-B2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you iiyama ProLite TF2215MC-B2, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black always at the best possible price. We can give you a discount of 2% on iiyama ProLite TF2215MC-B2, 54.6cm (21.5''), Projected Capacitive, 10 TP, Full HD, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
