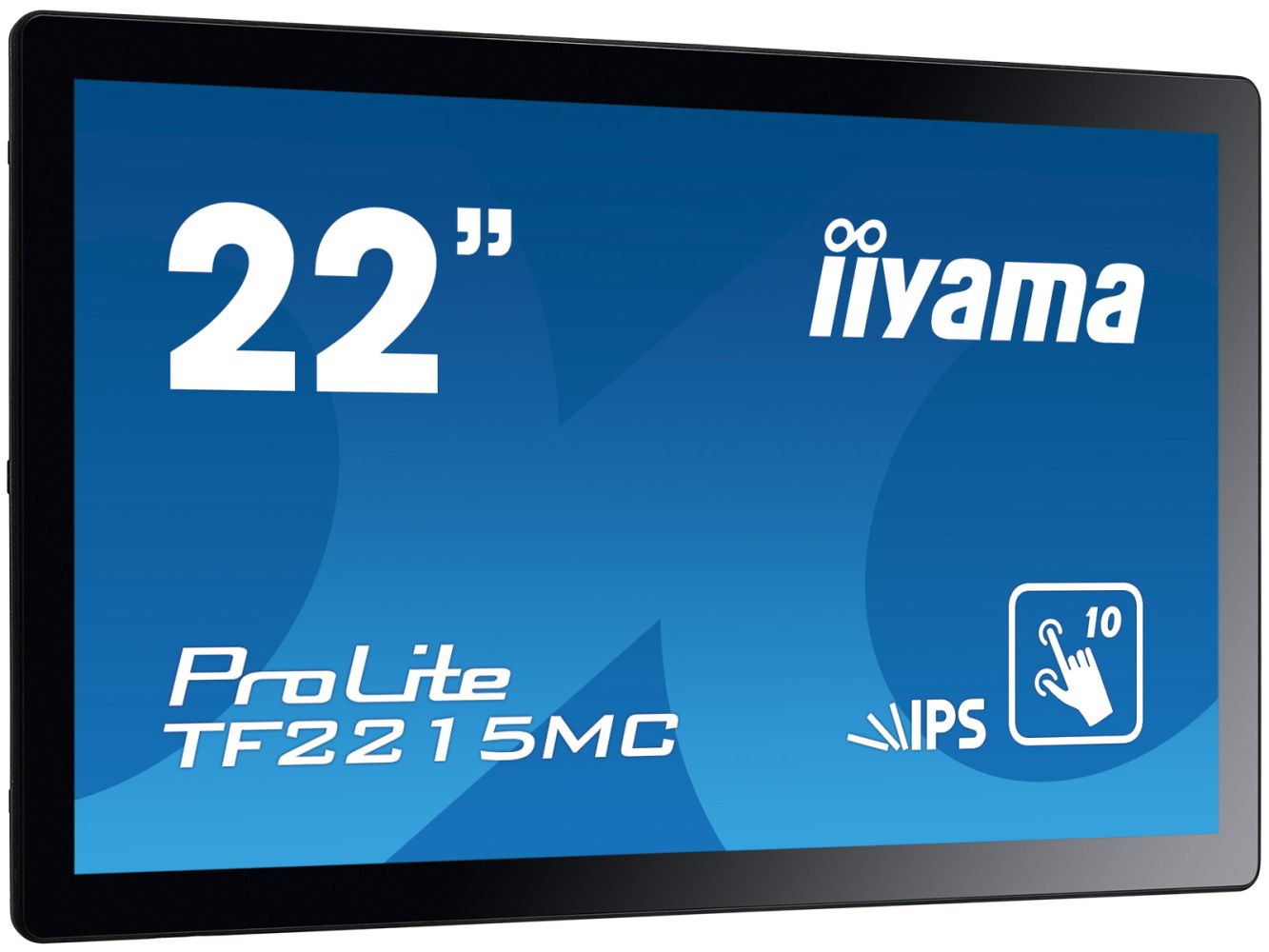

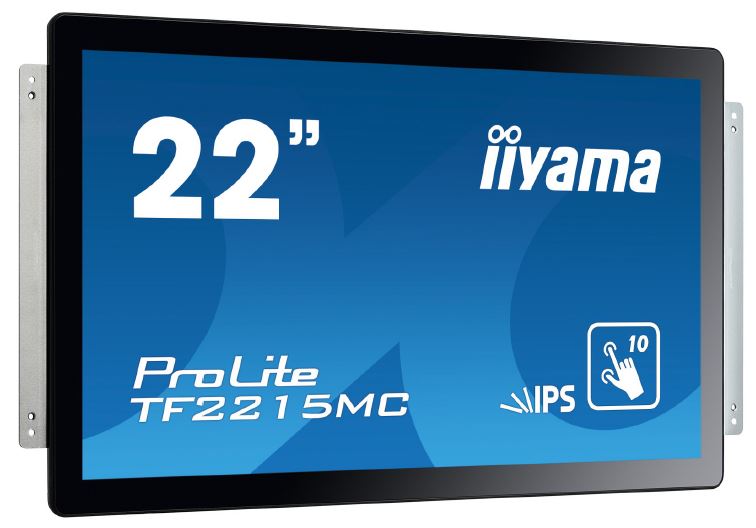

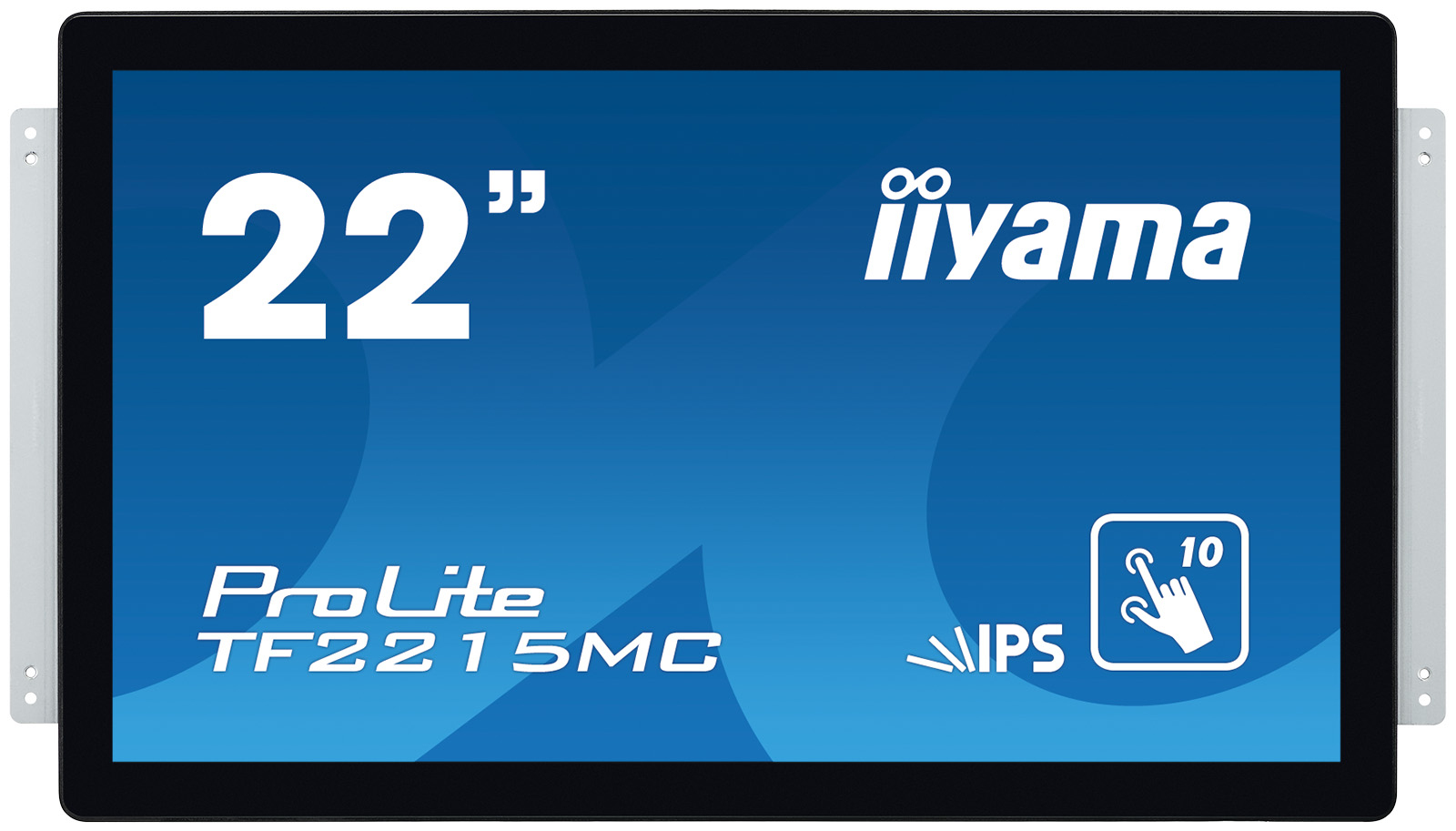

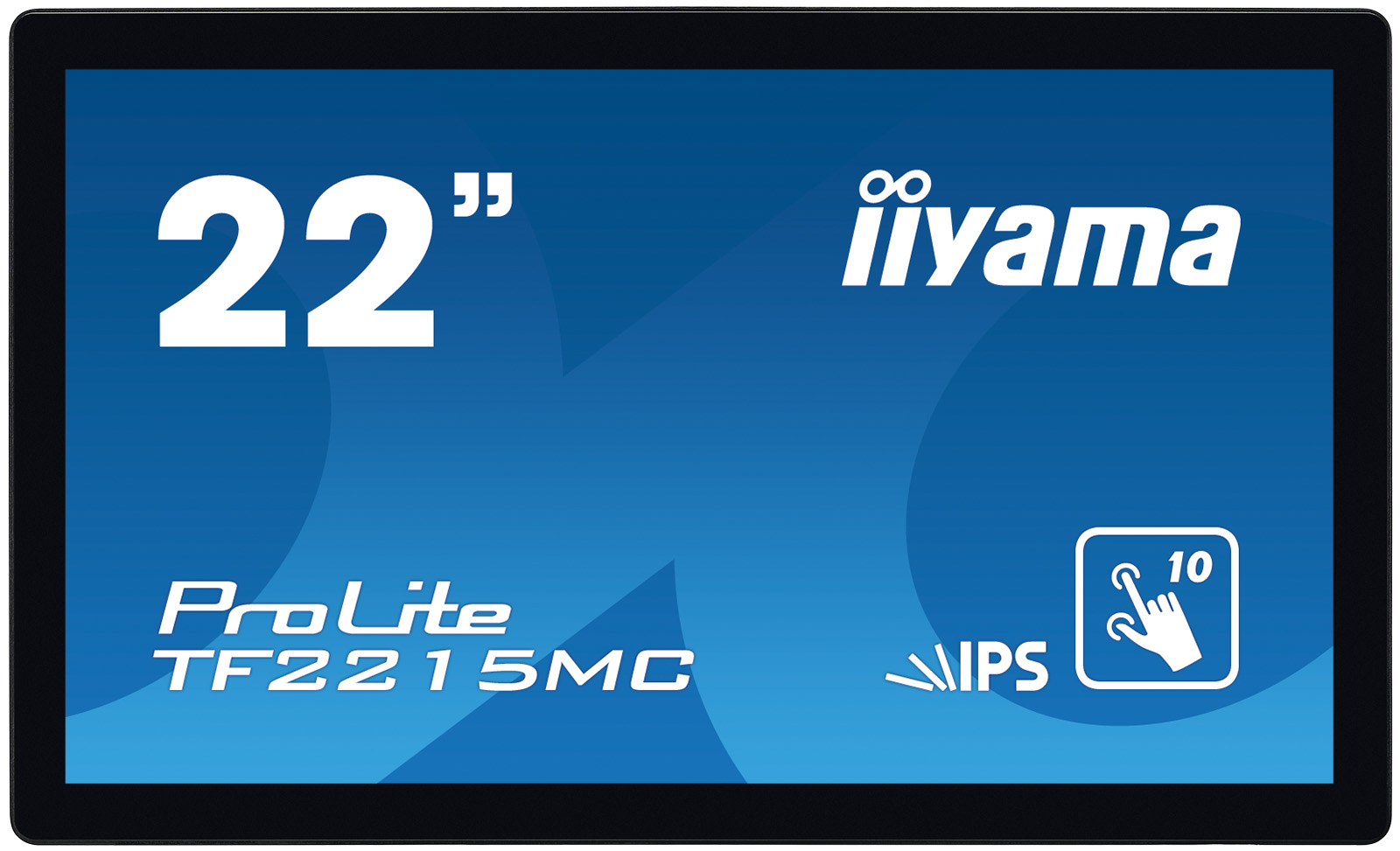

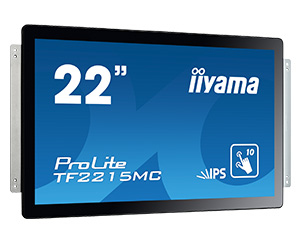

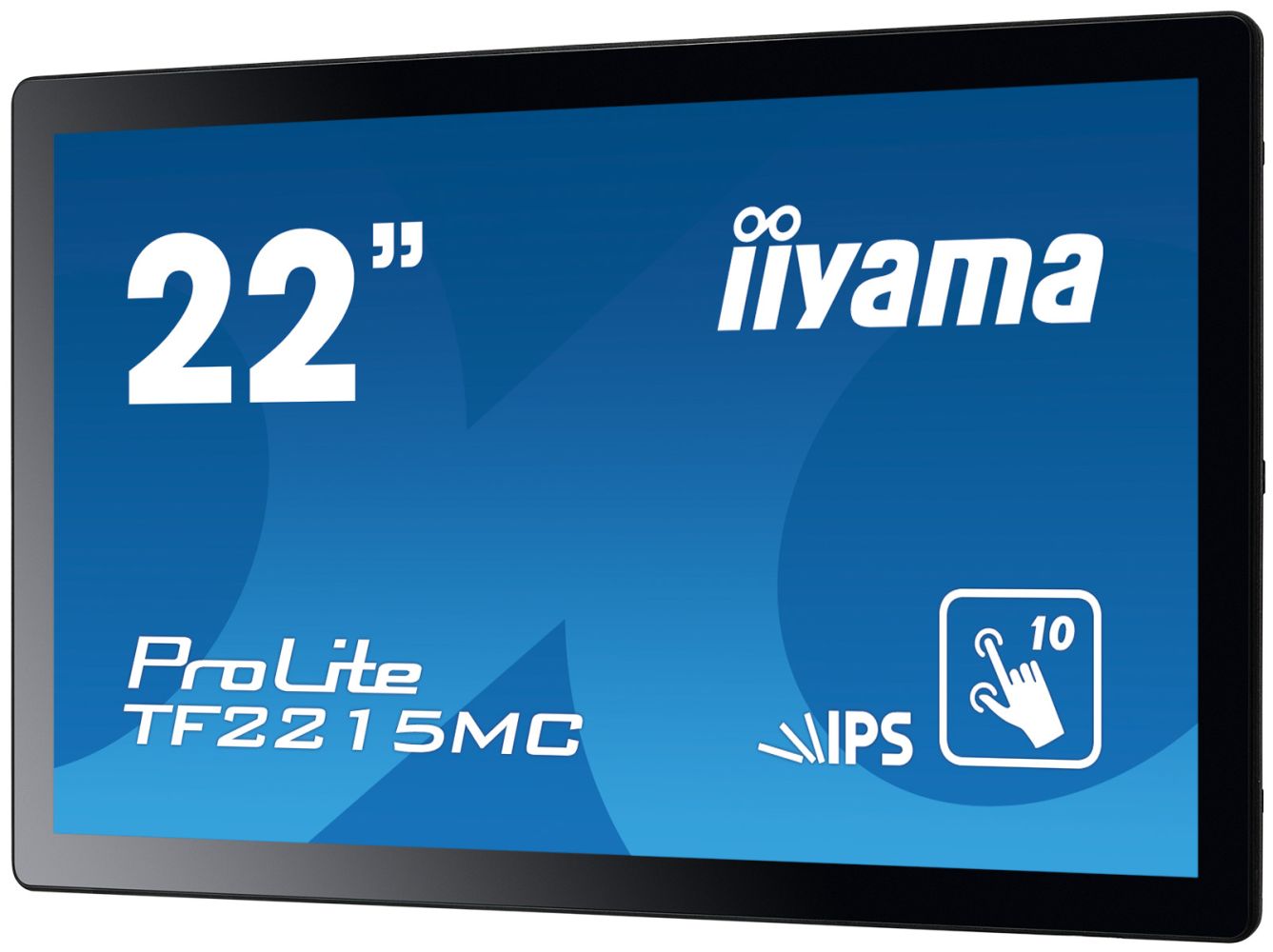

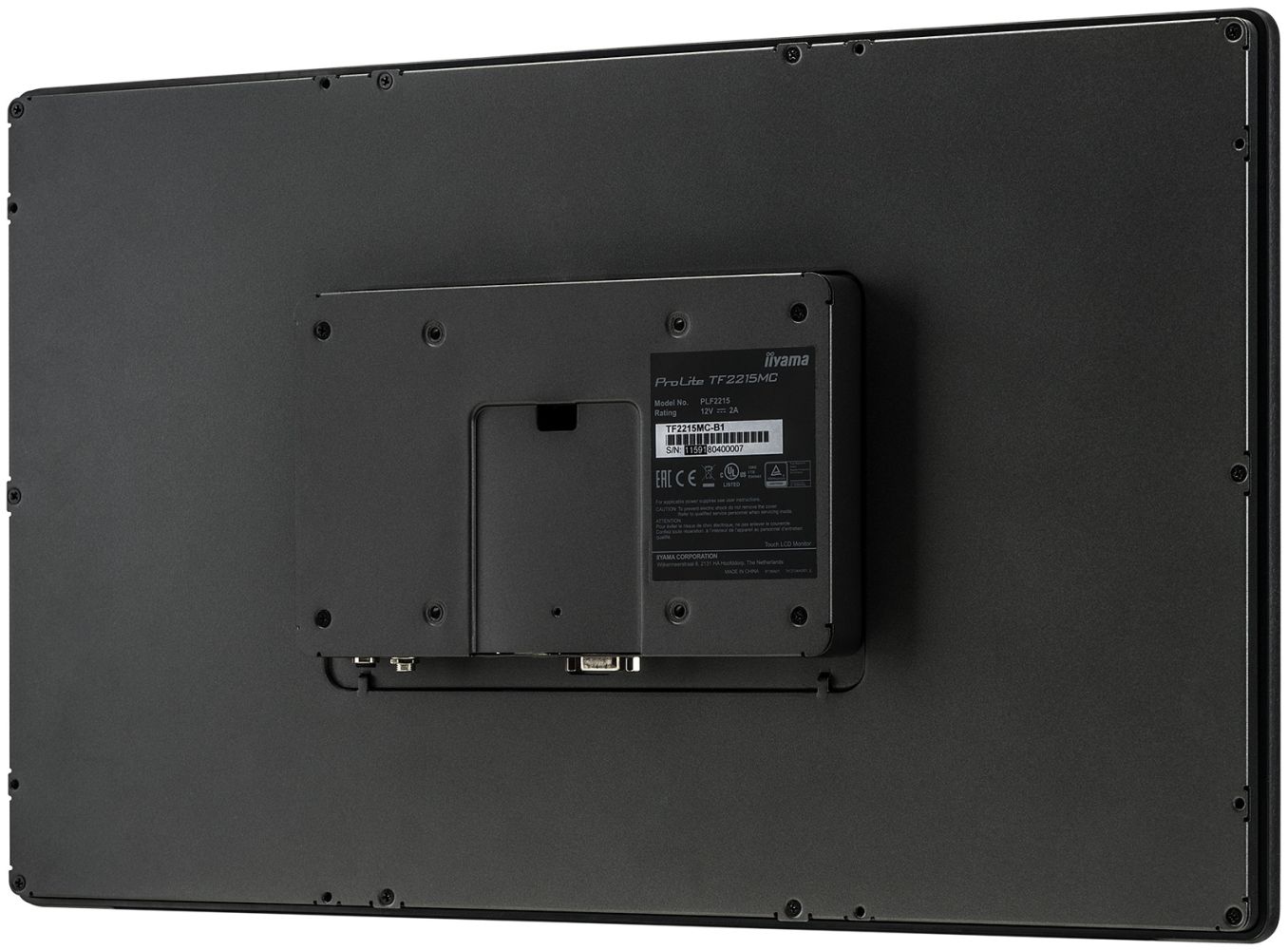

IIYAMA 54.6cm (21.5") TF2215MC-B2 16:9 M-Touch HDMI+DP
|
-12% 485,37 EUR 549,10 EUR |
|
|
( 577,59 EUR incl. VAT ) ≈ £407.71 | ≈ $544.59 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1521618 |
| Mfg Part No: | TF2215MC-B2 |
| UPC/EAN: | 4948570116768 |
| Weight: | 7.22 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF2215MC-B2:
Diagonal: 54,6 cm ( 21,5 inch )/
- Resolution: 1920x1080, 16:9
- Brightness: 215cd/m²
- Contrast: 1,000:1 (static)
- Response time: 14ms
- Viewing angle: 178°/178°
- Panel: IPS
- Refresh rate: 60Hz
- Connections: 1x VGA, 1x HDMI, 1x DisplayPort
- Other connections: N/A
- Touchscreen: capacitive, multi-touch, 1x USB
- Ergonomics: N/A
- VESA: 100x100 (free)
- Power consumption: 25W (typical), 1.2W (standby)
- Dimensions (WxHxD): 315x520x42mm
- Weight: 4.40kg
- Special features: LED backlight, IP65 certified (front), anti-finger print, touch through glass function
- Manufacturer's guarantee: three years after registration (processing via dealer)
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 315 cd/m² |
| Response time | 14 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.24795 x 0.24795 mm |
| Horizontal scan range | 31.4 - 82 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Display diagonal (metric) | 54.6 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Separate H/V sync | |
| Ergonomics | |

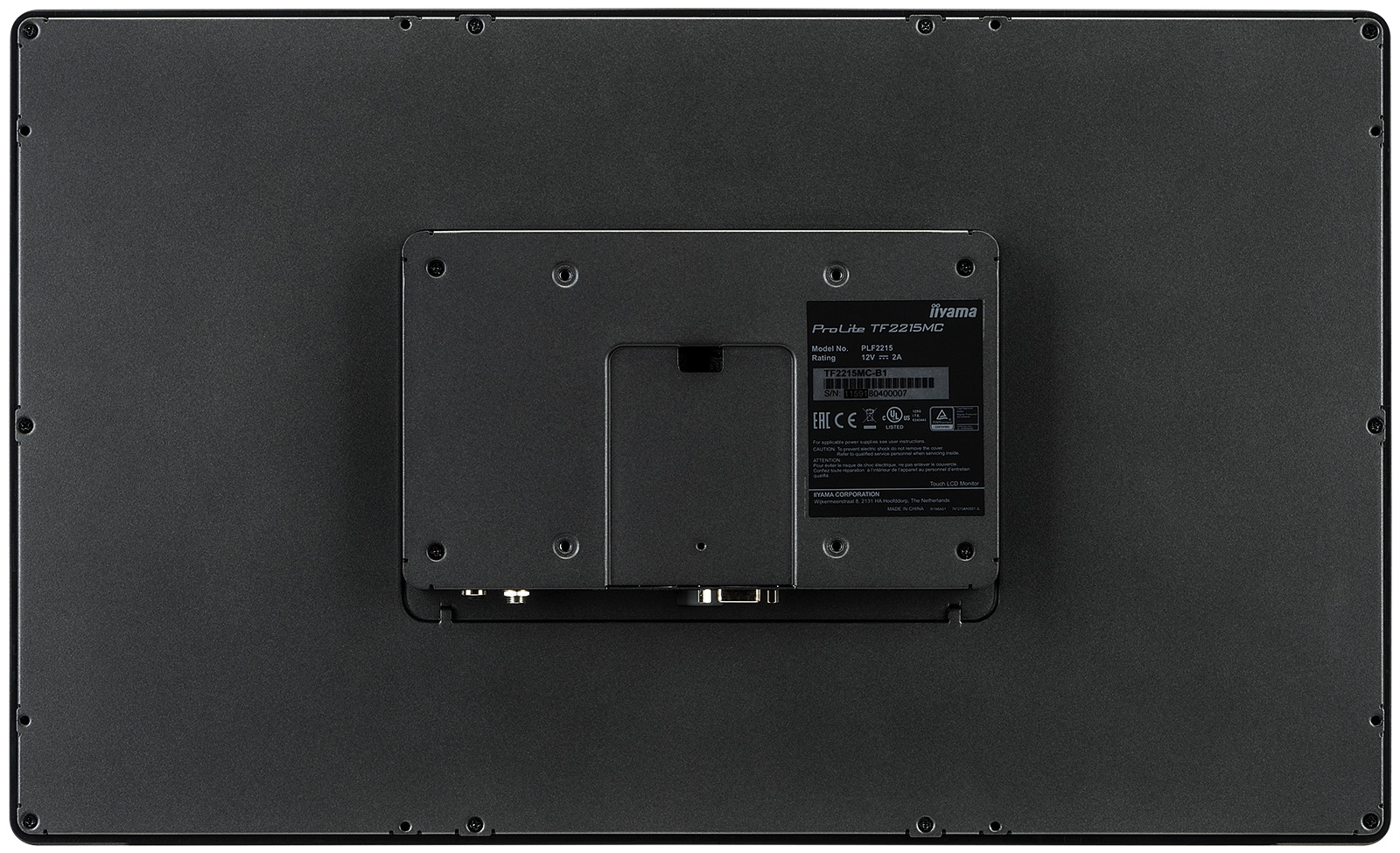

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 6 |
| VESA mounting | |
| Wall mountable | |
| On Screen Display (OSD) | |
| Plug and Play | |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in microphone | |
| Built-in camera | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Display viewable area (HxV) | 476.064 x 267.786 mm |
| Placement supported | Horizontal/Vertical |
| Brightness | 315 cd/m² |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Active display area (W x H) | 476.064 x 267.786 mm |
| Weight | 4.4 kg |
| Height | 315 mm |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Width | 520 mm |
| Depth | 42.5 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CB, CE, cULus, REACH, RoHS, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| Supplied AC adapter type | AC |
| Certification | CB, CE, TÜV-Bauart, CU, cULus, REACH |
| AC adapter included | |
| Packaging content | |

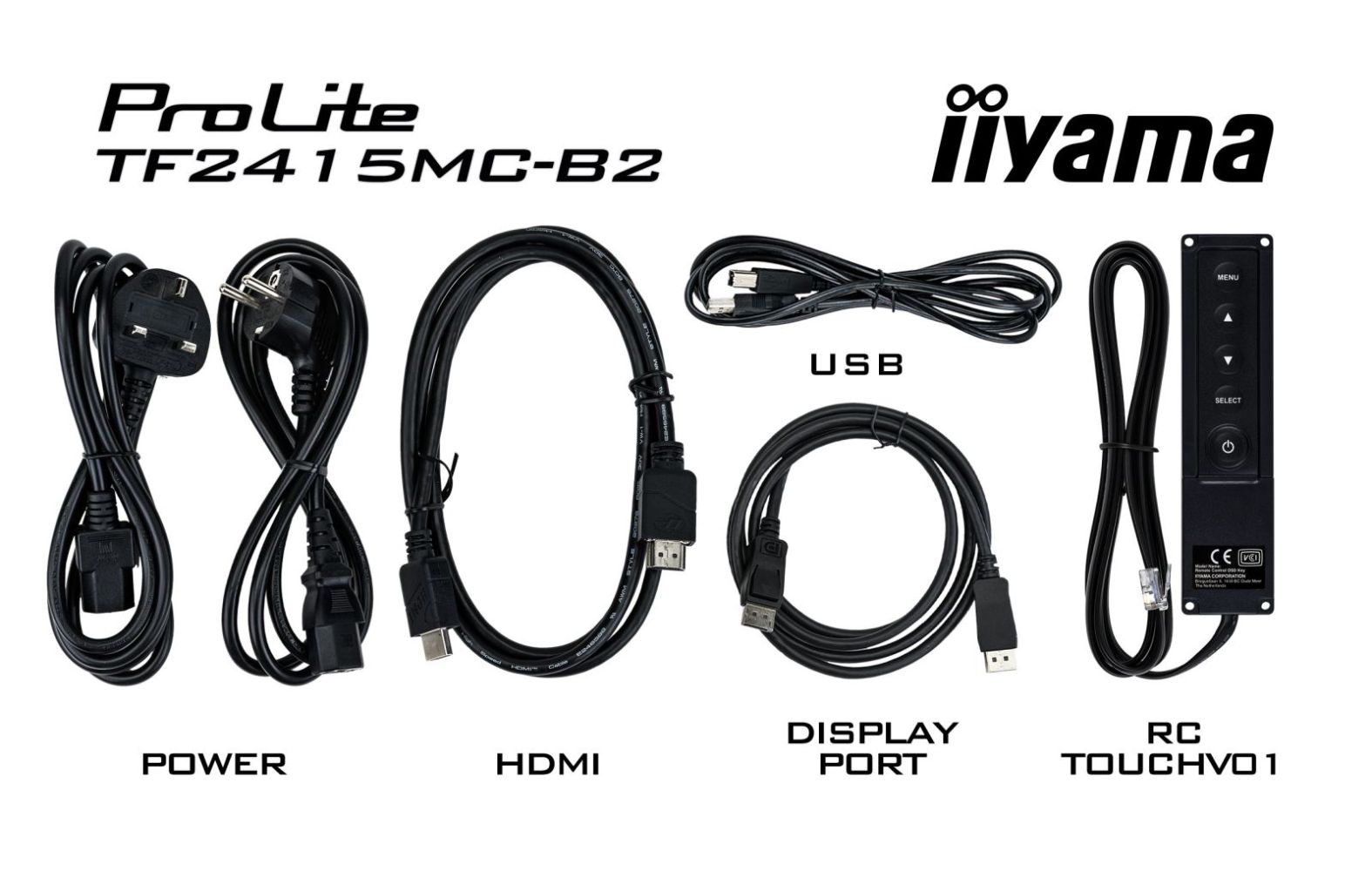

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| OmniTapps Multitouch compatibility | |

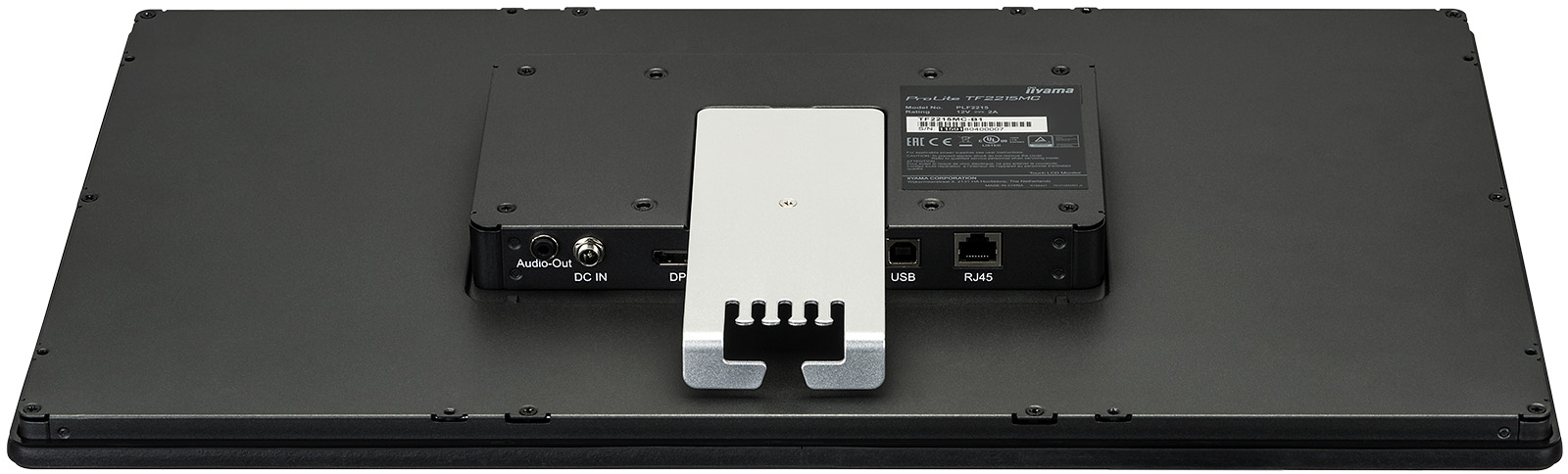

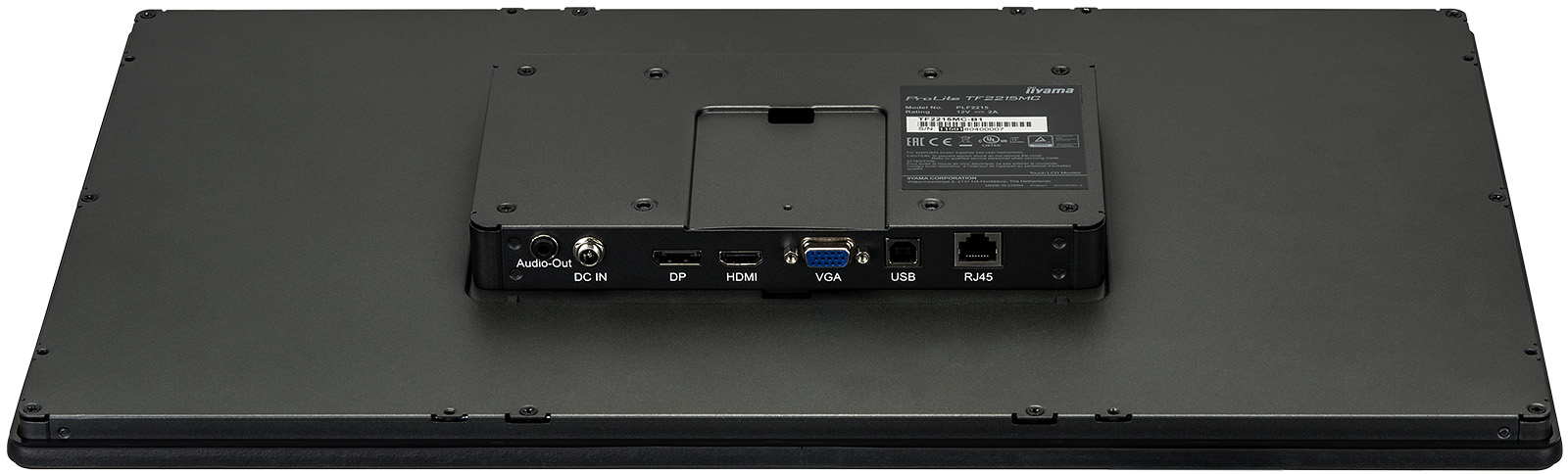

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 20.8 W |
| Power consumption (standby) | 1.05 W |
| Power consumption (off) | 0.32 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 520 mm |
| Depth (with stand) | 42.5 mm |
| Height (with stand) | 315 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 520 mm |
| Depth (without stand) | 42.5 mm |
| Height (without stand) | 315 mm |
| Weight (without stand) | 4.4 kg |
