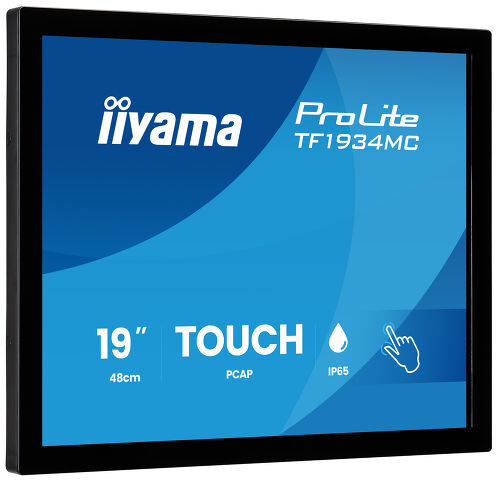

IIYAMA TF1934MC-B8X 19inch PCAP Bezel Free 10P Touch IPS 1280x1024 VGA HDMI DisplayPort 315cd/m2 with touch Through Glass Gloves
|
458,28 EUR |
|
|
( 545,35 EUR incl. VAT ) ≈ £389.54 | ≈ $514.65 plus delivery charges: 83,00 € |
|
| On order · Expected to be available from 14.10.2026info_outline | |
| End-Of-Life: | 18. Sep 2026 |
|---|---|
| Lieske Part No.: | 2141218 |
| Mfg Part No: | TF1934MC-B8X |
| UPC/EAN: | 4948570127825 |
| Weight: | 6.3 kg |
| Type: | MNTR |
Product information for Iiyama TF1934MC-B8X:
• Sichtbare Bildschirmdiagonale: 48,3 cm ( 19 inch )/48,0cm • Auflösung: 1280x1024 @ 75Hz • Helligkeit: 300cd/m² • Kontrast: 1000:1 • Touch: Projectiv kapazitiv • Touch-Oberfläche: USB • Reaktionszeit: 14ms • Blickwinkel: 178°/178° • Panel: IPS • Anschlüsse: 1x VGA, 1x HDMI, 1x DisplayPort, 1x RJ11 • USB-Hub: N/A • Ergonomie: N/A • VESA: 100x100 • Audio: N/A • Maße: 516x344x47mm • Farbe: Schwarz
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| HD type | XGA |
| Native aspect ratio | 5:4 |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 300 cd/m² |
| Response time | 14 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 37.7 cm |
| Viewable size, vertical | 30.2 cm |
| Display diagonal (metric) | 48 cm |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Polish |
| VESA mounting | |
| Wall mountable | |
| Cable management | |
| Cable lock slot | |
| Height adjustment | |
| Pivot | |
| On Screen Display (OSD) | |
| Multimedia | |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| Brightness | 300 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 377 x 302 mm |
| Weight | 4.4 kg |
| Height | 344 mm |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Width | 416 mm |
| Depth | 47 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| AC adapter included | |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 500 mm |
| Package depth | 425 mm |
| Package height | 133 mm |
| Package weight | 6.3 kg |
| USB cable length | 1.8 m |
| Performance | |
| Flicker-free technology | |
| Low Blue Light technology | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Power consumption (typical) | 21 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 75 Hz |
| Weight & dimensions | |
| Width (with stand) | 416 mm |
| Depth (with stand) | 47 mm |
| Height (with stand) | 344 mm |
| Weight (with stand) | 4.4 kg |
