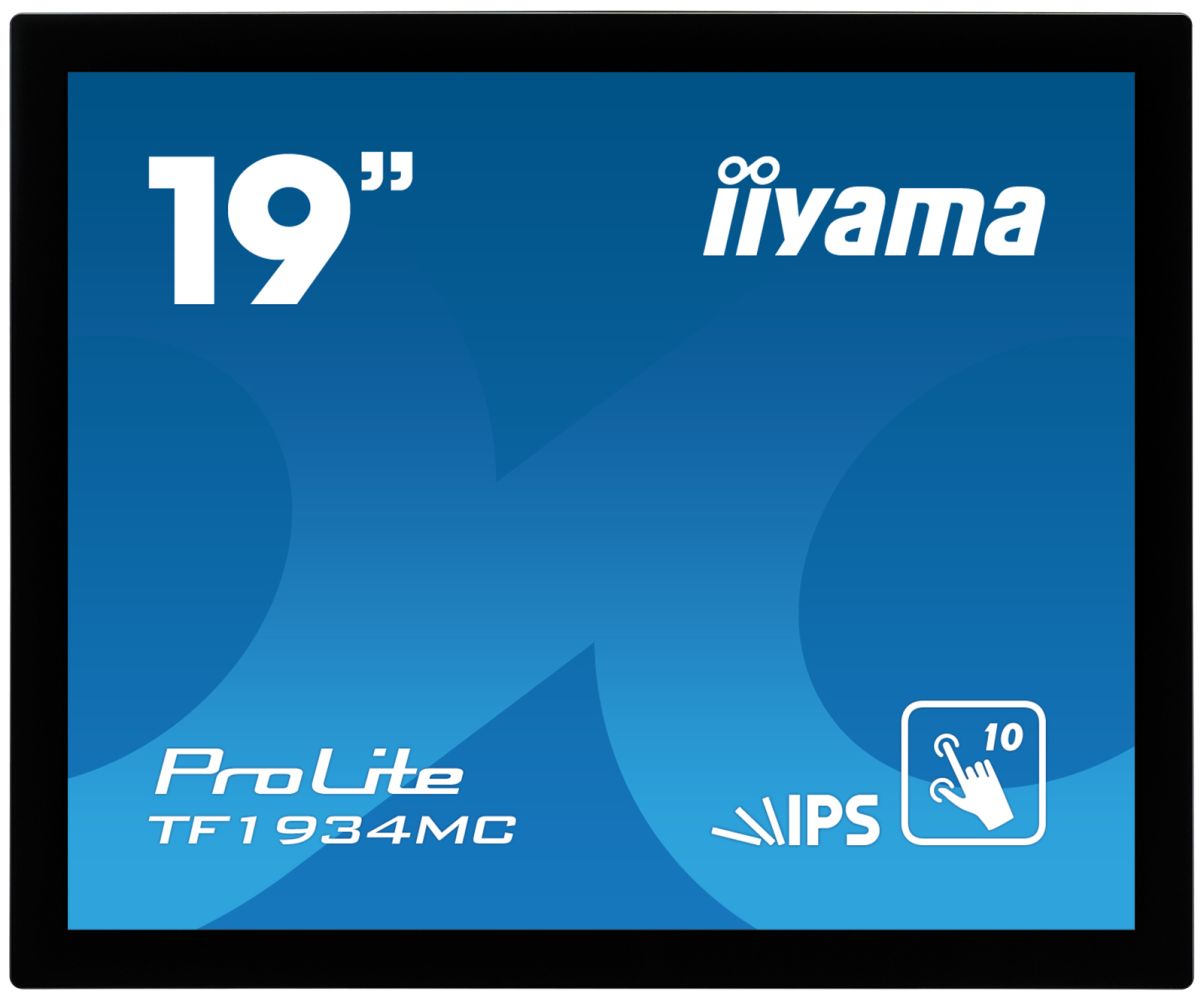

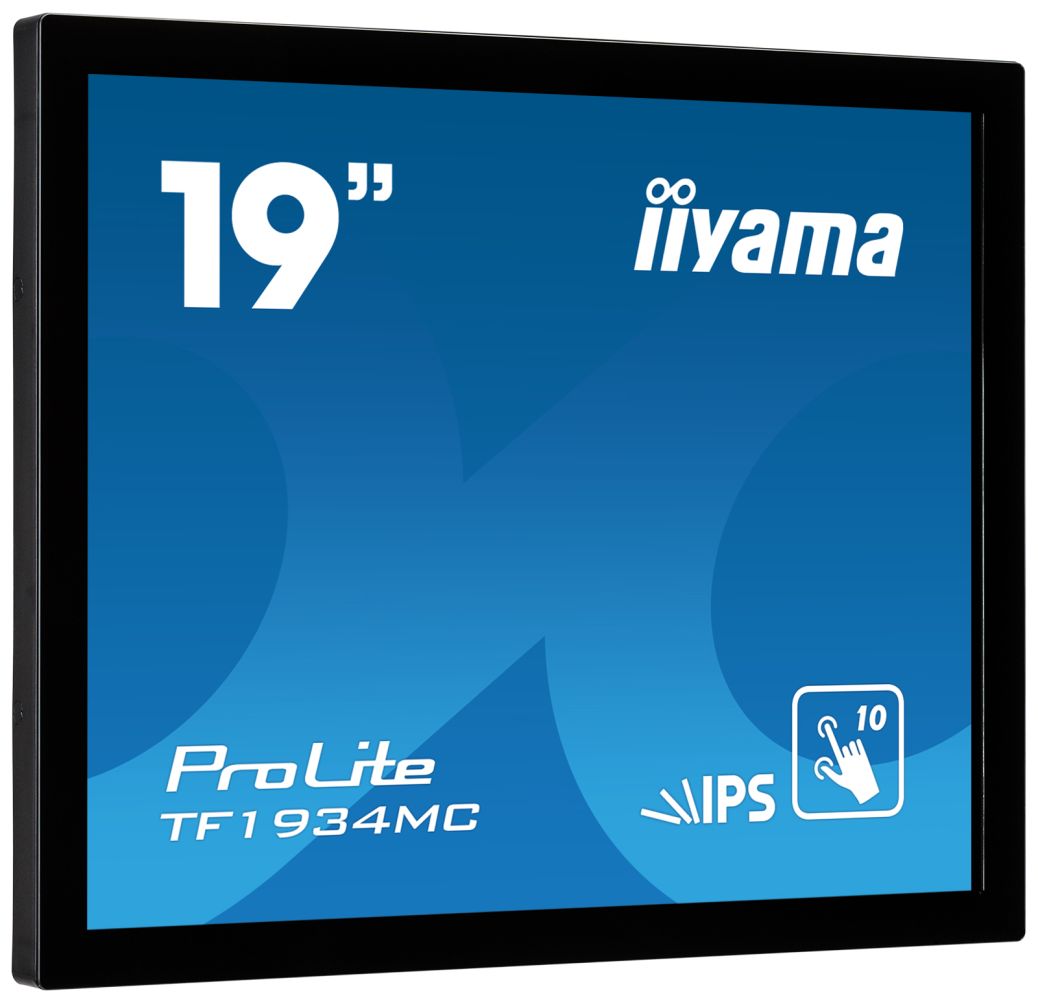

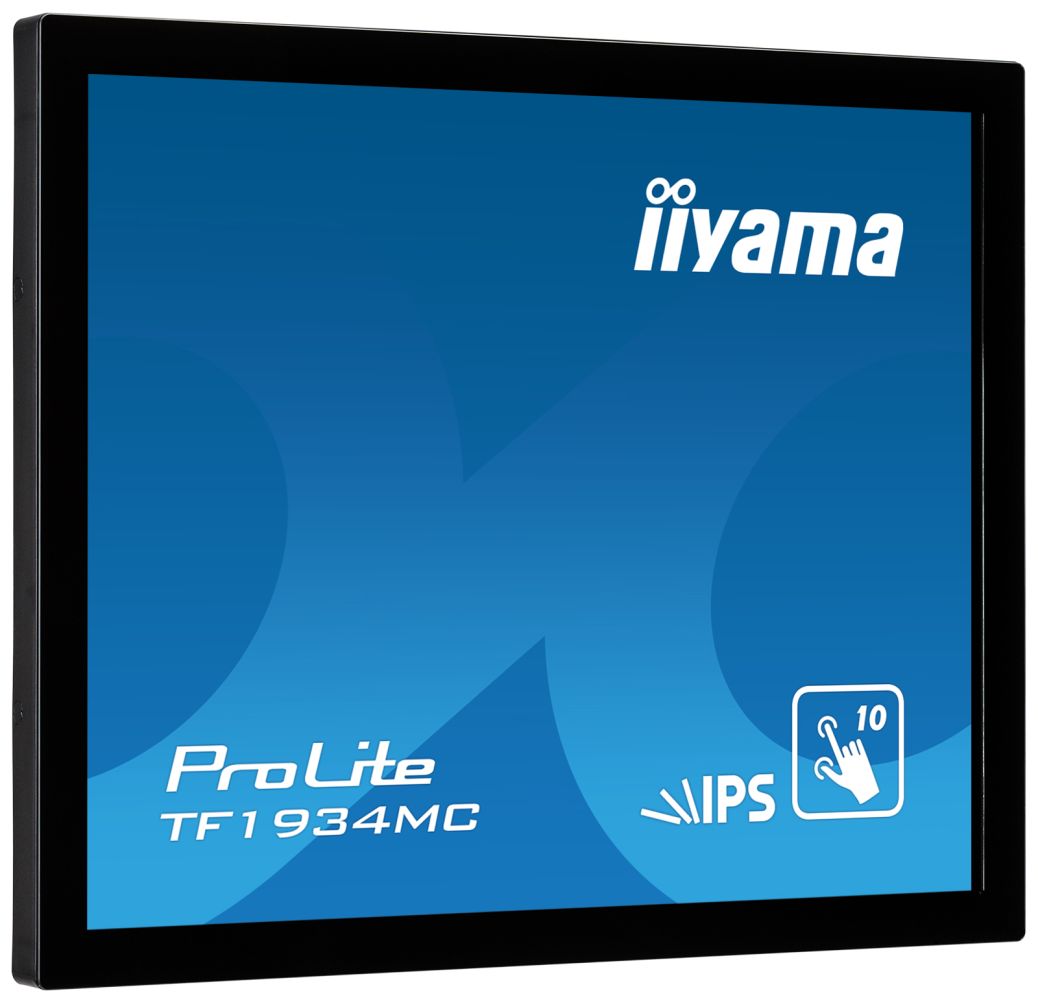

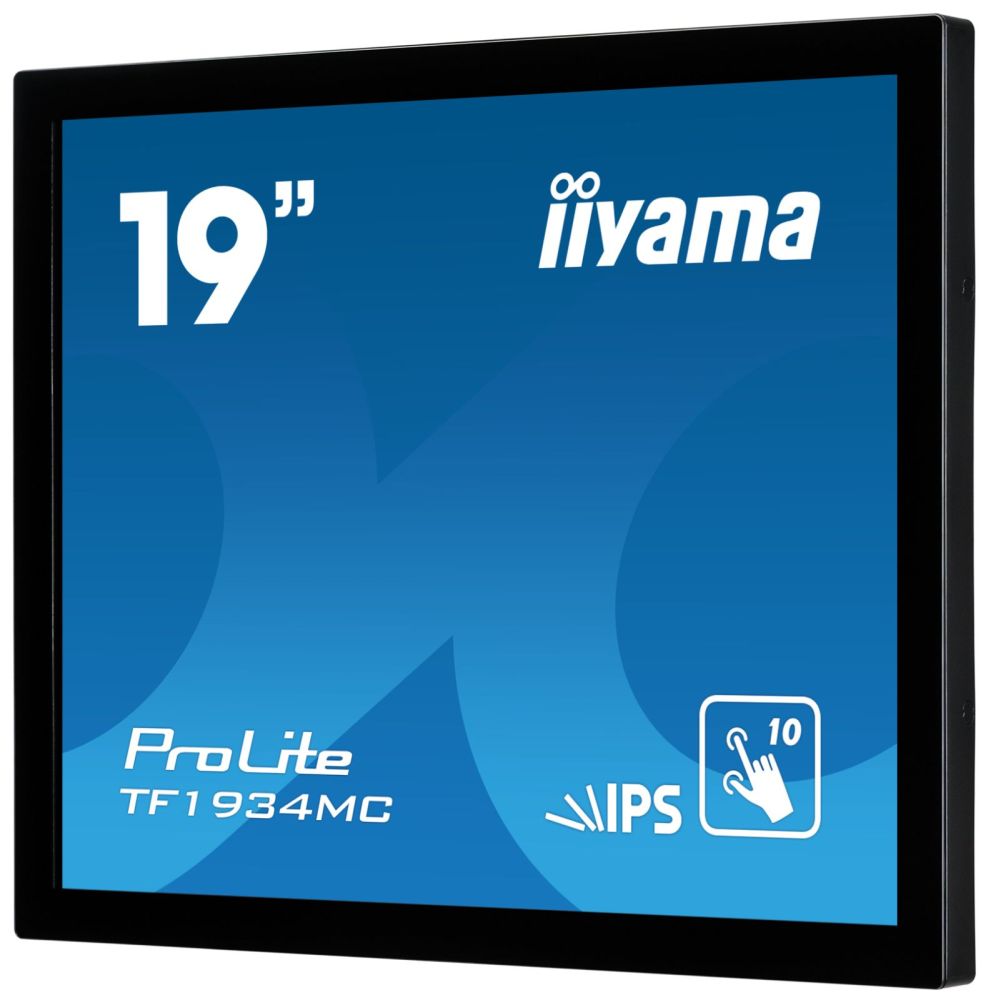

iiyama ProLite TF1934MC-B7X, 48.3 cm (19''), Projected Capacitive, 10 TP, black
|
470,59 EUR 490,20 EUR |
|
|
( 560,00 EUR incl. VAT ) ≈ £394.35 | ≈ $528.47 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 204672 |
| Mfg Part No: | TF1934MC-B7X |
| Weight: | 6.414 kg |
Product information for Iiyama TF1934MC-B7X:
TFT screen, 5:4, 48.3 cm (19''), Touchscreen, Projected Capacitive, multi touch (10 points), 1280x1024 pixels, VESA mount (100x100 mm), 14ms, brightness: 315cd, viewing angle: 178/178°(H/V), contrast: 1000:1, VGA, display-port, HDMI, touch interface: USB, protection class: IP65, incl.: cable (USB, HDMI, Display Port), power supply unit, power cable, colour: black
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 6 mm |
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Panel type | IPS |
| Backlight type | LED |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 315 cd/m² |
| Response time | 14 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Supported graphics resolutions | 1280 x 1024 (SXGA) |
| Aspect ratio | 5:4 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 31.4 - 80 kHz |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Viewable size diagonal | 48 cm |
| Display diagonal (metric) | 48 cm |
| LED backlight | |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Wall mountable | |
| Cable management | |
| Cable lock slot | |
| On Screen Display (OSD) | |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in microphone | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| Display viewable area (HxV) | 376.5 x 301.1 mm |
| Brightness | 315 cd/m² |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM) |
| Active display area (W x H) | 376.5 x 301.1 mm |
| Weight | 4.4 kg |
| Height | 344 mm |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Width | 416 mm |
| Depth | 46.5 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Supplied AC adapter type | AC |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
| AC adapter included | |
| Packaging content | |

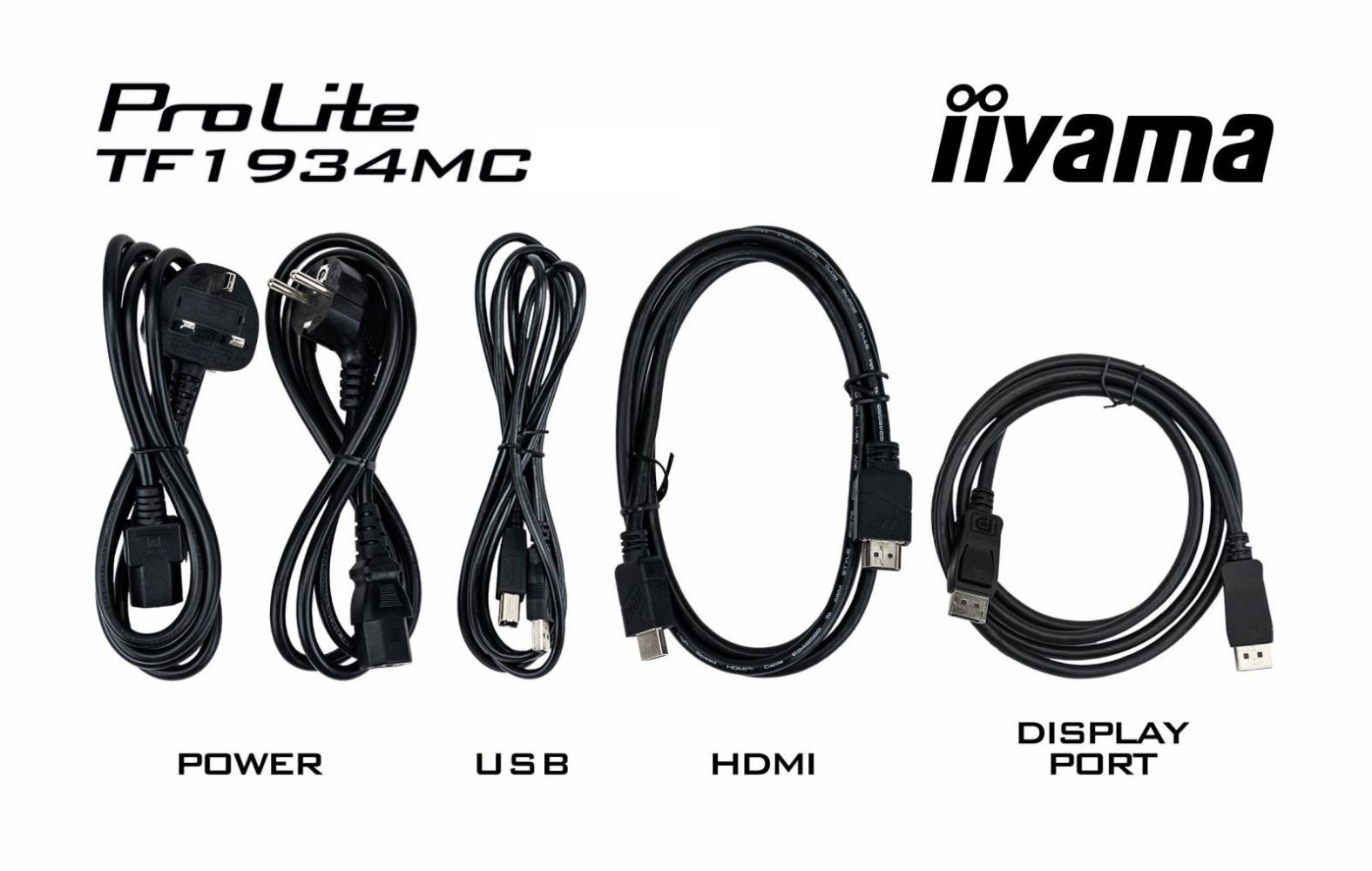

| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 500 mm |
| Package depth | 425 mm |
| Package height | 133 mm |
| Package weight | 6.3 kg |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Flicker-free technology | |
| Low Blue Light technology | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 21 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 1.5 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 416 mm |
| Depth (with stand) | 46.5 mm |
| Height (with stand) | 344 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 416 mm |
| Depth (without stand) | 46.5 mm |
| Height (without stand) | 344 mm |
| Weight (without stand) | 4.4 kg |
Questions & answers
What is the delivery time of iiyama ProLite TF1934MC-B7X, 48.3 cm (19''), Projected Capacitive, 10 TP, black?
The article iiyama ProLite TF1934MC-B7X, 48.3 cm (19''), Projected Capacitive, 10 TP, black is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF1934MC-B7X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you iiyama ProLite TF1934MC-B7X, 48.3 cm (19''), Projected Capacitive, 10 TP, black always at the best possible price. We can give you a discount of 2% on iiyama ProLite TF1934MC-B7X, 48.3 cm (19''), Projected Capacitive, 10 TP, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
