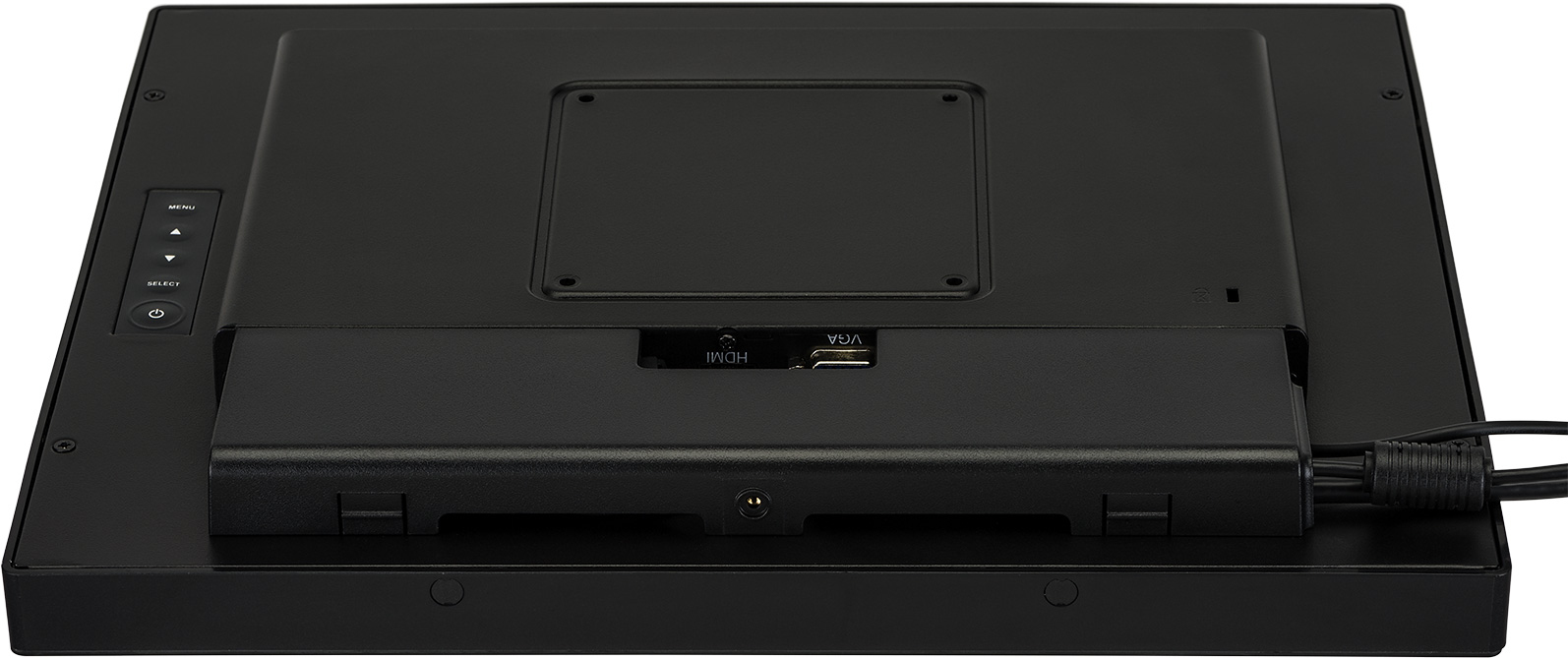

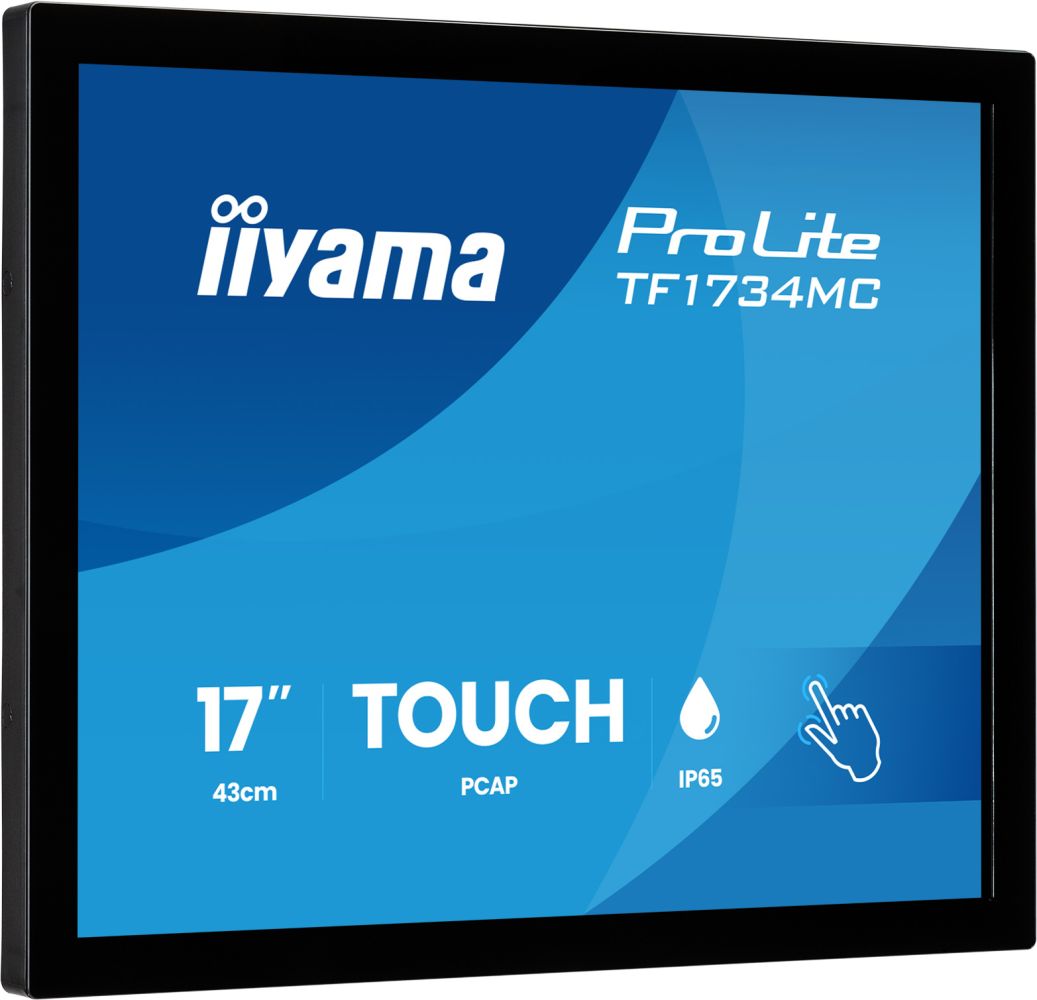

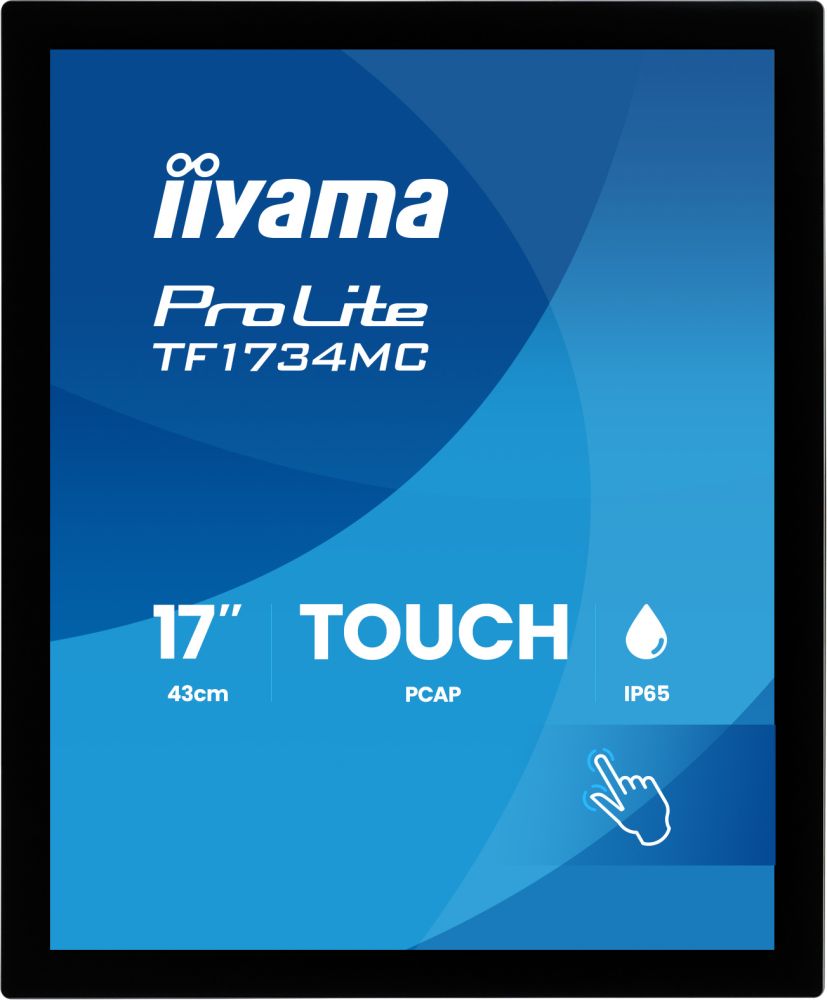

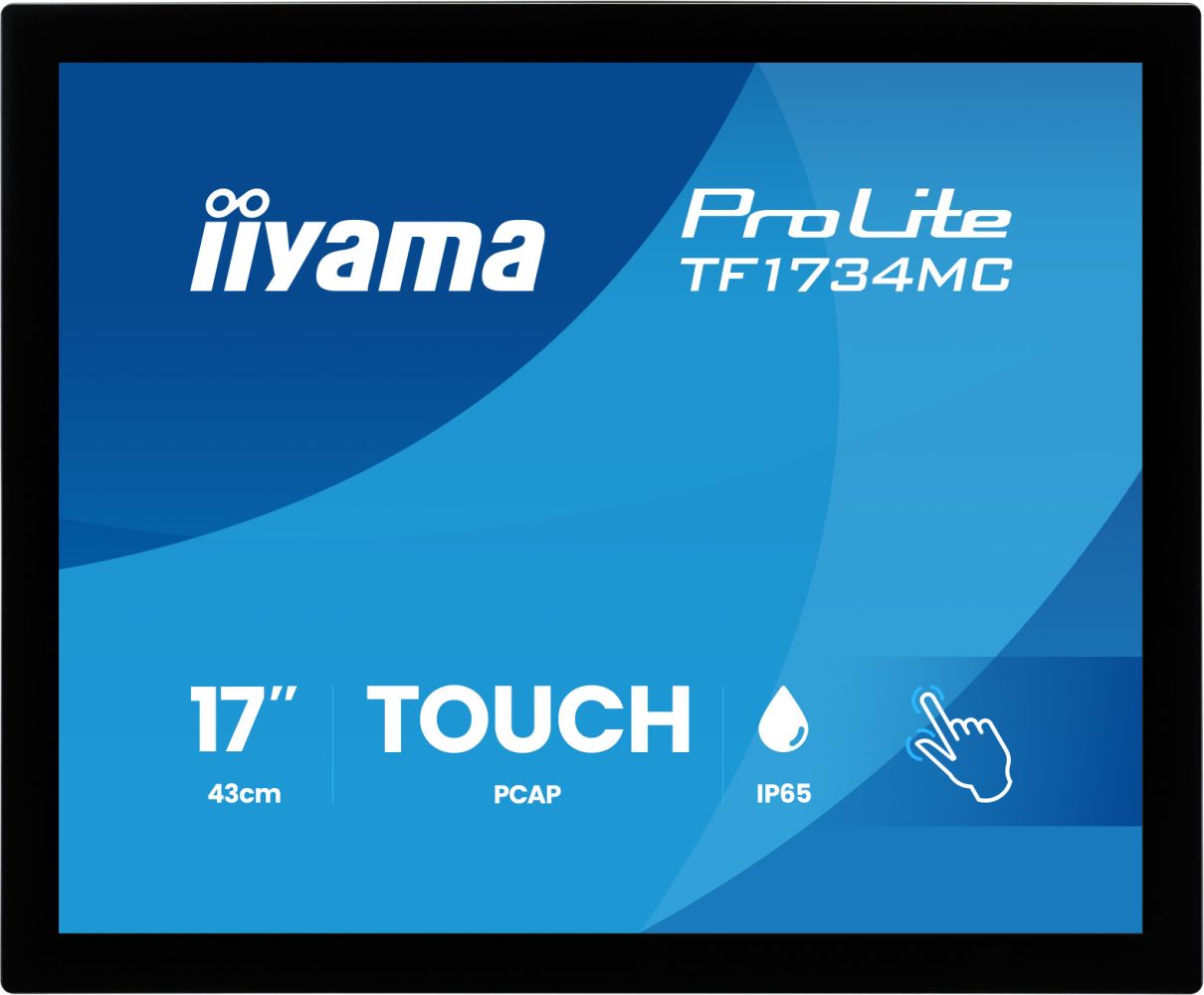

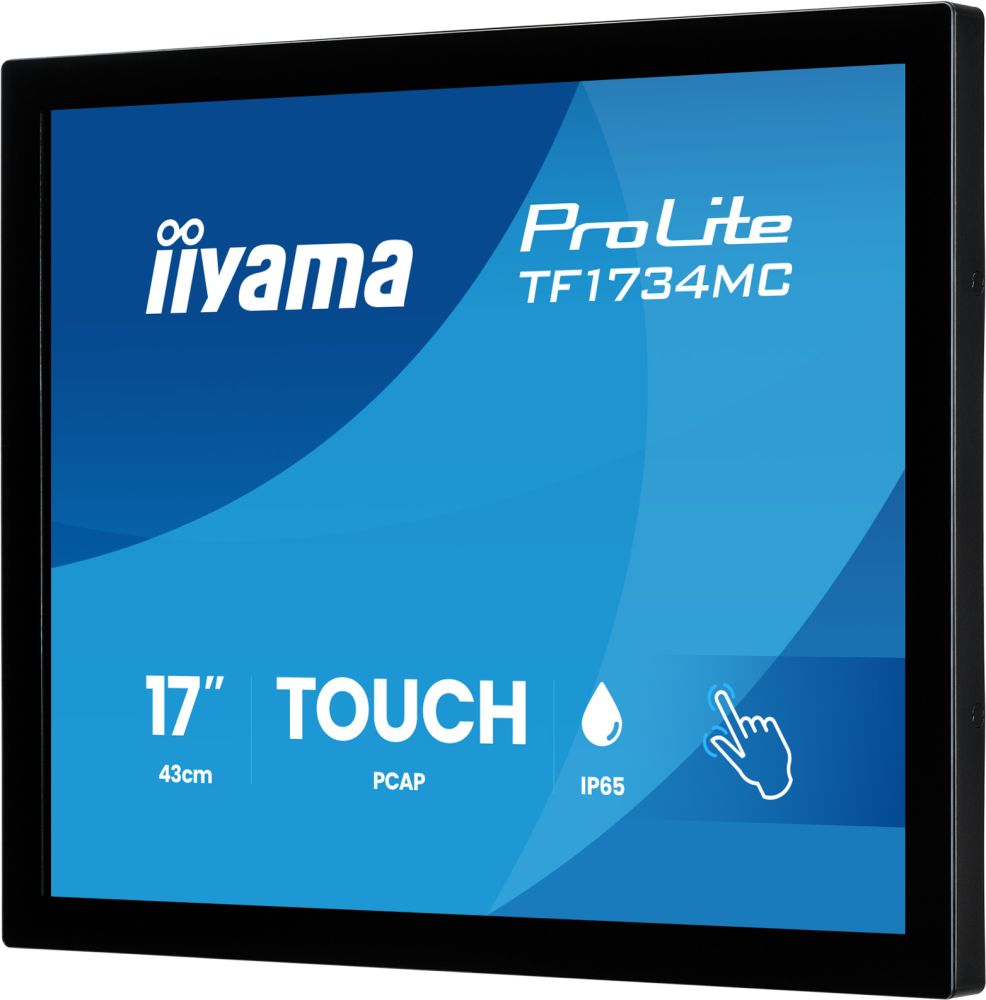

Iiyama TF1734MC-B8X 43,0 cm (17") 5:4 M-Touch HDMI DP VGA
|
442,68 EUR 448,61 EUR |
|
|
( 526,79 EUR incl. VAT ) ≈ £371.85 | ≈ $496.69 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 903949 |
| Mfg Part No: | TF1734MC-B8X |
| UPC/EAN: | 4948570127818 |
| Weight: | 5.6 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF1734MC-B8X:
• Sichtbare Bildschirmdiagonale: 43,2 cm ( 17 inch )/43,0cm • Auflösung: 1280x1024 @ 75Hz • Helligkeit: 300cd/m² • Kontrast: 1000:1 • Touch: Projectiv kapazitiv • Touch-Oberfläche: USB • Reaktionszeit: 5ms • Blickwinkel: 178°/178° • Panel: TN • Anschlüsse: 1x VGA, 1x HDMi, 1x DisplayPort • USB-Hub: N/A • Ergonomie: N/A • VESA: 100x100 • Audio: N/A • Maße: 369x307x47,5mm • Farbe: Schwarz
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3 mm |
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Panel type | TN |
| Touchscreen type | Table |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 350 cd/m² |
| Display brightness (typical) | 300 cd/m² |
| Display brightness | 300 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Display diagonal (metric) | 43 cm |
| Touchscreen | |
| Ergonomics | |

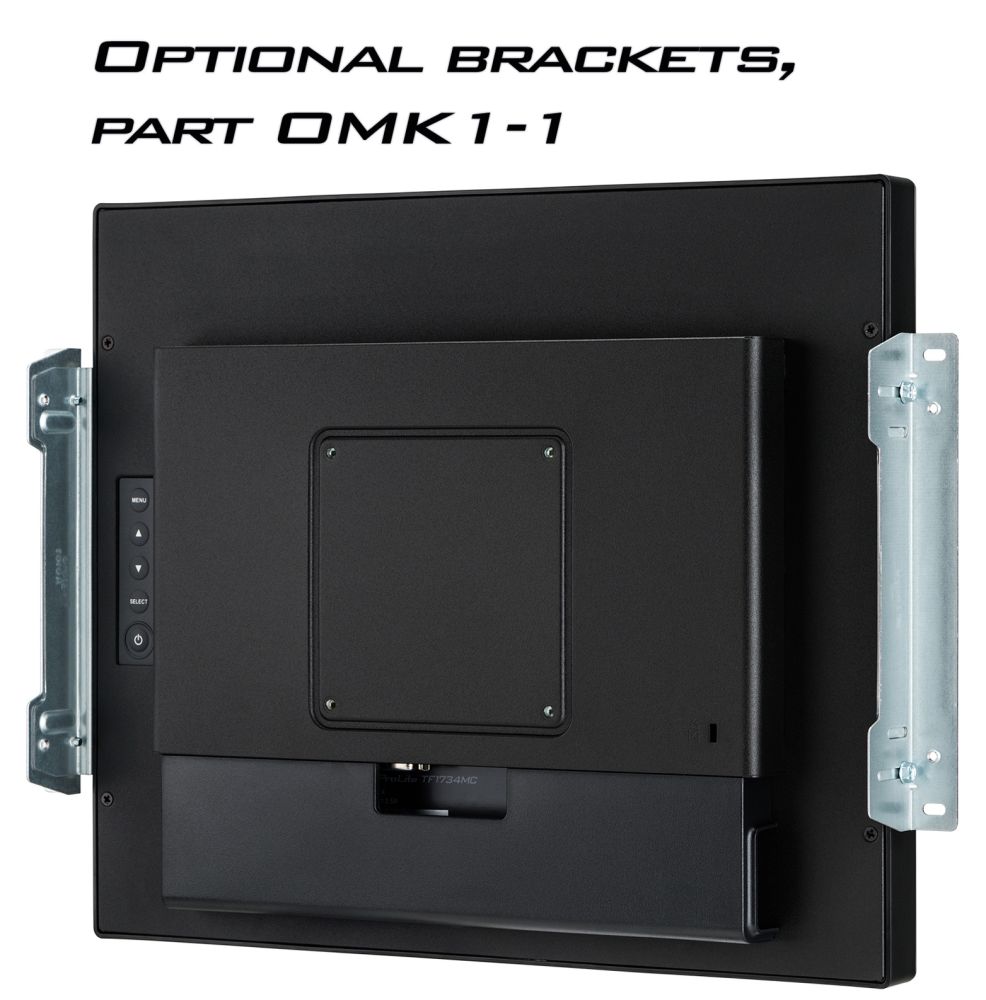

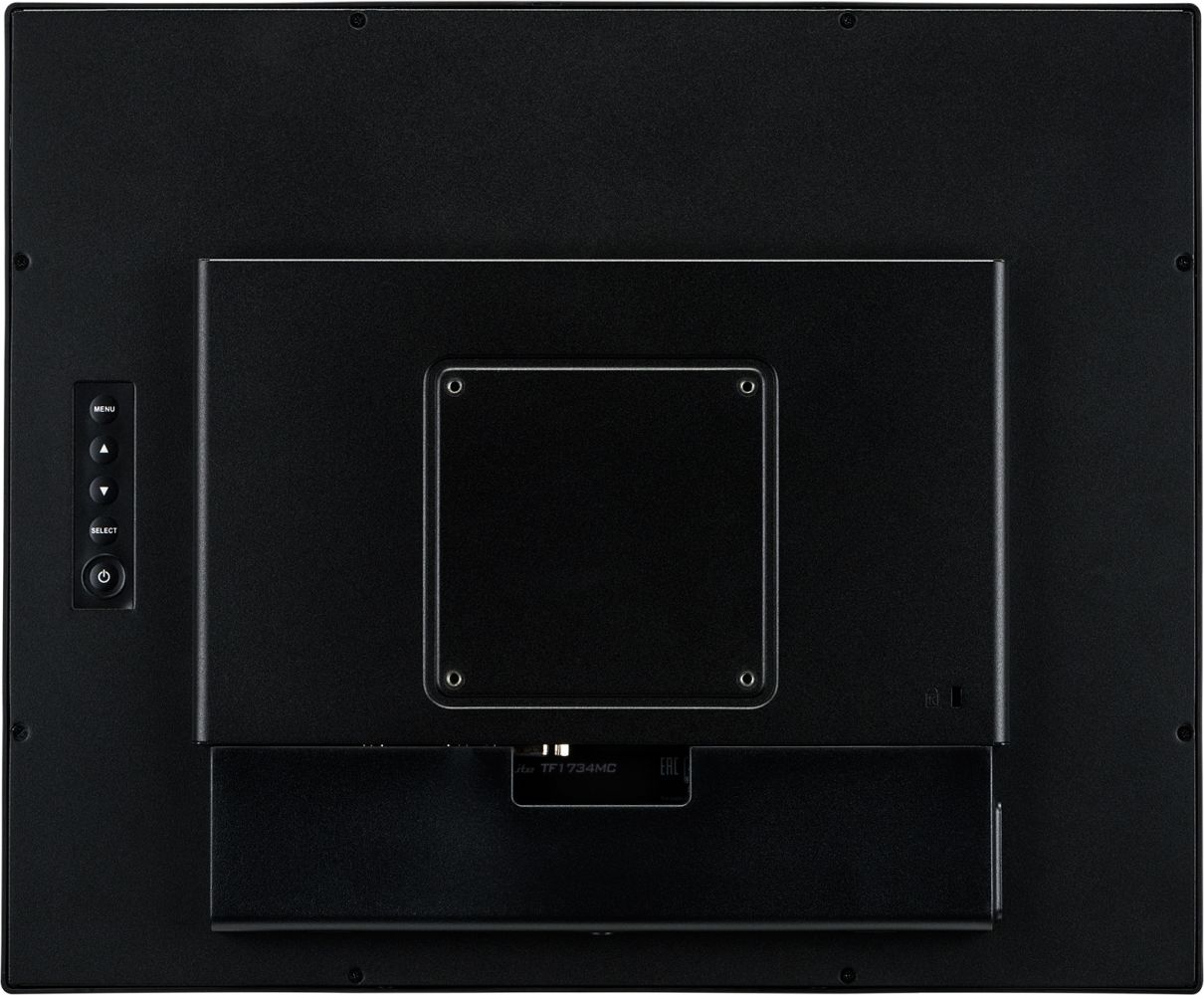

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| VESA mounting | |
| Cable lock slot | |
| Height adjustment | |
| On Screen Display (OSD) | |
| Multimedia | |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP65 |
| Positional accuracy | 2 mm |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Brightness | 300 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 338 x 270 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 3.6 kg |
| Height | 307 mm |
| Width | 369 mm |

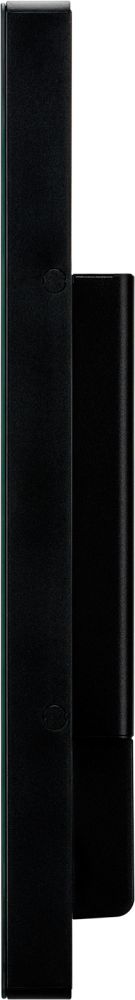

| Depth | 47.5 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| AC adapter included | |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 387 mm |
| Package depth | 455 mm |
| Package height | 145 mm |
| Package weight | 5.2 kg |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| Headphone out | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 75 Hz |
| Weight & dimensions | |
| Width (with stand) | 369 mm |
| Depth (with stand) | 47.5 mm |
| Height (with stand) | 307 mm |
| Weight (with stand) | 3.6 kg |
