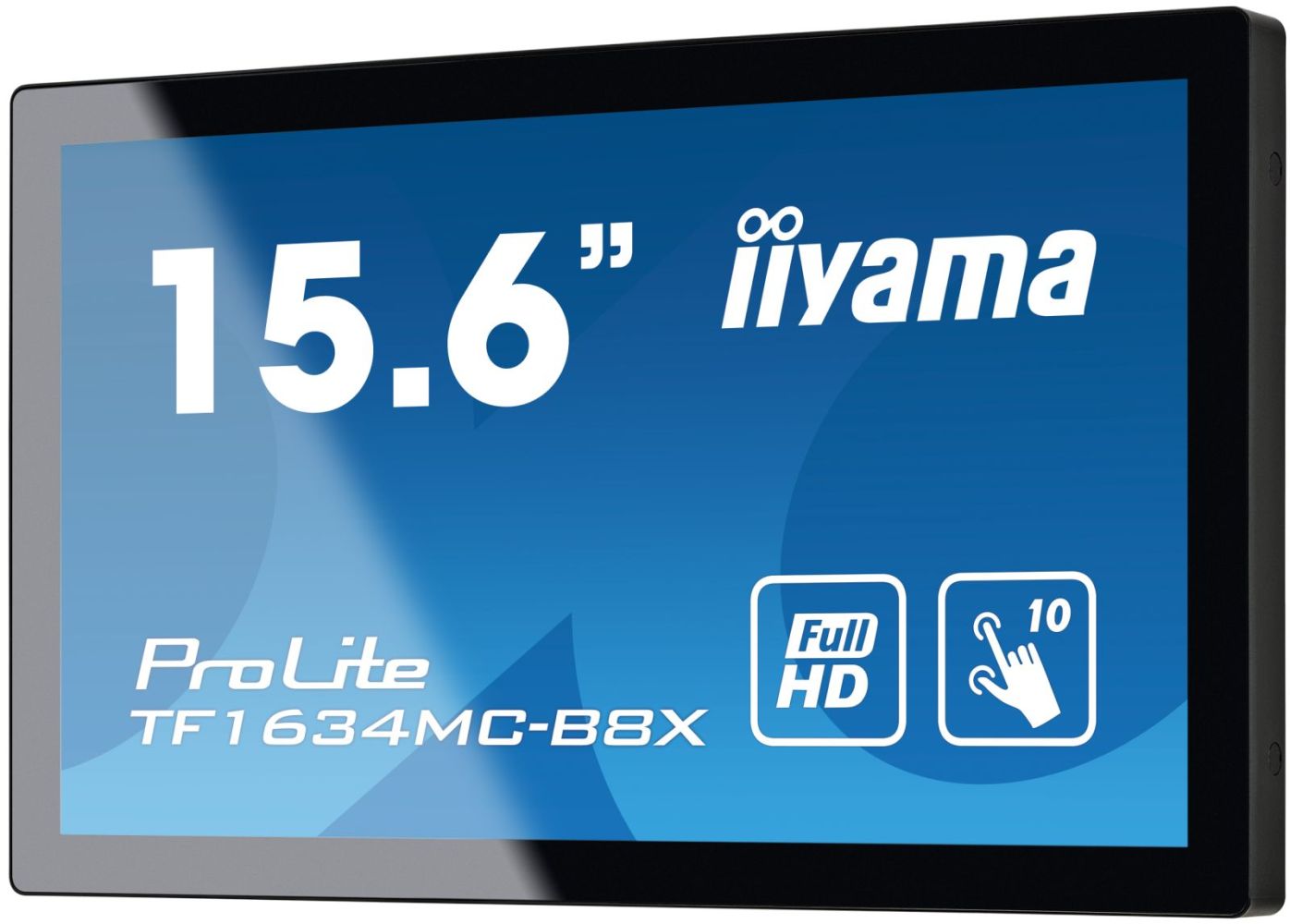

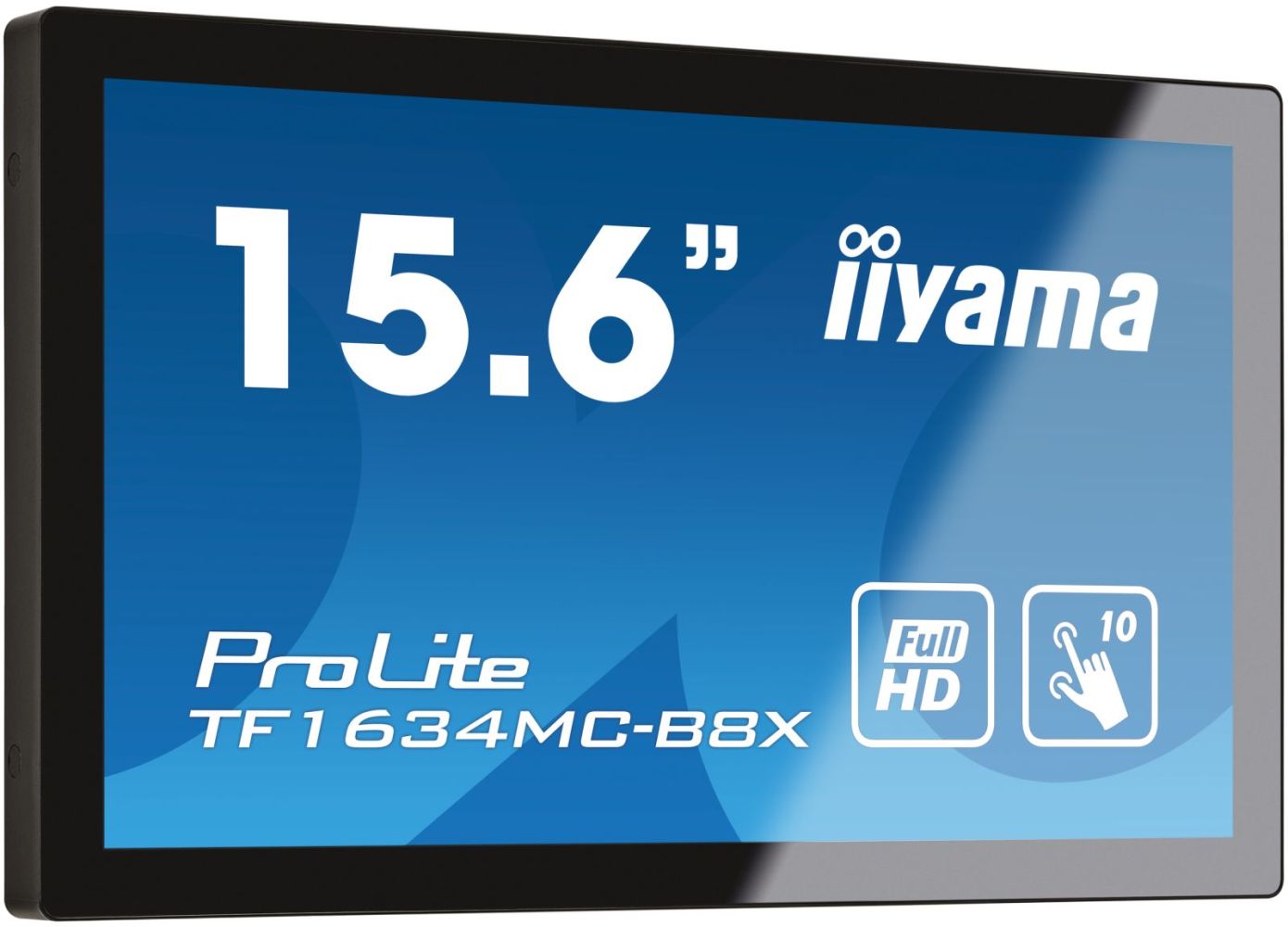

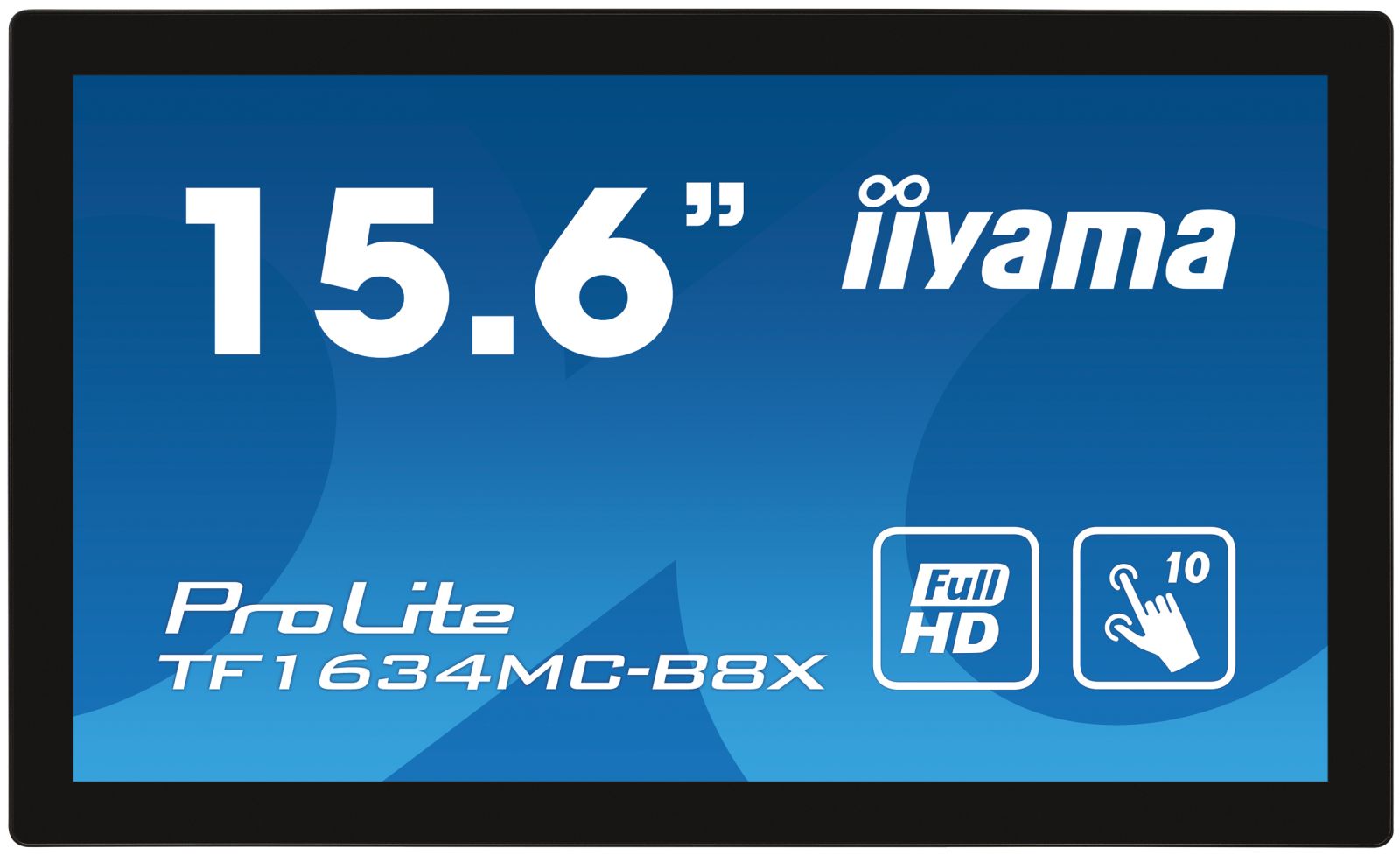

iiyama ProLite TF1634MC-B8X, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, black
|
490,66 EUR 511,10 EUR |
|
|
( 583,89 EUR incl. VAT ) ≈ £412.15 | ≈ $550.52 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1495332 |
| Mfg Part No: | TF1634MC-B8X |
| Weight: | 3.644 kg |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF1634MC-B8X:
touch monitor (16:9), 39.6 cm (15.6''), Touchscreen, Projected Capacitive, multi touch (10 points), 1920x1080 pixels, VESA mount (100x100 mm), 25ms, brightness: 405cd, contrast: 700:1, VGA, display-port, HDMI, touch interface: USB, IP65, incl.: cable (USB, HDMI, Display Port), power supply unit, power cable (EU), QSG, order separately: adaptor, colour: black
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 2.4 mm |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 405 cd/m² |
| Response time | 25 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |

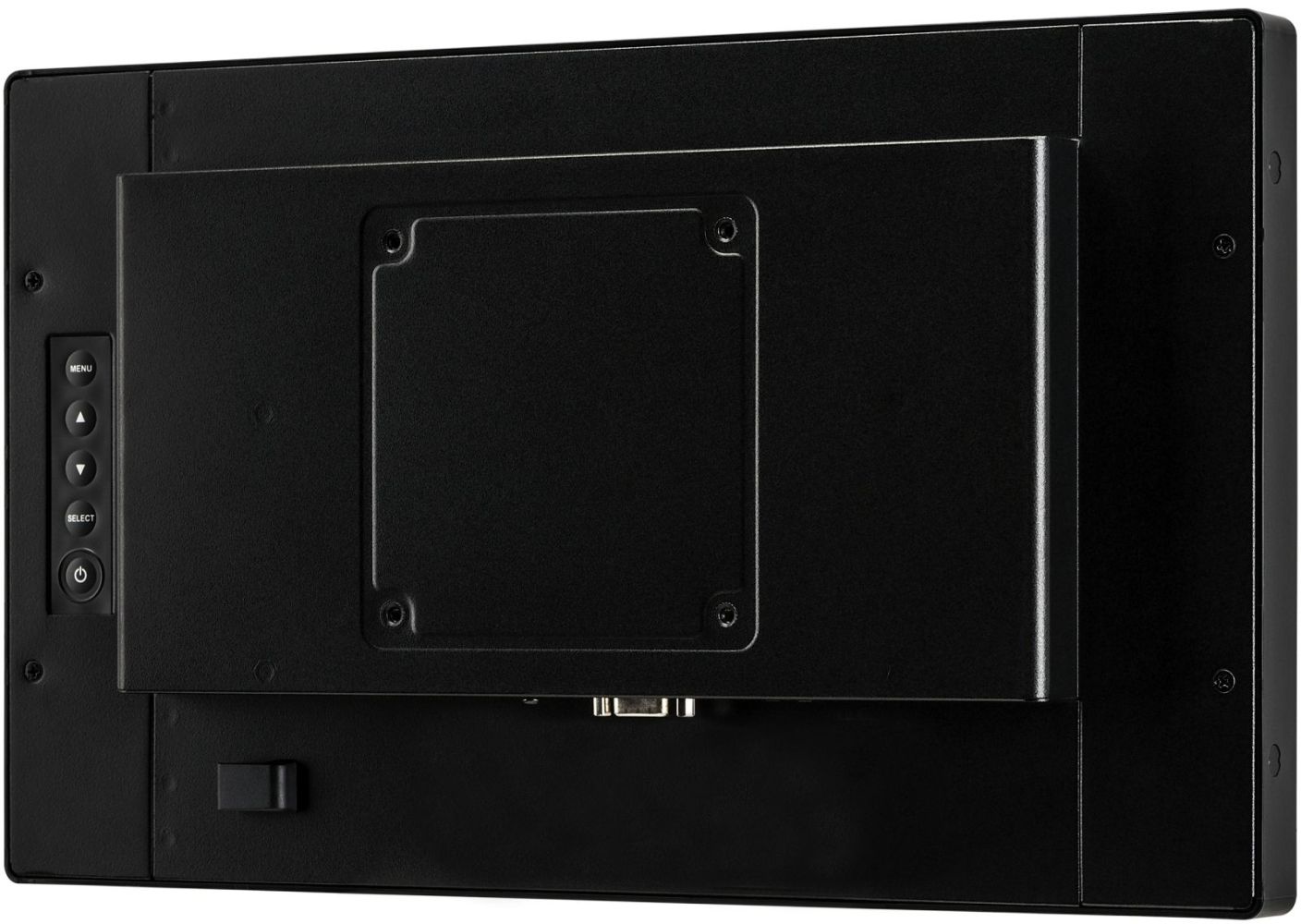

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Wall mountable | |
| On Screen Display (OSD) | |
| Logistics data | |
| Products per pallet | 78 pc(s) |
| Pallet net width | 11.5 cm |
| Pallet net length | 20.4 cm |
| Pallet net height | 9.7 cm |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in microphone | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Display viewable area (HxV) | 344.2 x 193.5 mm |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Placement supported | Horizontal/Vertical |
| Brightness | 405 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 2 kg |
| Height | 230.5 mm |
| Width | 381 mm |
| Depth | 46 mm |

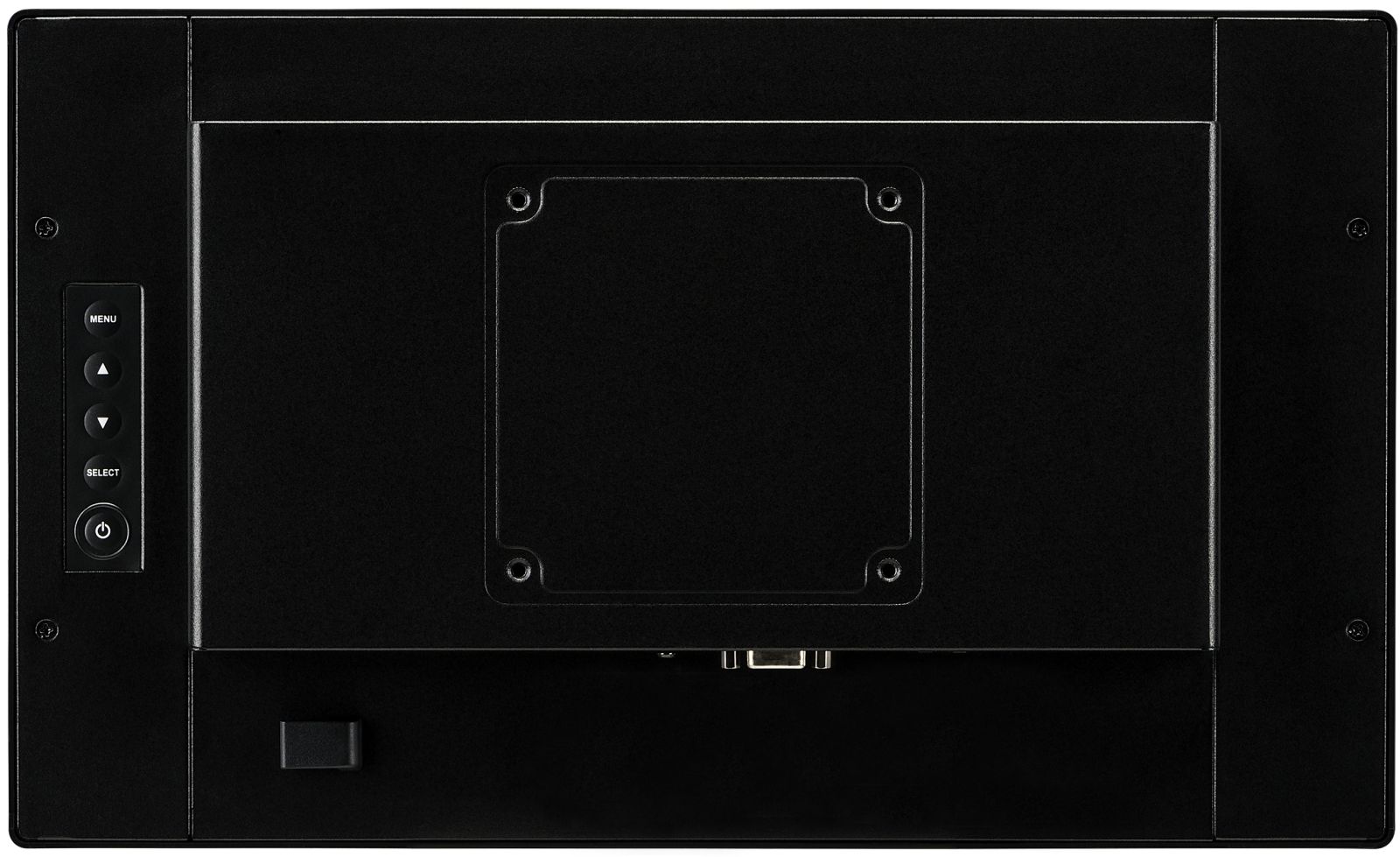

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| AC adapter included | |
| Packaging content | |

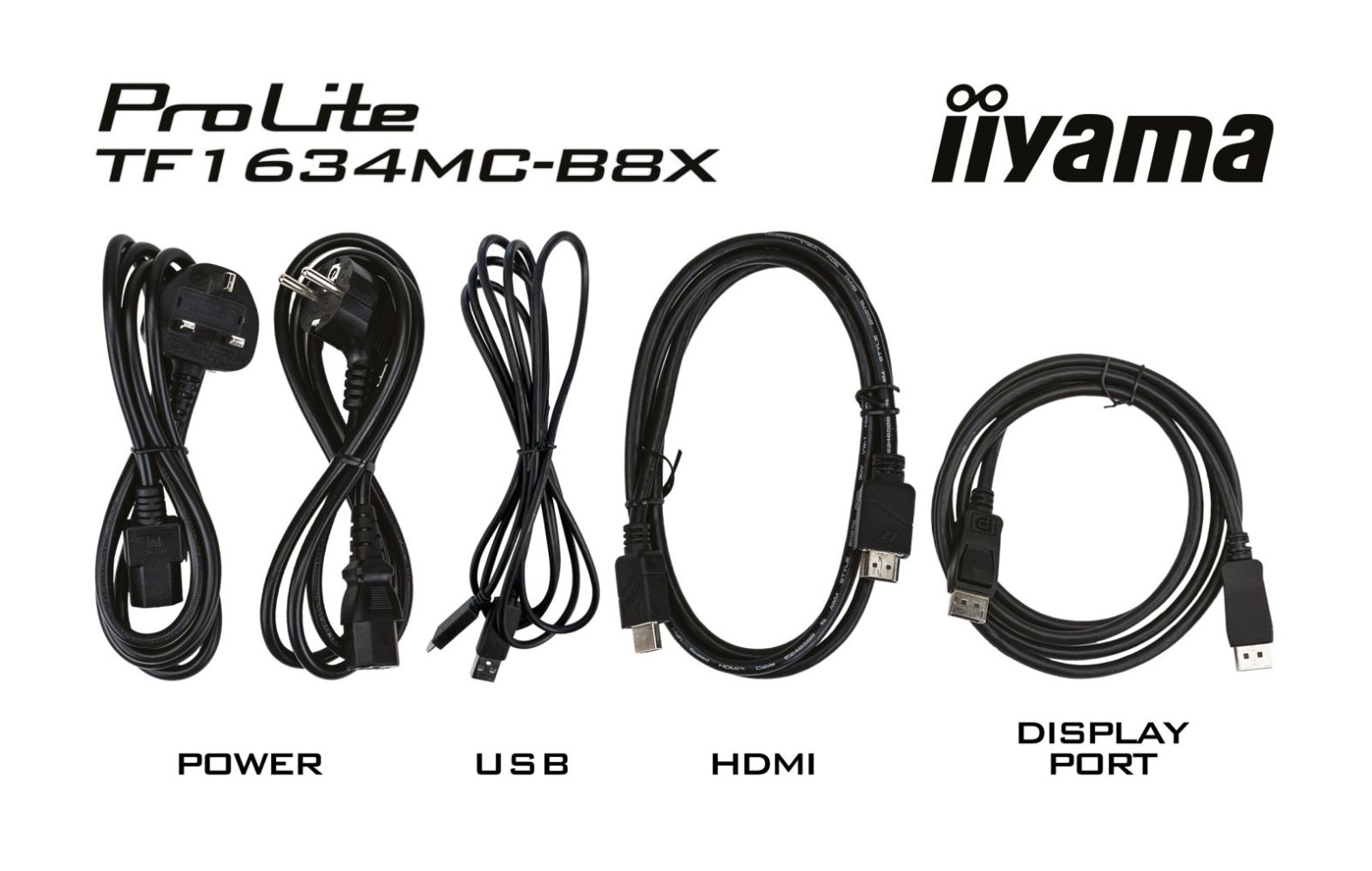

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | |
| Packaging data | |
| Package width | 455 mm |
| Package depth | 290 mm |
| Package height | 365 mm |
| Package weight | 3.9 kg |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 12.4 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.6 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 381 mm |
| Depth (with stand) | 46 mm |
| Height (with stand) | 230.5 mm |
| Weight (with stand) | 2 kg |
| Width (without stand) | 381 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 230.5 mm |
| Weight (without stand) | 2 kg |
Questions & answers
What is the delivery time of iiyama ProLite TF1634MC-B8X, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, black?
The article iiyama ProLite TF1634MC-B8X, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, black is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF1634MC-B8X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you iiyama ProLite TF1634MC-B8X, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, black always at the best possible price. We can give you a discount of 2% on iiyama ProLite TF1634MC-B8X, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
