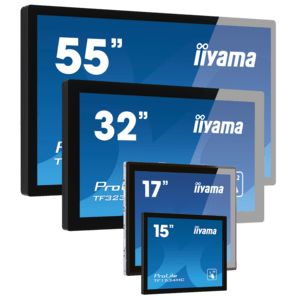

iiyama ProLite open-frame LCDs, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, kit (USB), black
|
434,11 EUR 452,20 EUR |
|
|
( 516,59 EUR incl. VAT ) ≈ £363.35 | ≈ $484.03 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2081843 |
| Mfg Part No: | TF1615MC-B1 |
| Weight: | 4.656 kg |
Product information for Iiyama TF1615MC-B1:
touch monitor (zero-bezel, open-frame, 16:9), screen size: 39.6 cm (15.6''), touch technology, touch technology: Projected Capacitive, multi touch (10 points), resolution, 1920x1080 pixels, miscellaneous (properties/characteristics), VESA mount (100x100 mm), response time: 25ms, brightness: brightness 405cd, contrast: 1000:1, interfaces, audio, VGA, display-port, HDMI, touch interface: USB, accessories, incl.: cable (USB, HDMI, Display Port), power supply unit, power cable (EU), optional accessories, order separately: adaptor, colour, colour: black
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3.3 mm |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 405 cd/m² |
| Response time | 25 ms |
| Screen shape | Flat |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.17925 x 0.17925 mm |
| Horizontal scan range | 31.5 - 67.5 kHz |
| Viewable size, horizontal | 34.5 cm |
| Viewable size, vertical | 19.5 cm |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| VESA mounting | |
| On Screen Display (OSD) | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 405 cd/m² |
| Packaging content | AC adapter, external control pad |
| Active display area (W x H) | 345.2 x 194.6 mm |
| Weight | 2.5 kg |
| Height | 246 mm |
| Width | 398.5 mm |
| User controls | picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Depth | 42 mm |
| Control panel | menu,scroll up/ brightness, scroll down/ contrast, select, power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| AC adapter included | |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| Power adapter included | |
| Quick start guide | |
| Packaging data | |
| Package width | 470 mm |
| Package depth | 343 mm |
| Package height | 145 mm |
| Package weight | 4.3 kg |
| Package type | Box |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| Headphone out | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 398.5 mm |
| Depth (with stand) | 42 mm |
| Height (with stand) | 246 mm |
| Weight (with stand) | 2.5 kg |
| Width (without stand) | 398.5 mm |
| Depth (without stand) | 42 mm |
| Height (without stand) | 246 mm |
| Weight (without stand) | 2.5 kg |
Questions & answers
What is the delivery time of iiyama ProLite open-frame LCDs, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, kit (USB), black?
The article iiyama ProLite open-frame LCDs, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, kit (USB), black is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF1615MC-B1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you iiyama ProLite open-frame LCDs, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, kit (USB), black always at the best possible price. We can give you a discount of 2% on iiyama ProLite open-frame LCDs, 39.6 cm (15,6''), Projected Capacitive, 10 TP, Full HD, kit (USB), black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
