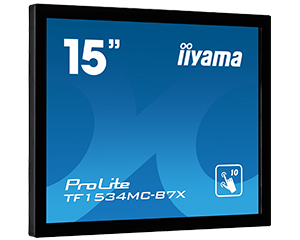

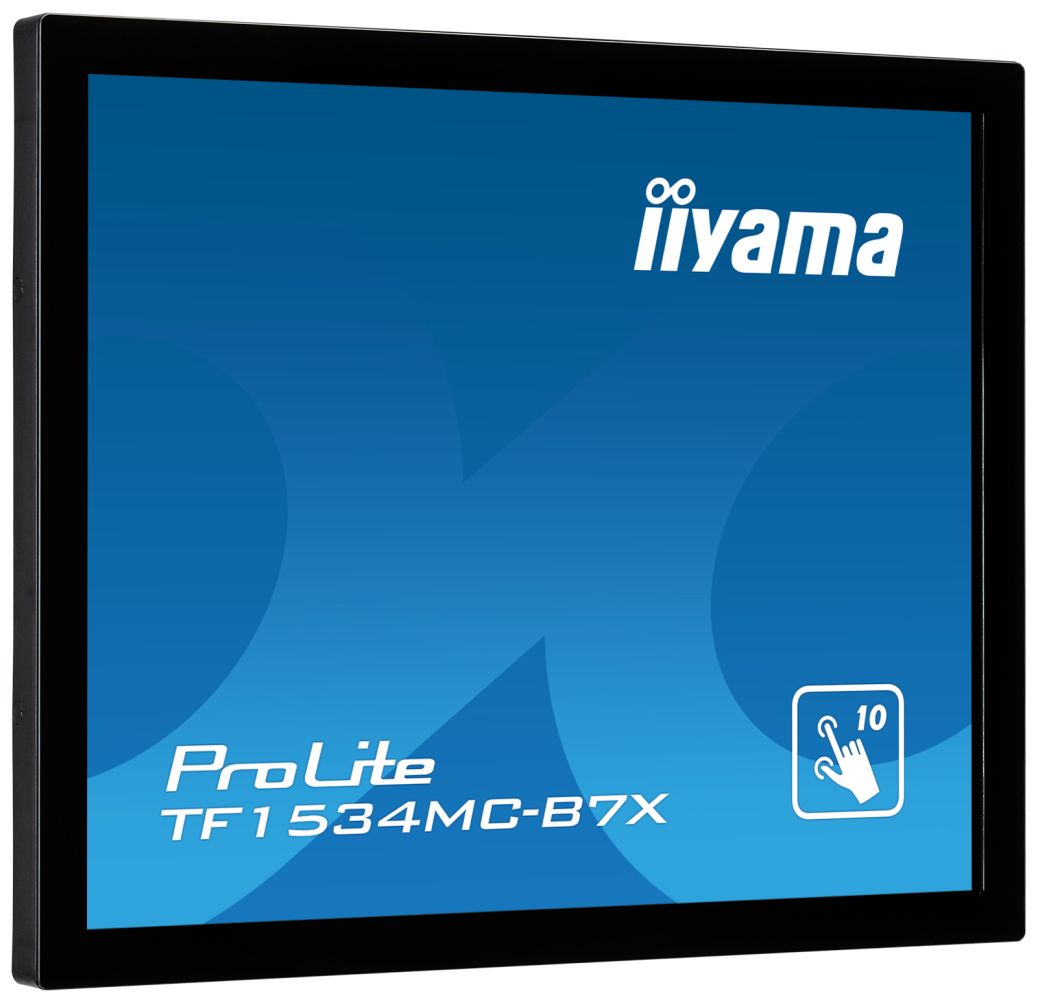

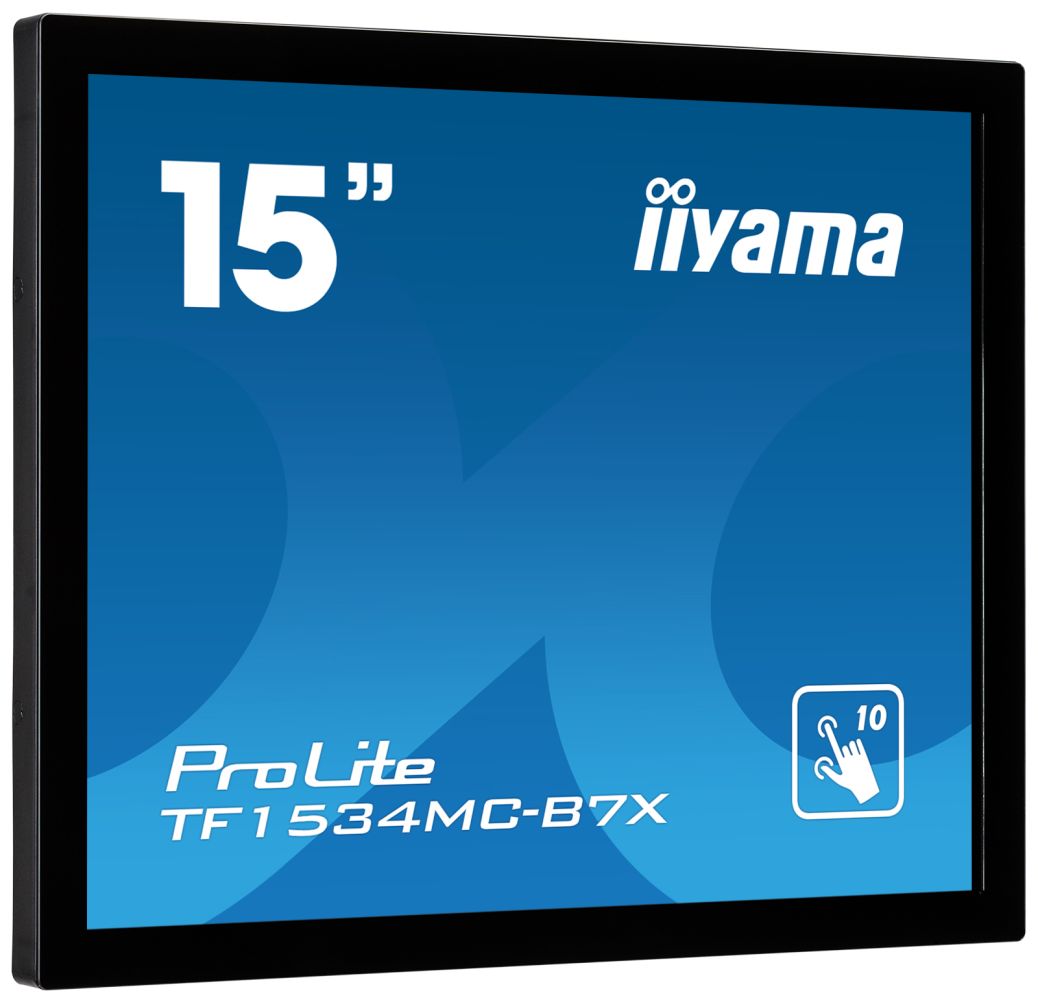

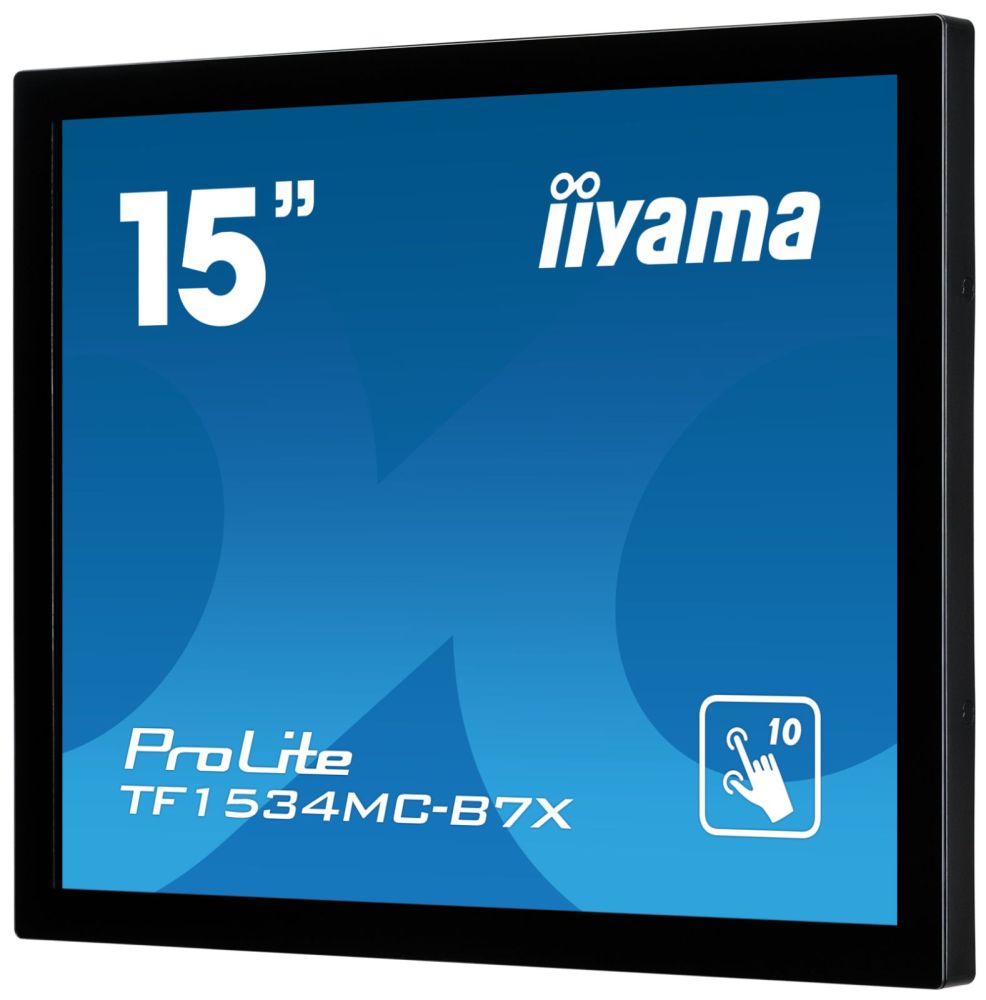

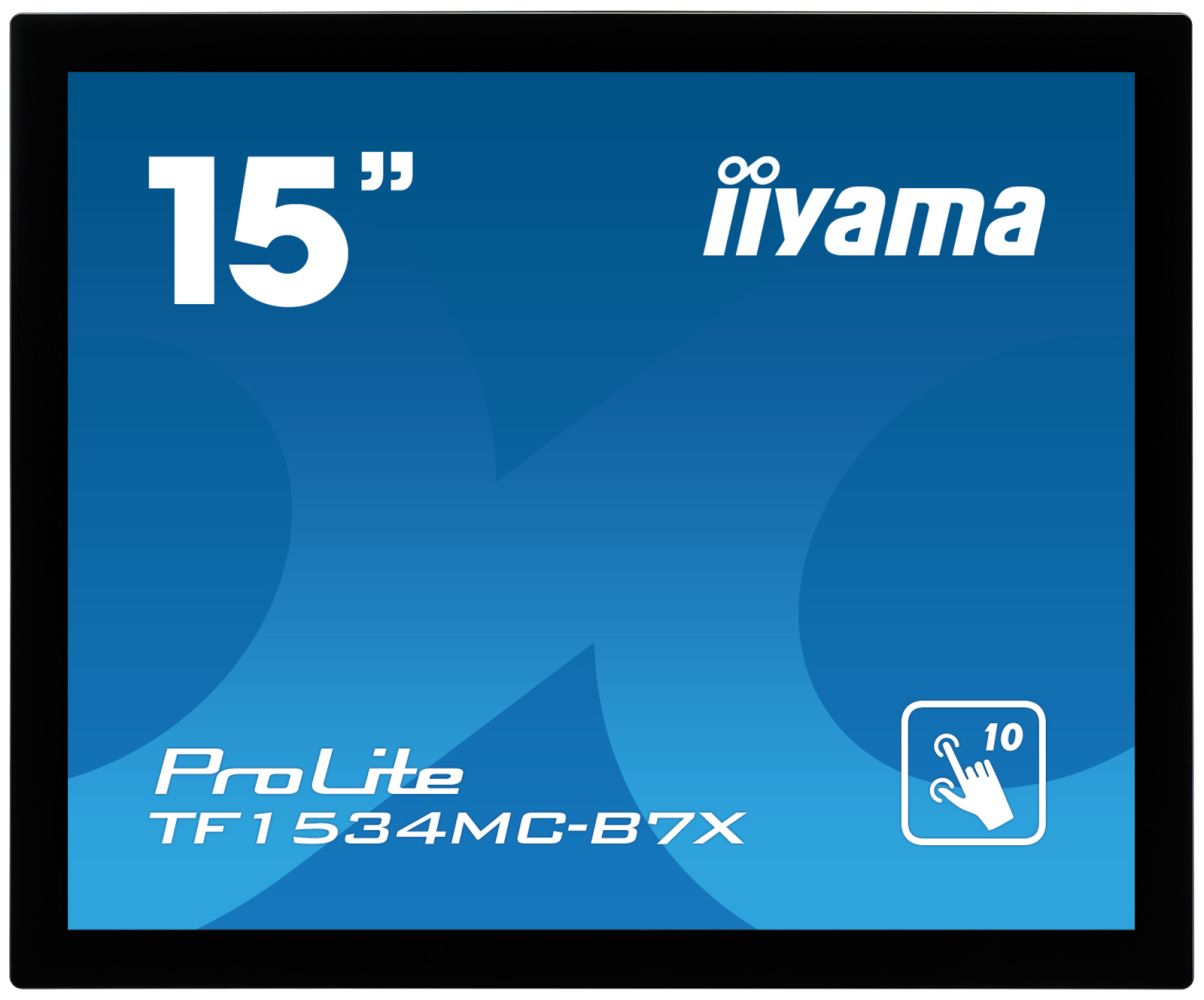

iiyama ProLite TF1534MC-B7X, 38.1 cm (15''), Projected Capacitive, 10 TP, black
|
414,05 EUR 431,30 EUR |
|
|
( 492,72 EUR incl. VAT ) ≈ £347.80 | ≈ $464.56 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1869730 |
| Mfg Part No: | TF1534MC-B7X |
| Weight: | 4.58 kg |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF1534MC-B7X:
touch monitor (open-frame, 4:3), 38.1 cm (15''), Touchscreen, Projected Capacitive, multi touch (10 points), resolution: display, 1024x768 pixels, VESA mount (100x100 mm), 8ms, brightness: 330cd, viewing angle: 170/160°(H/V), contrast: 700:1, VGA, display-port, HDMI, touch interface: USB, IP65, incl.: cable (USB, HDMI, Display Port), power supply unit, power cable, QSG, order separately: adaptor, colour: black
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 370 cd/m² |
| Display brightness | 330 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |

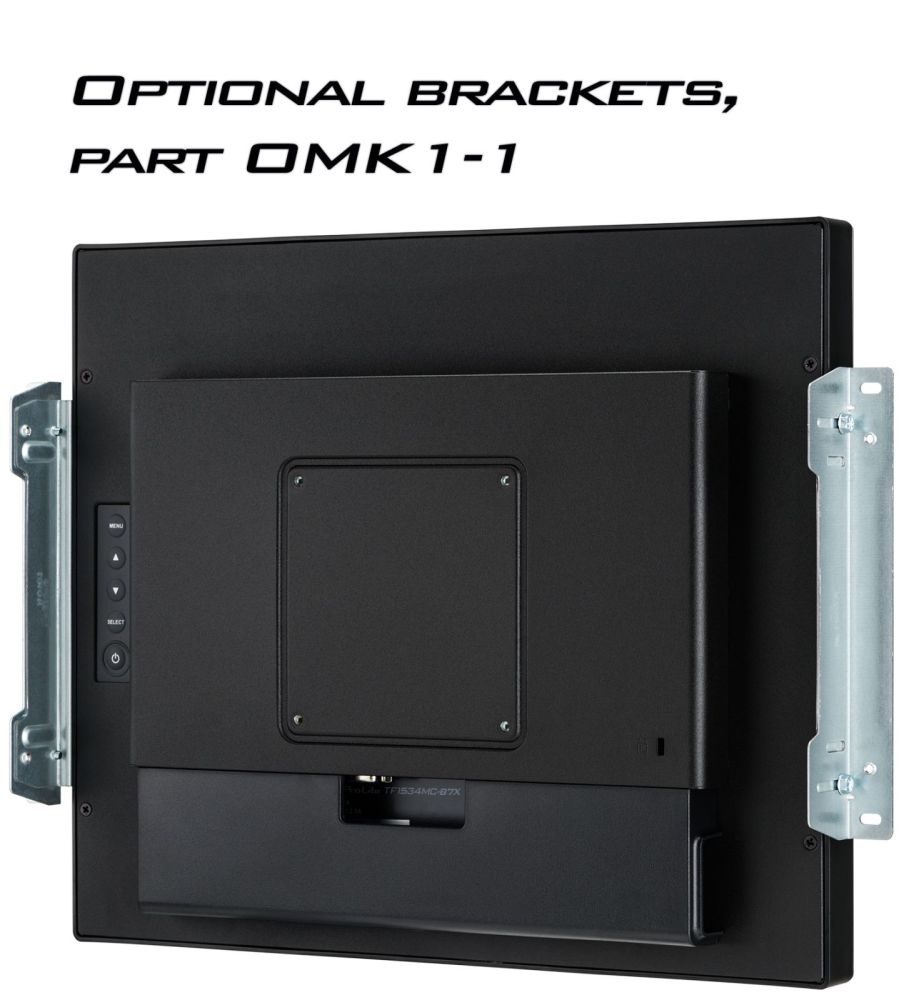

| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Wall mountable | |
| Cable lock slot | |
| On Screen Display (OSD) | |
| Logistics data | |
| Products per pallet | 78 pc(s) |
| Pallet net width | 91 cm |
| Pallet net length | 198.7 cm |
| Pallet net height | 114 cm |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| Display viewable area (HxV) | 304 x 228 mm |
| Brightness | 330 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 304 x 228 mm |
| Weight | 2.7 kg |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Height | 265.5 mm |
| Width | 337.5 mm |

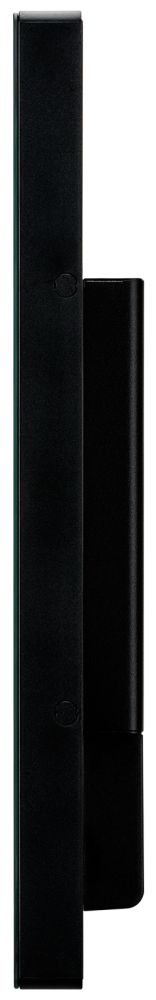

| Depth | 44.5 mm |

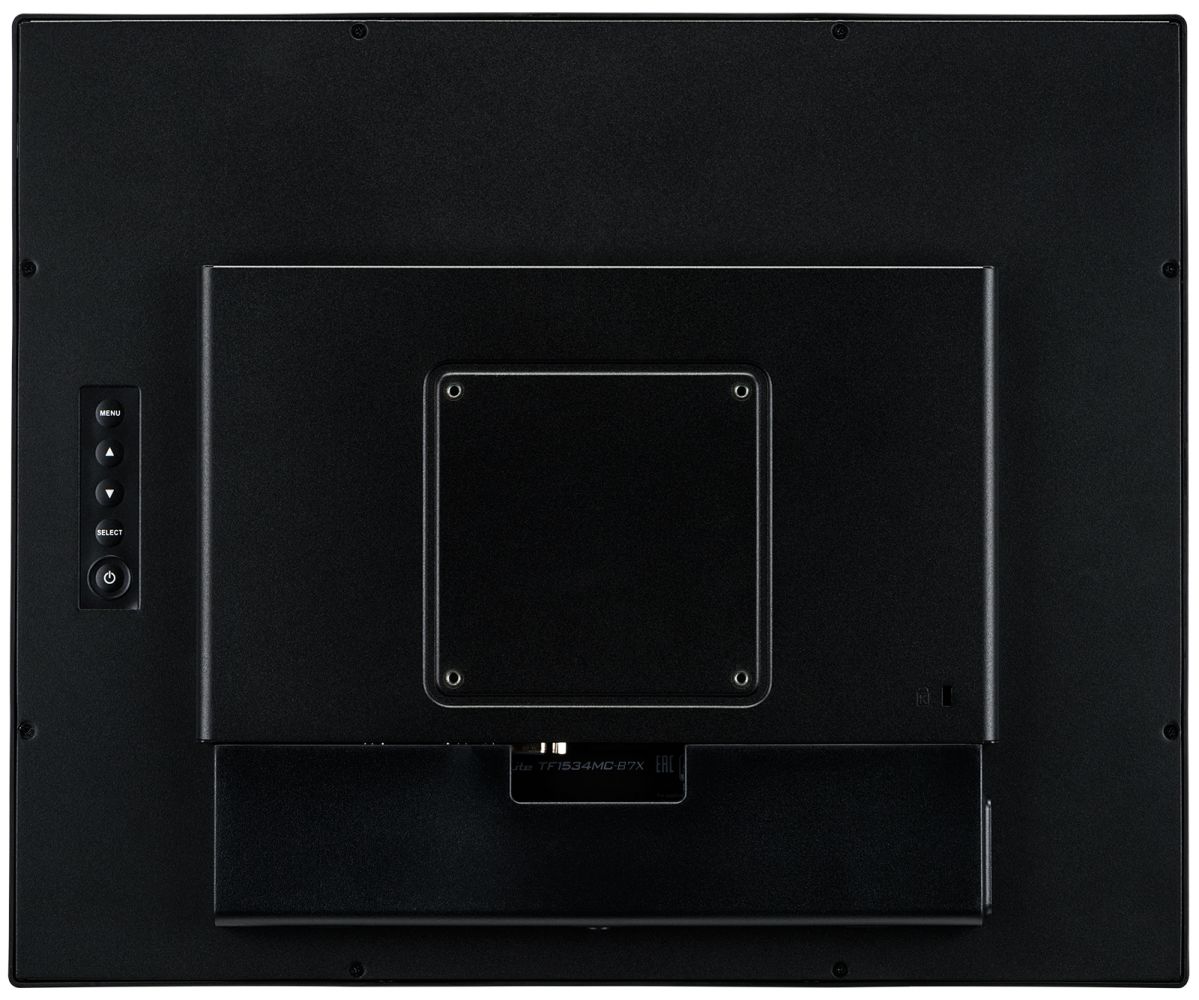

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| AC adapter included | |
| Packaging content | |

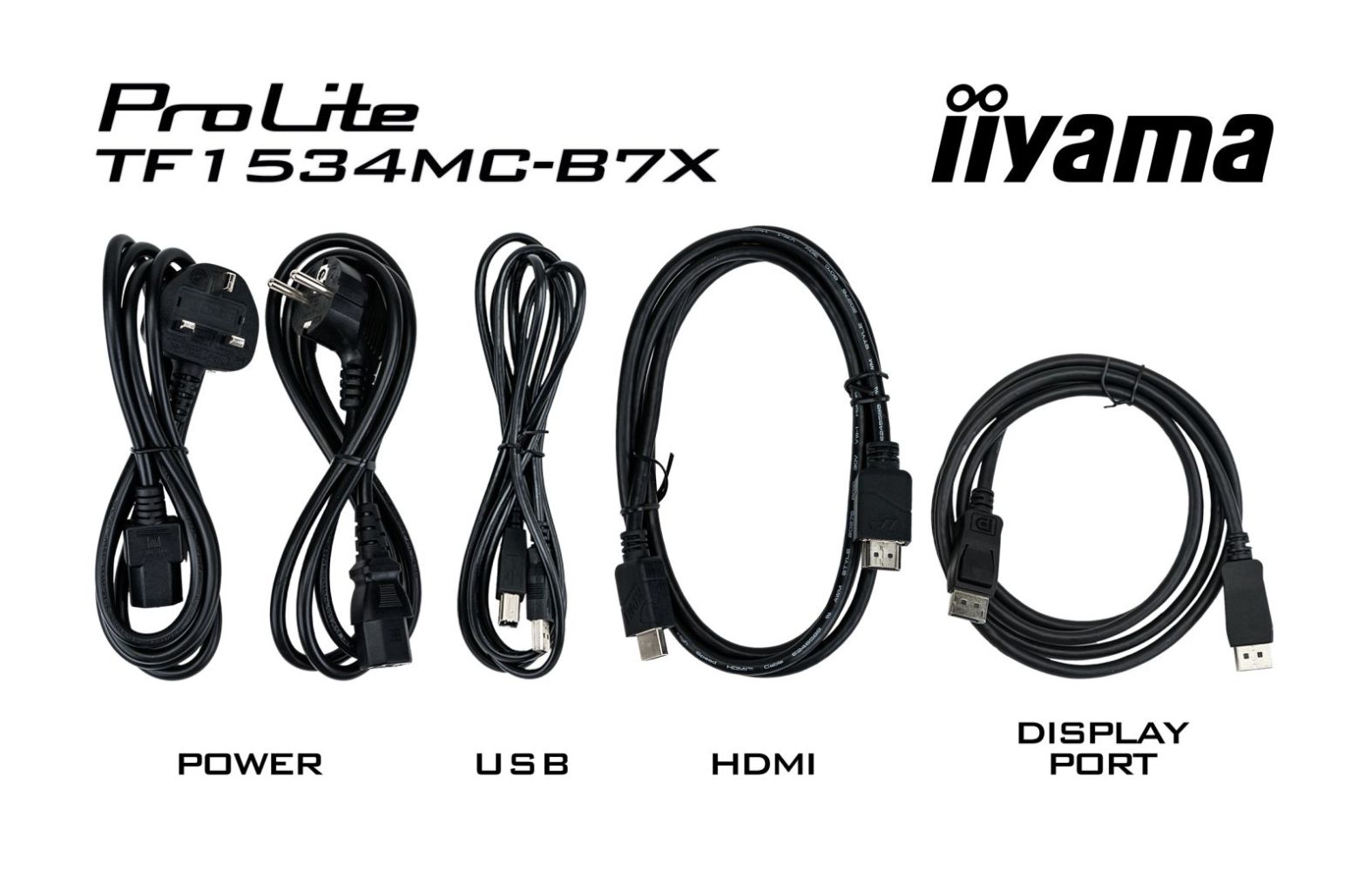

| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 435 mm |
| Package depth | 165 mm |
| Package height | 335 mm |
| Package weight | 4 kg |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 9 W |
| Power consumption (standby) | 0.7 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 337.5 mm |
| Depth (with stand) | 44.5 mm |
| Height (with stand) | 265.5 mm |
| Weight (with stand) | 2.7 kg |
| Width (without stand) | 337.5 mm |
| Depth (without stand) | 44.5 mm |
| Height (without stand) | 265.5 mm |
| Weight (without stand) | 2.7 kg |
Questions & answers
What is the delivery time of iiyama ProLite TF1534MC-B7X, 38.1 cm (15''), Projected Capacitive, 10 TP, black?
The article iiyama ProLite TF1534MC-B7X, 38.1 cm (15''), Projected Capacitive, 10 TP, black is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF1534MC-B7X to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you iiyama ProLite TF1534MC-B7X, 38.1 cm (15''), Projected Capacitive, 10 TP, black always at the best possible price. We can give you a discount of 2% on iiyama ProLite TF1534MC-B7X, 38.1 cm (15''), Projected Capacitive, 10 TP, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
