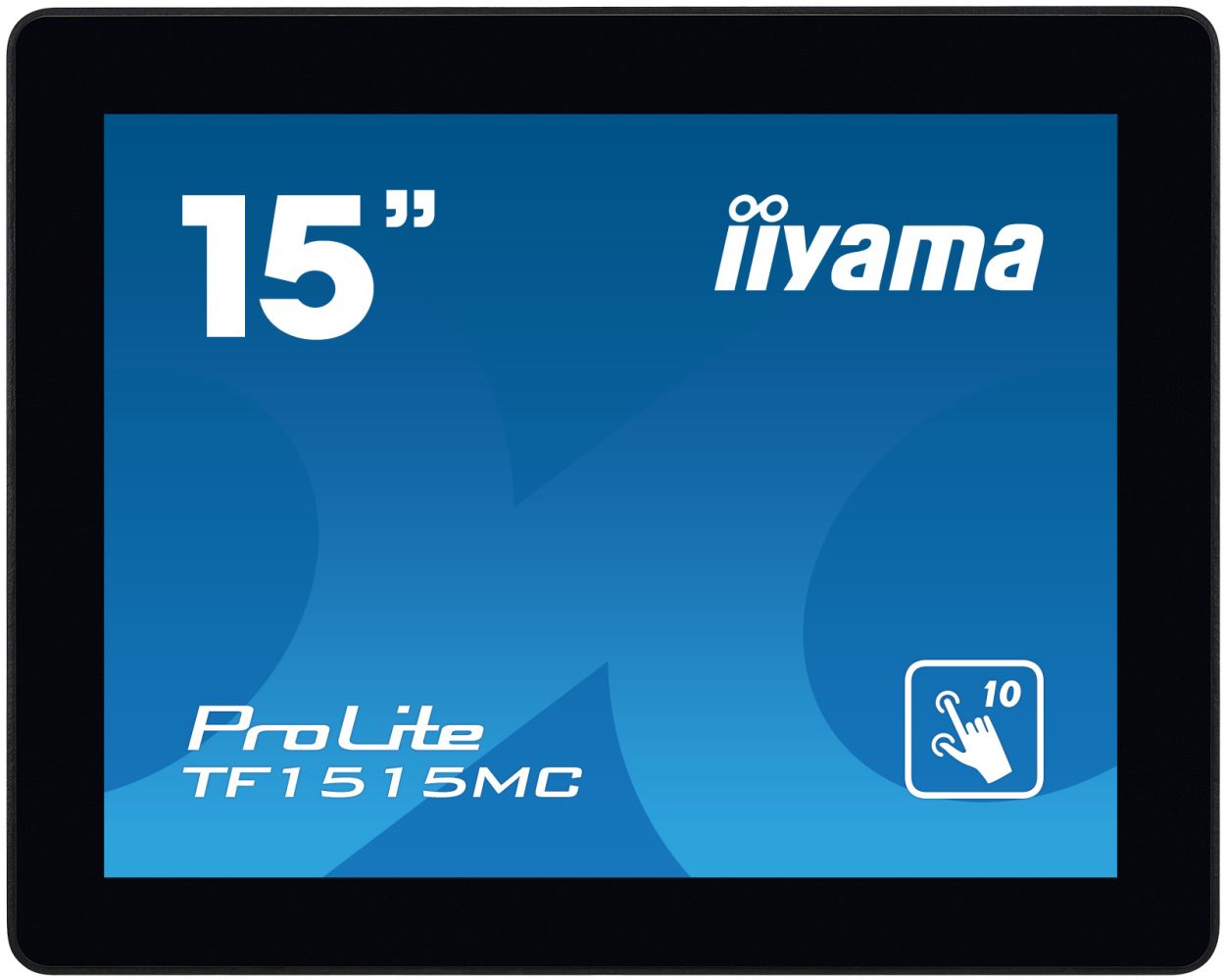

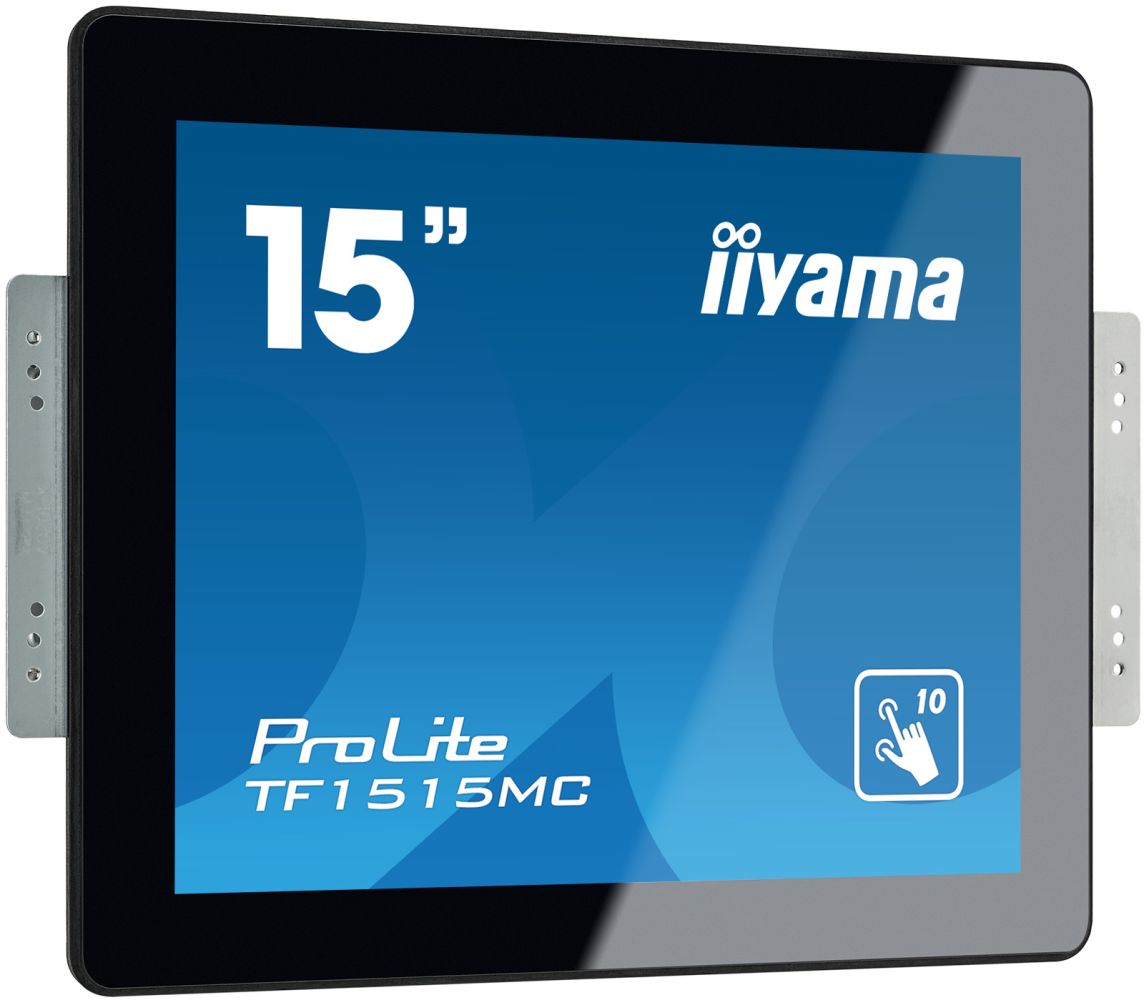

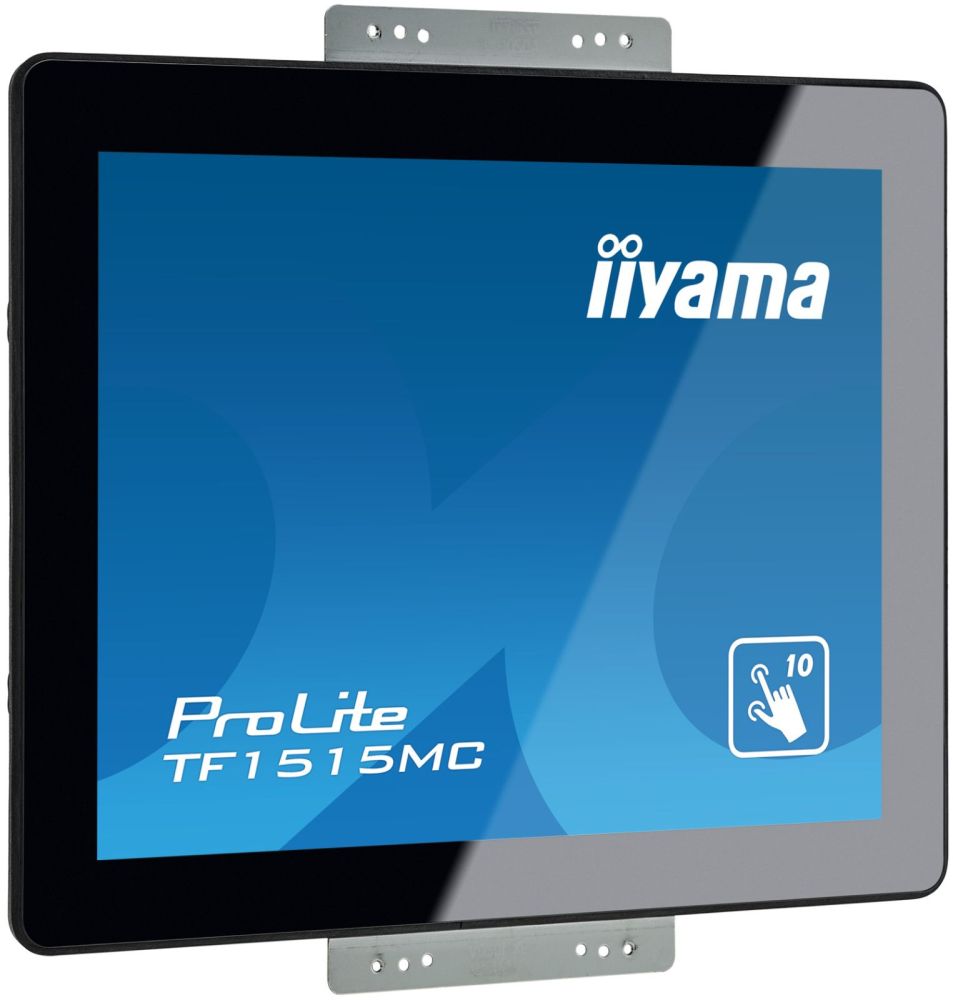

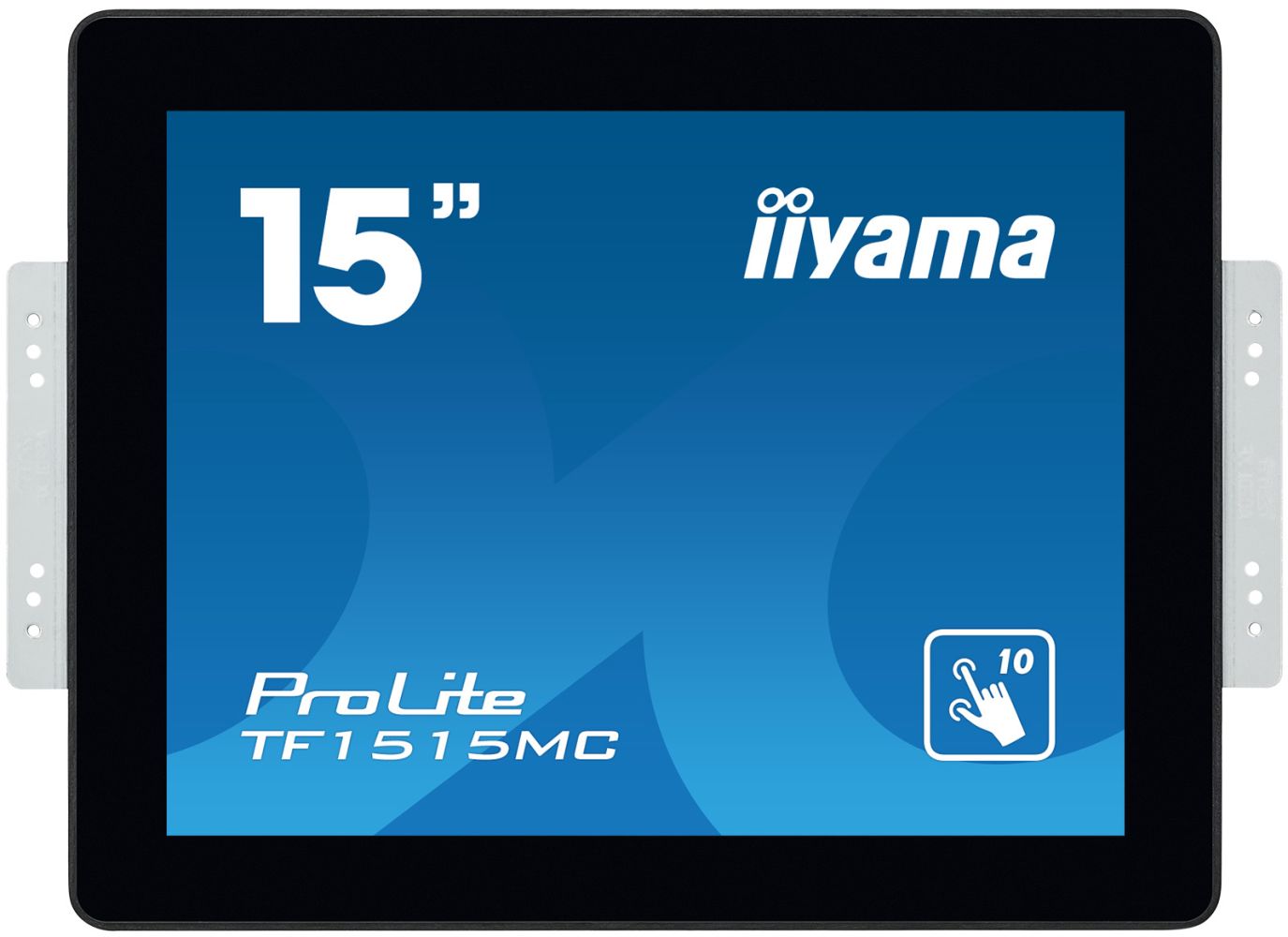

iiyama ProLite TF1515MC-B2, 38.1 cm (15''), Projected Capacitive, 10 TP, black
|
377,57 EUR 393,30 EUR |
|
|
( 449,31 EUR incl. VAT ) ≈ £317.16 | ≈ $423.63 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1648174 |
| Mfg Part No: | TF1515MC-B2 |
| Weight: | 5.348 kg |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF1515MC-B2:

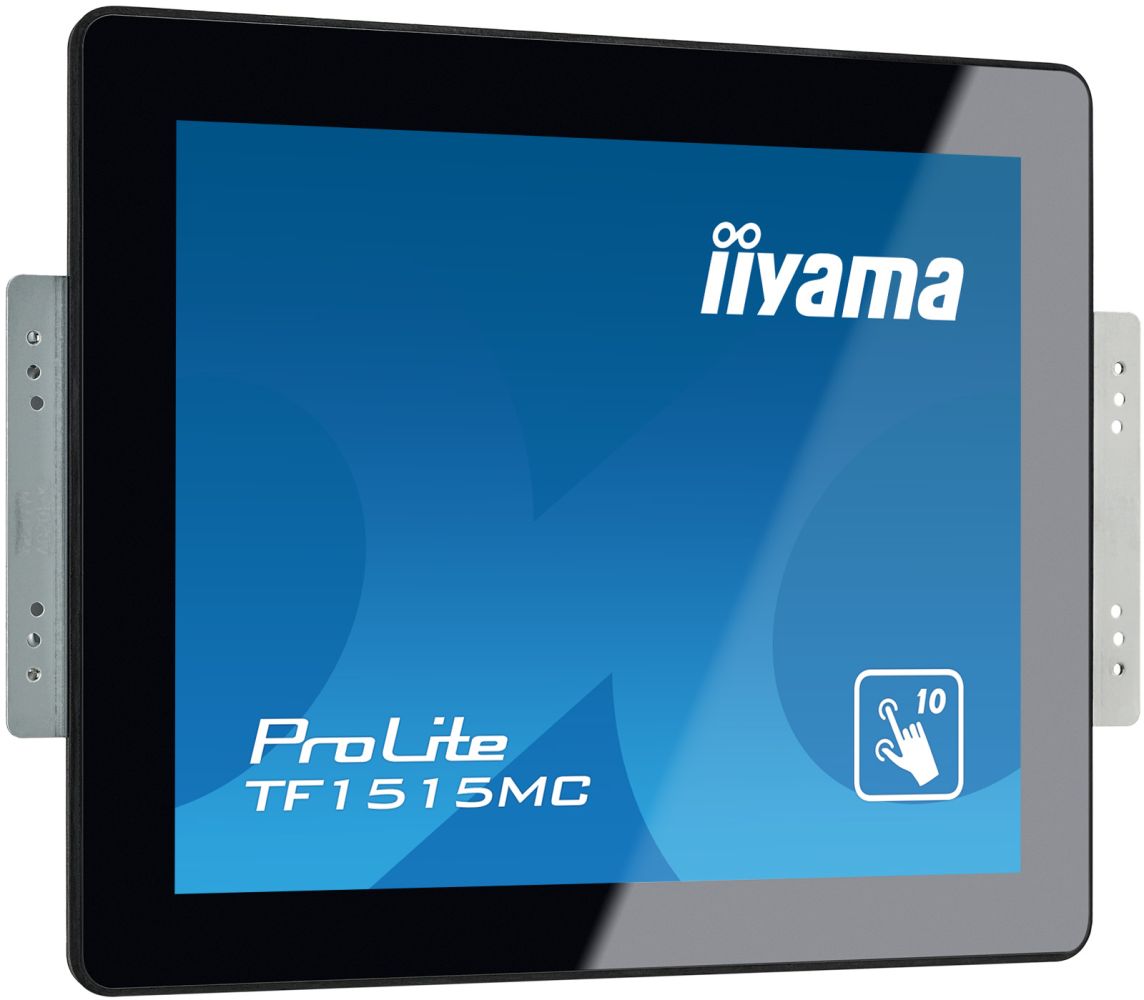

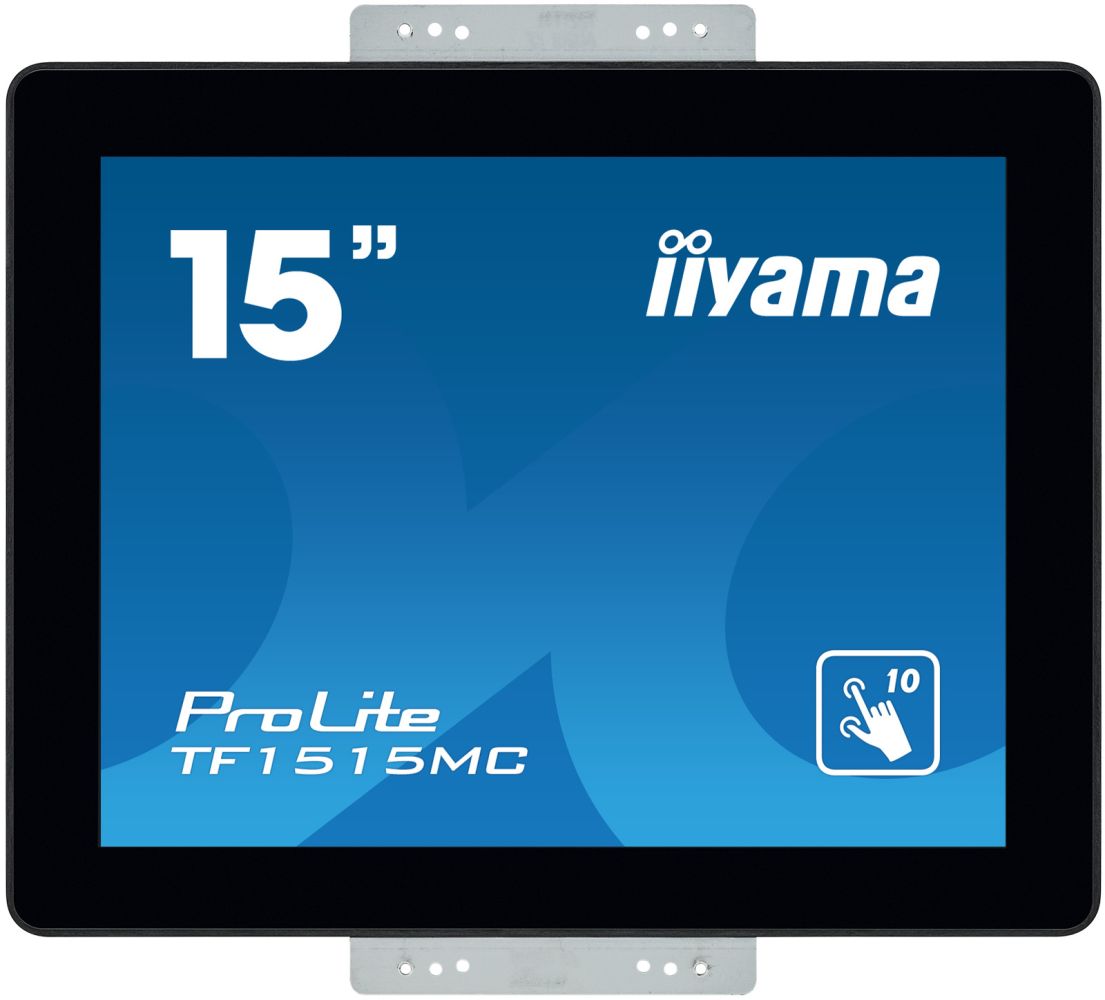

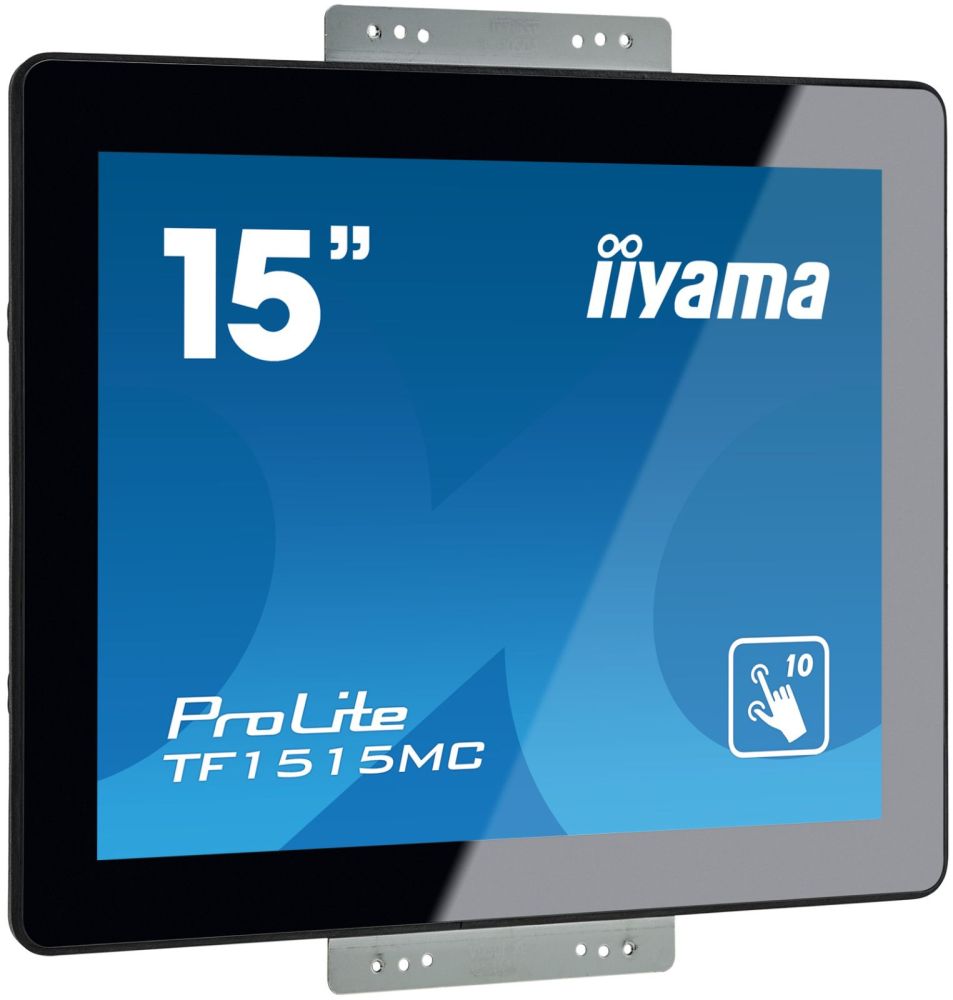

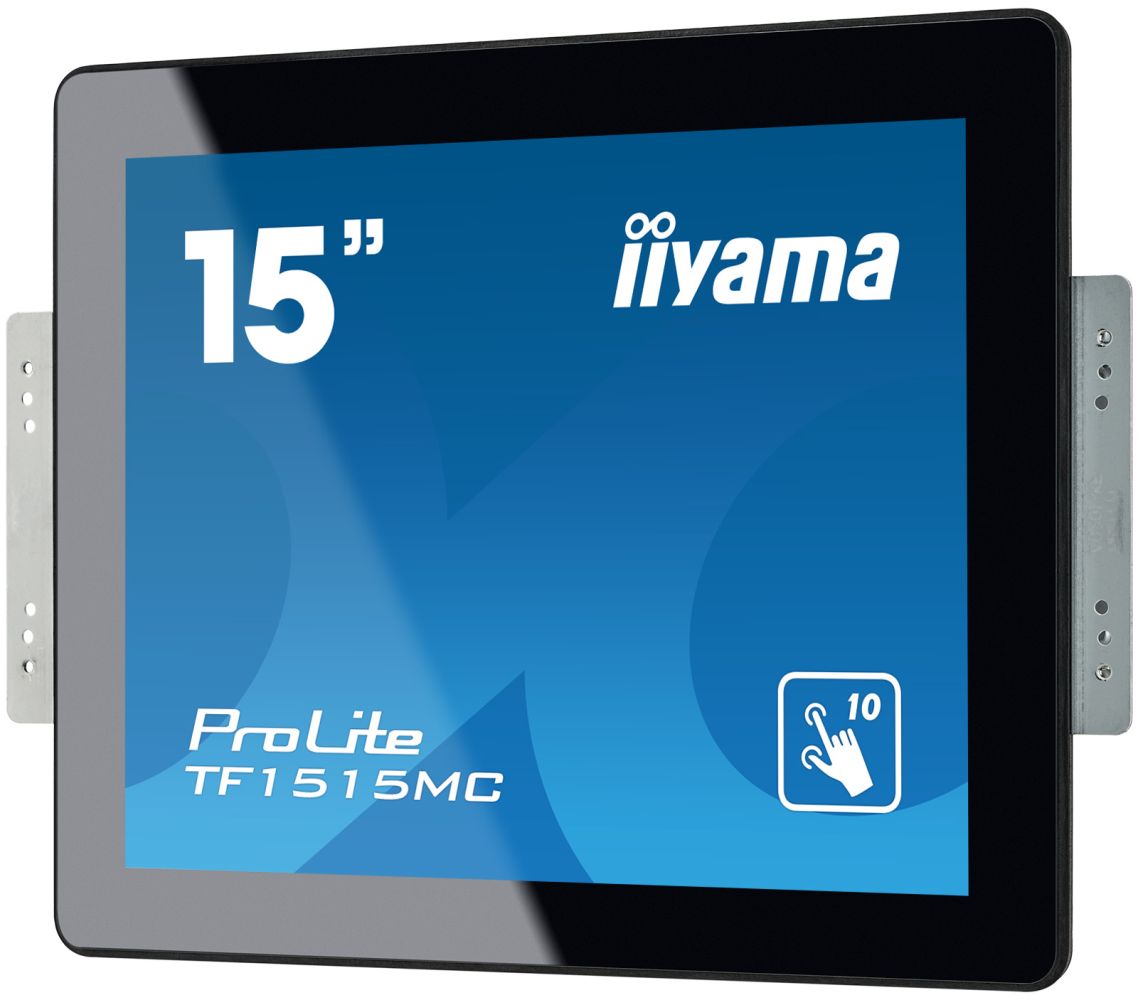

touch monitor (zero-bezel, open-frame, 4:3), 38.1 cm (15''), touch technology: Projected Capacitive, multi touch (10 points), 1024x768 pixels, VESA mount (100x100 mm), 8ms, brightness: 315cd, contrast: 800:1, audio, VGA, display-port, HDMI, touch interface: USB, incl.: cable (USB, HDMI, Display Port), power supply unit, power cable (EU), colour: black
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 6 mm |
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 315 cd/m² |
| Response time | 8 ms |
| Screen shape | Flat |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |

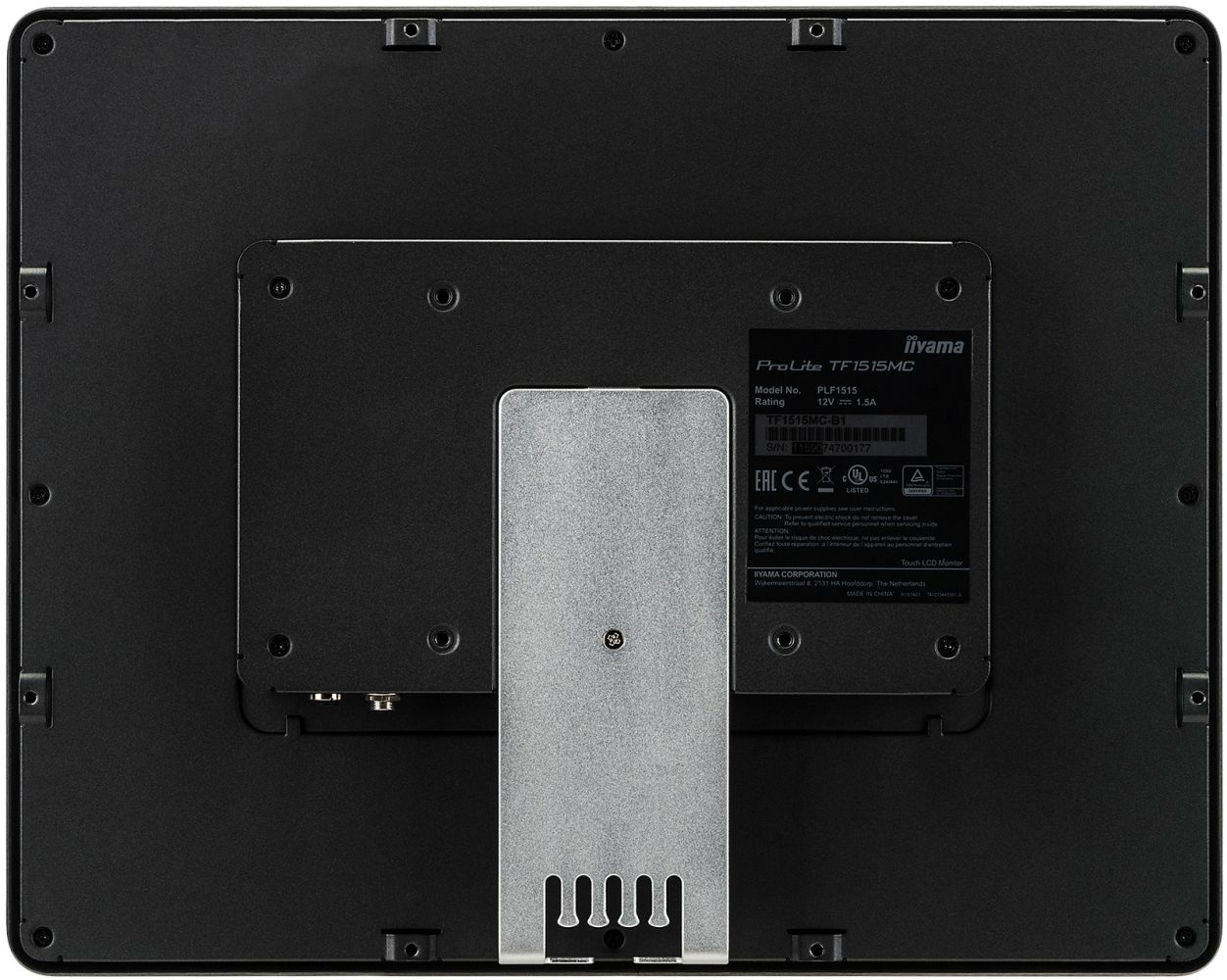

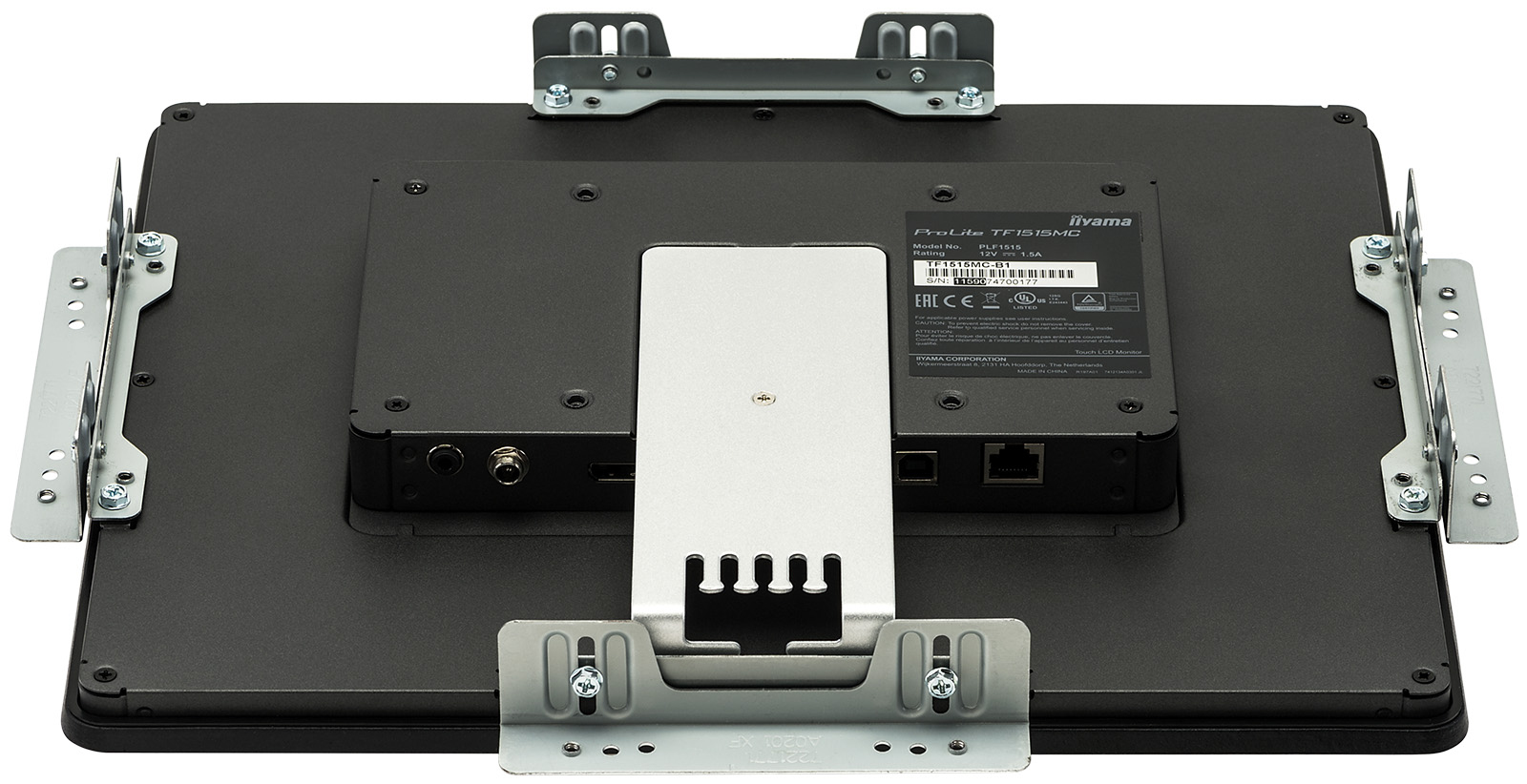

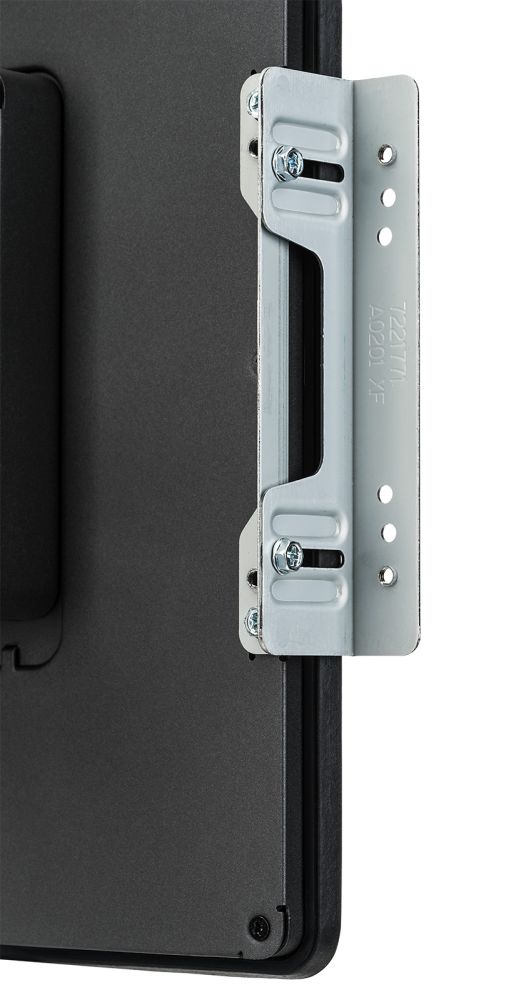

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Wall mountable | |
| On Screen Display (OSD) | |
| Plug and Play | |
| LED indicators | |
| Logistics data | |
| Products per pallet | 44 pc(s) |
| Pallet net width | 86 cm |
| Pallet net length | 12 cm |
| Pallet net height | 97 cm |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in microphone | |
| Built-in camera | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Display viewable area (HxV) | 304.1 x 228.1 mm |
| Placement supported | Horizontal/Vertical |
| Brightness | 315 cd/m² |
| Packaging content | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Active display area (W x H) | 304.1 x 228.1 mm |
| Weight | 2.9 kg |
| Height | 291 mm |
| User controls | picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Width | 364 mm |
| Depth | 41.5 mm |

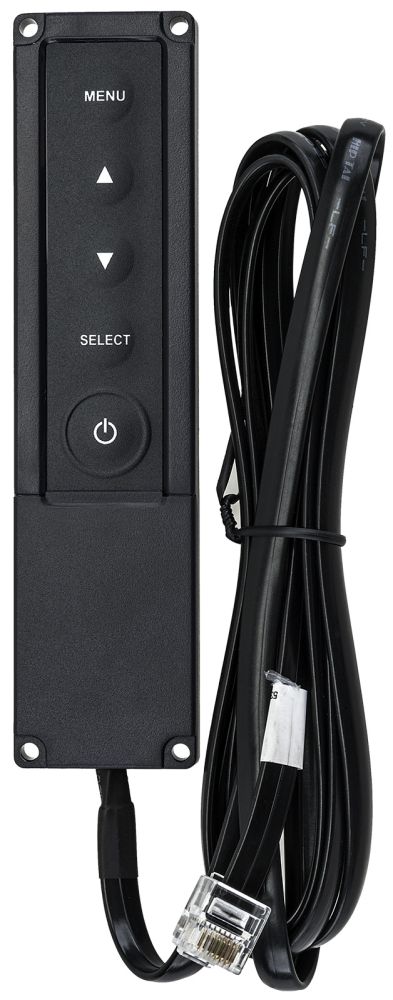

| Control panel | menu,scroll up/ brightness, scroll down/ contrast, select, power |
| Compliance certificates | CB, CE, cULus, EAC, REACH, RoHS, WEEE |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CB, CE, TÜV-Bauart, EAC, cULus |
| AC adapter included | |
| Packaging content | |

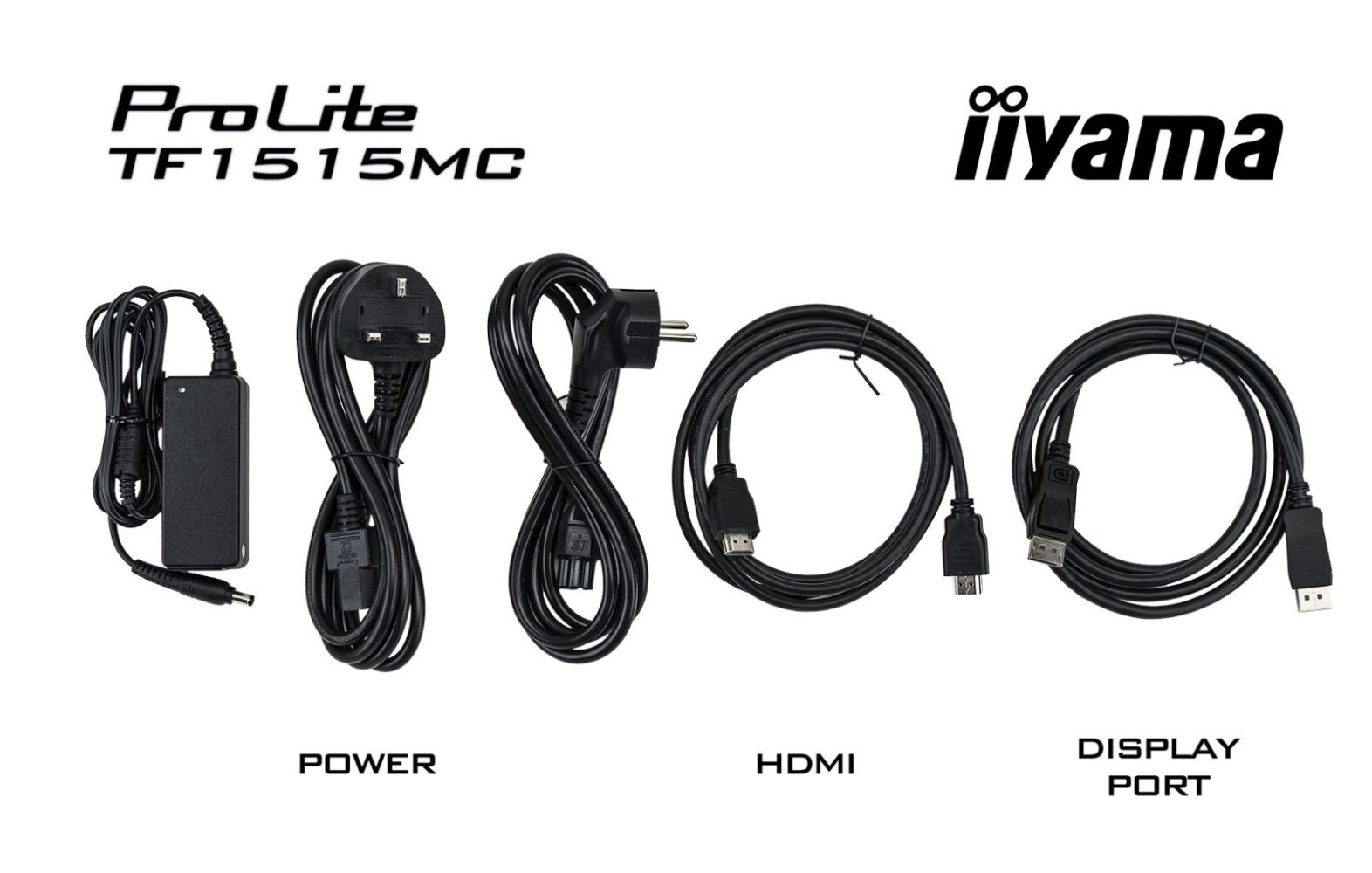

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | |
| Packaging data | |
| Package width | 460 mm |
| Package depth | 175 mm |
| Package height | 470 mm |
| Package weight | 4.6 kg |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Windows operating systems supported | |
| Linux operating systems supported | |

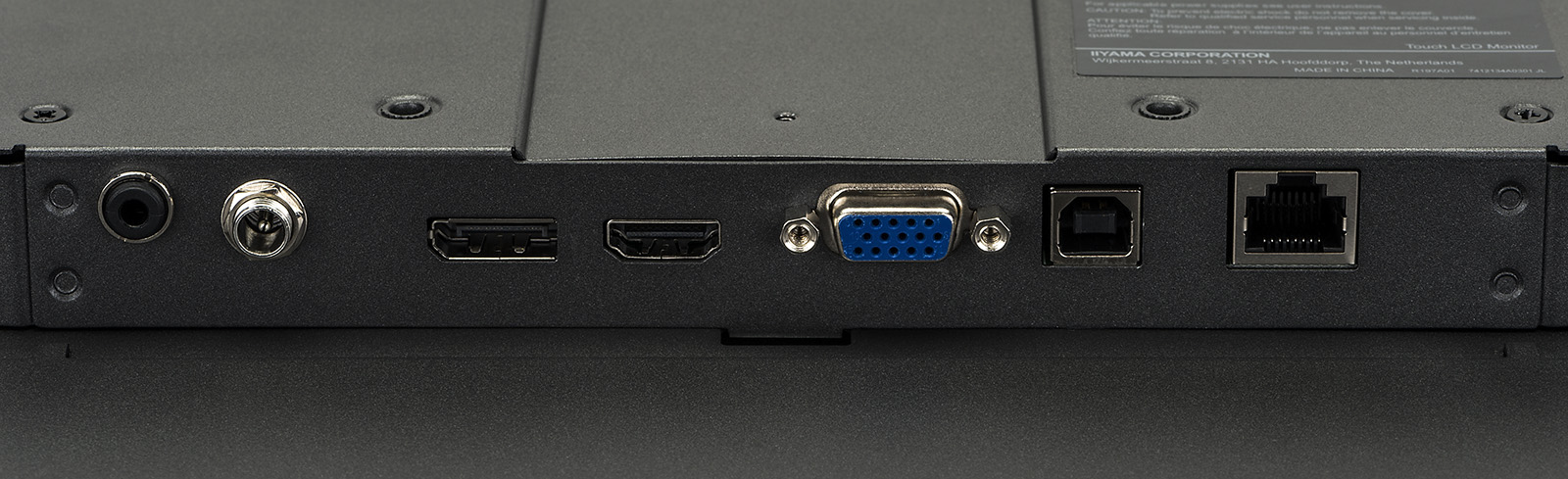

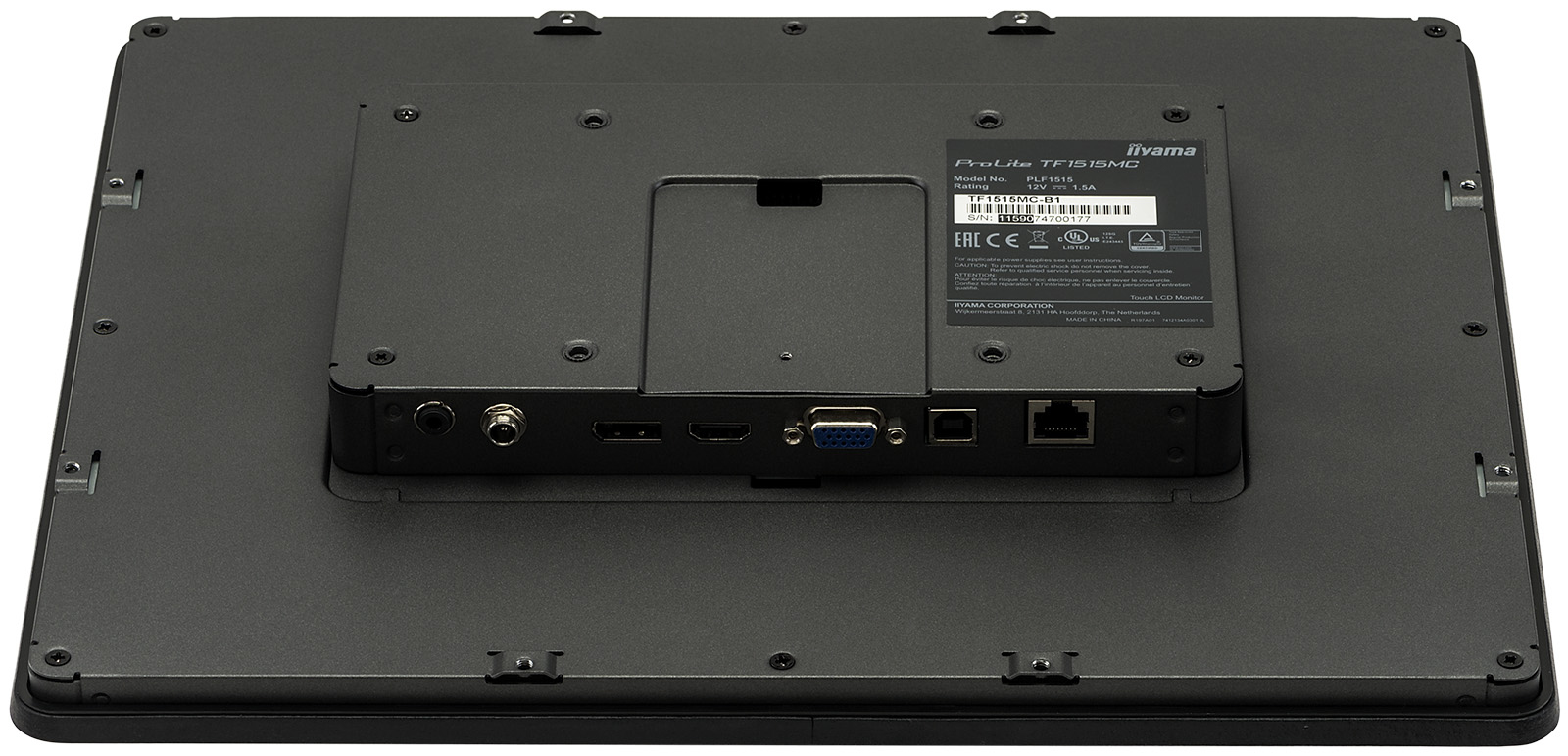

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 10 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.2 W |
| Power consumption (off) | 1.2 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 364 mm |
| Depth (with stand) | 41.5 mm |
| Height (with stand) | 291 mm |
| Weight (with stand) | 2.9 kg |
| Width (without stand) | 364 mm |
| Depth (without stand) | 291 mm |
| Height (without stand) | 41.5 mm |
| Weight (without stand) | 2.9 kg |
Questions & answers
What is the delivery time of iiyama ProLite TF1515MC-B2, 38.1 cm (15''), Projected Capacitive, 10 TP, black?
The article iiyama ProLite TF1515MC-B2, 38.1 cm (15''), Projected Capacitive, 10 TP, black is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF1515MC-B2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you iiyama ProLite TF1515MC-B2, 38.1 cm (15''), Projected Capacitive, 10 TP, black always at the best possible price. We can give you a discount of 2% on iiyama ProLite TF1515MC-B2, 38.1 cm (15''), Projected Capacitive, 10 TP, black if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
