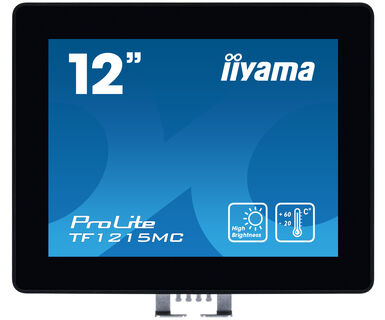

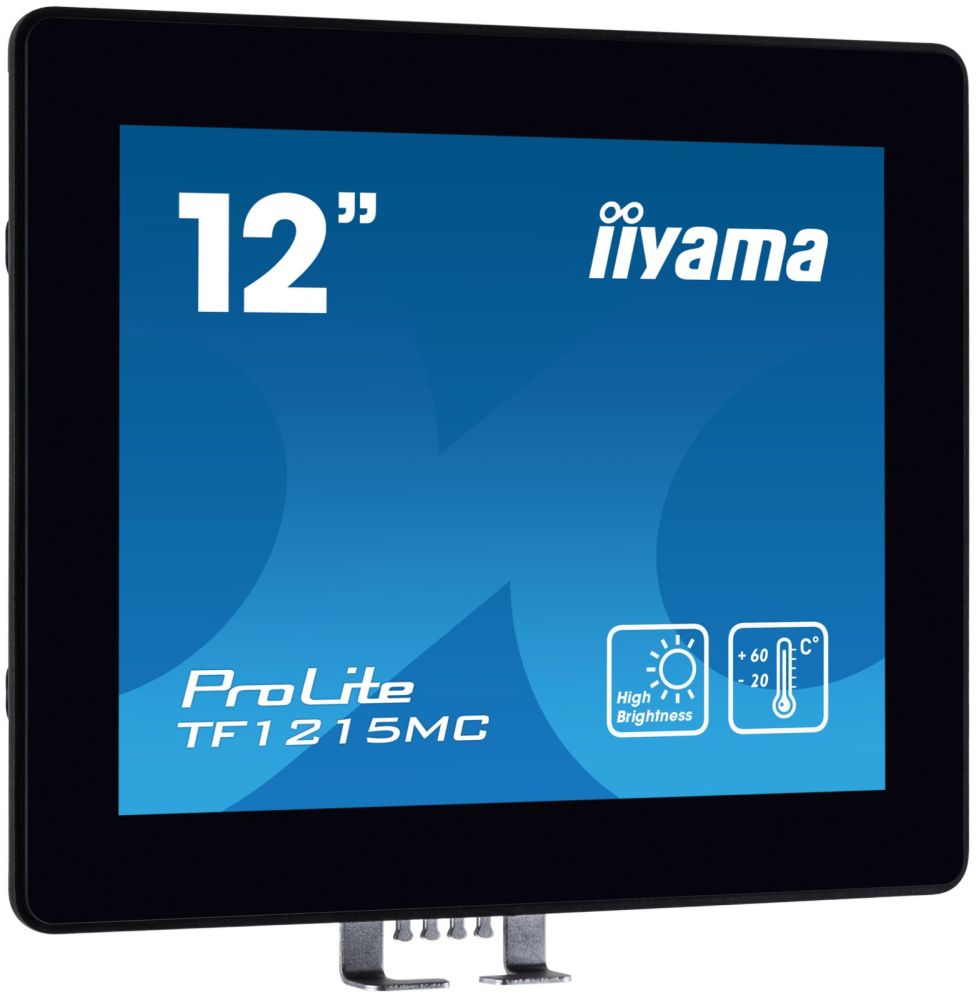

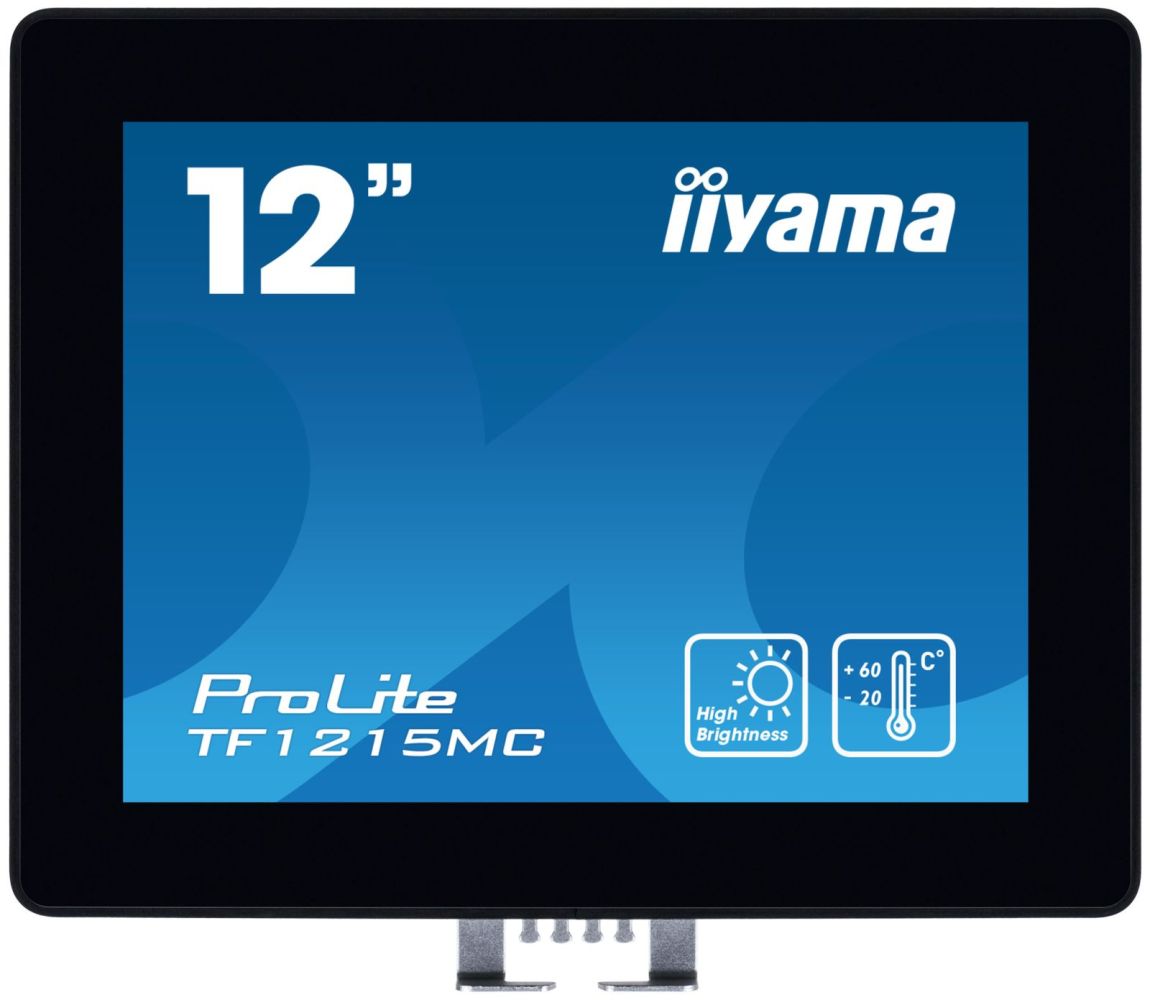

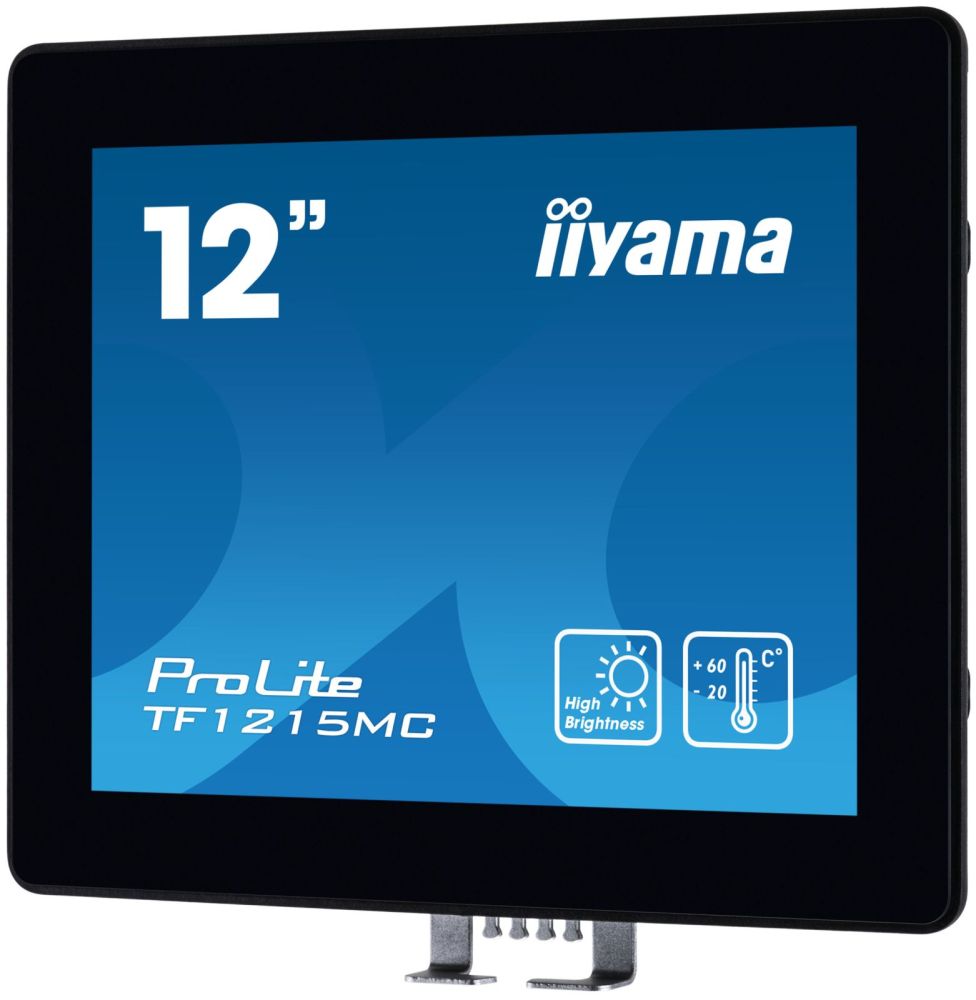

TFT-touch 30,7 cm ( 12,1 inch )/31.0 cm iiyama ProLite TF1215MC black 4:3 open frame
|
411,54 EUR |
|
|
( 489,73 EUR incl. VAT ) ≈ £345.69 | ≈ $461.75 plus delivery charges: 53,00 € |
|
| On order · Expected to be available from 02.12.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 394959 |
| Mfg Part No: | TF1215MC-B1 |
| UPC/EAN: | 4948570118007 |
| Weight: | 4.23 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama TF1215MC-B1:
Image: 30,7 cm ( 12,1 inch )/31.0cm, 1024x768, 4:3
- Contrast: 1,000:1
- Response: 25ms
- Frame frequency: 60Hz

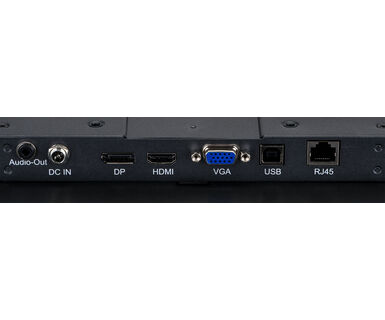

- Connections: 1x VGA, 1x HDMI, 1x DP
- VESA: 100x100 Dimensions: 308.5x248x41.5mm
- Manufacturer's warranty : Three years
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3.15 mm |
| Display | |
| Display diagonal | 30.7 cm (12.1") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LCD |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 540 cd/m² |
| Display brightness | 450 cd/m² |
| Response time | 25 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.24 x 0.24 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewable size, horizontal | 24.6 cm |
| Viewable size, vertical | 18.4 cm |
| Display diagonal (metric) | 31 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |

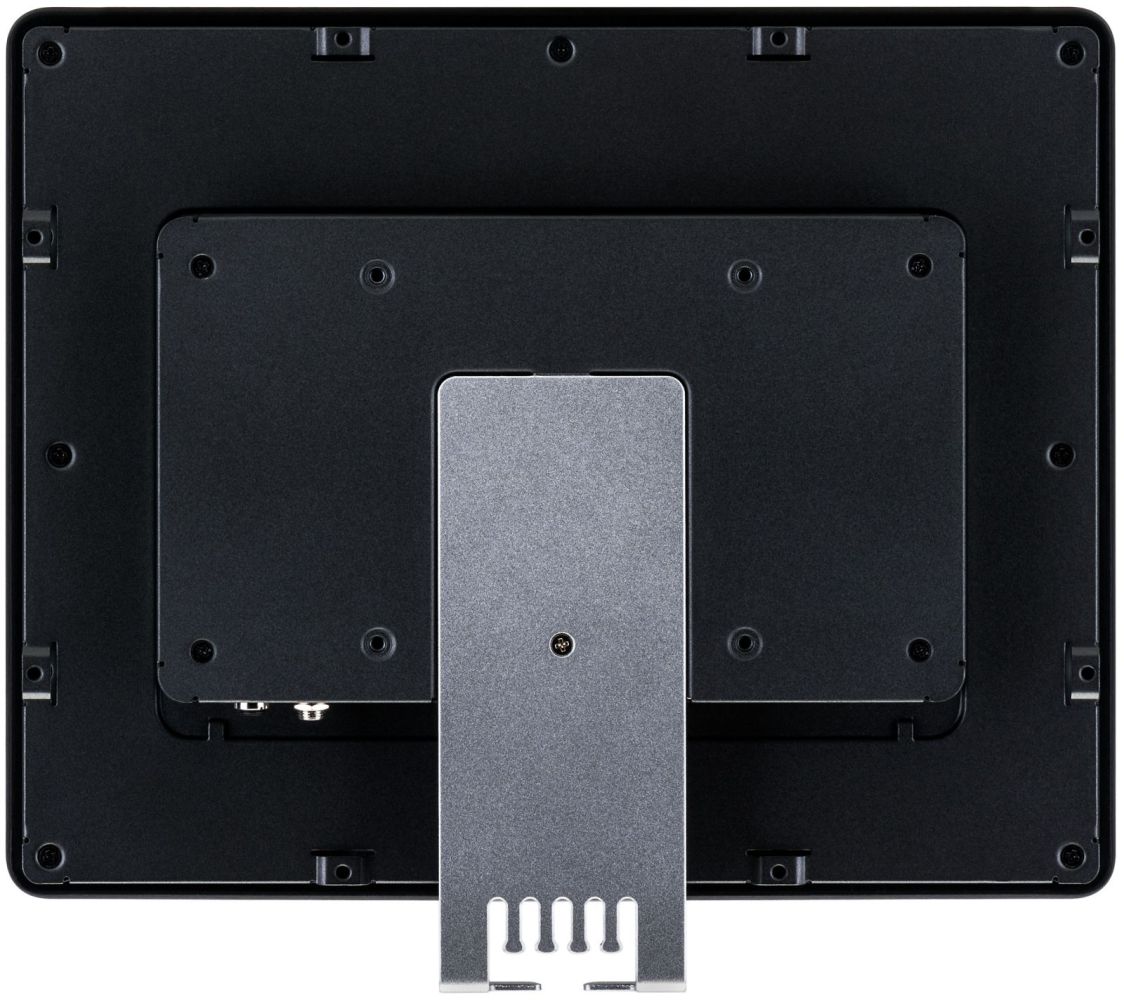

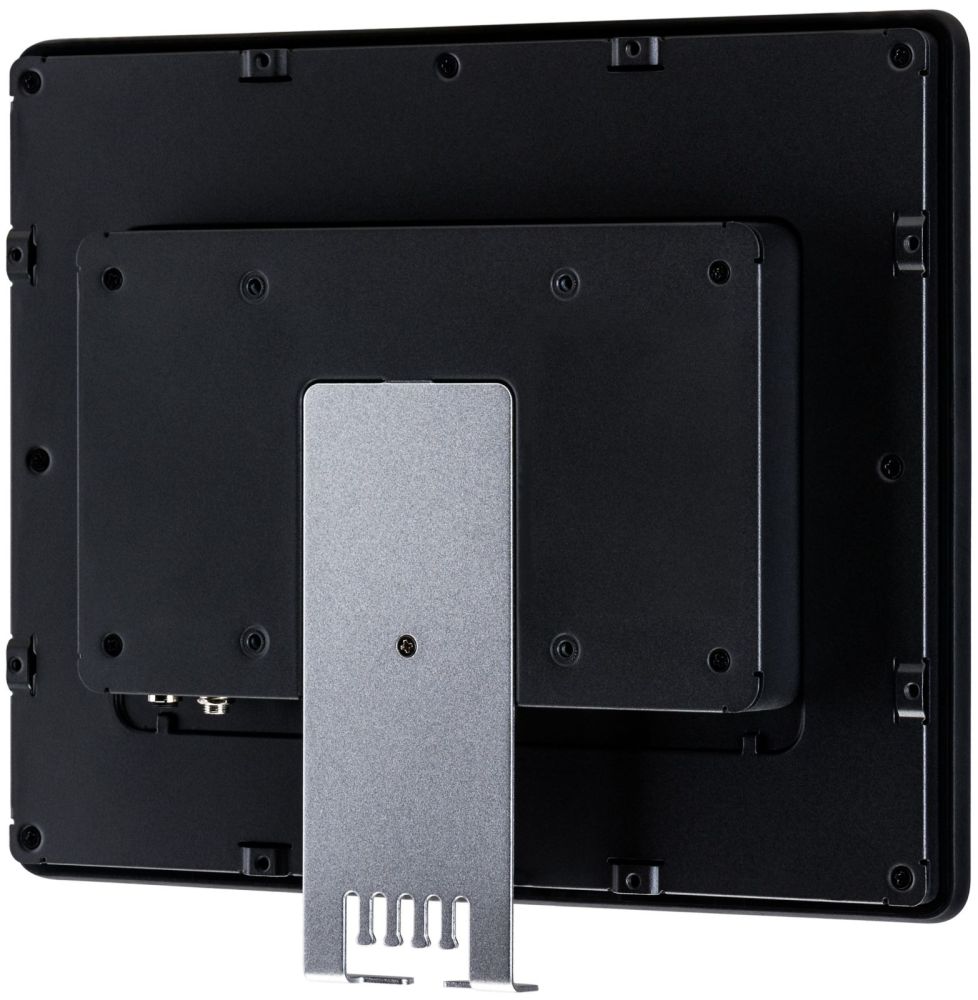

| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Wall mountable | |
| On Screen Display (OSD) | |
| Plug and Play | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Multimedia | |
| Built-in camera | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Display viewable area (HxV) | 245.8 x 184.3 mm |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory) |
| Brightness | 450 cd/m² |
| Packaging content | AC adapter, external control pad |
| Active display area (W x H) | 245.8 x 184.3 mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Weight | 2.1 kg |
| Height | 248 mm |
| Width | 308.5 mm |

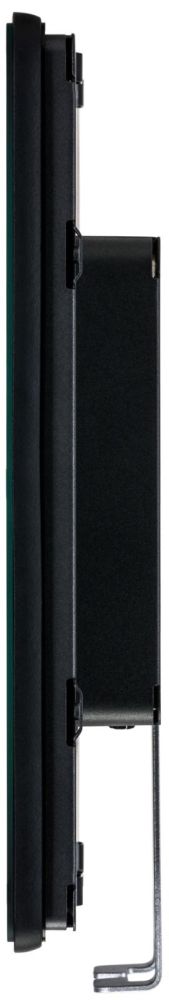

| Depth | 41.5 mm |
| Control panel | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| AC adapter included | |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | |
| Packaging data | |
| Package width | 435 mm |
| Package depth | 165 mm |
| Package height | 355 mm |
| Package weight | 3.9 kg |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Palm rejection | |

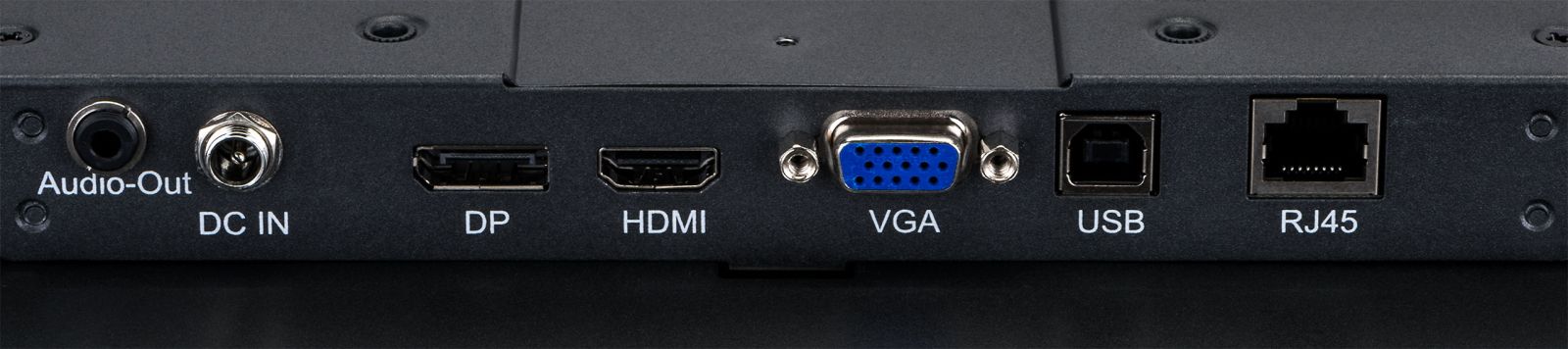

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 10 W |
| Power consumption (standby) | 0.55 W |
| Power consumption (off) | 0.5 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Sustainability compliance | |
| Weight & dimensions | |
| Width (with stand) | 308.5 mm |
| Depth (with stand) | 41.5 mm |
| Height (with stand) | 248 mm |
| Weight (with stand) | 2.1 kg |
| Width (without stand) | 308.5 mm |
| Depth (without stand) | 41.5 mm |
| Height (without stand) | 248 mm |
| Weight (without stand) | 2.1 kg |
Questions & answers
What is the delivery time of TFT-touch 30,7 cm ( 12,1 inch )/31.0 cm iiyama ProLite TF1215MC black 4:3 open frame?
The article TFT-touch 30,7 cm ( 12,1 inch )/31.0 cm iiyama ProLite TF1215MC black 4:3 open frame is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama TF1215MC-B1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TFT-touch 30,7 cm ( 12,1 inch )/31.0 cm iiyama ProLite TF1215MC black 4:3 open frame always at the best possible price. We can give you a discount of 2% on TFT-touch 30,7 cm ( 12,1 inch )/31.0 cm iiyama ProLite TF1215MC black 4:3 open frame if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
