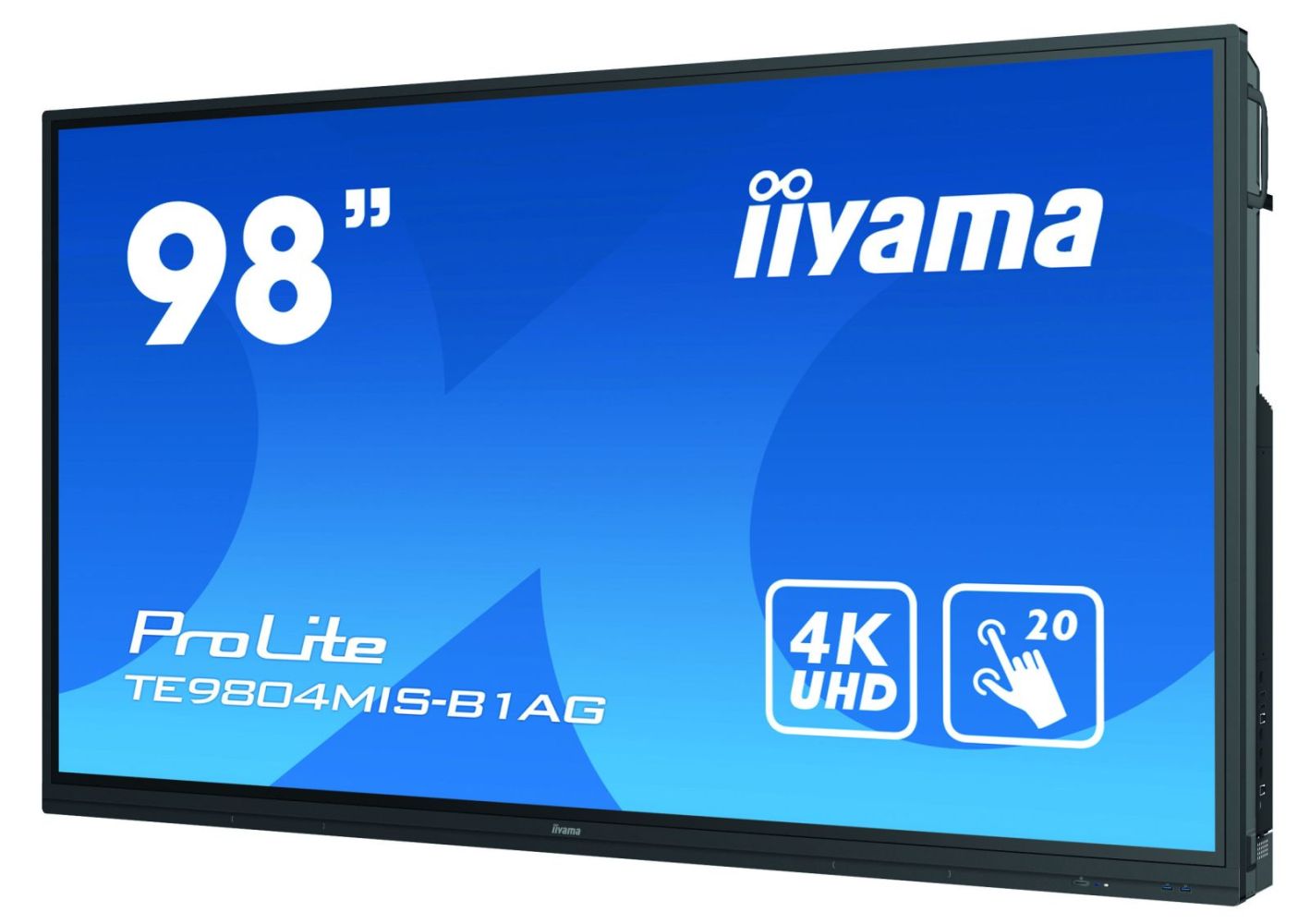

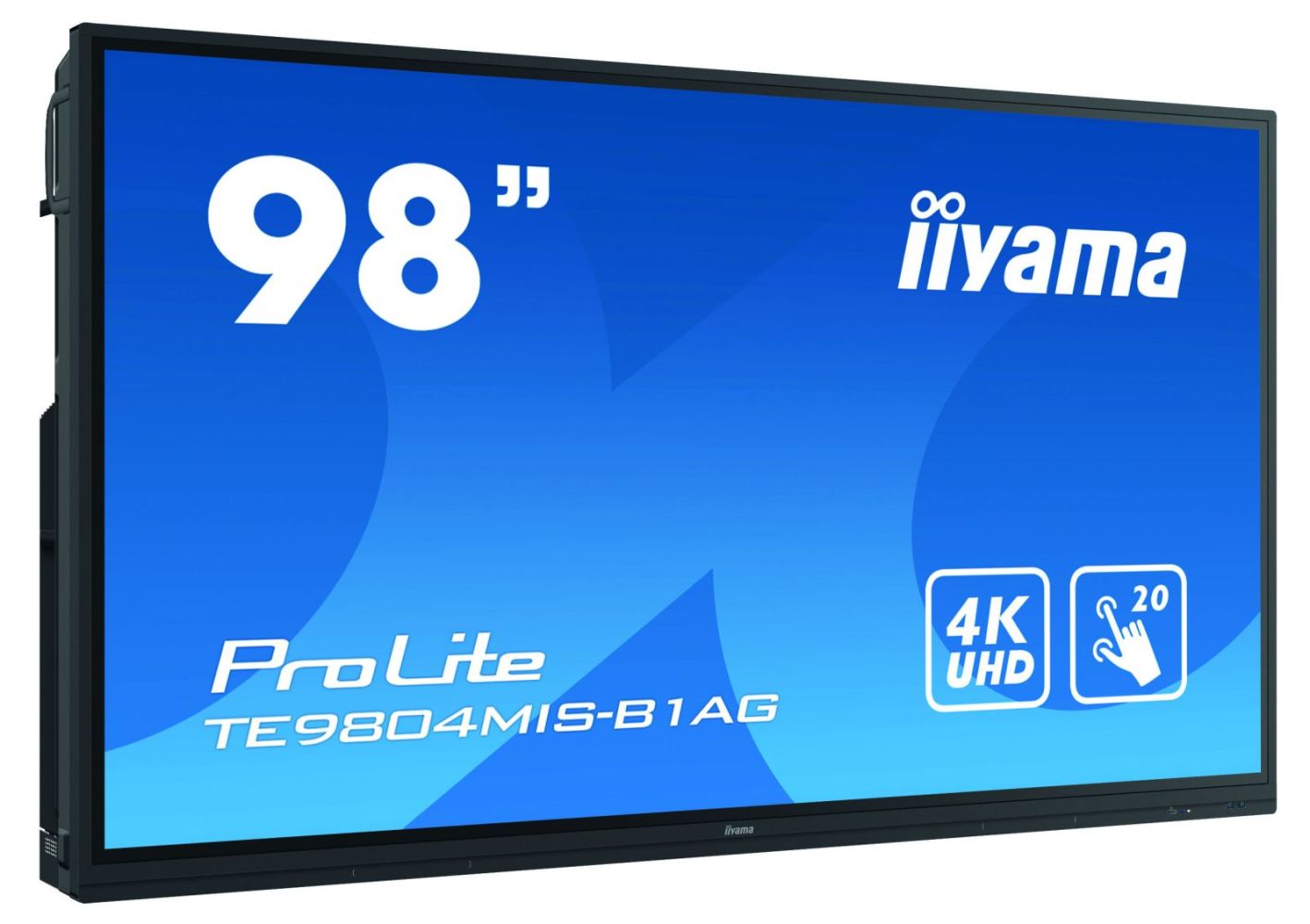

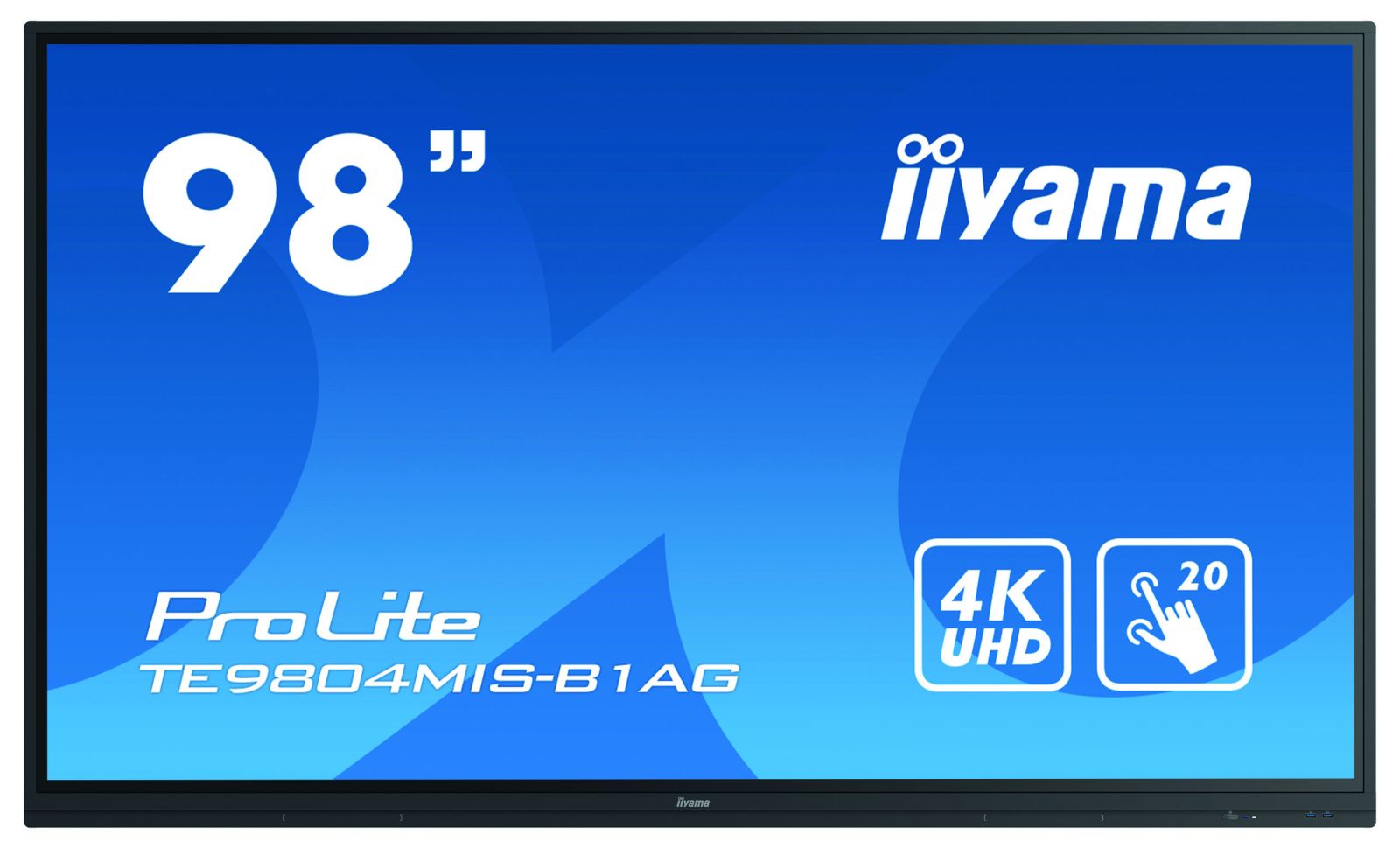

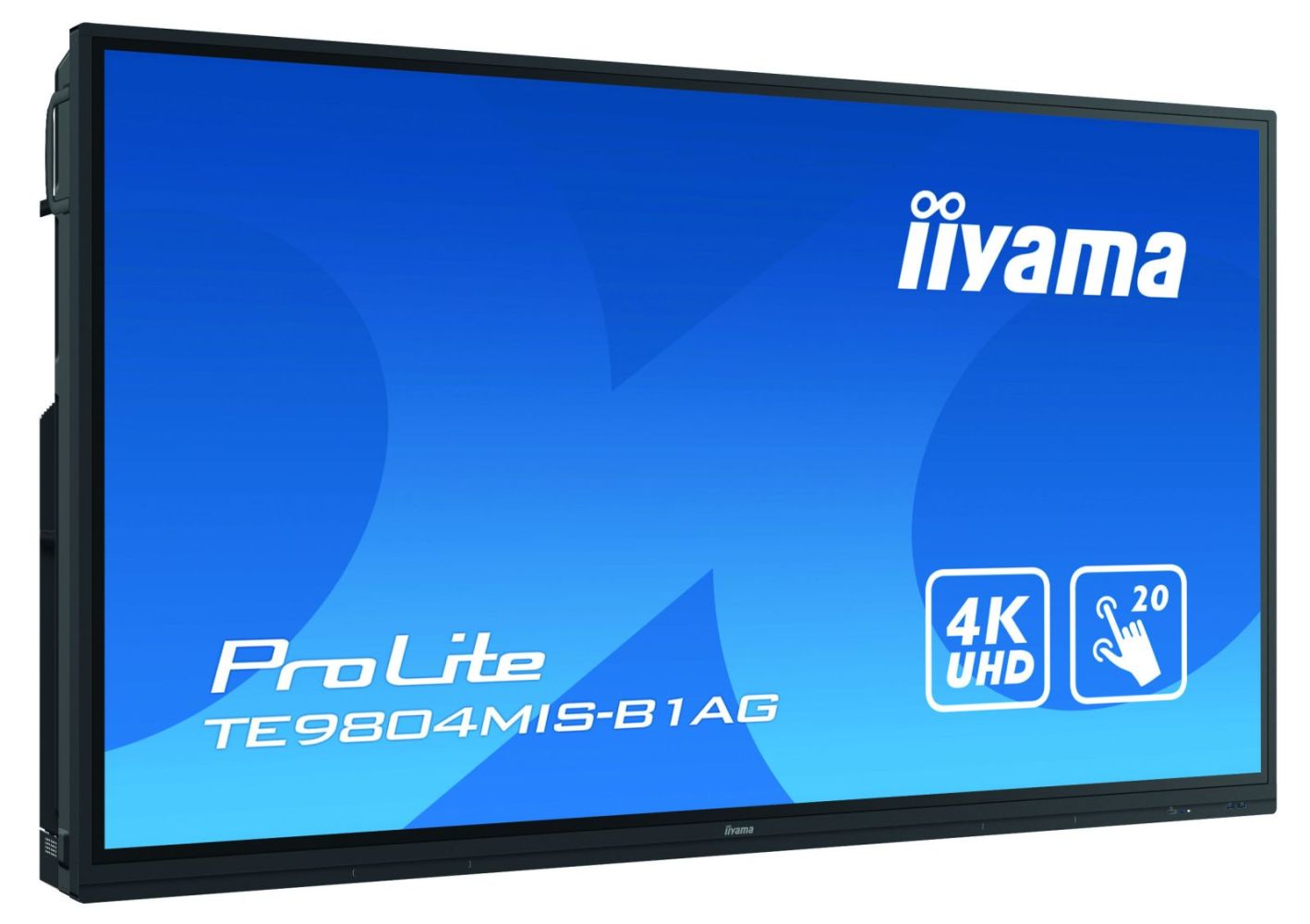

IIYAMA TE9804MIS-B1AG 98inch IPS UHD AG 20 Points Touch VGA 3xHDMI USB-C with 65 Watt PD Android OS
|
6.832,19 EUR |
|
|
( 8.130,31 EUR incl. VAT ) ≈ £5,739.04 | ≈ $7,665.72 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 30. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 521647 |
| Mfg Part No: | TE9804MIS-B1AG |
| Weight: | 119.02 kg |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Built-in speaker(s) | |
| Computer system | |
| Processor cores | 4 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Computer system | |
| Built-in processor | |
| Windows operating systems supported | |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Panel mounting interface | 800 x 600 mm |
| Bezel colour | Black |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 2.49 m (98") |
| Display technology | IPS |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 20 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 3500:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.5622 x 0.5622 mm |
| Active display area (W x H) | 2162 x 1217 mm |
| Display diagonal (metric) | 247.7 cm |
| Horizontal scan range | 30 - 80 kHz |
| Surface hardness | 7H |
| Glass thickness | 4 mm |
| Touchscreen | |
| Features | |
| Wall mountable | |
| Logistics data | |
| Products per pallet | 3 pc(s) |
| Quantity per pack | 1 pc(s) |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Graphics card | Mali-G52 |
| User memory | 4 GB |
| Mobile operating systems supported | Android, iOS |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Quick start guide | |
| Packaging content | |

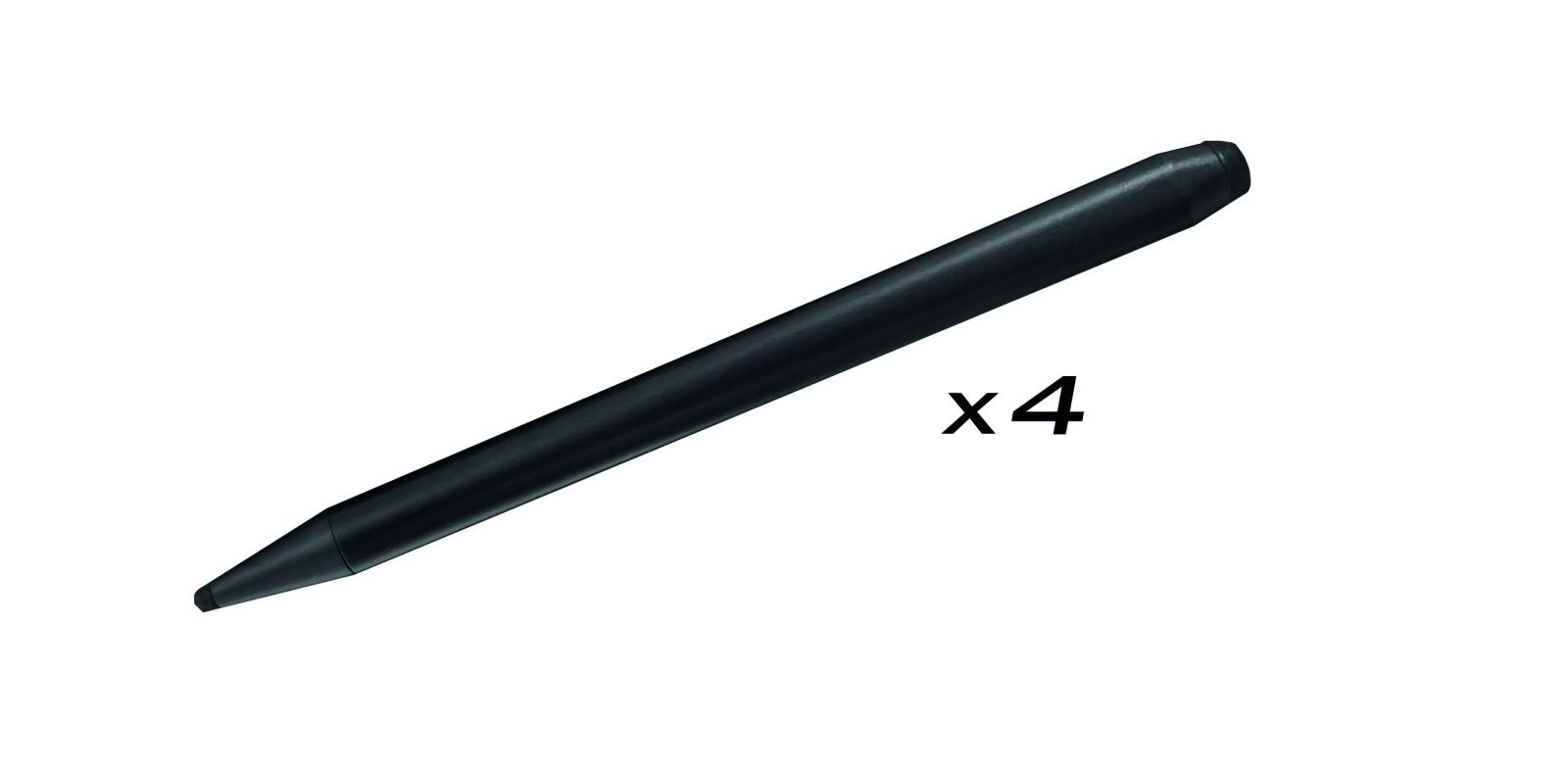

| Number of stylus pens | 4 |
| Cables included | AC, USB, HDMI |
| Remote control included | |
| Batteries included | |
| Stylus pen | |
| Wi-Fi module included | |
| Packaging data | |
| Package width | 2483 mm |
| Package depth | 1493 mm |
| Package height | 376 mm |
| Package weight | 138.8 kg |
| Performance | |
| Purpose | Universal |
| Number of OSD languages | 9 |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Dutch, Polish, Russian |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |

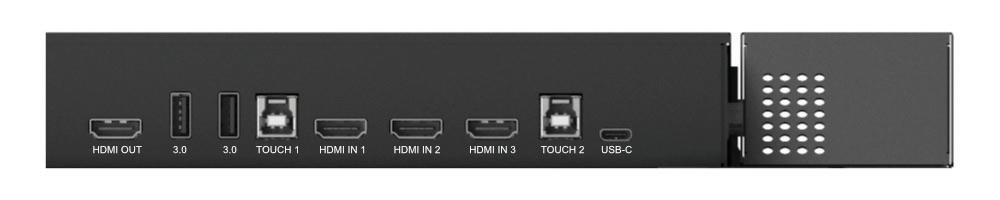

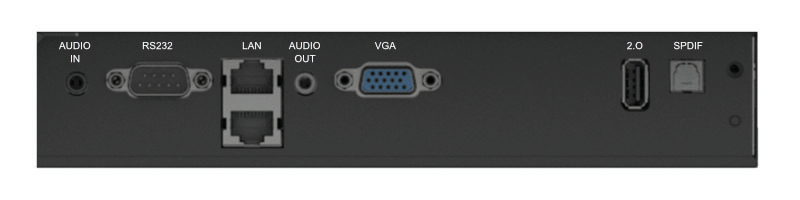

| Ports & interfaces | |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| USB ports quantity | 6 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Power Delivery up to | 65 W |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | |
| USB port | |
| USB Power Delivery (USB PD) | |
| PC Audio in | |
| RS-232C | |
| Power | |
| Power consumption (typical) | 222 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Playback media | Y |
| User controls | common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift, eye care, auto light, ECO, ECR), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 2244.5 mm |
| Display depth | 90.5 mm |
| Display height | 1323 mm |
| Display weight | 103.5 kg |
| Width | 2244.5 mm |
| Depth | 90.5 mm |
| Height | 1323 mm |
| Weight | 103.5 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
