TFT-Touch 218,4 cm ( 86 inch )/217,4 cm iiyama ProLite TE8612MIS-B4AG 24/7 schwarz
|
-17% 1.689,42 EUR 2.046,26 EUR |
|
|
( 2.010,41 EUR incl. VAT ) ≈ £1,414.04 | ≈ $1,883.70 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2213899 |
| Mfg Part No: | TE8612MIS-B4AG |
| UPC/EAN: | 4948570125500 |
| Weight: | 1 kg |
| Type: | SVCS |
Product information for Iiyama TE8612MIS-B4AG:
• Diagonale: 218,4 cm ( 86 inch )/217,4cm • Auflösung: 3840x2160, 16:9 • Helligkeit: 400cd/m² • Kontrast: 4000:1 (typisch) • Reaktionszeit: 6.5ms • Blickwinkel: 178°/178° • Panel: IPS DLED • Anschlüsse: 1x VGA, 2x HDMI, 1x DP, 2x USB-C, 1x RS-232c, 1x RJ45 • VESA: 800x600 • Abmessungen (BxHxT): 1957 x 1098 x 98mm
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Built-in speaker(s) | |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Computer system | |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Kiosk design |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

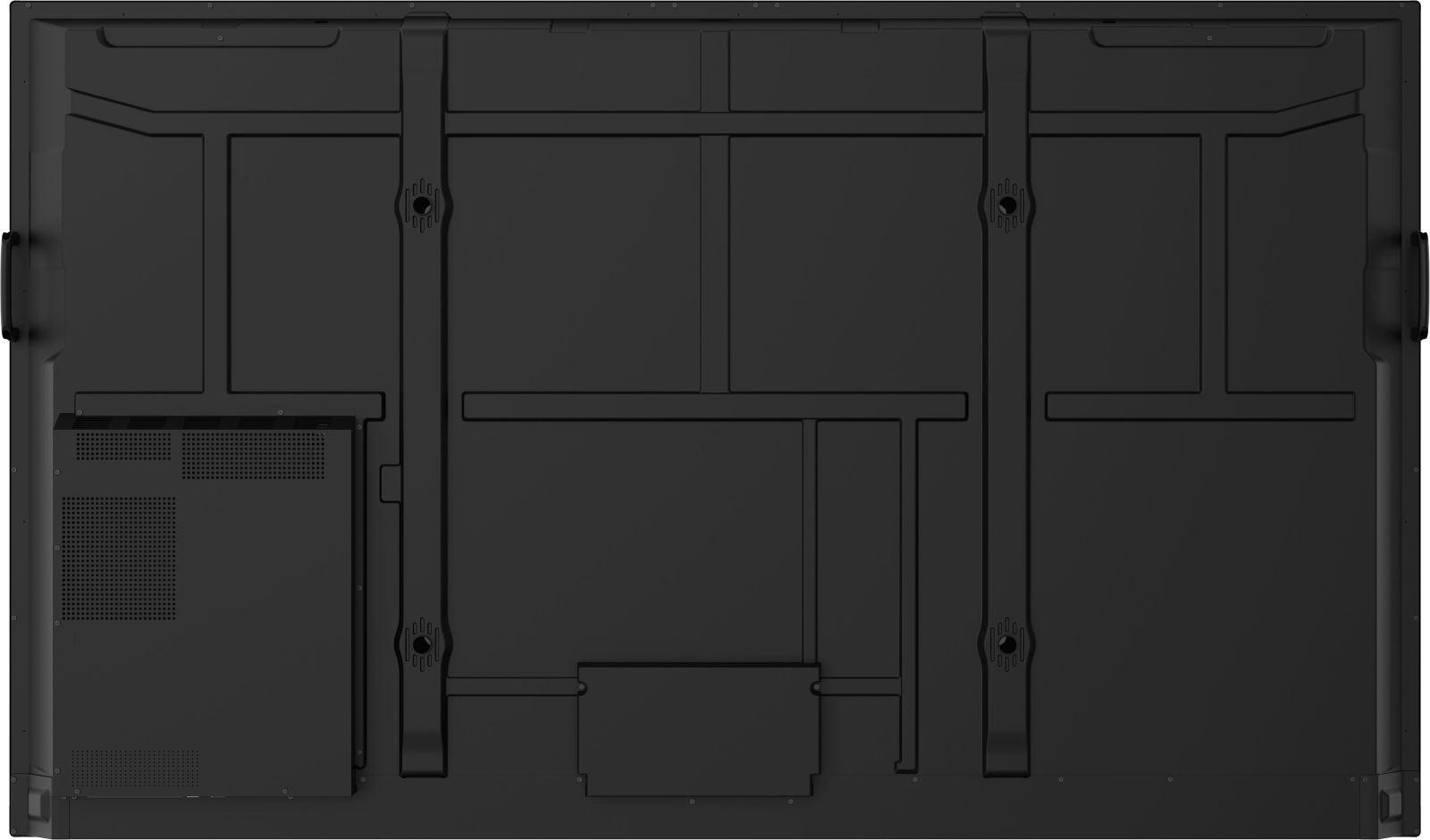

| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 3 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (top) | 1.65 cm |
| Bezel colour | Black |
| Mounting type | Wall |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Display diagonal | 2.17 m (85.6") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Glass thickness | 3 mm |
| LED backlight | |
| Touchscreen | |
| Multi-touch | |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Audio output | 3.5mm |
| Backlight type | Direct LED |
| Bluetooth version | 5.0 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Housing material | Metal |
| Quick start guide | |
| Bluetooth | |
| Plug and Play | |
| Packaging content | |

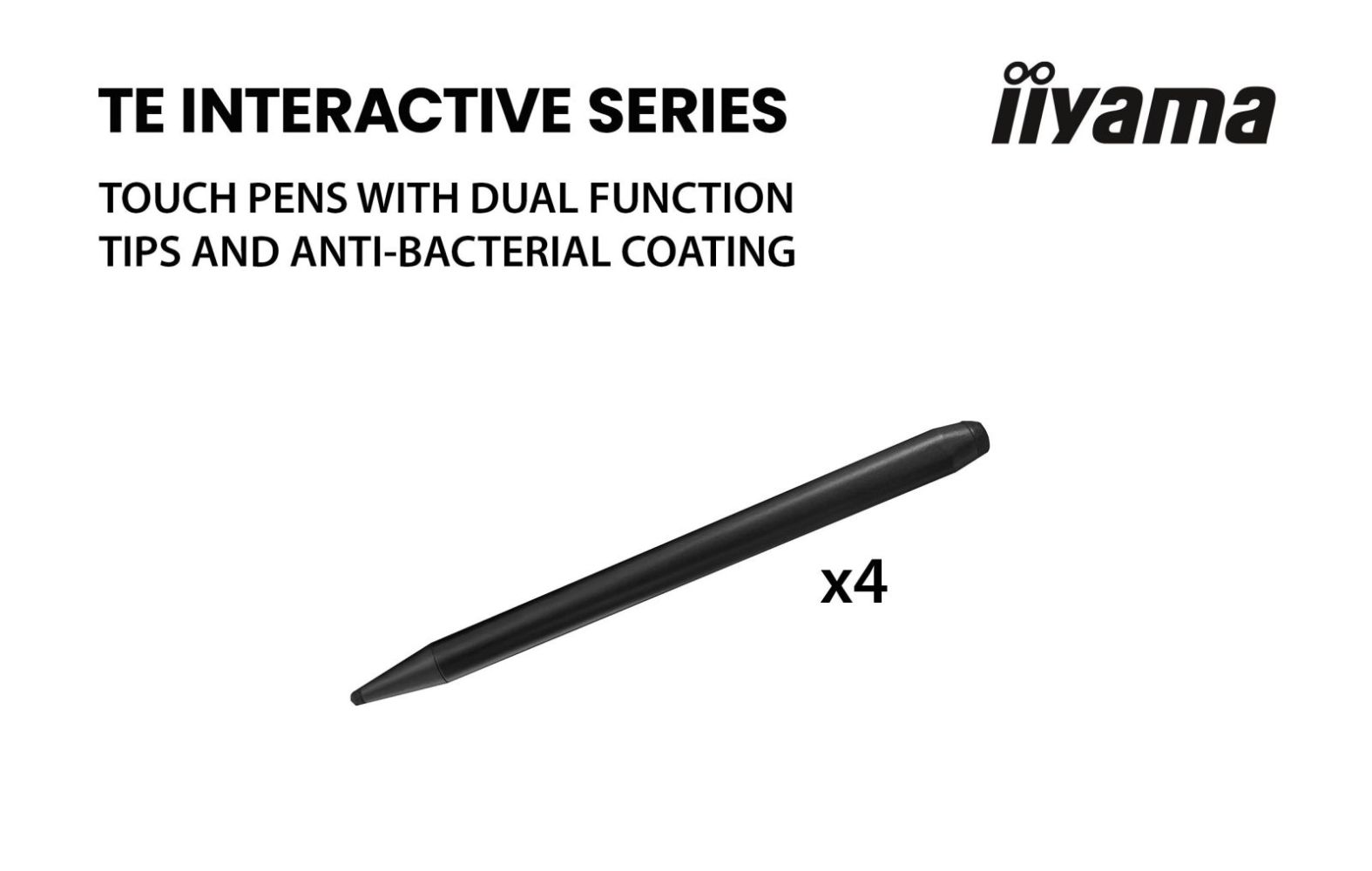

| Number of stylus pens | 4 |

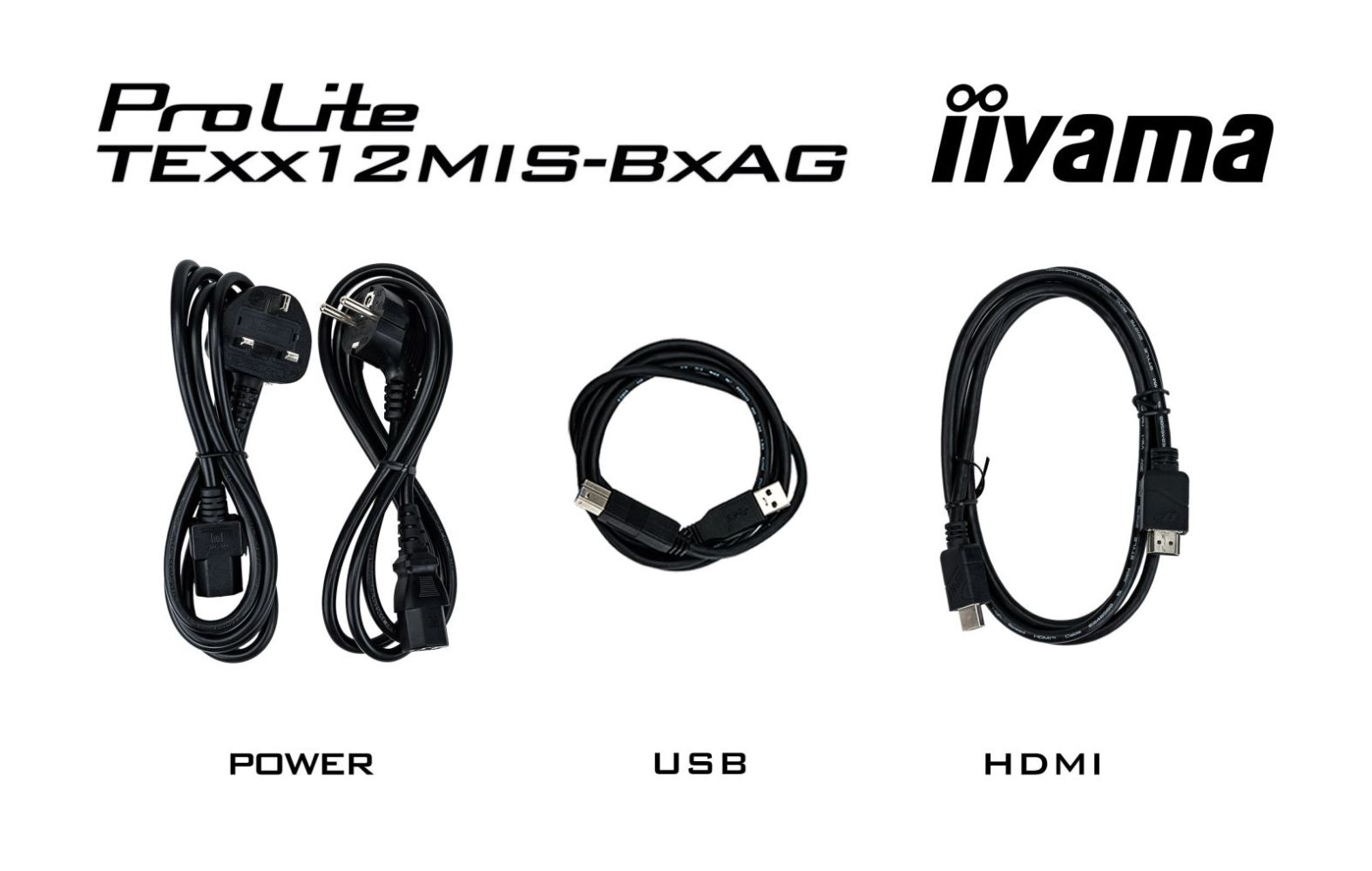

| Cables included | AC, USB, HDMI |
| Remote control included | |
| Batteries included | |
| Stylus pen | |
| Packaging data | |
| Package width | 2110 mm |
| Package depth | 225 mm |
| Package height | 1291 mm |
| Package weight | 64.5 kg |
| Performance | |
| Purpose | Universal |
| Number of OSD languages | 14 |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 5 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery up to | 65 W |
| Ethernet LAN (RJ-45) ports | 1 |
| Remote (IR) input | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| USB port | |
| USB Power Delivery (USB PD) | |
| PC Audio in | |
| RS-232C | |
| Card reader integrated | |
| OPS module slot | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 181 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 181 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| OPS slot | 1 |
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Audio in (mini jack) | |
| Weight & dimensions | |
| Display width | 1957 mm |
| Display depth | 98 mm |
| Display height | 1160 mm |
| Display weight | 48.5 kg |
| Width | 1957 mm |
| Depth | 98 mm |
| Height | 1160 mm |
| Weight | 48.5 kg |
