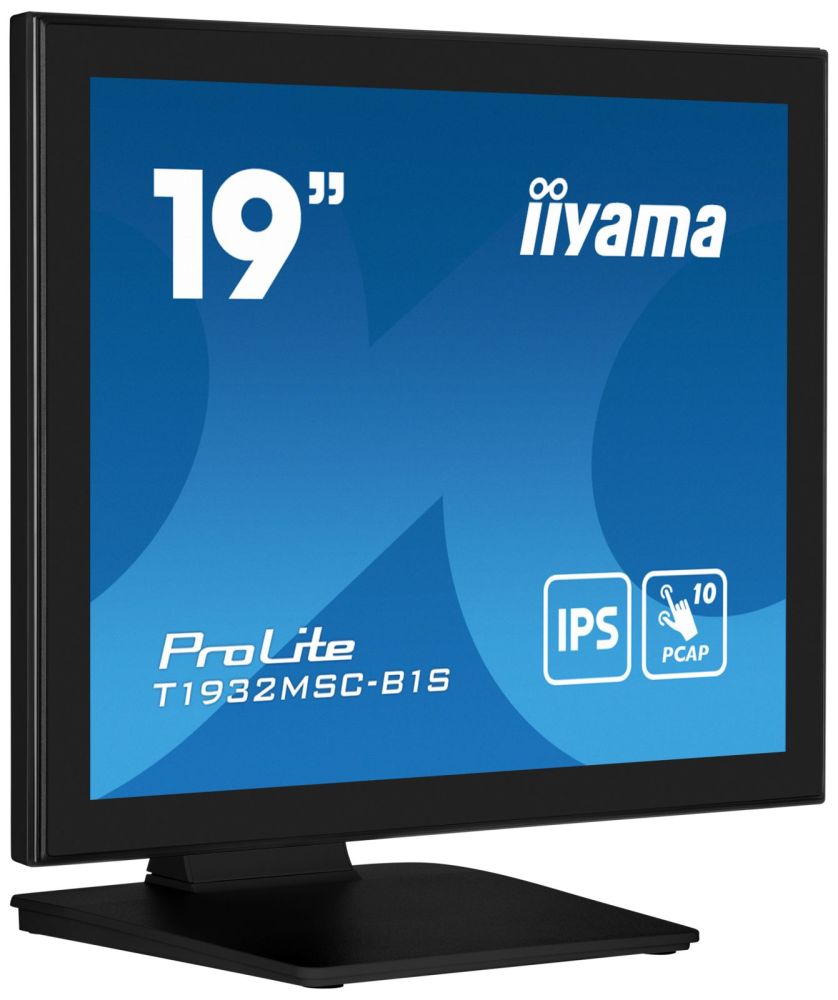

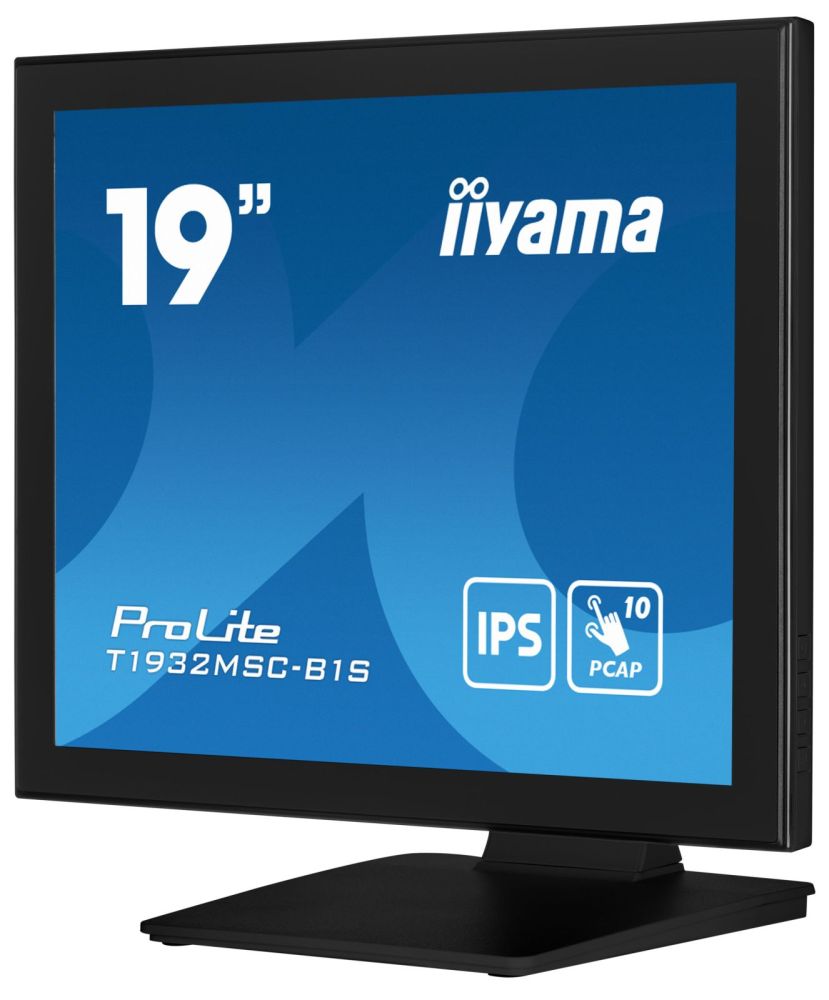

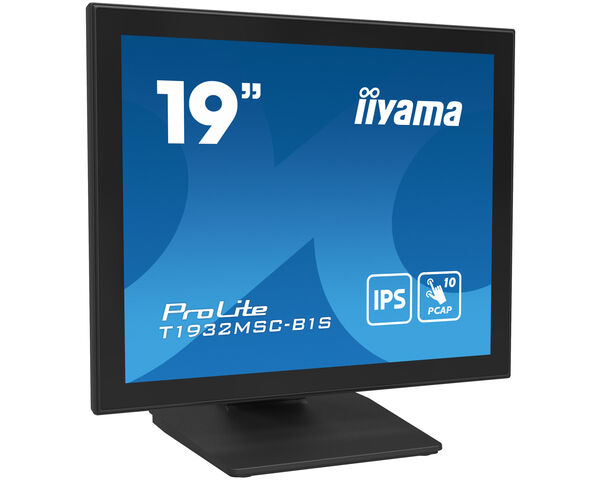

IIYAMA 48.0cm (19") T1932MSC-B1S 5:4 M-Touch HDMI+DP+VGA retail
|
-14% 458,28 EUR 532,72 EUR |
|
|
( 545,35 EUR incl. VAT ) ≈ £384.96 | ≈ $514.19 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 596925 |
| Mfg Part No: | T1932MSC-B1S |
| UPC/EAN: | 4948570122196 |
| Weight: | 0 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama

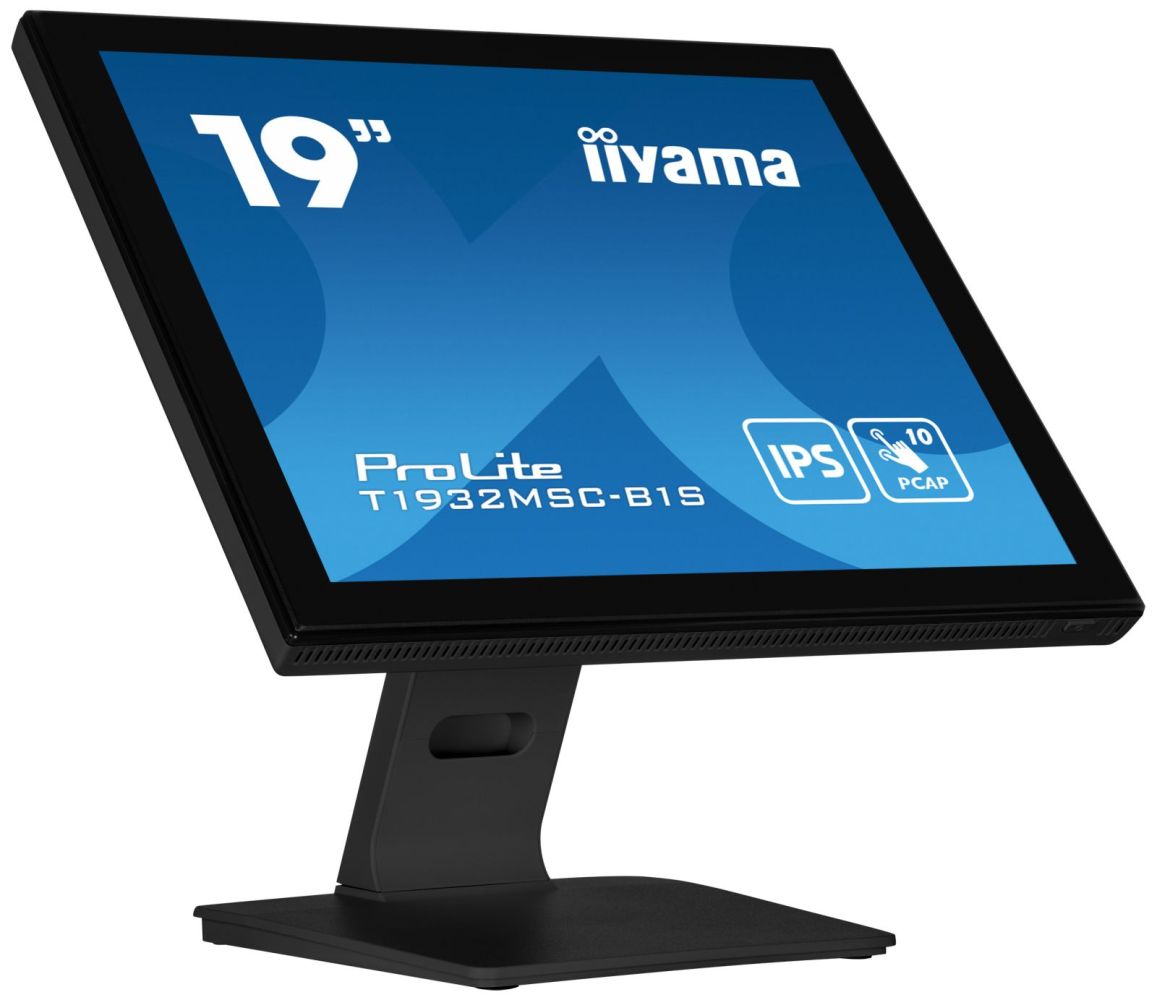

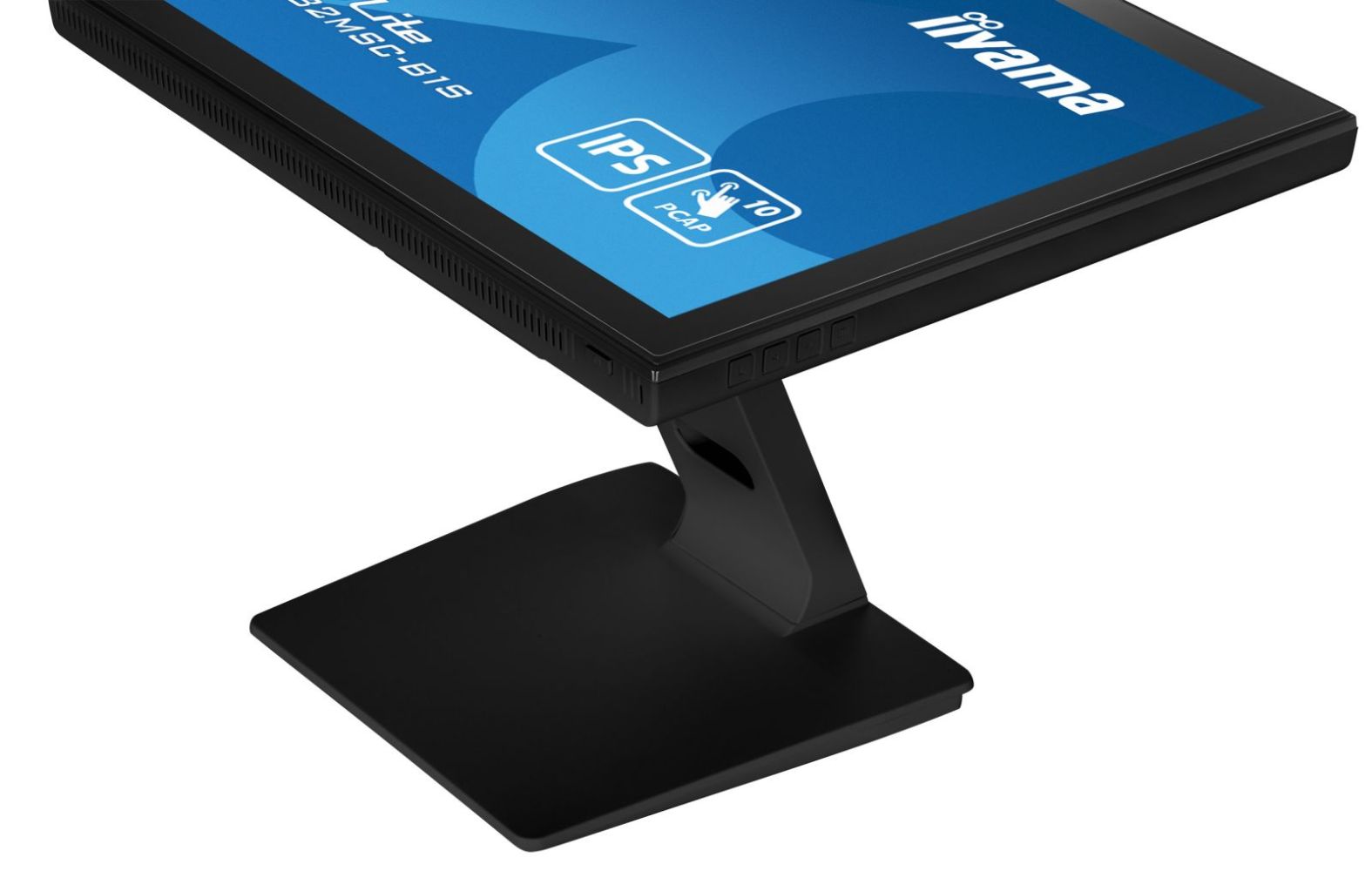

Product information for Iiyama T1932MSC-B1S:
touch monitor, screen size: 48.3 cm (19''), Projected Capacitive, multi touch (10 points), resolution: 1280x1024 pixels, VESA mount (100x100 mm), speaker, response time: 14msms, brightness 250cd, viewing angle 178/178°(H/V), contrast: 1000:1, connection: VGA, display-port, HDMI, incl.: cable (USB, HDMI, Display Port), power supply unit, power cable, QSG, protection class: IP54, colour: black
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| HD type | Full HD |
| Native aspect ratio | 5:4 |
| Display technology | LED |
| Panel type | IPS |
| Backlight type | LED |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 215 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 225 cd/m² |
| Response time | 14 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2928 x 0.2928 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 37.5 cm |
| Viewable size, vertical | 30 cm |
| Display diagonal (metric) | 48 cm |
| Touchscreen | |
| DDC/CI | |
| Ergonomics | |

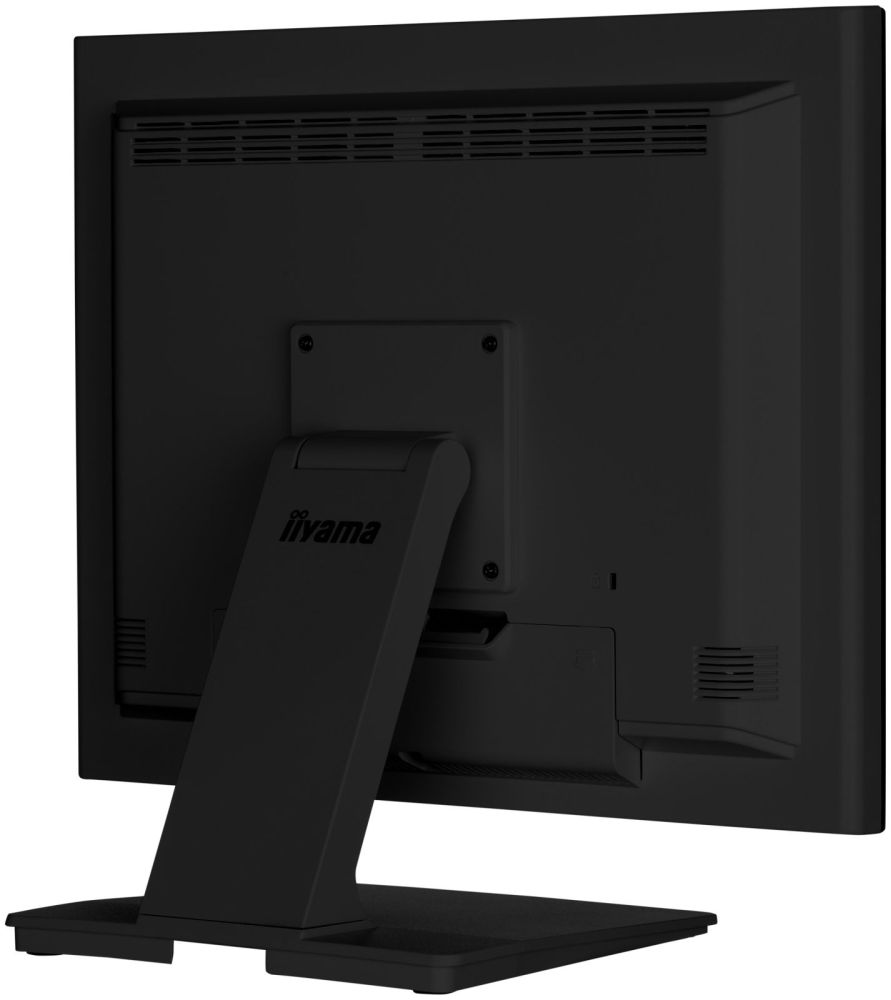

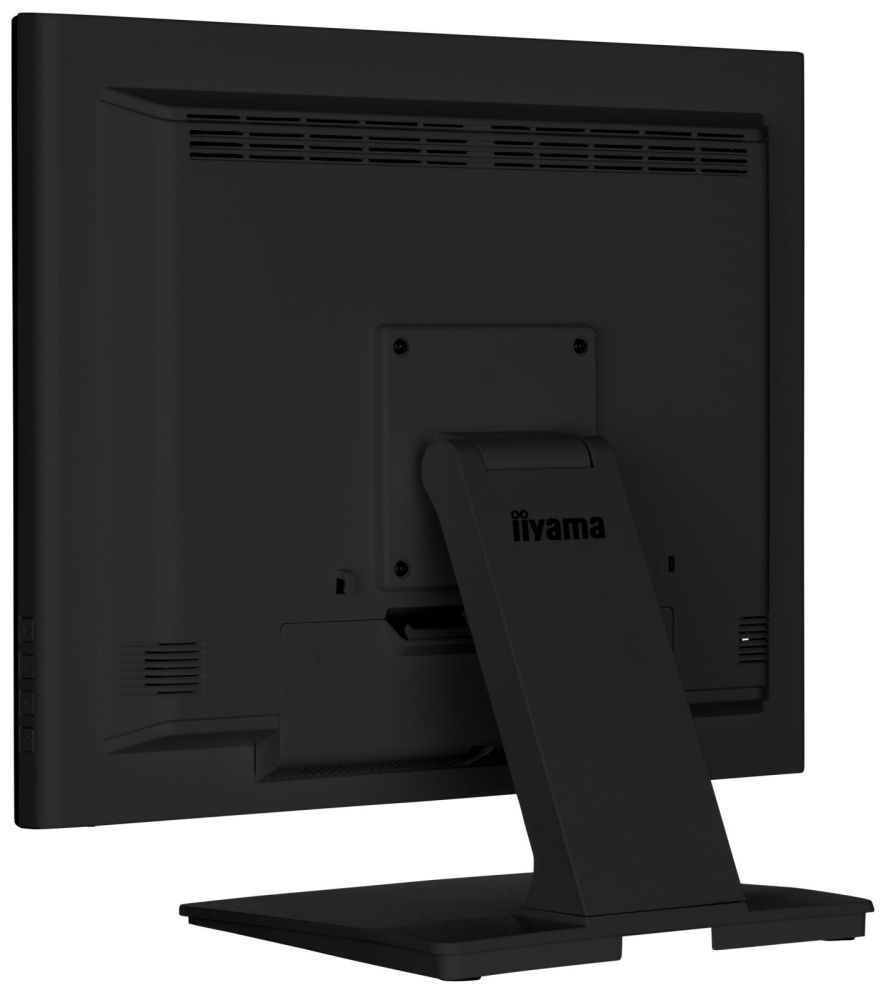

| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |

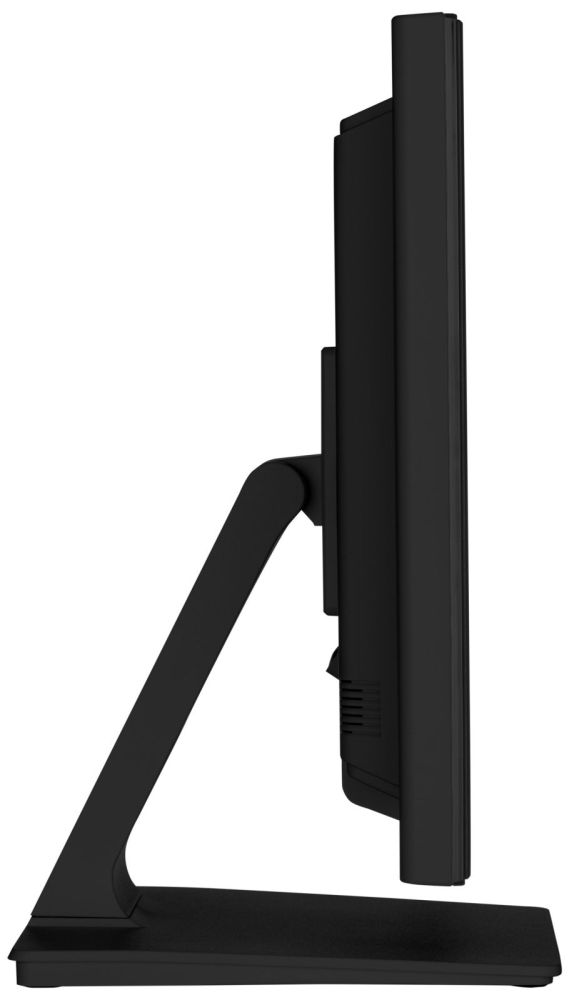

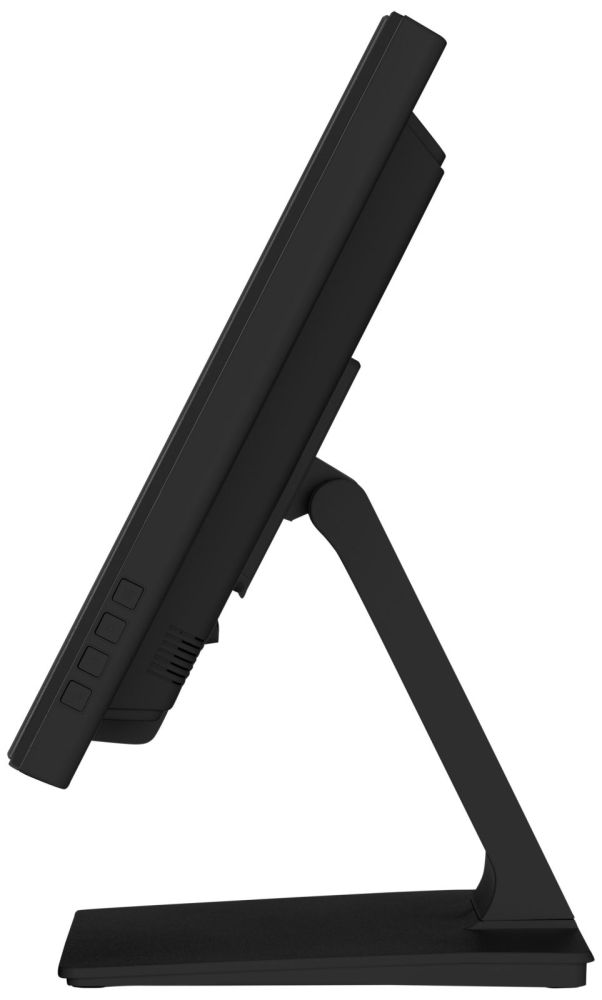

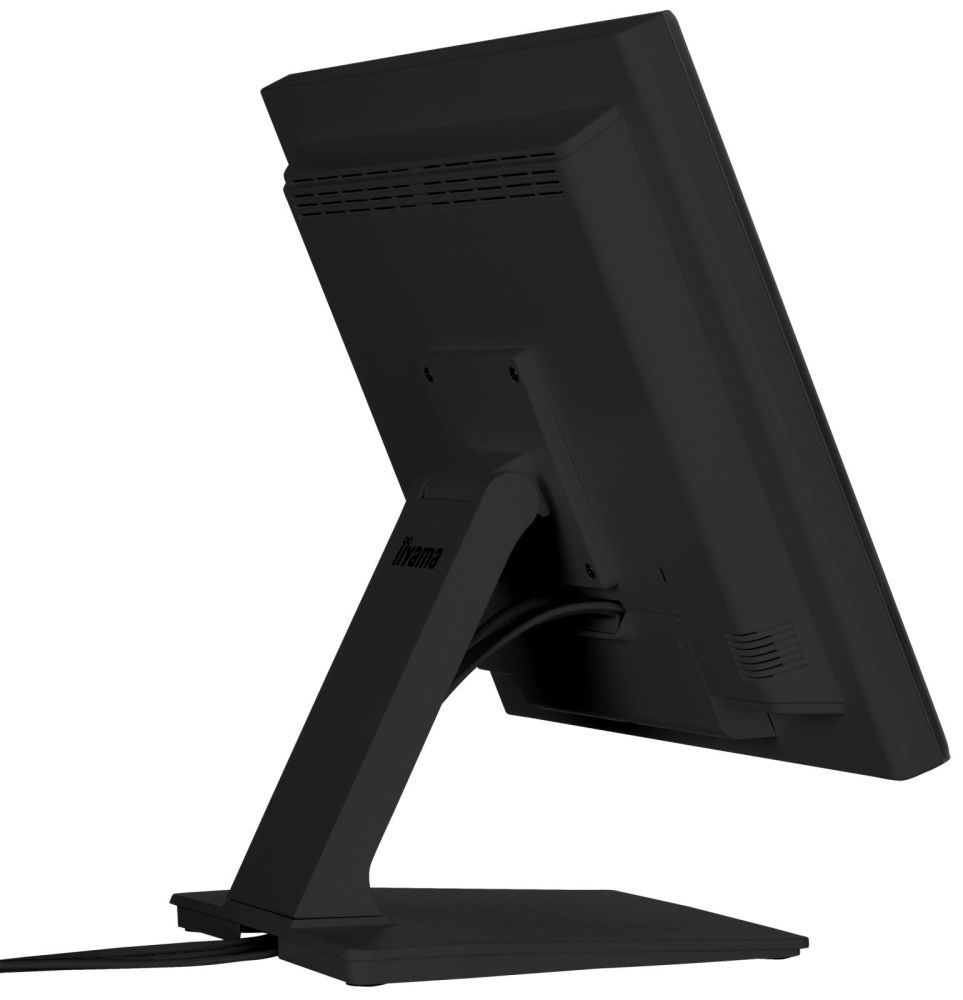

| Tilt angle range | 5 - 90° |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Cable management | |
| Cable lock slot | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, factory) |
| Brightness | 225 cd/m² |
| Active display area (W x H) | 374.8 x 300 mm |
| Touch method | stylus, finger, glove |
| Weight | 5.4 kg |
| Height | 413.5 mm |
| Width | 432 mm |
| Depth | 239.5 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Packaging content | |

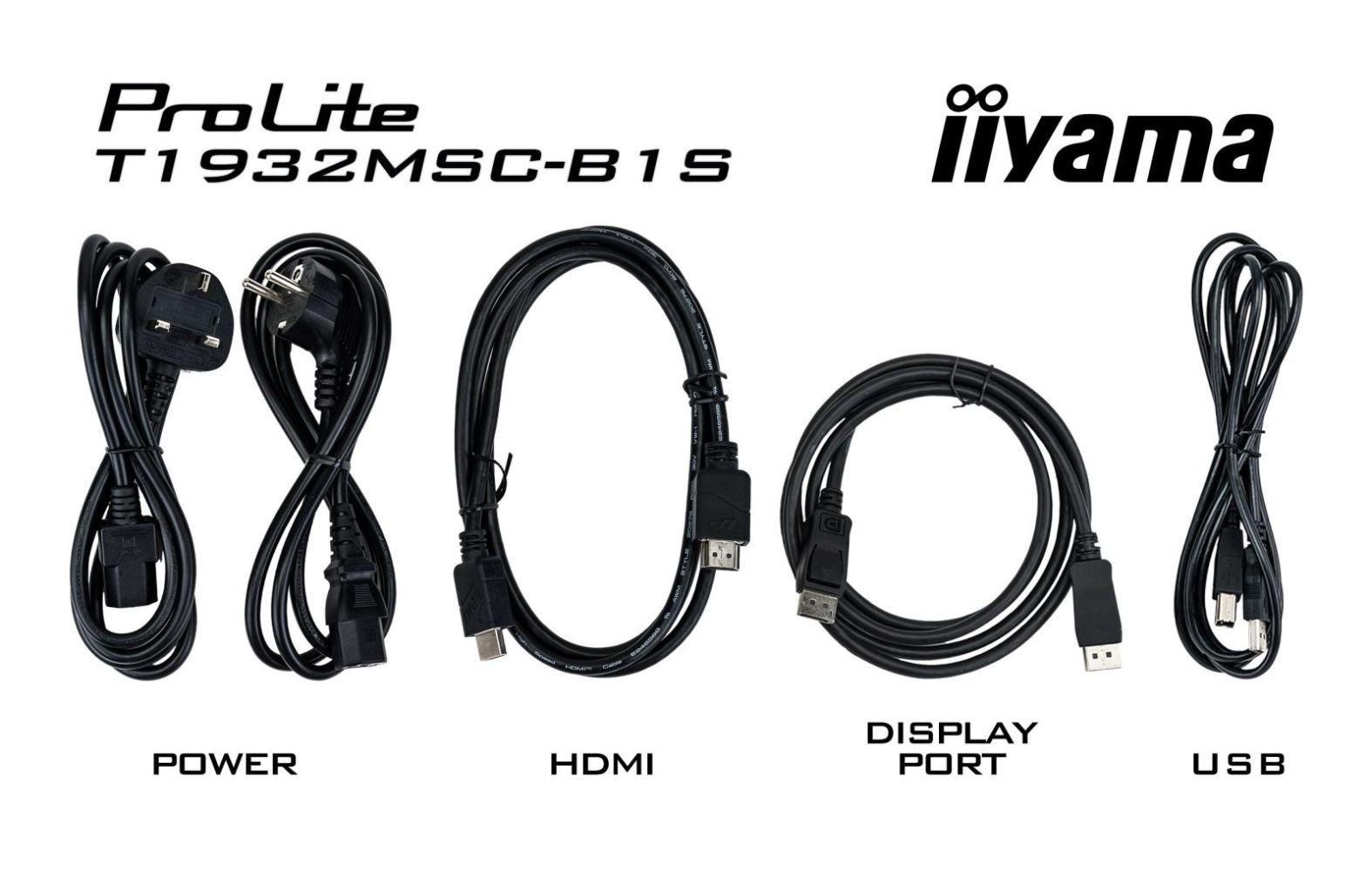

| Cables included | AC, USB, HDMI, DisplayPort |
| Stand included | |
| Power adapter included | |
| Quick start guide | |
| Manual | |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |

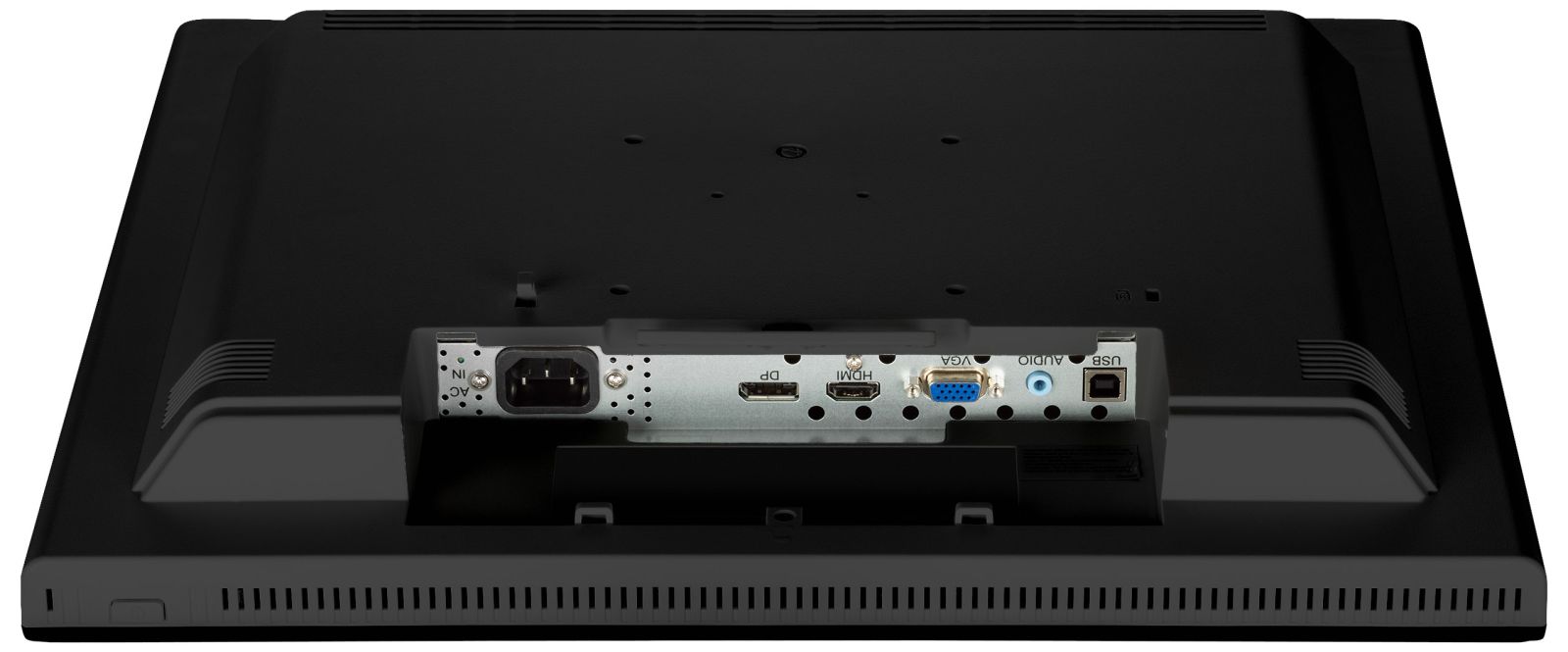

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| Audio input | |
| Audio output | |
| HDCP | |
| DC-in jack | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13.4 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Sustainability compliance | |
| Weight & dimensions | |
| Width (with stand) | 432 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 413.5 mm |
| Weight (with stand) | 5.4 kg |
