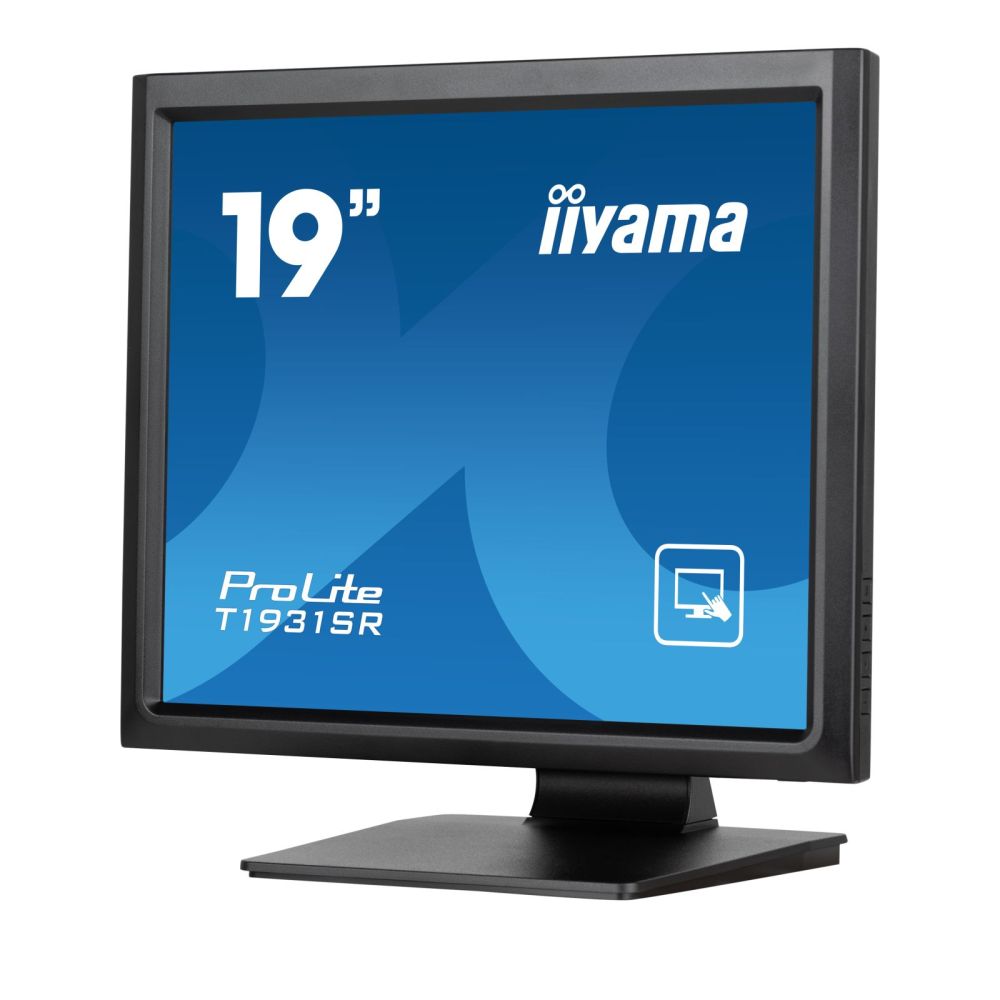

IIYAMA T1931SR-B1S 19inch IPS 1280x1024 Resistive Touch 200cd/m2 HDMI DP VGA USB Interface Speakers
|
-14% 394,35 EUR 458,35 EUR |
|
|
( 469,28 EUR incl. VAT ) ≈ £331.25 | ≈ $442.46 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 24. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2111362 |
| Mfg Part No: | T1931SR-B1S |
| UPC/EAN: | 4948570122172 |
| Weight: | 0.2 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama T1931SR-B1S:
• Diagonale: 48,3 cm ( 19 inch )/ • Auflösung: 1280x1024, 5:4 • Helligkeit: 230cd/m² • Kontrast: 1.000:1 (statisch), keine Angabe (dynamisch) • Reaktionszeit: 14ms • Blickwinkel: 178°/178° • Panel: IPS • Anschlüsse: 1x VGA, 1x HDMI, 1x DisplayPort • Weitere Anschlüsse: N/A • Touchscreen: Seriell Resitiv • Neigung: 90°+/5°- • VESA: 100x100 • Leistungsaufnahme: 20W (typisch), 1,5W (Standby) • Abmessungen (BxHxT): 432x431,5x239,5mm • Gewicht: 6kg
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Panel type | IPS |
| Touchscreen technology | Resistive |
| Number of simultaneous touchpoints | 1 |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 193 cd/m² |
| Response time | 14 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.293 x 0.293 mm |
| Horizontal scan range | 31.5 - 80 kHz |
| Viewable size, horizontal | 37.5 cm |
| Viewable size, vertical | 30 cm |
| Display diagonal (metric) | 48 cm |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |

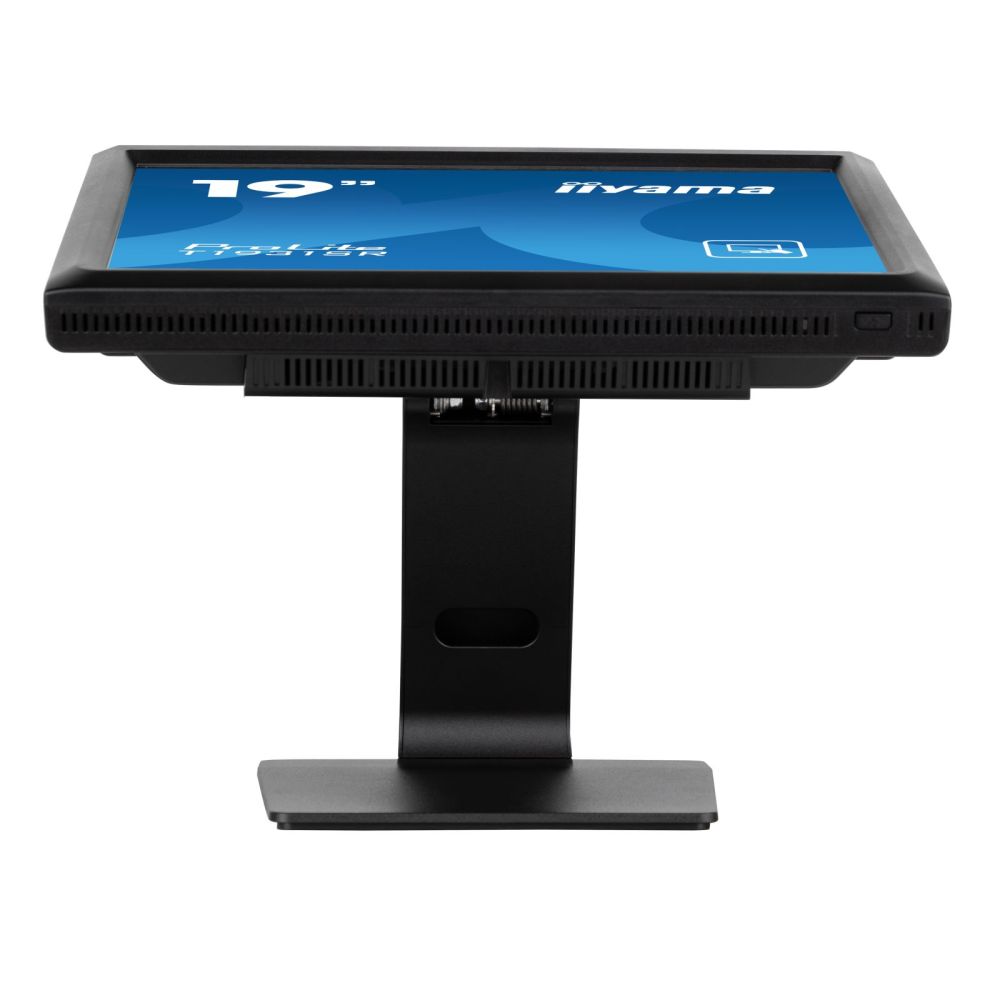

| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| Cable management | |
| Cable lock slot | |
| Height adjustment | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Brightness | 193 cd/m² |
| Active display area (W x H) | 374.8 x 299.8 mm |
| Touch method | stylus, finger, glove |
| Weight | 6 kg |
| Height | 431.5 mm |
| Width | 432 mm |
| Depth | 239.5 mm |

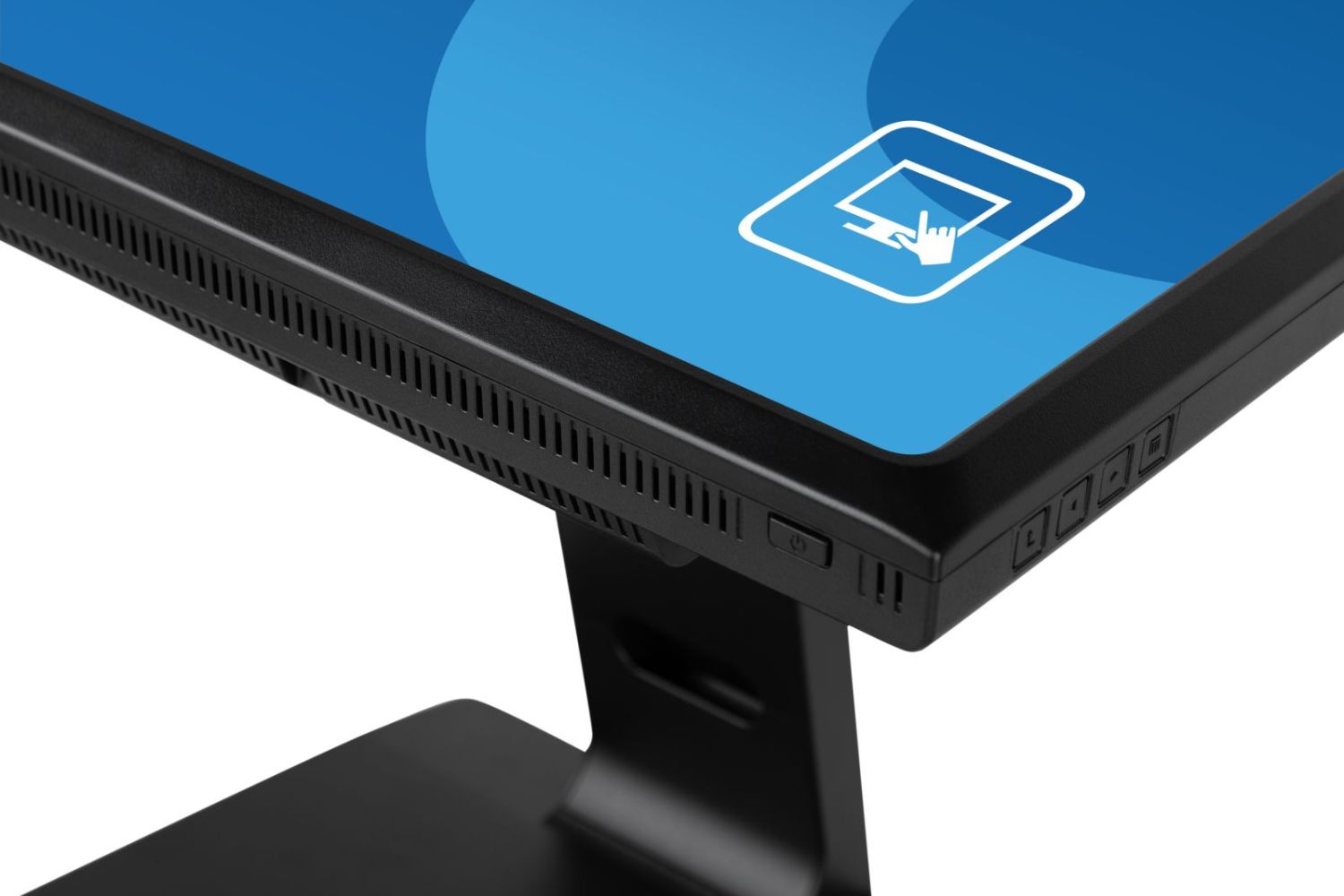

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, VCCI, REACH, UKCA |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Quick start guide | |
| Packaging data | |
| Package width | 530 mm |
| Package depth | 190 mm |
| Package height | 495 mm |
| Package weight | 8 kg |
| Package type | Box |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |

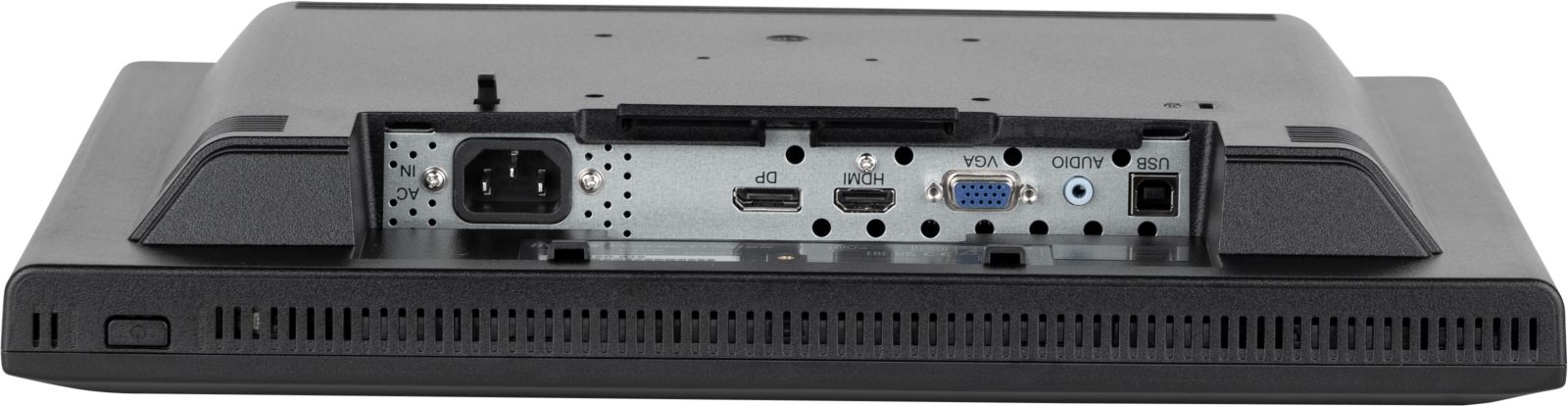

| Ports & interfaces | |
| USB Touch ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 13.2 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width (with stand) | 432 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 431.5 mm |
| Weight (with stand) | 6 kg |
