Iiyama T1731SR-B2S 43.0 cm (17") 5:4 HDMI DP VGA
|
351,68 EUR |
|
|
( 418,50 EUR incl. VAT ) ≈ £295.41 | ≈ $394.58 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 11 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 903939 |
| Mfg Part No: | T1731SR-B2S |
| UPC/EAN: | 4948570127702 |
| Weight: | 7.3 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama T1731SR-B2S:
• Sichtbare Bildschirmdiagonale: 43,2 cm ( 17 inch )/43,0cm • Auflösung: 1280x1024 @ 75Hz • Helligkeit: 195cd/m² • Kontrast: 1000:1 • Touch: Seriell Resistiv • Touch-Oberfläche: USB • Reaktionszeit: 5ms • Blickwinkel: 170°/170° • Panel: TN • Anschlüsse: 1x VGA, 1x HDMI, 1x DisplayPort • USB-Hub: N/A • Ergonomie: +90°/-5° Neigen • VESA: 100x100 • Audio: 2x1W • Maße: 387x378x239,5mm • Farbe: Schwarz
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Panel type | TN |
| Touchscreen type | Table |
| Touchscreen technology | Resistive |
| Touch technology | Single-touch |
| Number of simultaneous touchpoints | 1 |
| Display brightness (peak) | 250 cd/m² |
| Display brightness (typical) | 195 cd/m² |
| Display brightness | 195 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Display diagonal (metric) | 43 cm |
| Touchscreen | |
| Anti-glare screen | |
| Ergonomics | |

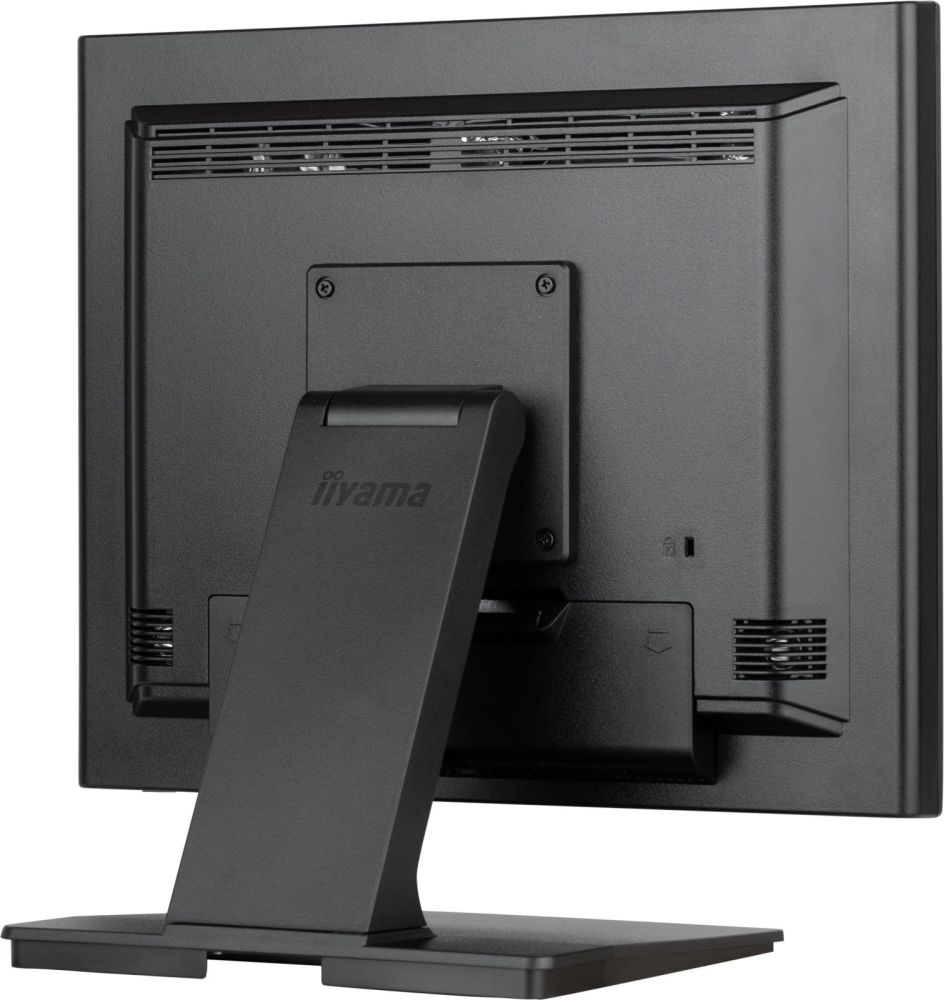

| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |

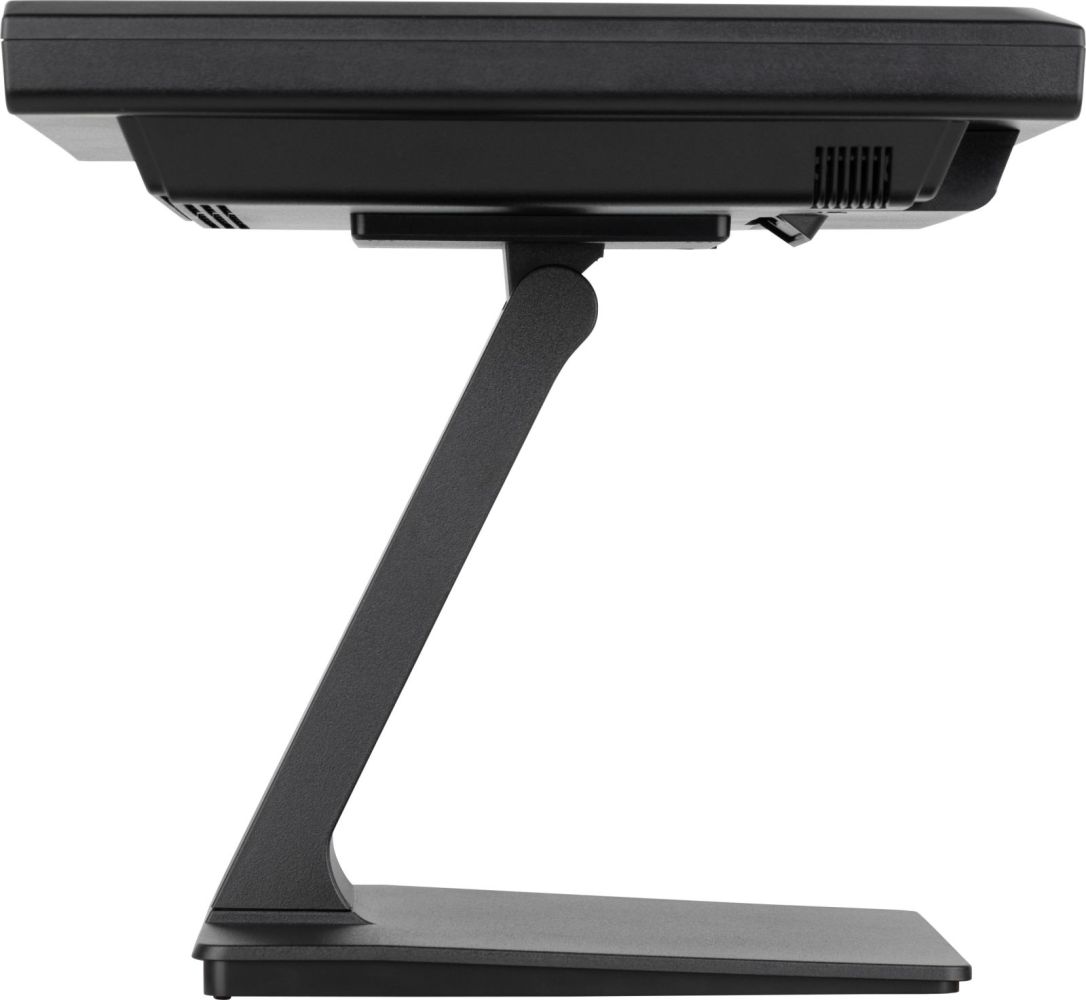

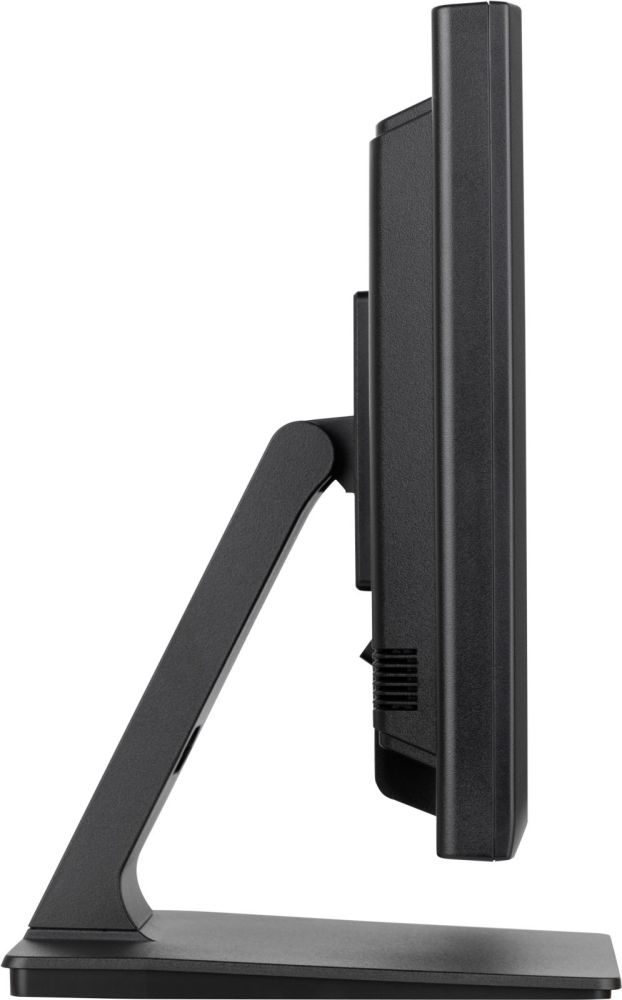

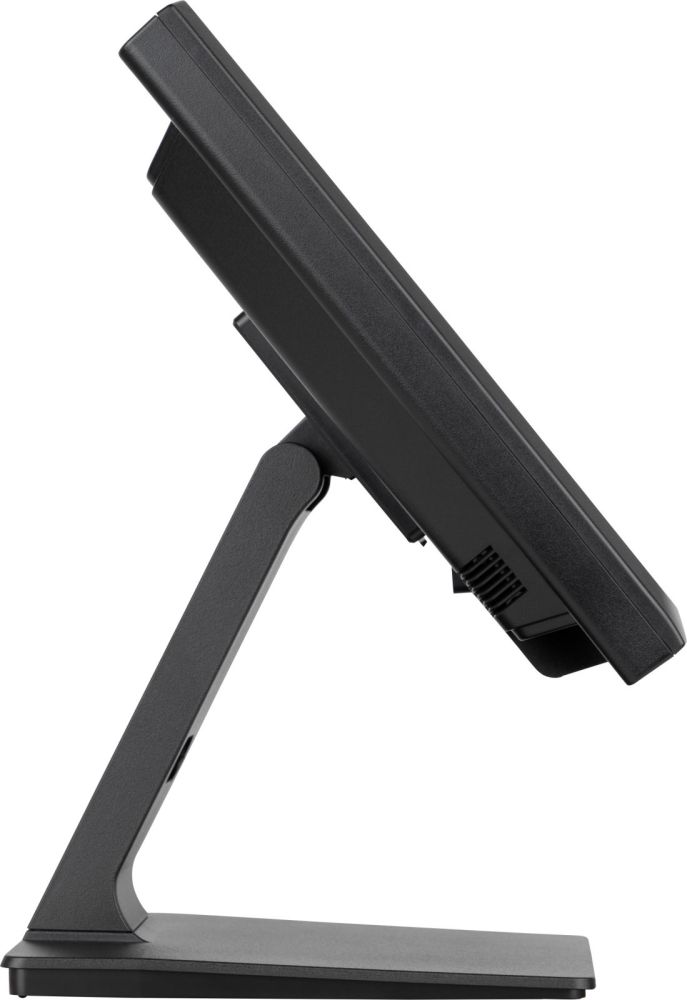

| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| VESA mounting | |
| Cable management | |
| Cable lock slot | |
| Height adjustment | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Plug and Play | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Brightness | 195 cd/m² |
| Packaging content | Screwdriver |
| Active display area (W x H) | 338 x 270 mm |
| Touch method | stylus, finger, glove, glove (latex) |
| Weight | 5.4 kg |
| Height | 378 mm |
| Width | 387 mm |
| Depth | 239.5 mm |

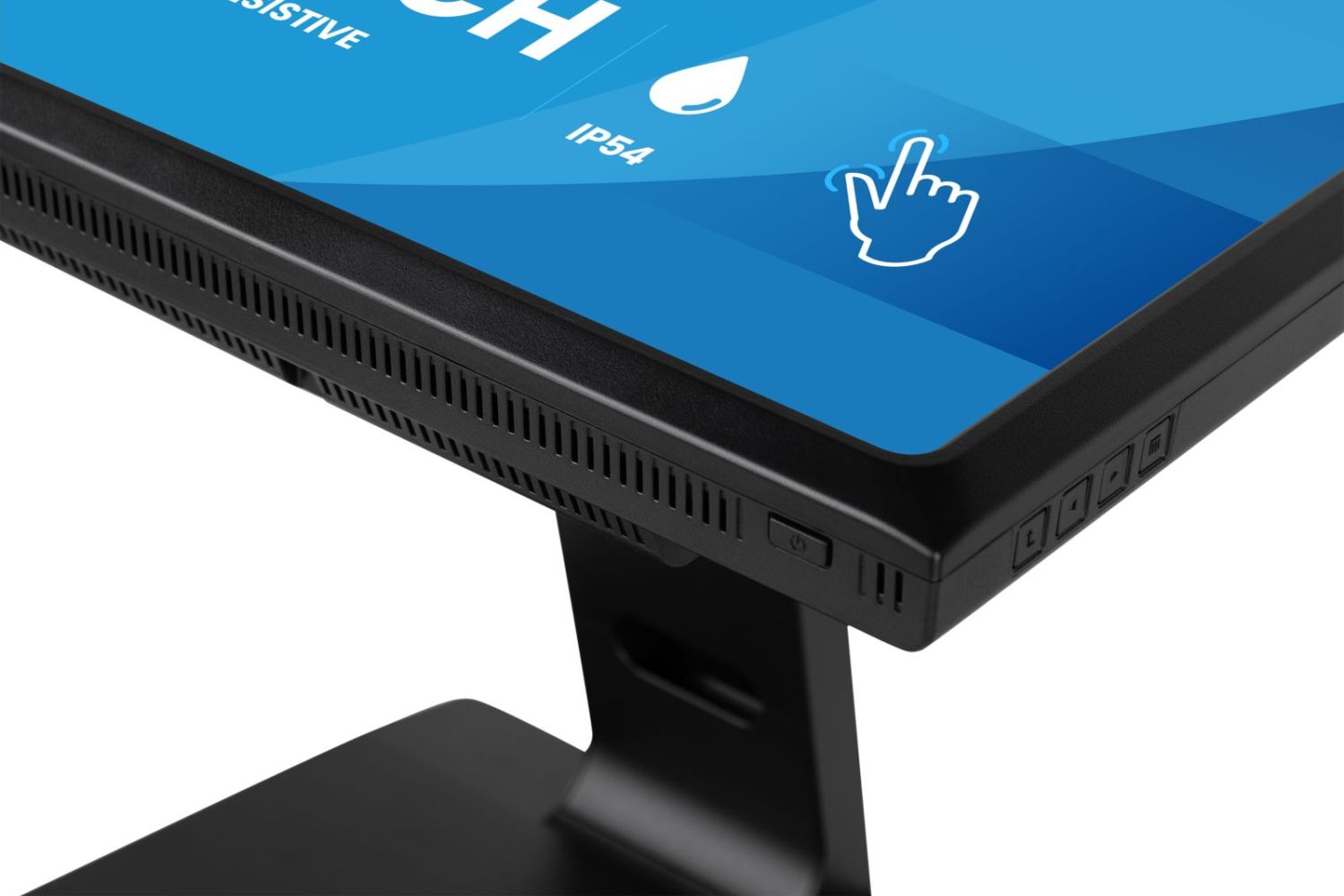

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Audio cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 470 mm |
| Package depth | 180 mm |
| Package height | 445 mm |
| Package weight | 7.3 kg |
| USB cable length | 1.8 m |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |

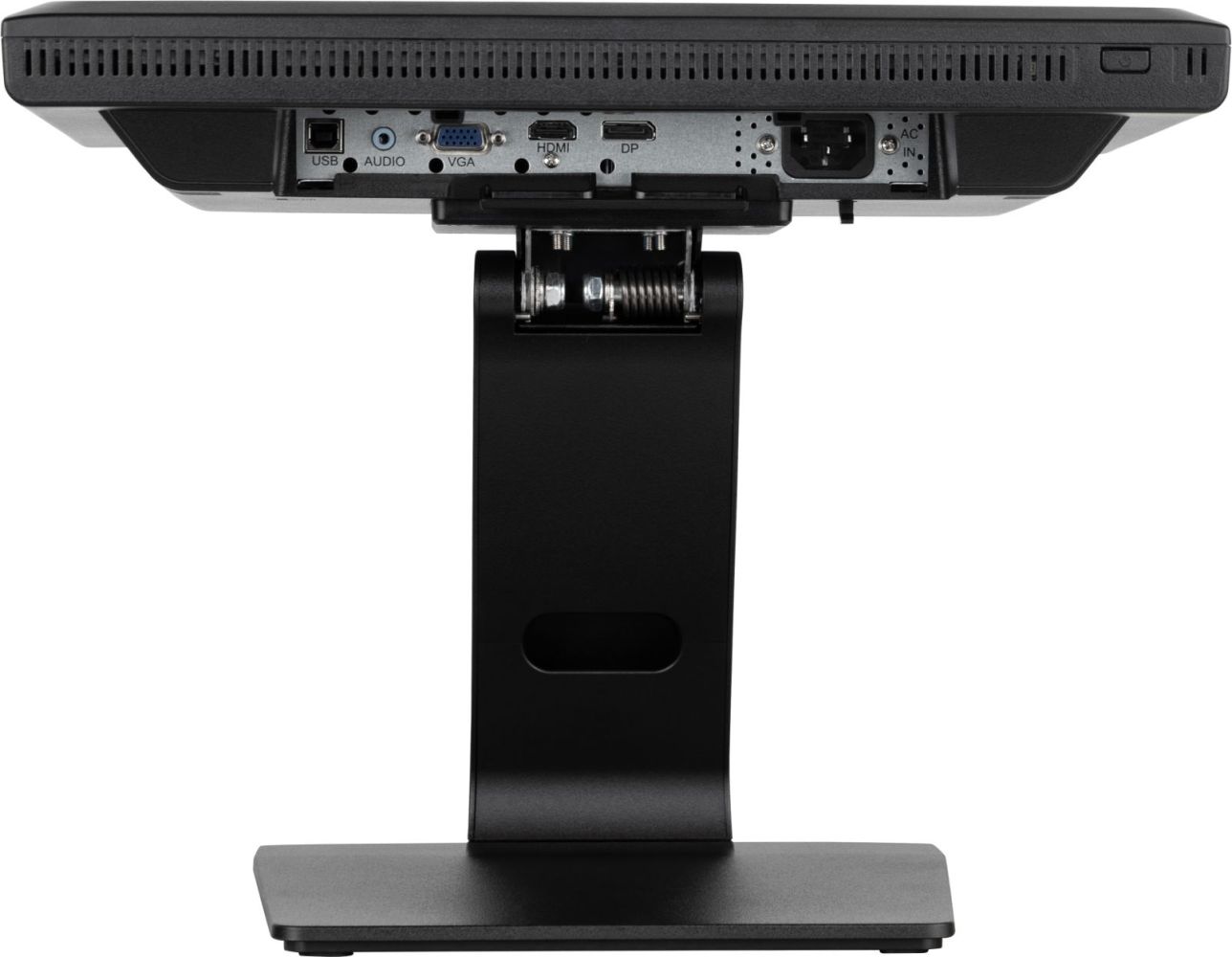

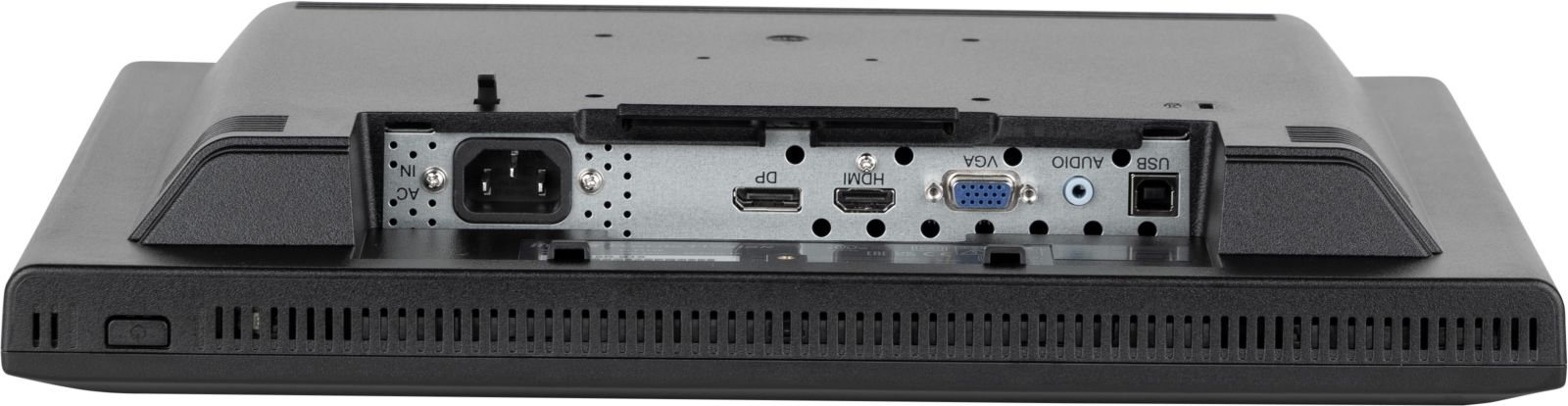

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| Audio input | |
| Headphone out | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 387 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 378 mm |
| Weight (with stand) | 5.4 kg |
