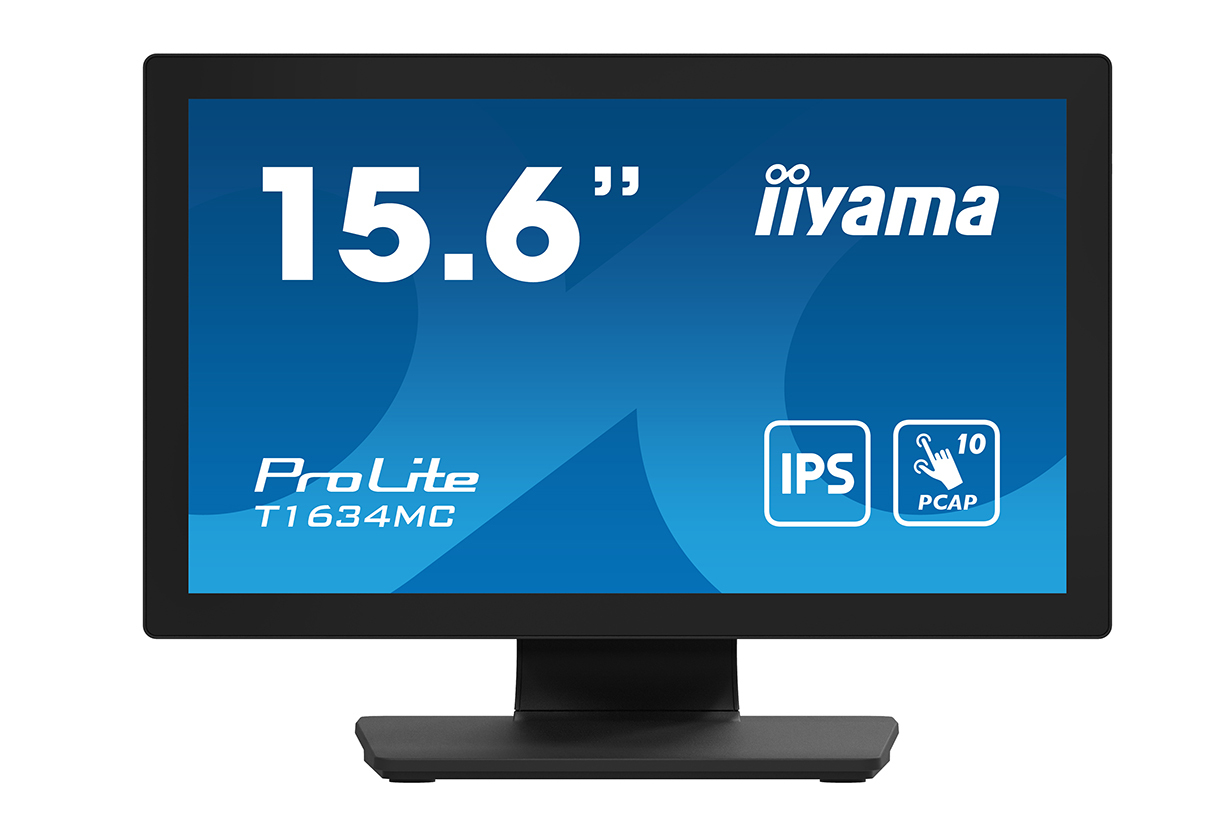

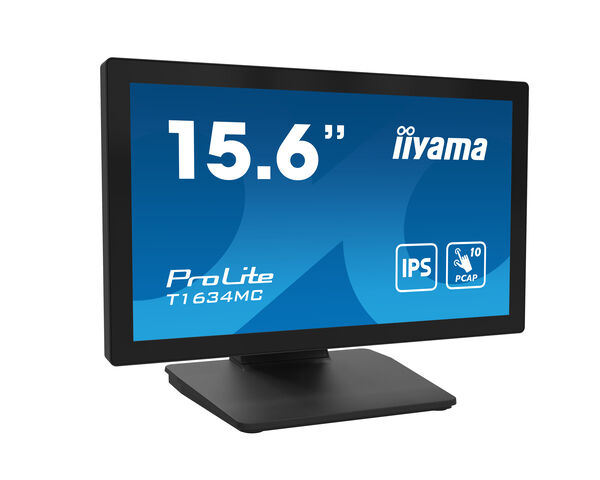

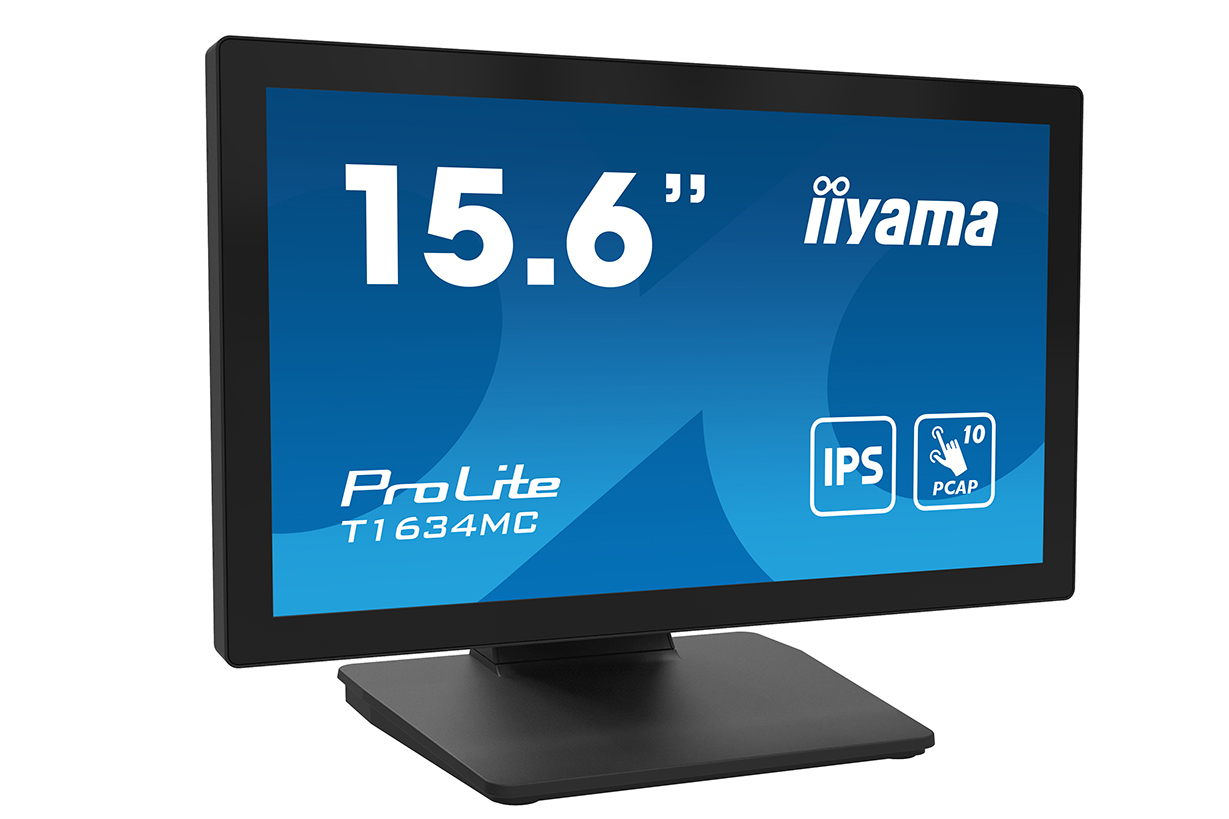

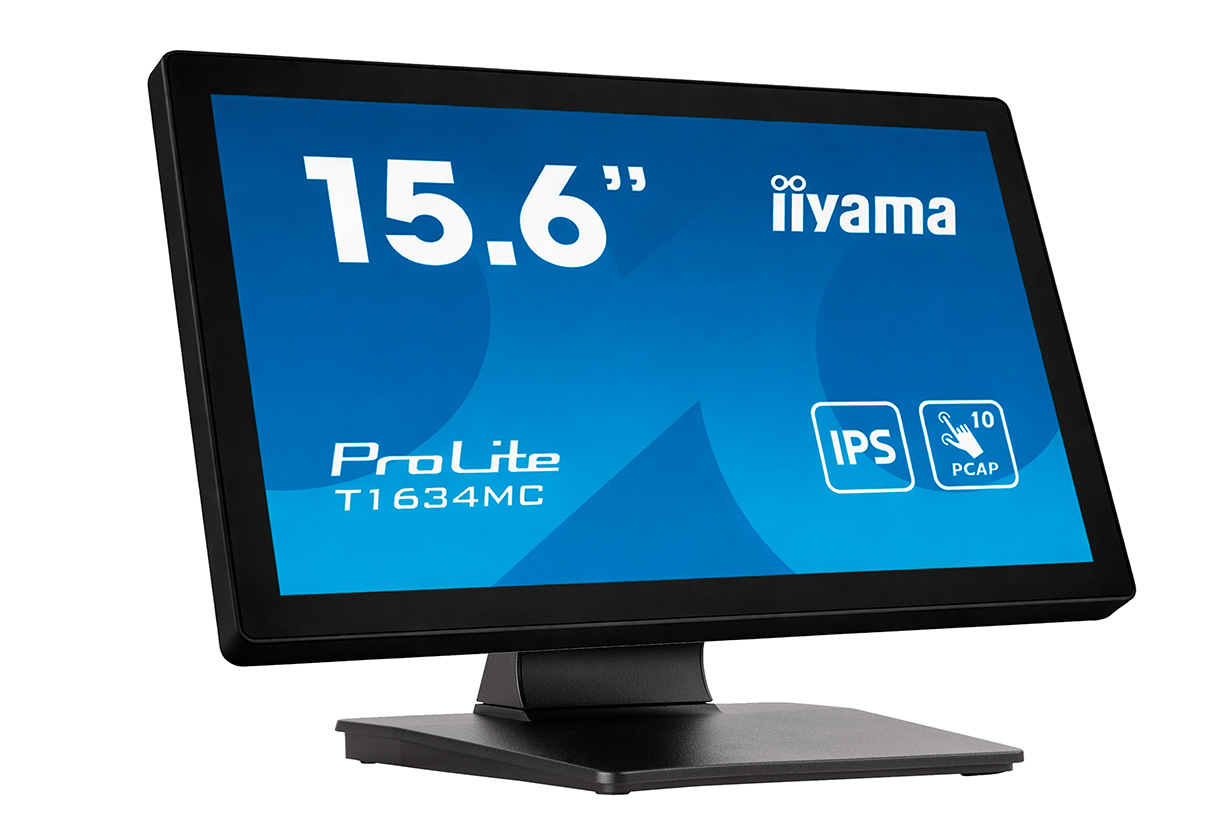

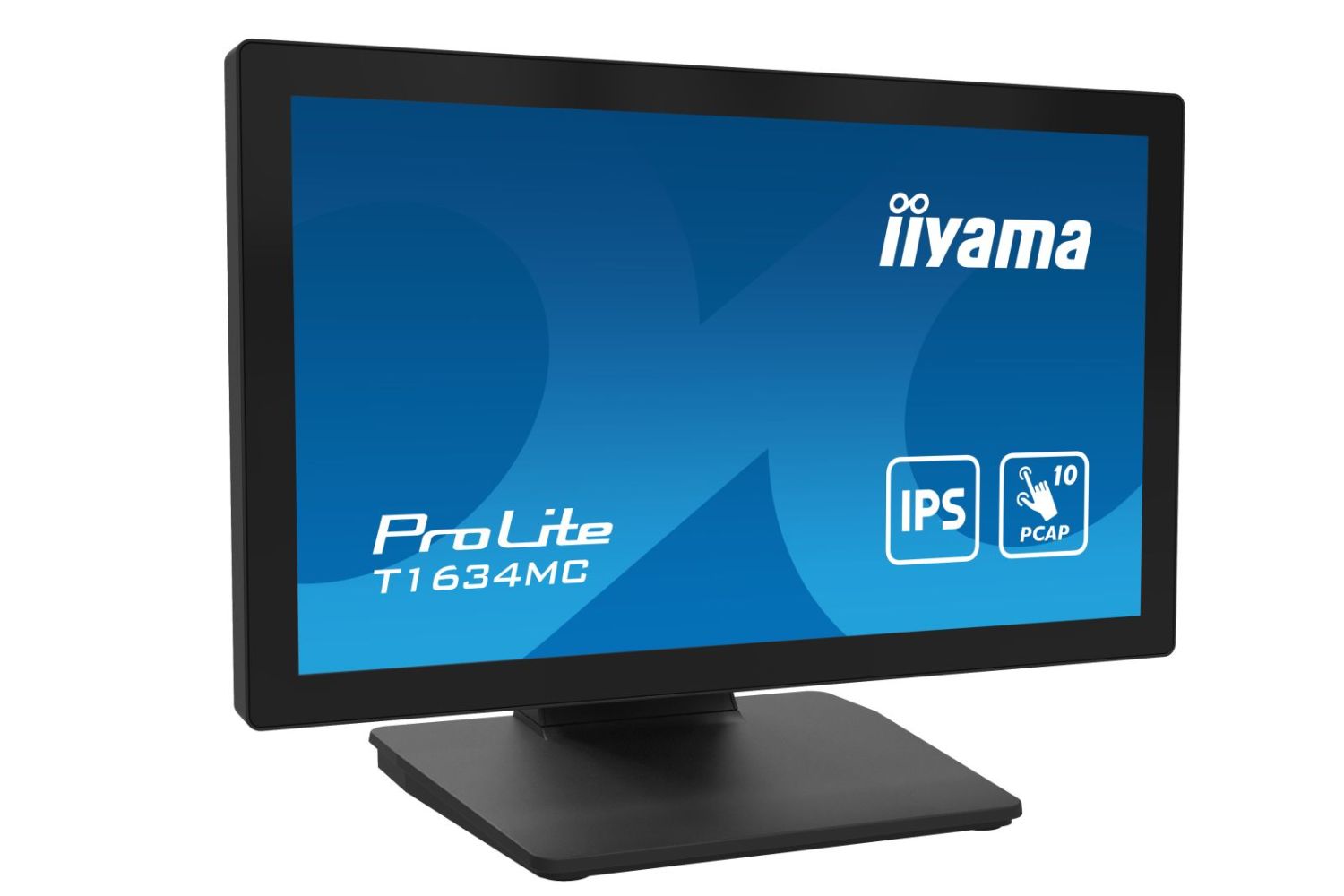

IIYAMA 39.5cm (15.6") T1634MC-B1S 16:9 M-Touch HDMI+DP+VGA retail
|
-12% 468,04 EUR 532,72 EUR |
|
|
( 556,97 EUR incl. VAT ) ≈ £393.15 | ≈ $525.14 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1554504 |
| Mfg Part No: | T1634MC-B1S |
| UPC/EAN: | 4948570122110 |
| Weight: | 5.18 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama T1634MC-B1S:
• Bild: 39,6 cm ( 15,6 inch )/39,5cm, 1920x1080, 16:9 • Kontrast: 700:1 • Reaktion: 25ms • Helligkeit: 405cd/m² mit Touch Panel • Anschlüsse: 1x VGA, 1x HDMI 1x DisplayPort • Maße: 381x285.5x200mm • VESA: 100x100 • Ergonomie: +90°/-5° Neigung • Extras: Multi-Touch • Herstellergarantie: drei Jahre nach Registrierung
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 2.4 mm |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 450 cd/m² |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 405 cd/m² |
| Response time | 25 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Response time (fast) | 25 ms |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Digital horizontal frequency | 30 - 84 kHz |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 7H |
| Colour depth | 6 bit |
| Colour gamut | 90% |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 90 - 5° |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| VESA mounting | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Second display effective viewing area | 344.2 x 193.6 mm |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Brightness | 405 cd/m² |
| Packaging content | AC adapter |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 3.4 kg |
| Height | 285.5 mm |
| Width | 381 mm |
| Depth | 200 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| AC adapter included | |
| Packaging content | |

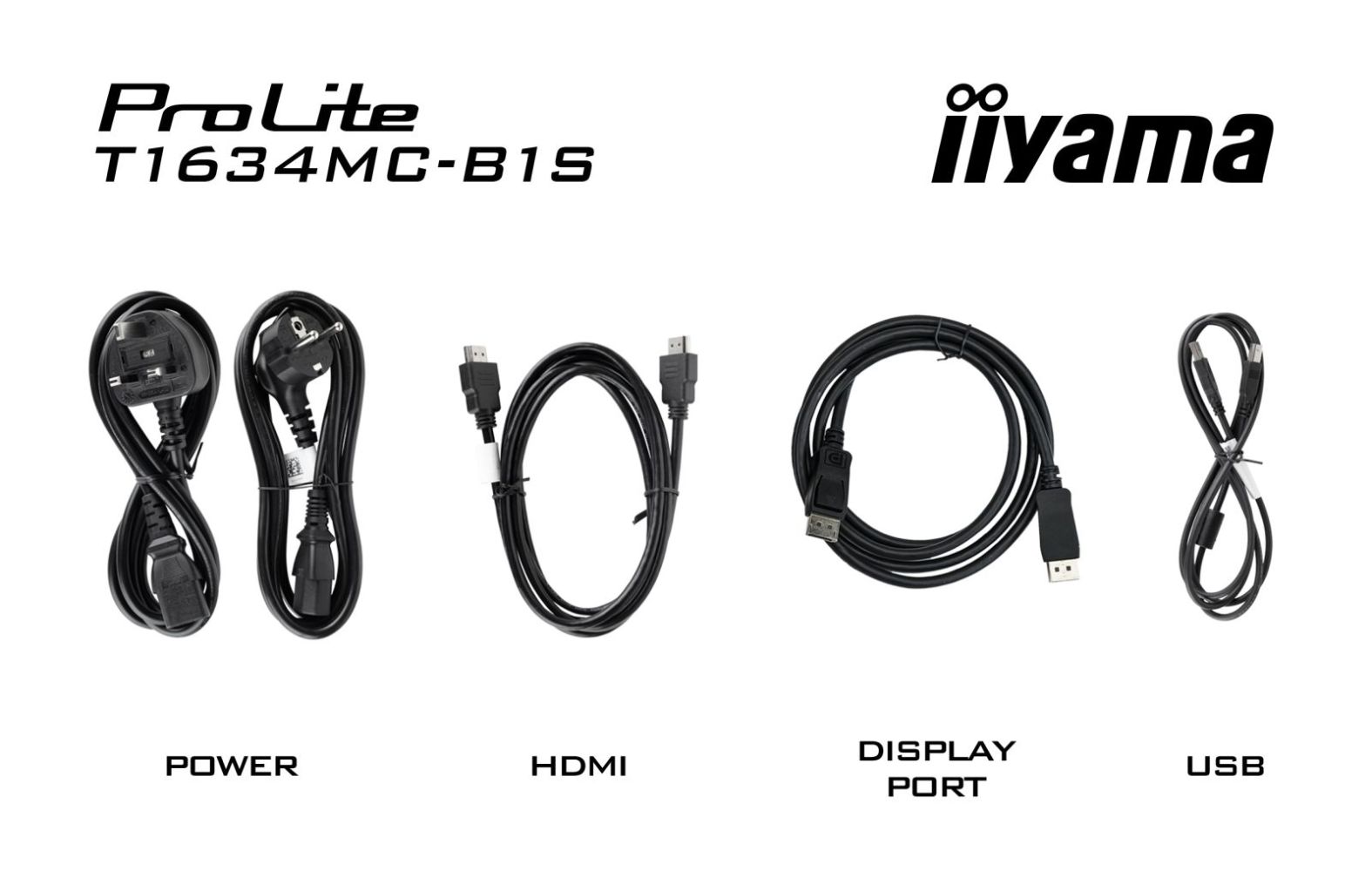

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | |
| Packaging data | |
| Package width | 445 mm |
| Package depth | 150 mm |
| Package height | 355 mm |
| Package weight | 5.18 kg |
| Performance | |
| Palm rejection | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.1 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 381 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 285.5 mm |
| Weight (with stand) | 3.4 kg |
