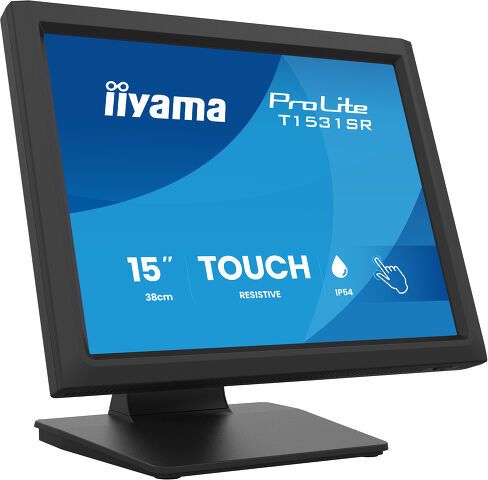

IIYAMA T1531SR-B2S 15inch Resistive Touch VA-panel 1024x768 Speakers VGA DisplayPort HDMI 300cd/m2 with touch USB Interface
|
332,63 EUR |
|
|
( 395,83 EUR incl. VAT ) ≈ £279.41 | ≈ $373.21 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 18. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2141219 |
| Mfg Part No: | T1531SR-B2S |
| UPC/EAN: | 4948570127665 |
| Weight: | 5.9 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama T1531SR-B2S:
• Sichtbare Bildschirmdiagonale: 38,1 cm ( 15 inch )/38,0cm • Auflösung: 1024x768 @ 75Hz • Helligkeit: 270cd/m² • Kontrast: 2500:1 • Touch: Seriell Resistiv • Touch-Oberfläche: USB • Reaktionszeit: 18ms • Blickwinkel: 88°/88° • Panel: VA • Anschlüsse: 1x VGA, 1x HDMI, 1x DisplayPort • USB-Hub: N/A • Ergonomie: +90°/-5° Neigen • VESA: 100x100 • Audio: 2x1W • Maße: 351x306,5x200mm • Farbe: Schwarz
| Design | |
| Market positioning | Industrial |
| Product colour | Black |
| Front bezel colour | Black |
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Panel type | VA |
| Touchscreen type | Tabletop |
| Touchscreen technology | Resistive |
| Number of simultaneous touchpoints | 1 |
| Display brightness | 270 cd/m² |
| Response time | 18 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 2500:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| VESA mounting | |
| Wall mountable | |
| Cable management | |
| Cable lock slot | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IP54 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Brightness | 270 cd/m² |
| Packaging content | Screwdriver |
| Active display area (W x H) | 304 x 228 mm |
| Touch method | stylus, finger, glove, glove (latex) |
| Weight | 4.1 kg |
| Height | 306.5 mm |
| Width | 351 mm |
| Depth | 200 mm |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE, EAC, VCCI-B, RoHS podrška, ErP, WEEE, cULus, REACH, UKCA |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Audio cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Quick start guide | |
| Packaging data | |
| Package width | 425 mm |
| Package depth | 160 mm |
| Package height | 410 mm |
| Package weight | 5.9 kg |
| USB cable length | 1.8 m |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| HDMI | |
| Audio input | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 75 Hz |
| Weight & dimensions | |
| Width (with stand) | 351 mm |
| Depth (with stand) | 200 mm |
| Height (with stand) | 306.5 mm |
| Weight (with stand) | 4.1 kg |
