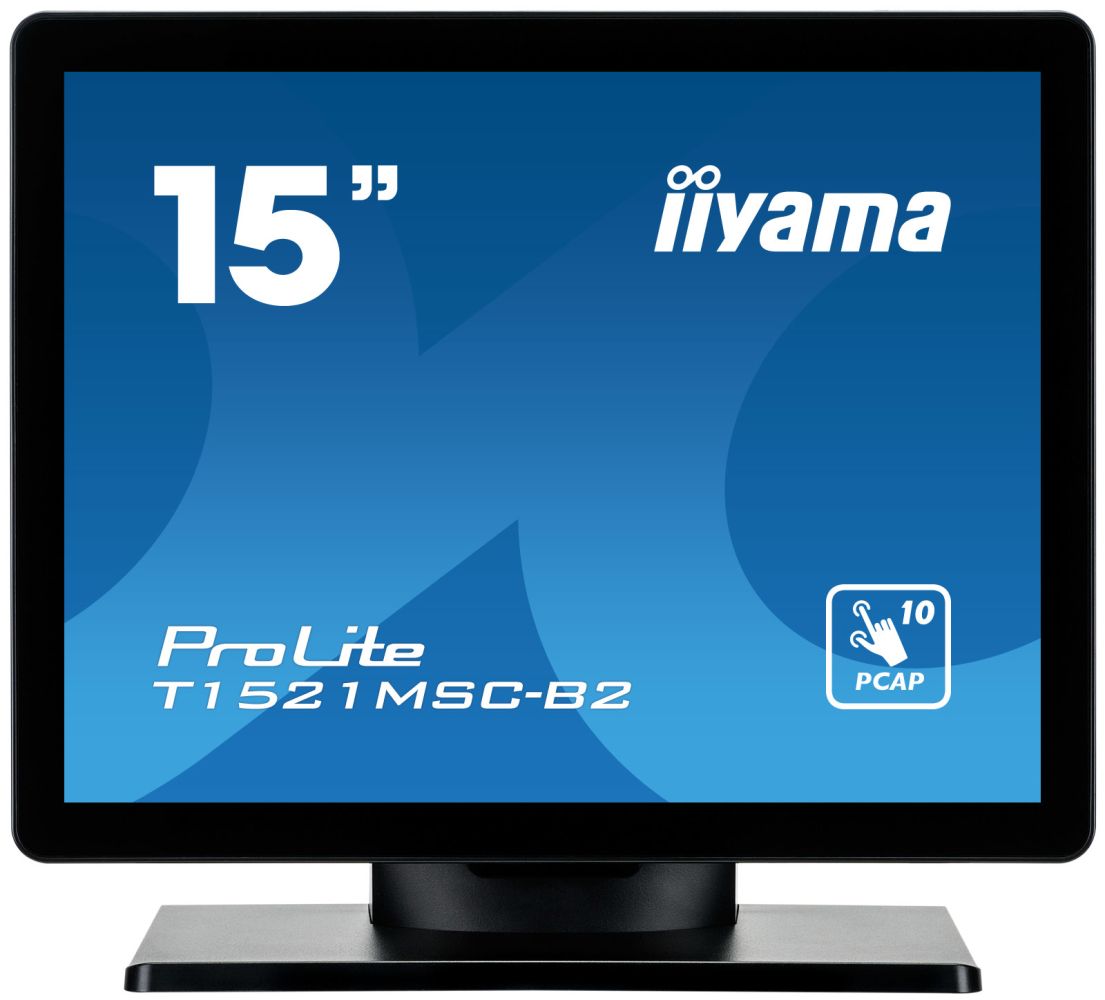

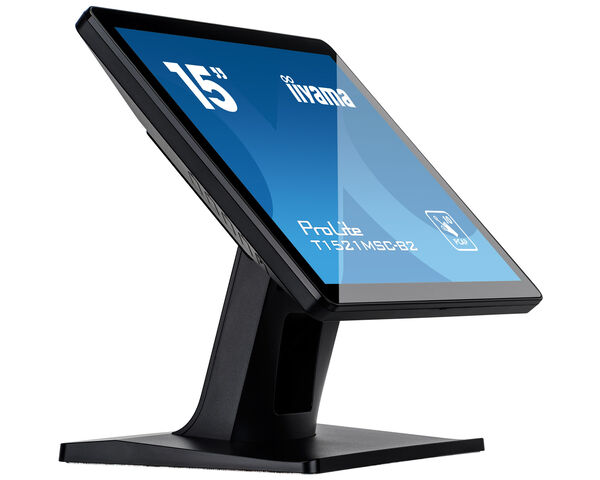

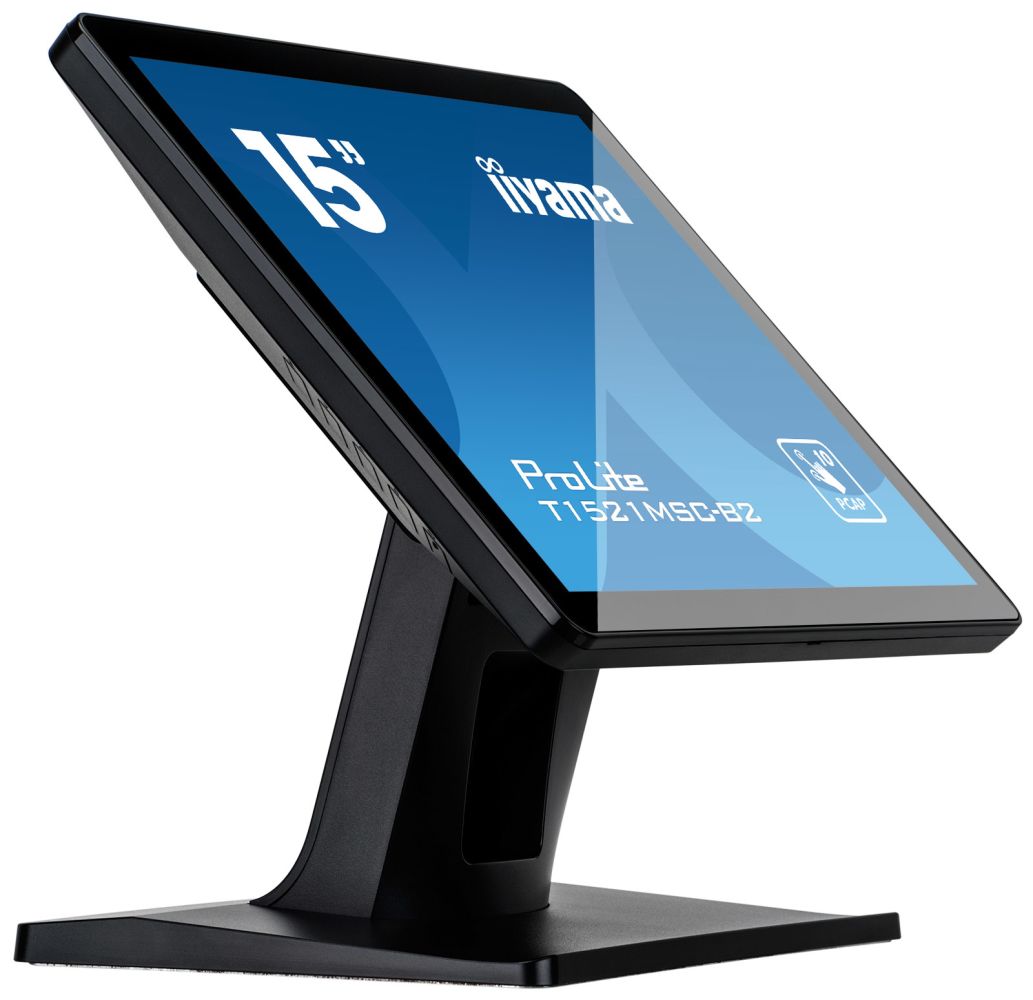

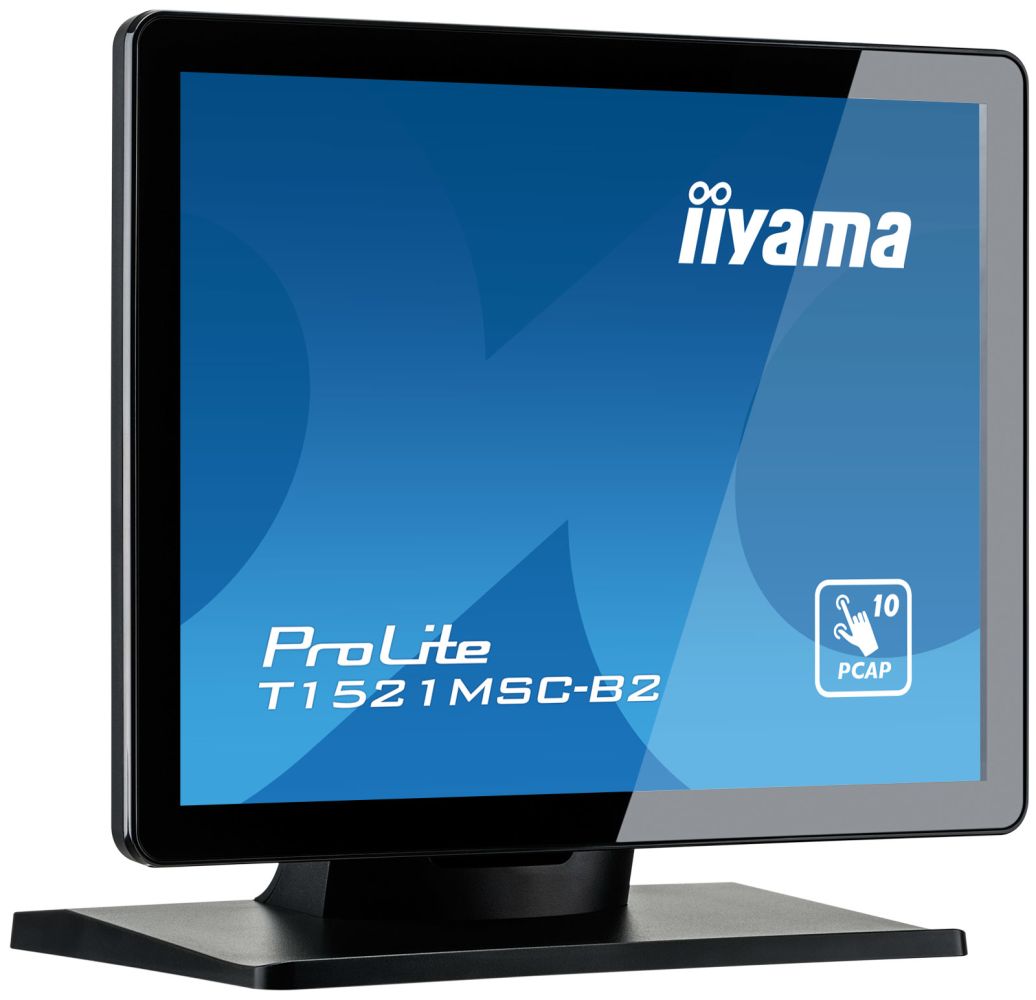

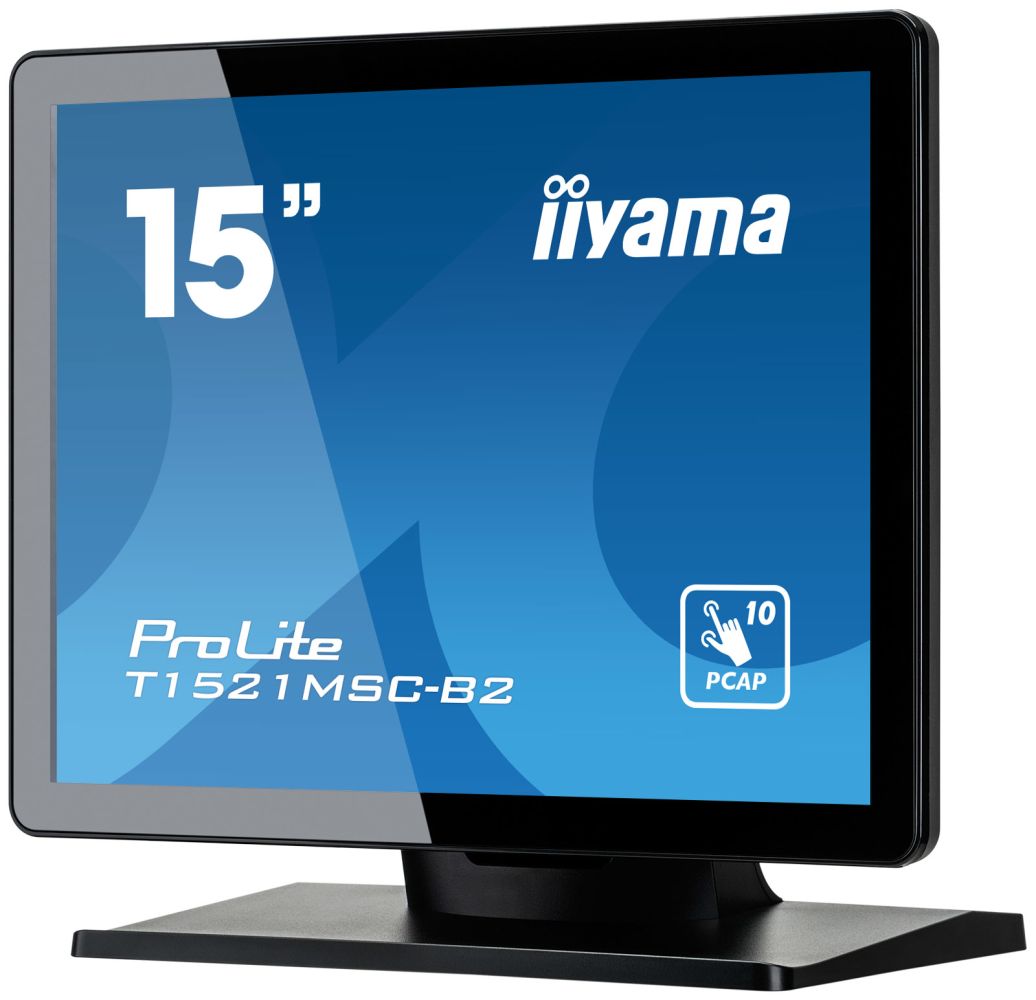

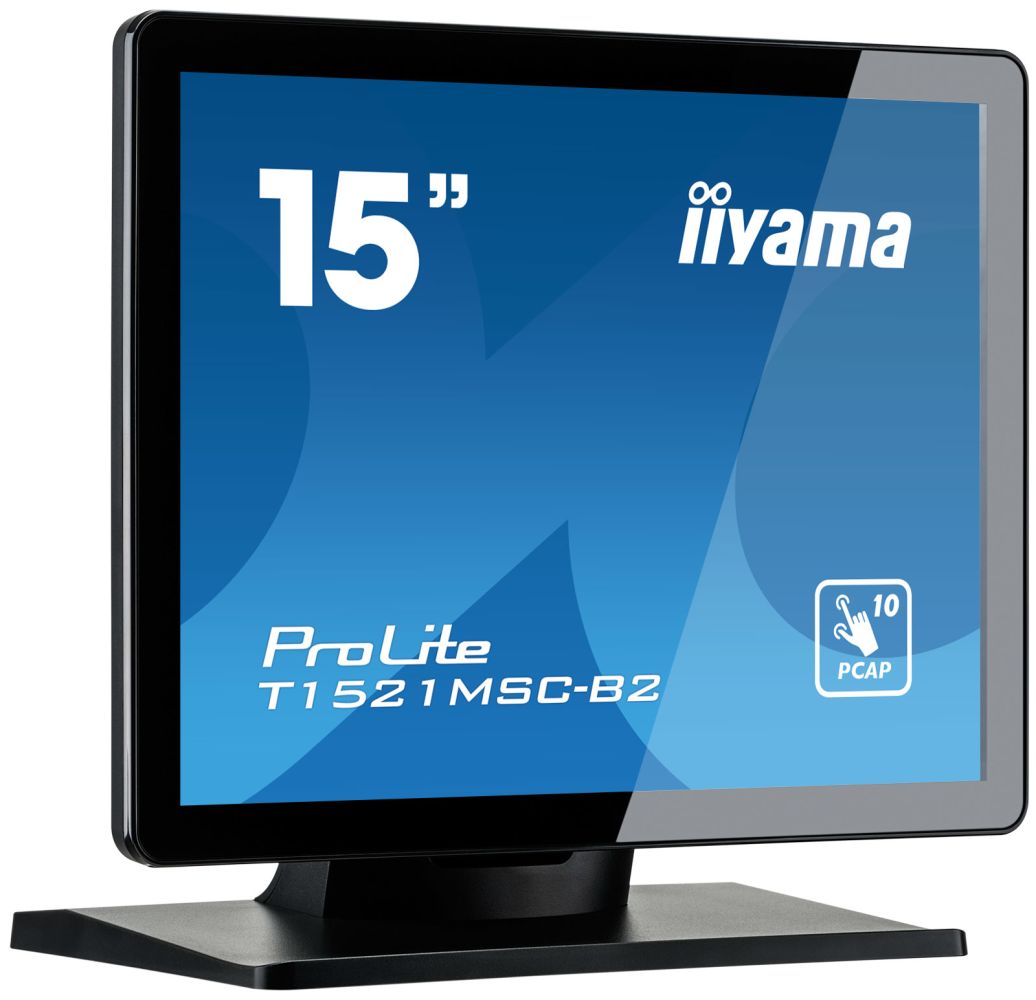

Iiyama T1521MSC-B2 38.0 cm (15") 4:3 M-Touch VGA+HDMI retail
|
-12% 299,48 EUR 340,74 EUR |
|
|
( 356,38 EUR incl. VAT ) ≈ £251.56 | ≈ $336.02 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 25. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2217698 |
| Mfg Part No: | T1521MSC-B2 |
| UPC/EAN: | 4948570120642 |
| Weight: | 5.02 kg |
| Type: | MNTR |
Further TouchScreen LCD from IiyamaFurther products in category TouchScreen LCD
All products of Iiyama
Product information for Iiyama T1521MSC-B2:
• Diagonale: 38,1 cm ( 15 inch )/38.0cm • Auflösung: 1024x768, 4:3 • Helligkeit: 325cd/m² • Kontrast: 800:1 • Reaktionszeit: 8ms • Blickwinkel: 170°/160° • Panel: TN • Bildwiederholfrequenz: 60Hz • Anschlüsse: 1x VGA • Weitere Anschlüsse: N/A • Touchscreen: kapazitiv, Multi-Touch, USB • Ergonomie: +70°/-10° • VESA: 75x75 (belegt) • Leistungsaufnahme: 20W (typisch) 0.5W (Standby) • Abmessungen (BxHxT): 340x308x198mm
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Glass thickness | 1.2 mm |
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Backlight type | LED |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 370 cd/m² |
| Display brightness (typical) | 370 cd/m² |
| Display brightness | 325 cd/m² |
| Response time | 8 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38 cm |
| Surface hardness | 7H |
| Touchscreen | |
| DDC/CI | |
| Ergonomics | |

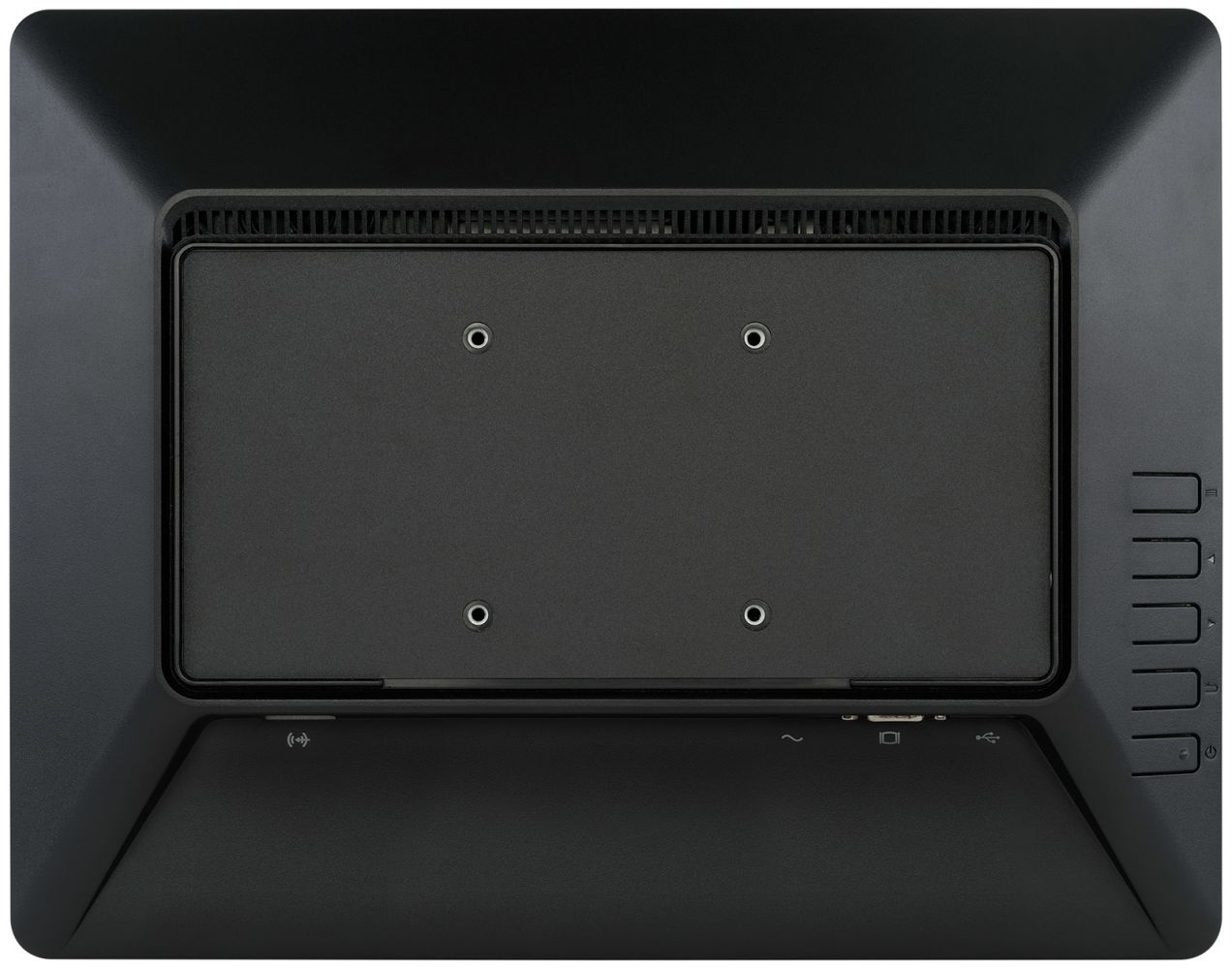

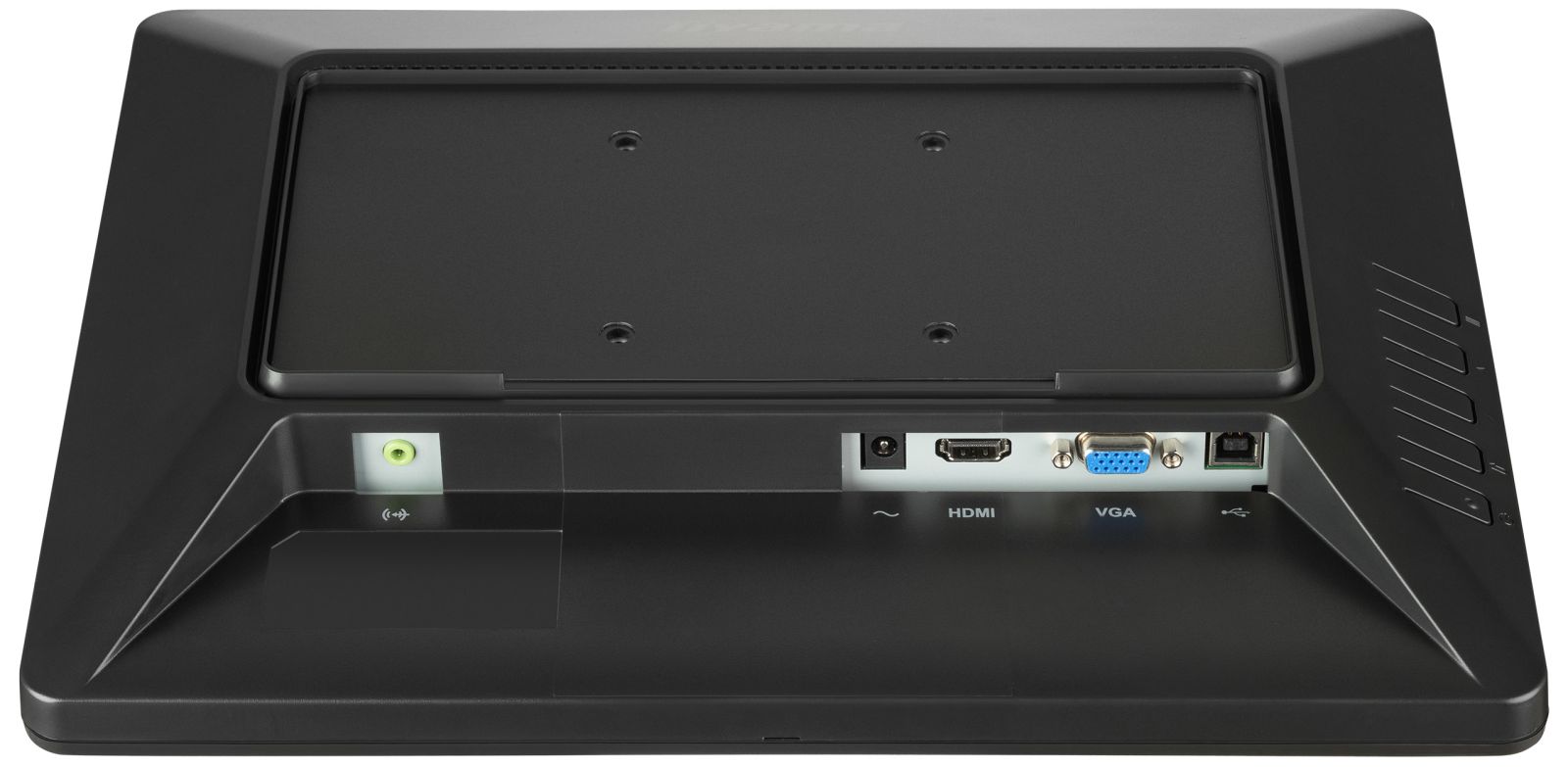

| Panel mounting interface | 75 x 75 mm |

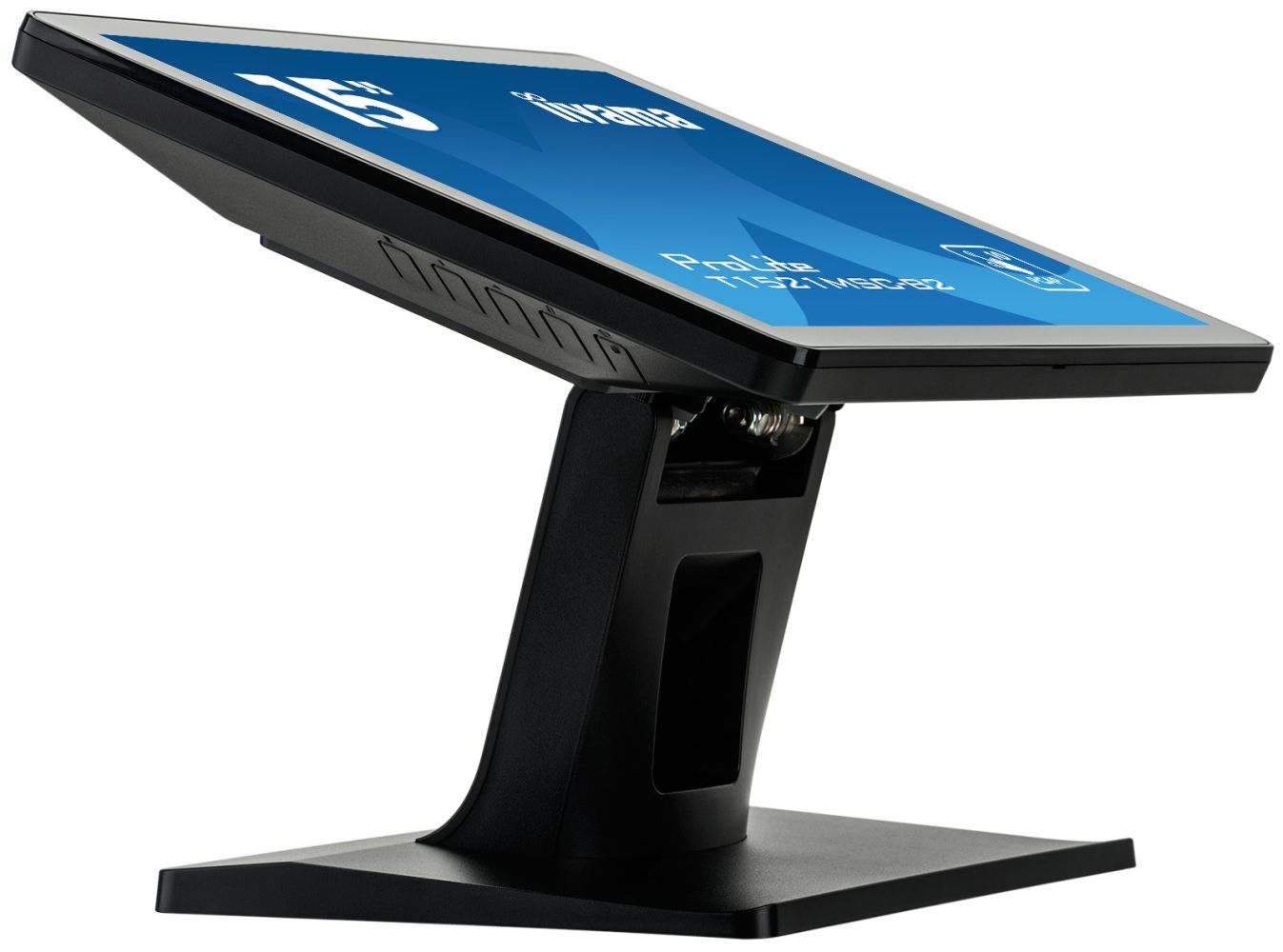

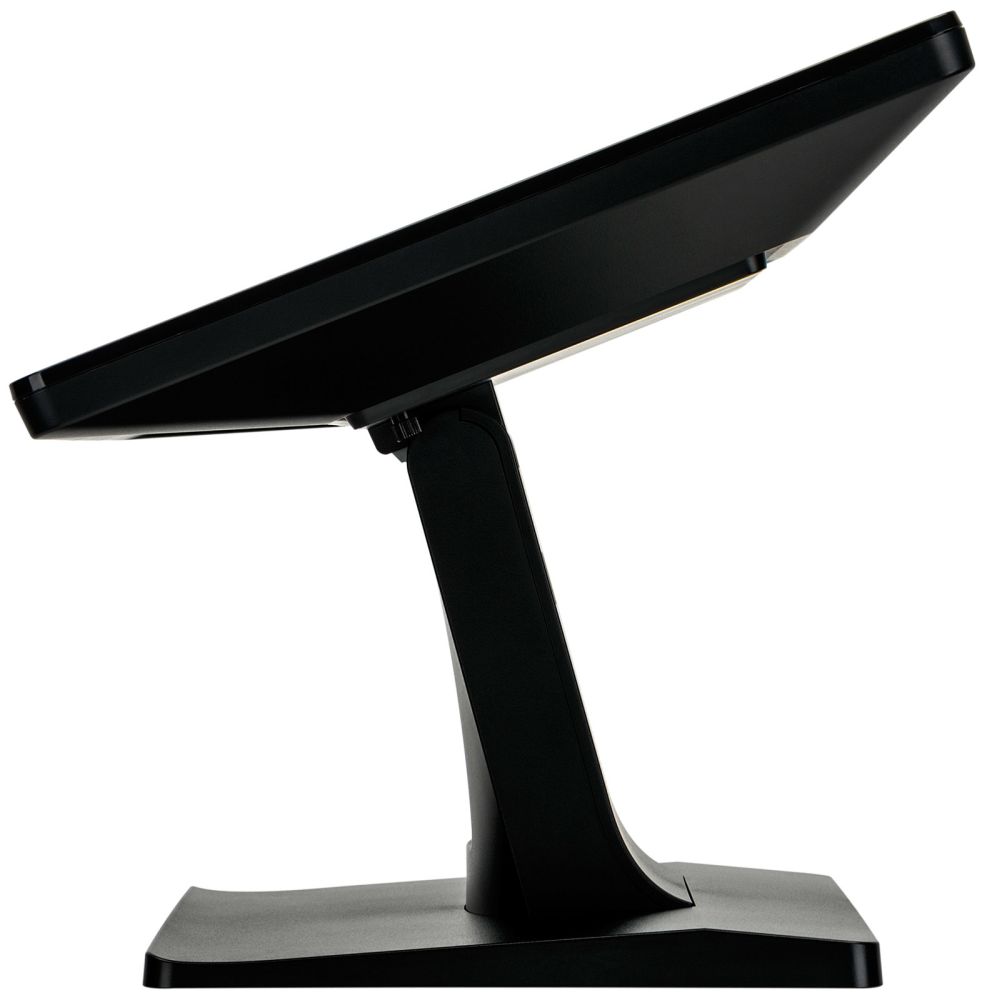

| Tilt angle range | 10 - 70° |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Russian |
| Number of OSD languages | 8 |
| VESA mounting | |
| Cable management | |
| Tilt adjustment | |
| On Screen Display (OSD) | |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | |
| Built-in camera | |
| Other features | |
| International Protection (IP) code | IPX3 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| User controls | picture (backlight, brightness, contrast, sharpness), display (auto adjustment, H position, V position, pixel clock, phase), color (color temp, picture mode), input, audio (volume, mute), other (reset, OSD time, OSD H position, OSD V position, language), information |
| Brightness | 325 cd/m² |

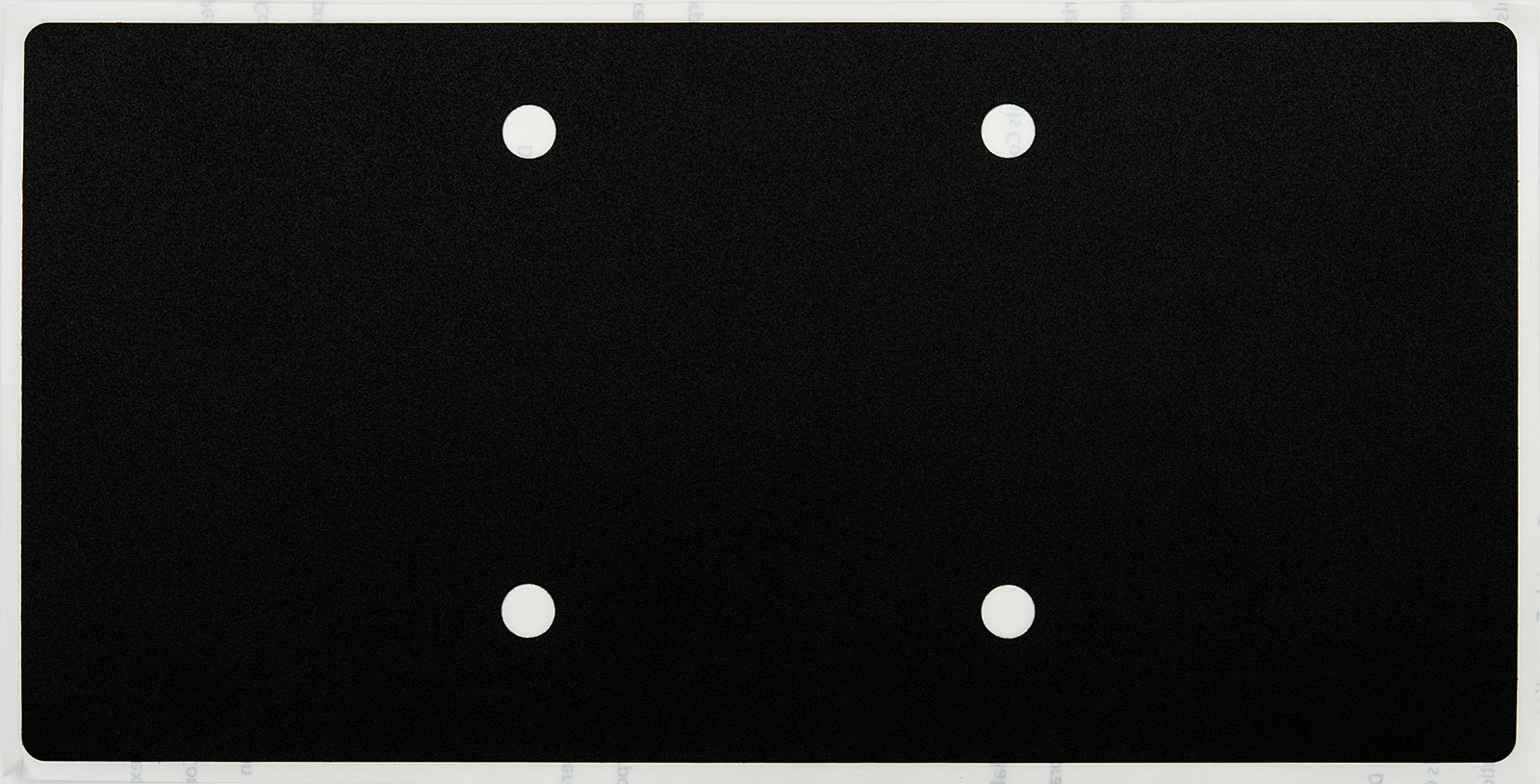

| Packaging content | AC adapter, mylar sheet (for VESA mount) |
| Active display area (W x H) | 304 x 228 mm |
| Touch method | stylus, finger, glove (latex) |
| Weight | 3.5 kg |
| Height | 308 mm |
| Width | 340.5 mm |
| Depth | 198 mm |
| Control panel | Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| AC adapter included | |
| Packaging content | |

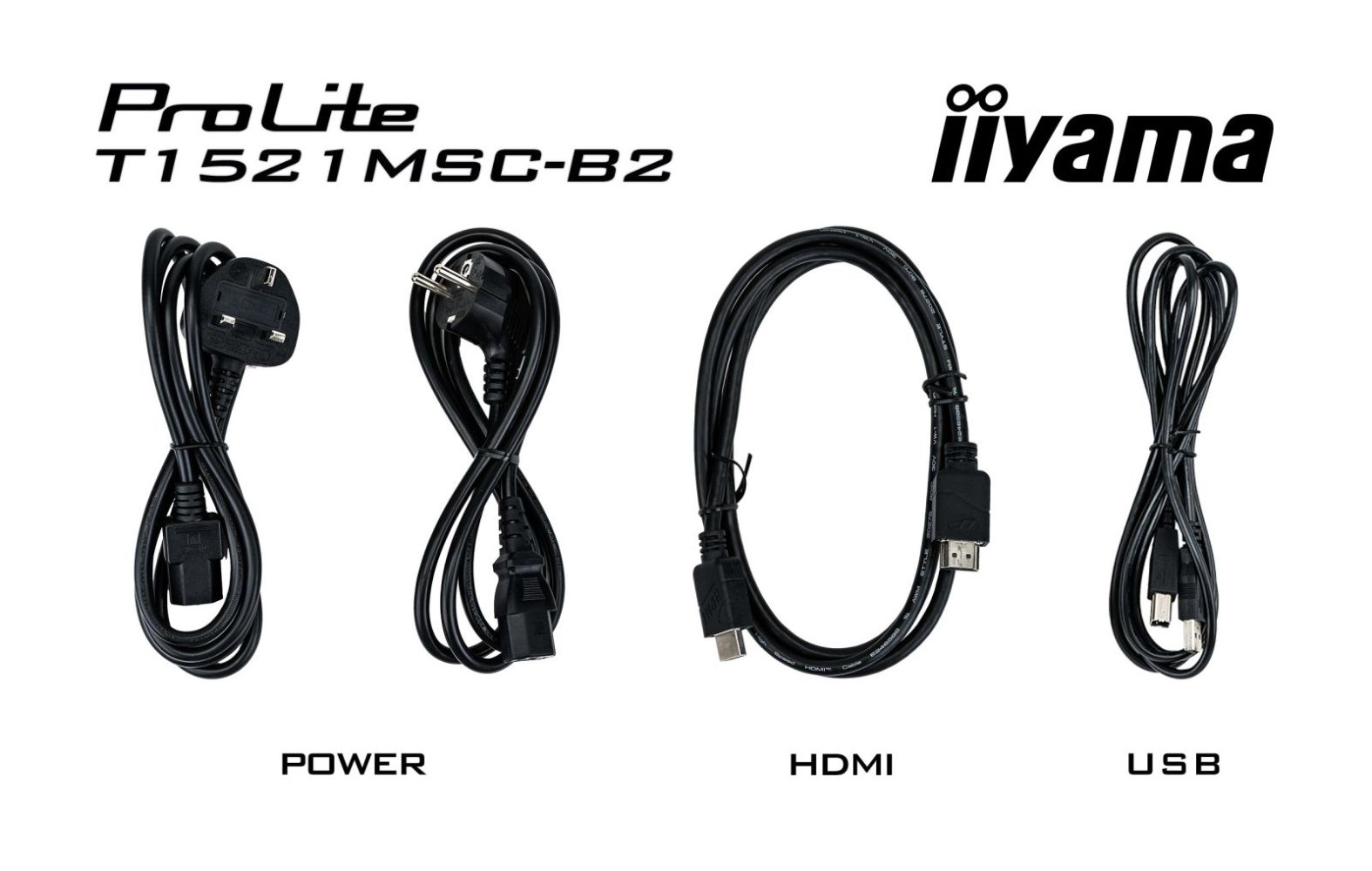

| Cables included | AC, USB, HDMI |
| Stand included | |
| Power adapter included | |
| Quick start guide | |
| Manual | |
| Performance | |
| NVIDIA G-SYNC | |
| AMD FreeSync | |

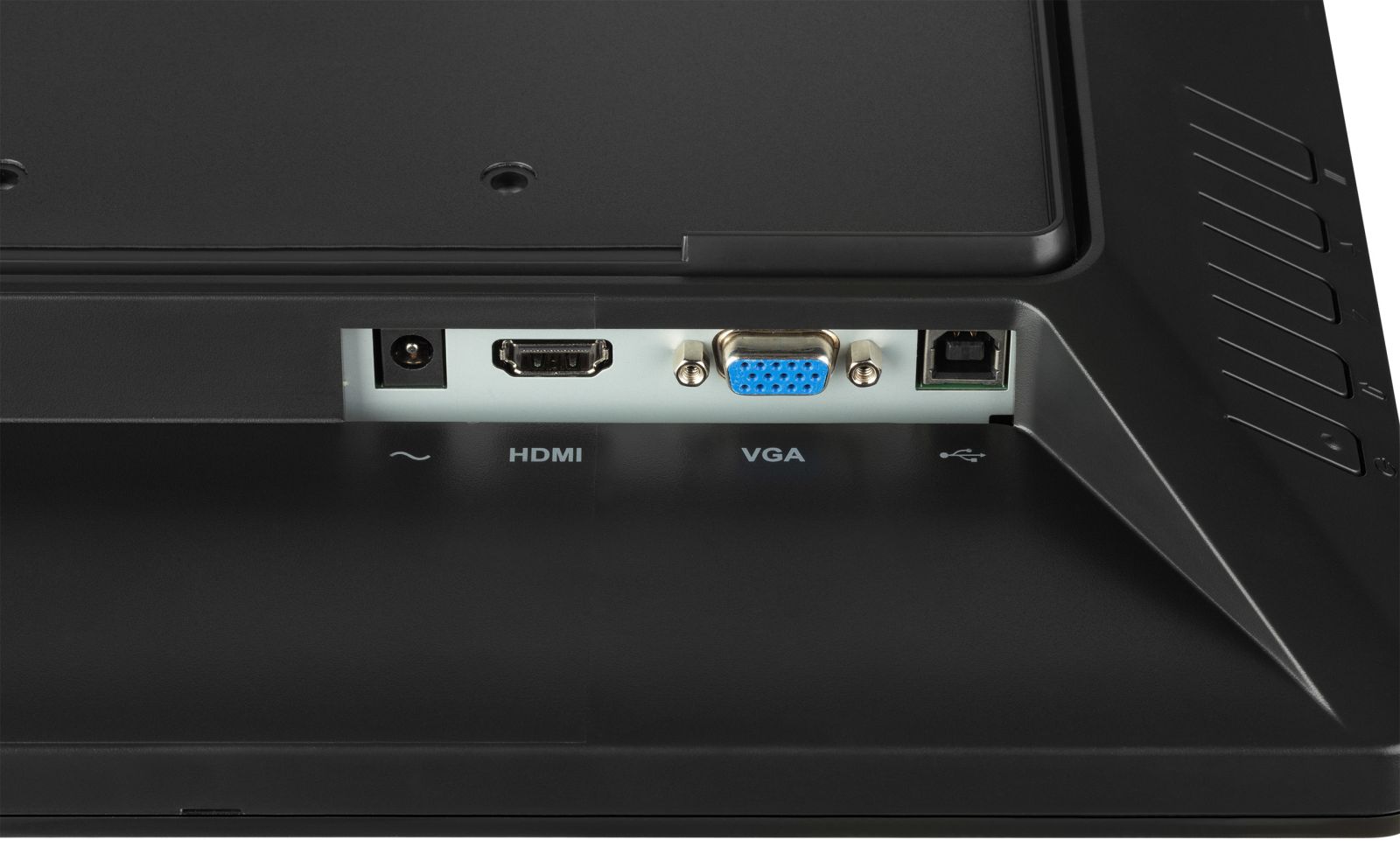

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Built-in USB hub | |
| USB Touch port | |
| HDMI | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.5 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Sustainability compliance | |
| Weight & dimensions | |
| Width (with stand) | 340.5 mm |
| Depth (with stand) | 198 mm |
| Height (with stand) | 308 mm |
| Weight (with stand) | 3.5 kg |
