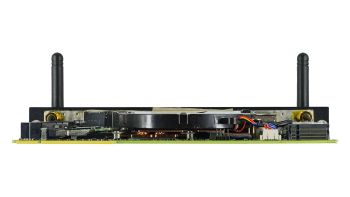

IIYAMA SDM31201BC-1L SDM-L Slot PC-Module Intel Core i3-1220P Intel UHD Graphics / 8GB DDR4 Memory M2 256GB SSD WiFi W11IOTE
|
510,72 EUR 524,40 EUR |
|
|
( 607,76 EUR incl. VAT ) ≈ £427.47 | ≈ $569.45 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 22. Oct 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 225891 |
| Mfg Part No: | SDM31201BC-1L |
| UPC/EAN: | 4948570033348 |
| Weight: | 0 kg |
| Type: | SYST |
Product information for Iiyama SDM31201BC-1L:
| Audio | |
| Audio system | High Definition Audio |
| Design | |
| Chassis type | Mini PC |
| Product colour | Black |
| Display | |
| Display included | |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card | |
| On-board graphics card | |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Network | |
| Ethernet LAN data rates | 100,10,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 610 g |
| Performance | |
| Product type | Mini PC |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | |
| Power | |
| Power consumption (typical) | 72 W |
| Power consumption (standby) | 0.5 W |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 12th gen Intel® Core™ i3 |
| Processor model | i3-1220P |
| Processor cores | 10 |
| Processor threads | 12 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 IoT Enterprise |
| Compatible operating systems | Windows 11 loT Enterprise (SAC) 64Bit |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| Optical drive type | |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 195 mm |
| Height | 25 mm |
| Weight | 400 g |
