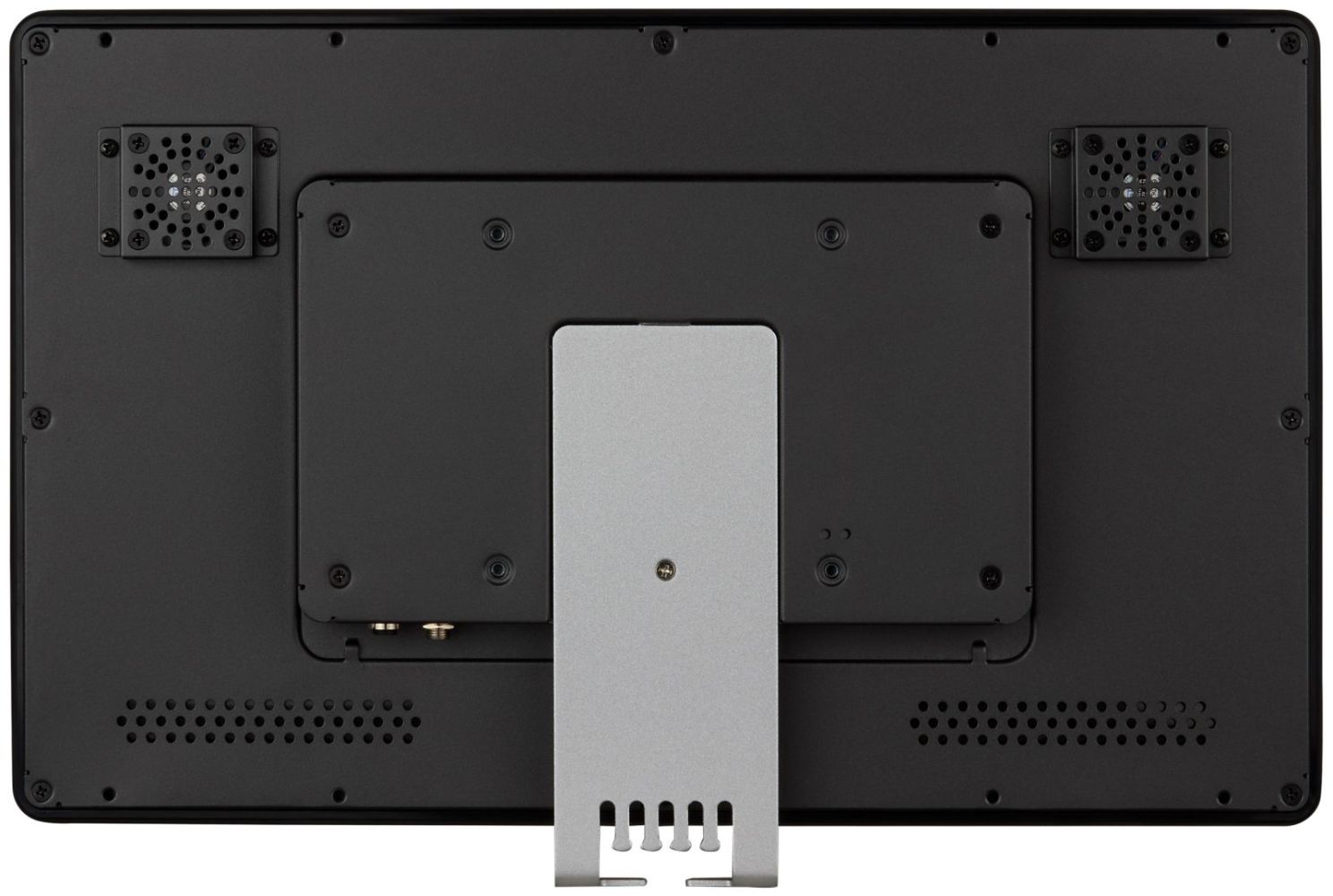

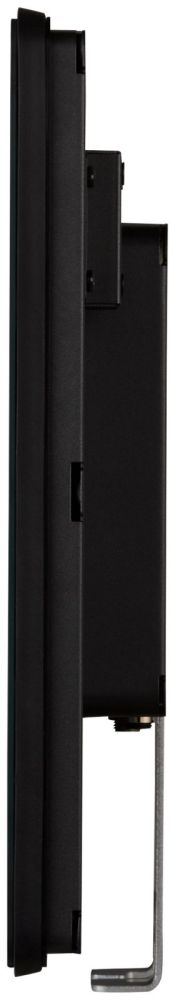

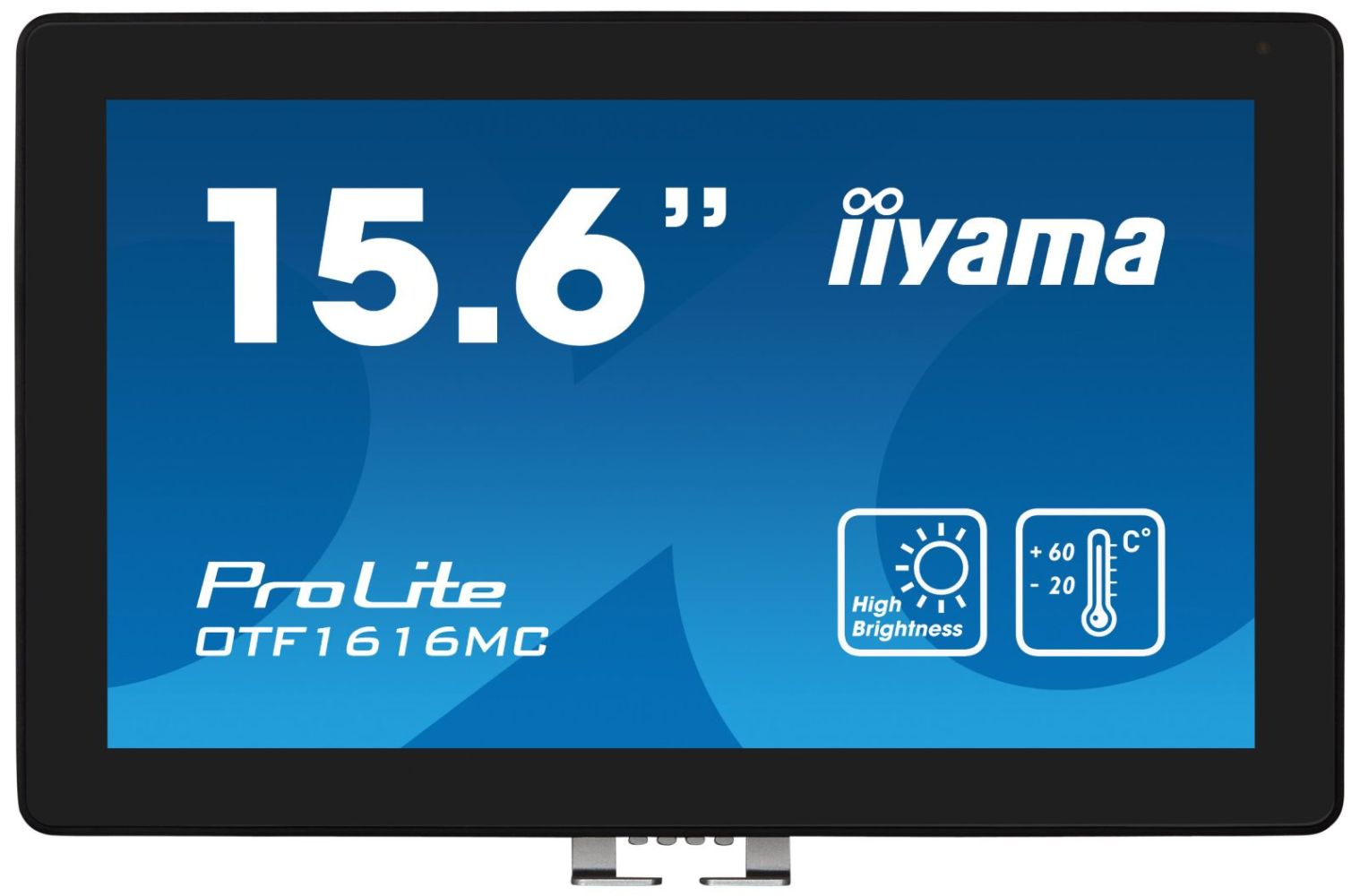

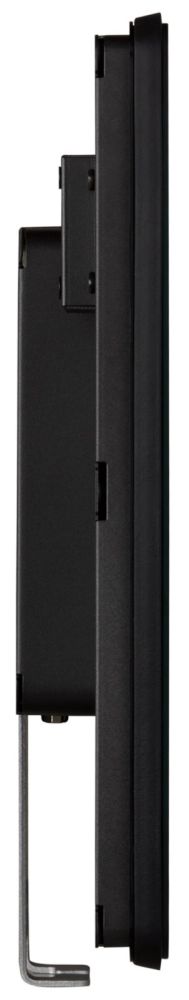

IIYAMA OTF1616MC-B1 15.6inch PCAP Bezel Free 10P Touch 1920x1080 UV-filter+AF+AG coating DisplayPort HDMI VGA 935cd/m2 with touch
|
775,32 EUR 782,72 EUR |
|
|
( 922,63 EUR incl. VAT ) ≈ £649.72 | ≈ $870.68 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1166928 |
| Mfg Part No: | OTF1616MC-B1 |
| UPC/EAN: | 4948570123742 |
| Weight: | 5.66 kg |
| Type: | MNTR |
Product information for Iiyama OTF1616MC-B1:
• Bild: 39,6 cm ( 15,6 inch )/39,5cm, 1920x1080, 16:9 • Kontrast: 800:1 (statisch) • Reaktion: 25ms • Helligkeit: 935cd/m² mit Touch Panel • Anschlüsse: 1x VGA, 1x HDMI 1x DisplayPort, 1x RJ45 • Maße: 398,5x246x42mm • VESA: 100x100 • Extras: Anti-Fingerprint-Beschichtung, Touch durch Glas, UV-Beständigkeit, Umgebungslichtsensor, Näherungssensor, automatische FAN-Steuerung für die Kühlung
| Design | |
| Market positioning | Office |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3.15 mm |
| Display | |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | VA |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 1100 cd/m² |
| Display brightness (typical) | 1100 cd/m² |
| Display brightness | 935 cd/m² |
| Response time | 25 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Horizontal scan range | 31.5 - 67.5 kHz |
| Viewable size, horizontal | 34.5 cm |
| Viewable size, vertical | 19.5 cm |
| Digital horizontal frequency | 31.5 - 67.5 kHz |
| Display diagonal (metric) | 39.5 cm |
| Surface hardness | 7H |
| Touchscreen | |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| VESA mounting | |
| On Screen Display (OSD) | |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Other features | |
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Placement supported | Indoor |
| Brightness | 935 cd/m² |

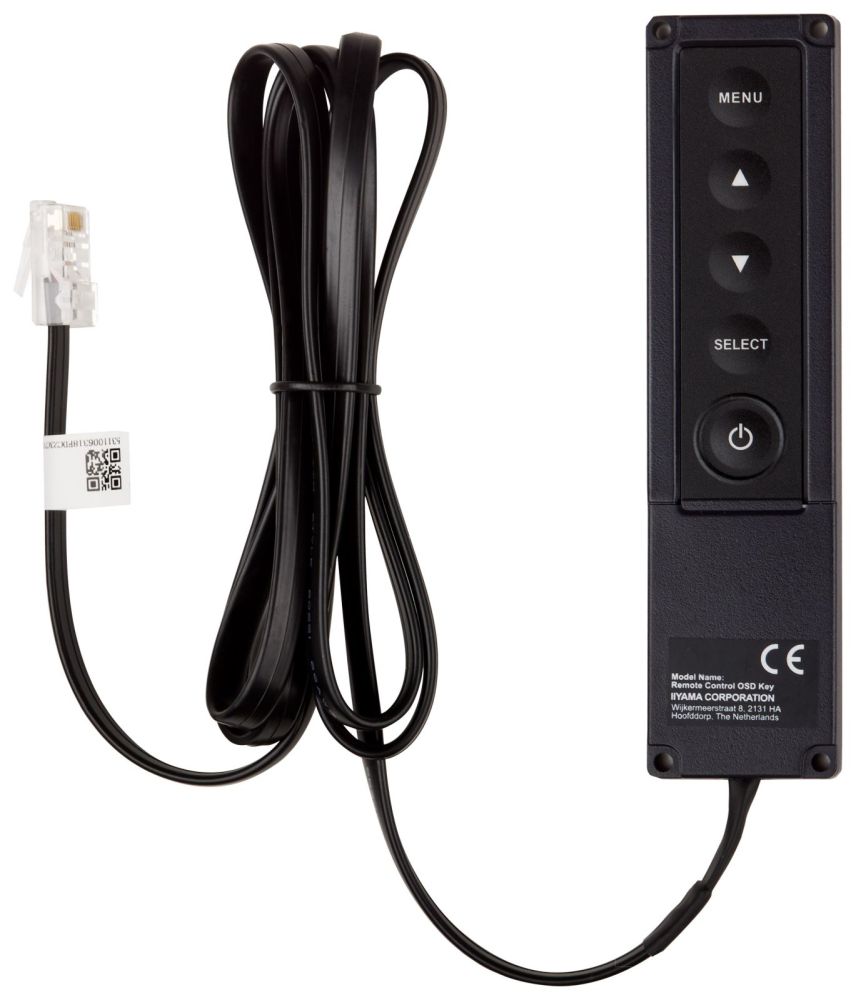

| Packaging content | AC adapter, External control pad (remote) |
| Active display area (W x H) | 345.2 x 194.6 mm |
| Weight | 3 kg |
| Height | 246 mm |
| Width | 398.5 mm |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch, factory), option (reset, language, source select, display mode, fan control, presence sensor, ambient light sensor) |
| Touch method | finger, glove (latex) |
| Depth | 42 mm |
| Control panel | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Mean time between failures (MTBF) | 60000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| AC adapter included | |
| Packaging content | |
| Cables included | AC, USB, HDMI, DisplayPort |
| Remote control included | |
| Quick start guide | |
| Packaging data | |
| Package width | 485 mm |
| Package depth | 150 mm |
| Package height | 370 mm |
| Package weight | 4.62 kg |
| Performance | |
| Palm rejection | |

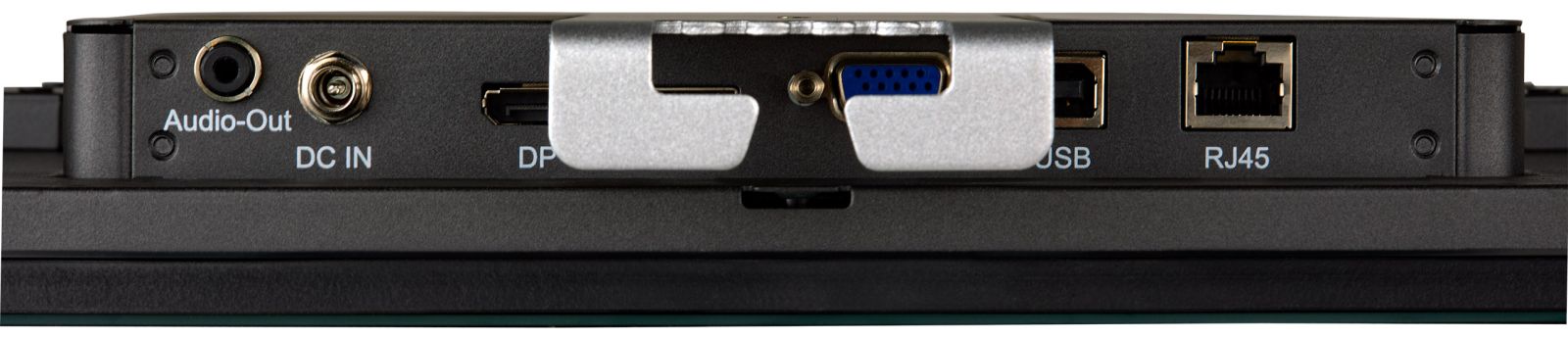

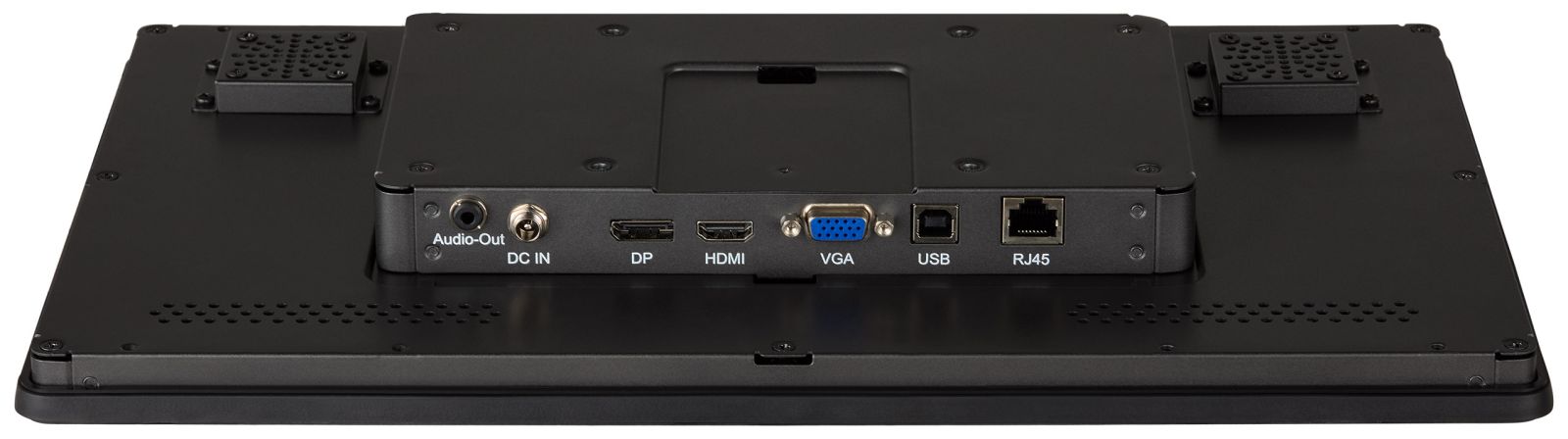

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB Touch port | |
| DVI port | |
| HDMI | |
| Headphone out | |
| HDCP | |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 10.5 kWh |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 0.6 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Sustainability | |
| Sustainability certificates | ErP |
| Technical details | |
| Native refresh rate | 60 Hz |
| Weight & dimensions | |
| Width (with stand) | 398.5 mm |
| Depth (with stand) | 42 mm |
| Height (with stand) | 246 mm |
| Weight (with stand) | 3 kg |
| Width (without stand) | 398.5 mm |
| Depth (without stand) | 42 mm |
| Height (without stand) | 246 mm |
| Weight (without stand) | 3 kg |
